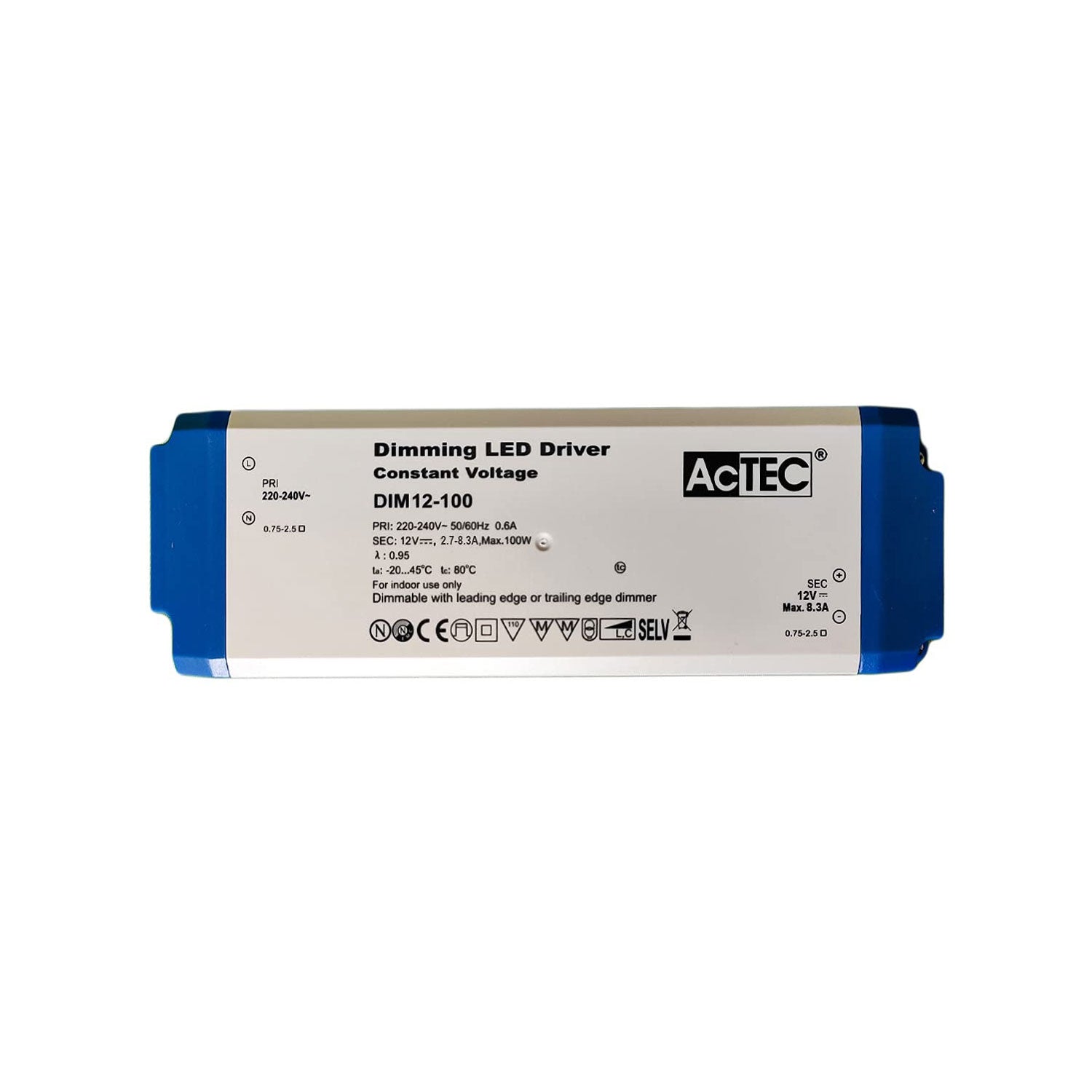

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

AcTEC DIM12-100 Triac Dimmable Driver 100W 12V with Screw Terminal 600mA

flicker-free, suitable for class I & II luminaires, protection class II

SKU:

DIM12-100

Please for Pricing

Notify me when it's back in stock

Description

Features:

Independent design
Dimmable constant voltage driver
Analogue flicker-free
Dimming with leading edge or trailing edge dimmer
Smooth dimming compatible with most dimmer
Dimming range 1…100%
Push wire connections
Protections: opencircuit, shortcircuit, overload, over temperature
SELV equivalent
Suitable for class I & II luminaires
Protection class II

General Specification

AC input voltage range

198 – 264 V

AC inrush current (max.)

10 (th = 100 μs)

Surge transient protection

1 | 2 (L/N | LN/PE acc to. EN 61547 Clause 5.7)

Over temperature

Yes

Over load

Yes

No load

Yes

Short-circuit

Yes

Ambient temperature range ta

-20 …+50°C

Safety standards

EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020

Dimension (LxWxH)

210*67*34mm (L*W*H)

Specifications

Brand

AcTEC
Series

AcTEC DIM Series
Power Rating

100 Watt
Output Voltage

12 Volt
Rated Current

0.6 Ampere
Input Voltage

220V~240V
Standards Met

EN,SELV
Operation Mode

Constant Voltage
Operating Temperature

85°C~-20°C
Warranty

5 Year
Length

21 cm
Width

6.7 cm
Height

3.4 cm
Weight

0.36 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of product is the AcTEC DIM12-100?

The AcTEC DIM12-100 is a 100W constant-voltage dimmable LED driver with a 12V output. It is designed for lighting applications that require smooth dimming and stable low-voltage power from a mains AC supply.

What dimming methods does the DIM12-100 support?

This model supports both leading-edge and trailing-edge dimmers. It is described as an analogue flicker-free driver with a 1 to 100% dimming range, which makes it suitable for applications where smooth light control is important.

Is the DIM12-100 suitable for LED strip or other 12V lighting systems?

Yes, this driver is intended for 12V constant-voltage lighting products, which commonly include LED strip and other 12V luminaires. Buyers should confirm that the connected lighting load matches the driver's 12V output and stays within its 100W power rating.

What protections are built into the AcTEC DIM12-100?

The DIM12-100 includes protection against open circuit, short circuit, overload, and over-temperature conditions. It also supports no-load operation, helping protect the driver in a wider range of operating scenarios.

What input voltage range does this LED driver accept?

This model accepts an AC input voltage range of 198 to 264V. That makes it suitable for installations using standard mains power within that range.

Can the DIM12-100 be used in demanding indoor environments?

It is rated for an ambient temperature range of -20 to +50°C, which supports use in a wide range of indoor commercial and architectural lighting environments. Buyers should still ensure the surrounding conditions stay within that stated operating range.

What are the physical size and warranty of the DIM12-100?

The driver measures 210 x 67 x 34 mm and weighs 0.36 kg. AcTEC lists this model with a 5-year warranty, which is useful for buyers planning longer-term lighting projects.

Model	Power	Voltage	Current	IP Rating
AcTEC DIM24-50 Triac Dimmable Driver 50W 24V with Screw Terminal 310mA	50W	24V	0.31A	IP20	View
AcTEC DIM24-100 Triac Dimmable Driver 100W 24V with Screw Terminal 600mA	100W	24V	0.6A	IP20	View
AcTEC DIM24-150 Triac Dimmable Driver 150W 24V with Screw Terminal 900mA	150W	24V	0.9A	IP20	View
AcTEC DIM24-25 Triac Dimmable Driver 25W 24V with Screw Terminal 160mA	25W	24V	0.16A	IP20	View
AcTEC DIM12-50 Triac Dimmable Driver 50W 12V with Screw Terminal 310mA	50W	12V	0.31A	IP20	View
AcTEC DIM12-25 Triac Dimmable Driver 25W 12V with Screw Terminal 160mA	25W	12V	0.16A	IP20	View
