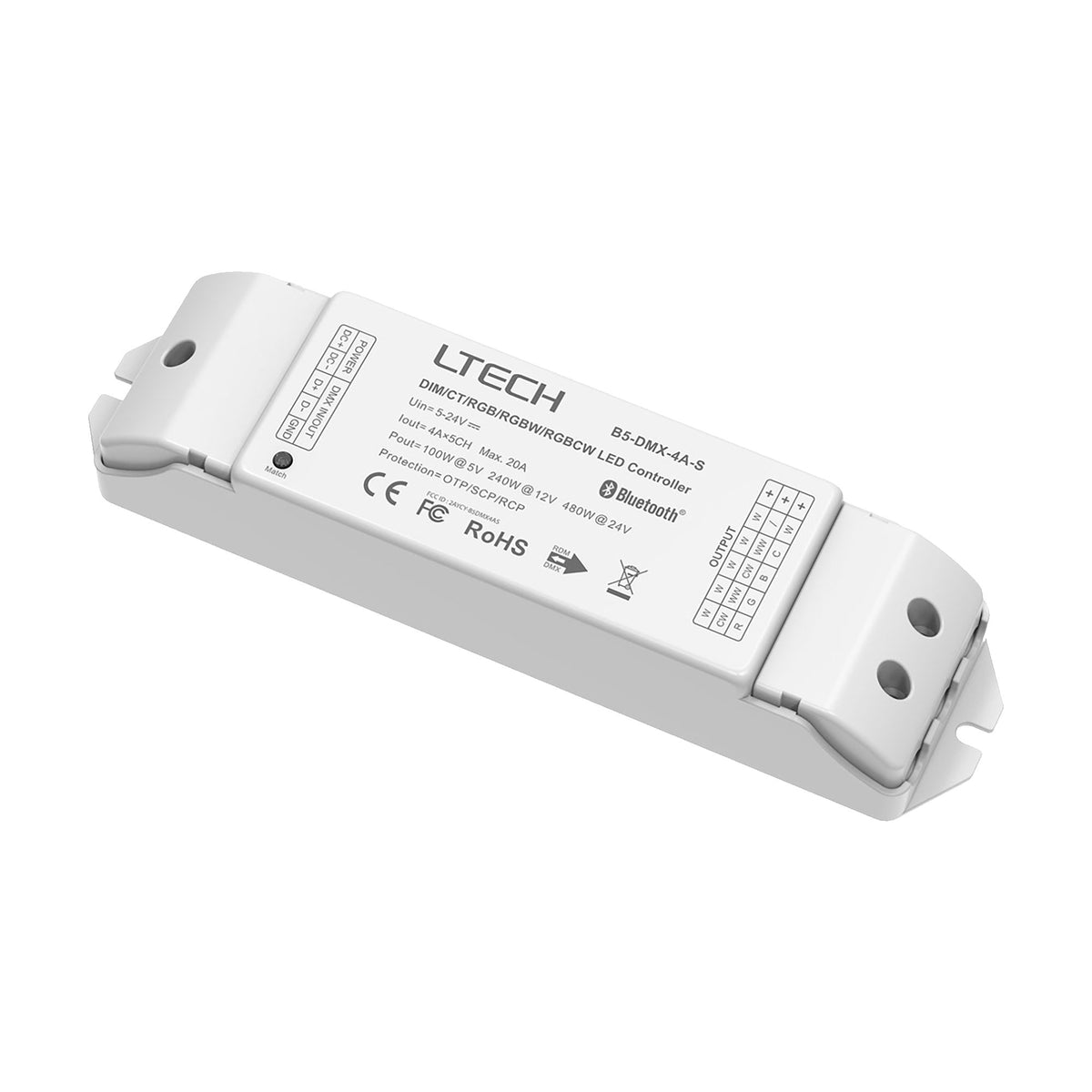

Ltech DMX/Bluetooth Constant Voltage Controller

for UB1-UB5 bluetooth panel4A*5channel5-24Vdirect control with phone app

SKU B5-DMX-4A-S

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The B5-DMX-4A-S supports DIM, CCT/tunable white, RGB, RGBW, and RGBWY constant-voltage lighting. That makes it suitable for a wide range of commercial and architectural LED control applications using one controller model.

Input 5~24VDC. 5 channels at 4A each. Operating temperature -20~+55°C. Backed by a 2 year warranty.

Key Features

✓Input voltage: 5~24VDC
✓Control protocol: Bluetooth, DMX
✓Output channels: 4A - 5 Channel
✓Maximum load: 4A per channel
✓Maximum total load: 480W
✓Operating temperature: -20~+55°C
✓Certifications: CE, FCC, ROHS
✓Dimensions: 175 x 44 x 30mm
✓2 year warranty

Frequently Asked Questions

What types of LED lighting can the B5-DMX-4A-S control?

Does this controller support both Bluetooth and DMX control?

Yes. This model combines Bluetooth 5.0 SIG Mesh wireless control with DMX512/RDM capability, giving buyers flexibility for app-based control and integration into DMX-based lighting systems. It is designed for projects that need both wireless convenience and professional control options.

What is the maximum power output of the B5-DMX-4A-S?

The controller accepts 5-24VDC input and supports up to 480W maximum output power. It is rated for 4A x 5 channels or 5A x 4 channels, with a 20A maximum total output.

What kinds of projects is this controller best suited for?

This controller is a good fit for residential and commercial constant-voltage LED lighting projects that need flexible control methods and support for multiple lighting types. Its compact size, mesh networking capability, and DMX/RDM support make it well suited for professional lighting environments.

Can the B5-DMX-4A-S be used in demanding environmental conditions?

It is rated for operation from -20°C to 55°C, which supports use in a broad range of indoor lighting environments. The housing uses V0 flame-retardant PC material, and the unit includes short circuit, overcurrent, overheat, and anti-reverse protection features for added reliability.

What control options are available besides a mobile app?

In addition to iOS and Android app control, the B5-DMX-4A-S can be controlled through an intelligent wireless switch or an LTECH Super Panel. It also supports cloud scenes, automation, and grouping functions for more advanced lighting management.

How compact is the B5-DMX-4A-S for panel or enclosure space planning?

This model has a compact form factor at 175 x 44 x 30 mm and weighs 130 g. Its small size helps when specifying controllers for projects where space efficiency matters.

What warranty comes with this controller?

The B5-DMX-4A-S includes a 2-year warranty. This can be useful for buyers comparing controller options for long-term commercial or project-based use.
