Ltech

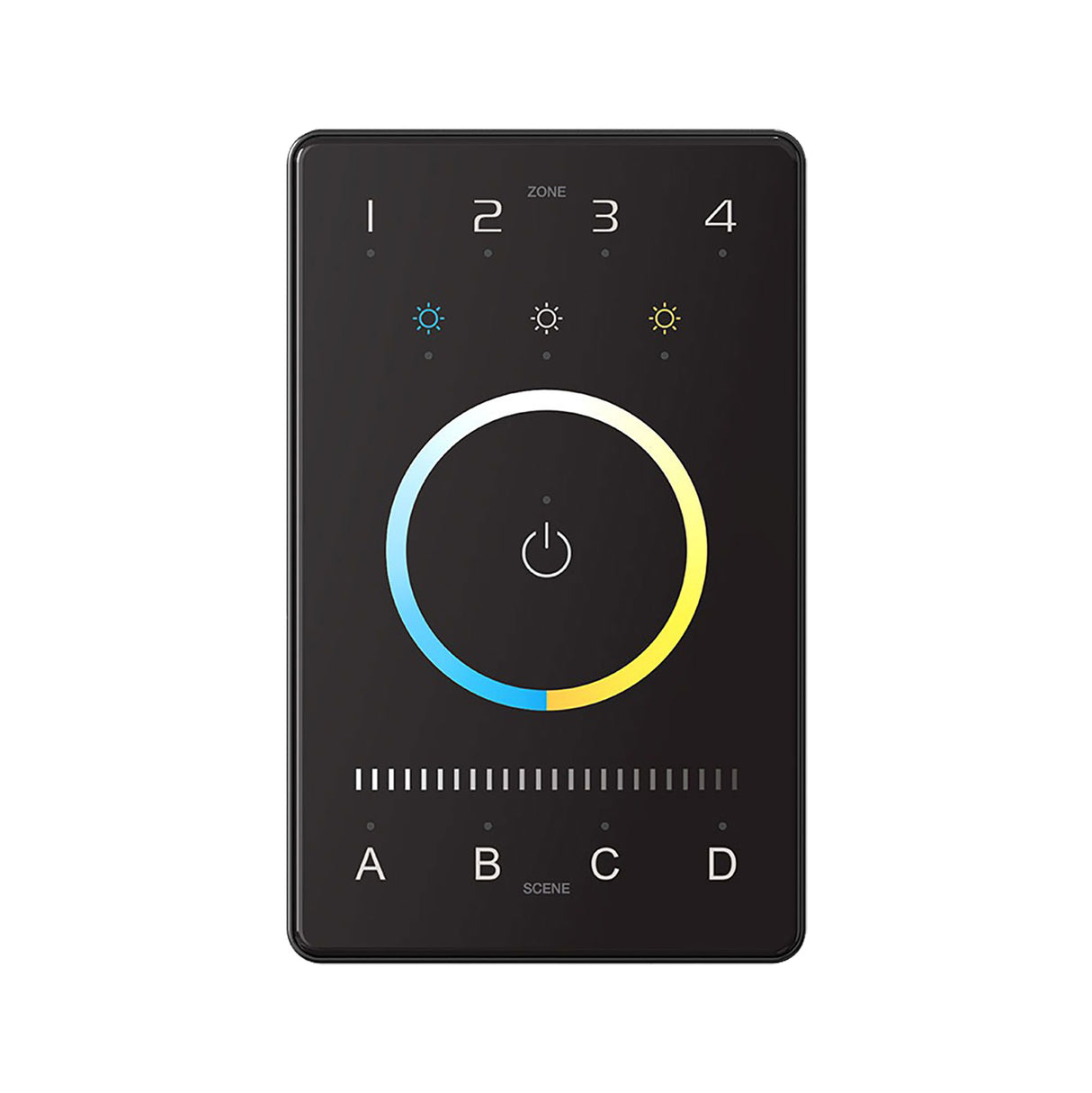

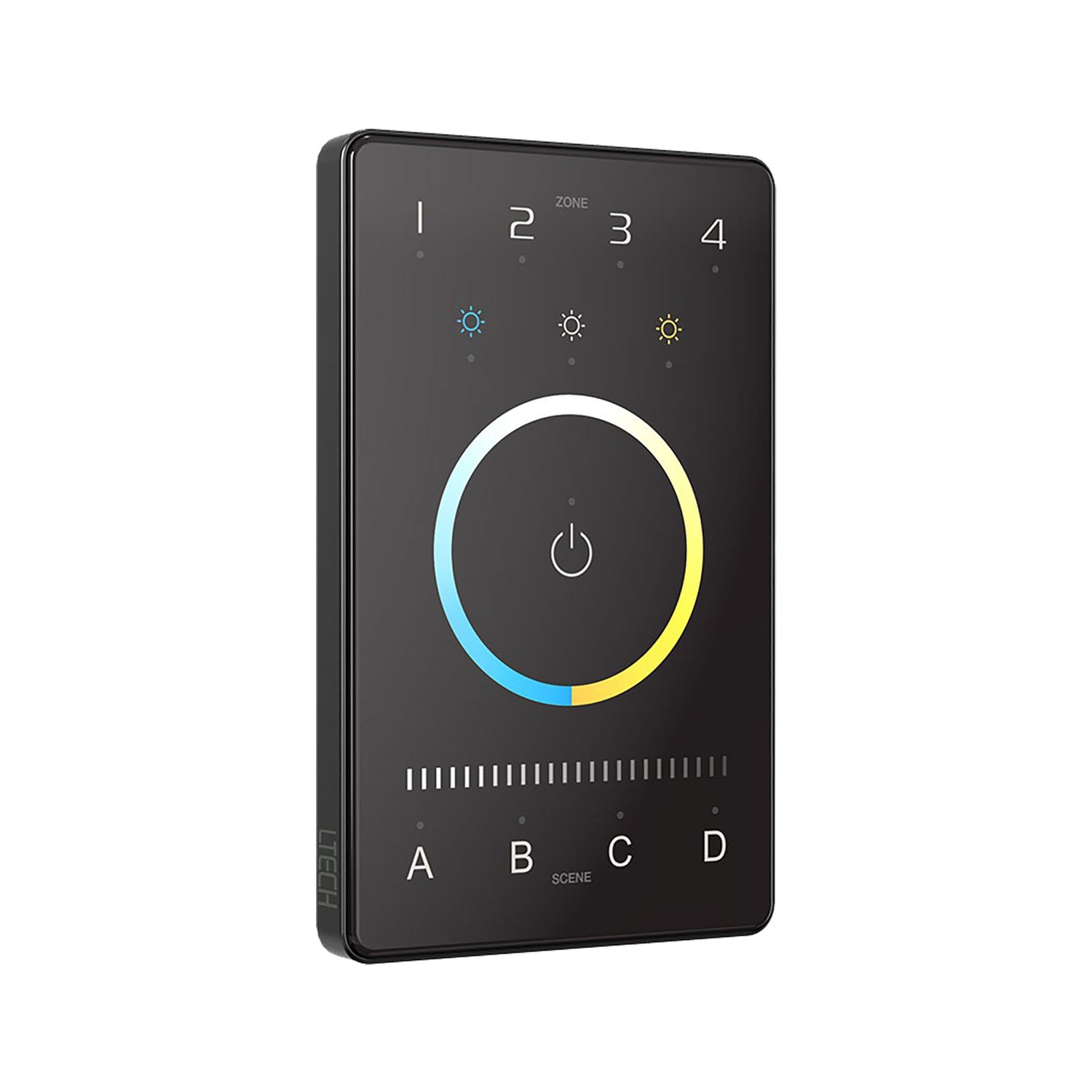

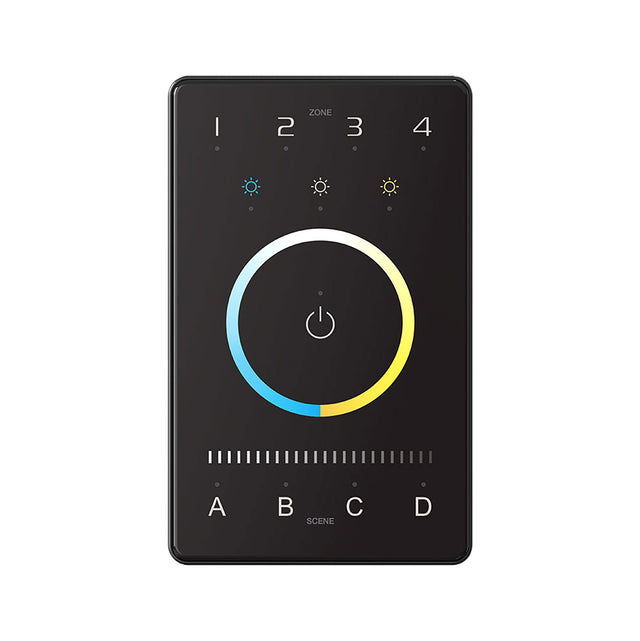

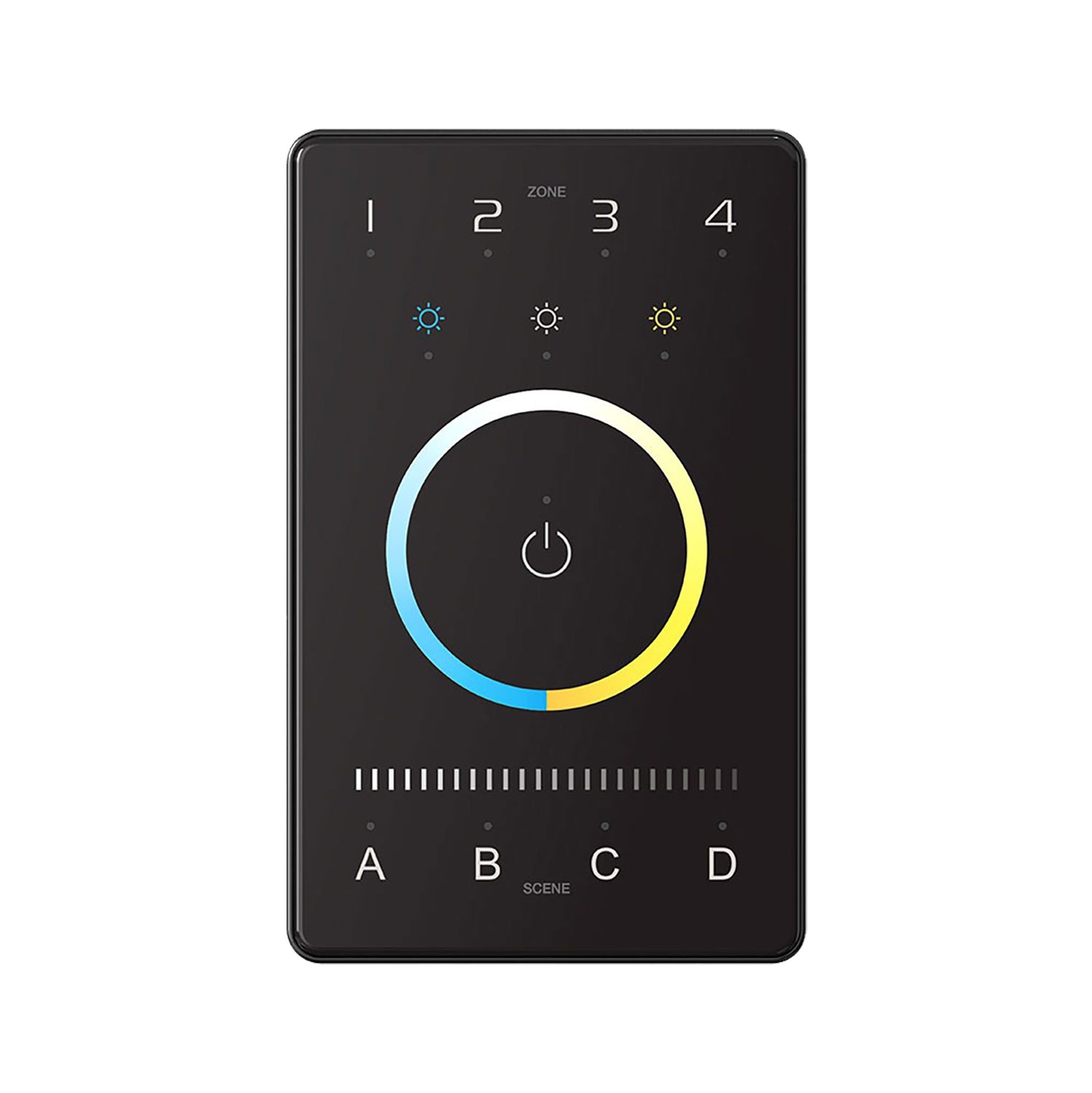

Ltech Intelligent Touch Panel UB2(Bluetooth + DMX)

CCT12-24V4 zones4 scenes
SKU UB2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

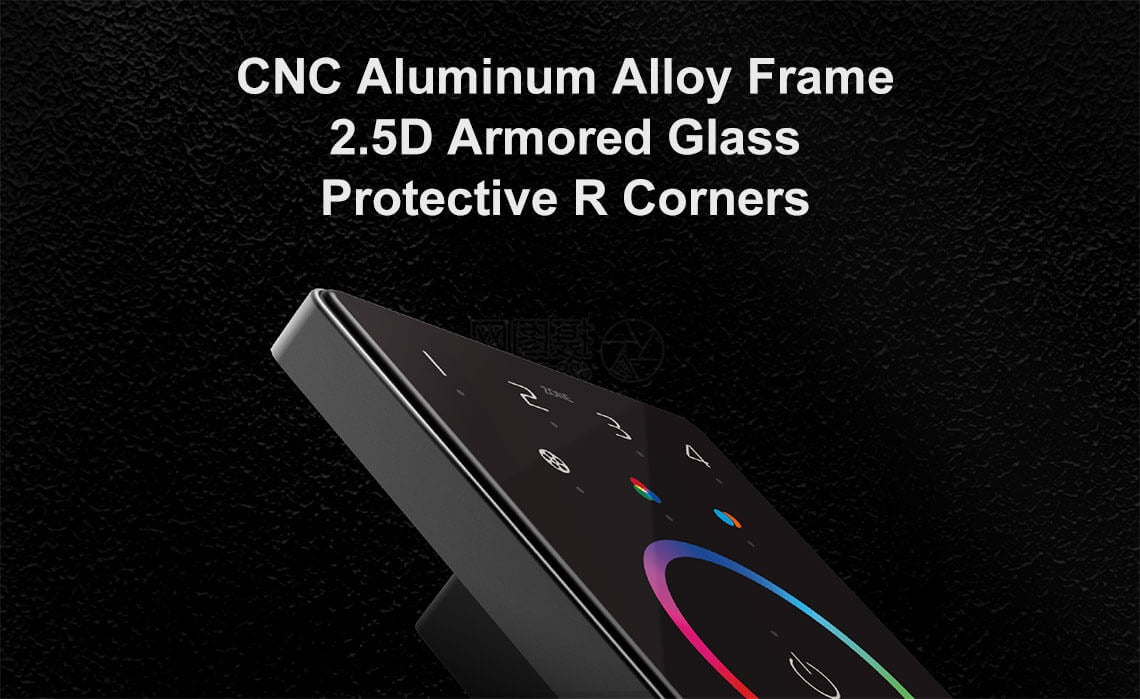

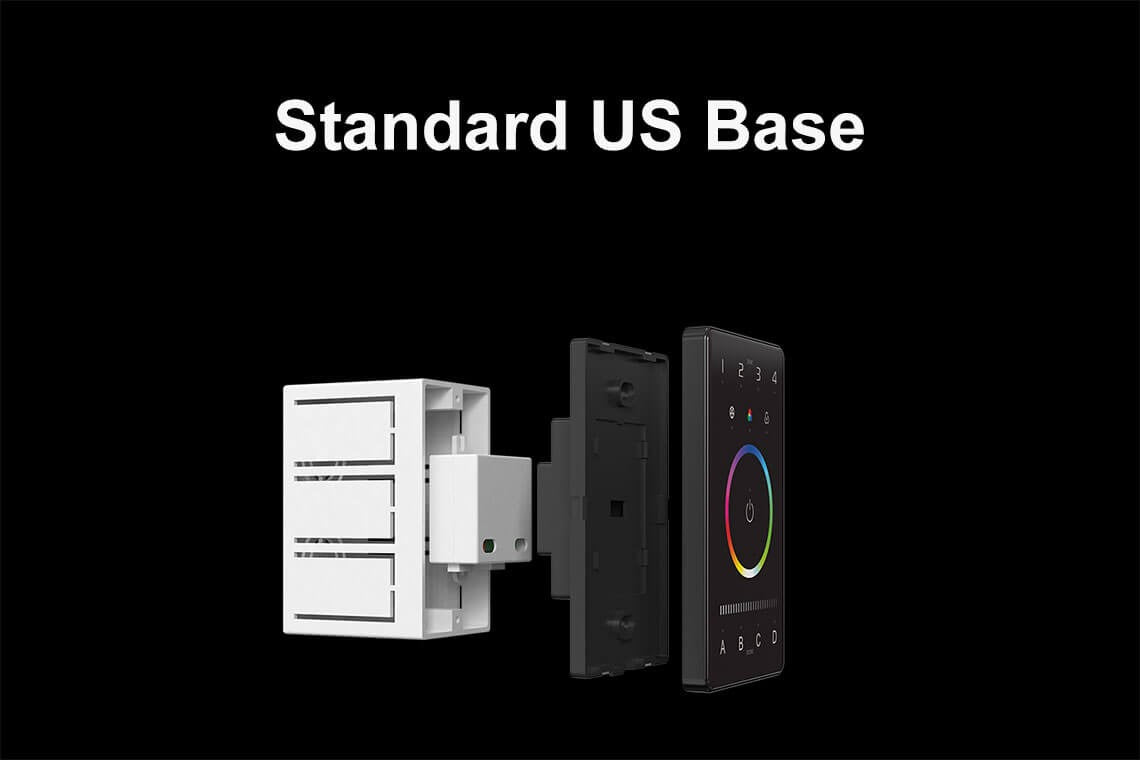

Intelligent Touch Panel is an American base wall switch, integrating Bluetooth 5.0 SIG Mesh and DMX signals. It is a simple but elegant design with CNC aviation aluminum frame and 2.5D tempered glass. The panel is suitable for multi-scene and multi-zone lighting control applications. Working with Bluetooth systems makes it more convenient and intelligent.

Specifications

UB2Specifications from the official datasheetDownload datasheet PDF

Technical Specs

Control mode
CT
Input voltage
12-24VDC, Powered by Class 2
Wireless protocol type
Bluetooth 5.0 SIG Mesh
Output signal
DMX 512
Zones
4
Working temperature
-20Β°C~55Β°C
Dimensions(LΓ—WΓ—H)
120Γ—75Γ—30(mm)
Package size(LΓ—WΓ—H)
158Γ—113Γ—62(mm)
Weight(G.W.)
225g

Others

Warranty periods
2 years

Certifications & ratings

Certification marks
UL, CE, RoHS, FCC

Technical drawings

UB2 Unit: mm
Unit: mm
UB2 Illustration (page 3)
Illustration (page 3)
UB2 Illustration (page 4)
Illustration (page 4)
UB2 Illustration (page 5)
Illustration (page 5)
UB2 1.Wireless Control.
1.Wireless Control.
UB2 2.Wireless+Wired control (With reliable and stable signals).
2.Wireless+Wired control (With reliable and stable signals).
UB2 3.Wireless+Wired control (Enriching different lighting…
3.Wireless+Wired control (Enriching different lighting…
UB2 4.Visual control+Remote control of traditional panels.
4.Visual control+Remote control of traditional panels.
UB2 Bluetooth5.0SIG Mesh
Bluetooth5.0SIG Mesh
UB2 Zone1
Zone1
UB2 Type
Type
UB2 Step 1: Remove the panel plate with a flathead…
Step 1: Remove the panel plate with a flathead…
UB2 Step 2: Attach the wires to the panel, as shown in the…
Step 2: Attach the wires to the panel, as shown in the…
UB2 to secure the panel plate to the box.
to secure the panel plate to the box.
UB2 to secure the panel plate to the box. (2)
to secure the panel plate to the box. (2)
UB2 Scan and download the App
Scan and download the App

Downloads

FAQ

What is the Ltech Intelligent Touch Panel UB2(Bluetooth + DMX) used for?

The UB2 is an intelligent touch panel for advanced lighting control in residential and commercial spaces. It combines Bluetooth 5.0 SIG Mesh wireless control with DMX 512 output, making it suitable for multi-zone and multi-scene lighting applications.

What lighting functions does the UB2 support?

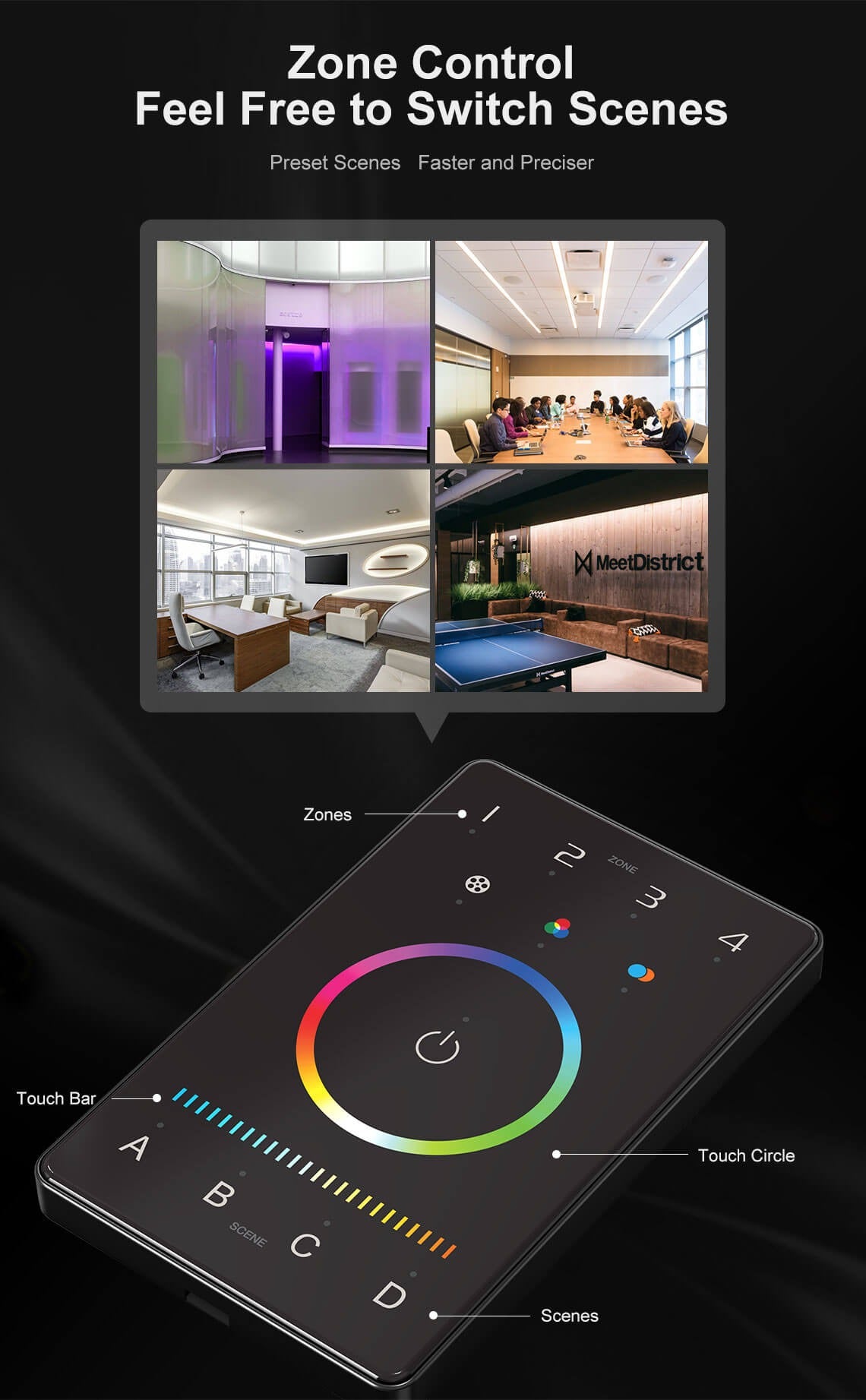

This model supports on/off switching, colour temperature control, and brightness adjustment. It is designed to manage up to four lighting zones, which makes it useful for spaces that need separate lighting scenes or area-based control.

How is the UB2 different from a basic wall controller?

The UB2 stands out by combining Bluetooth 5.0 SIG Mesh wireless technology with DMX 512 output in one touch panel. It features a compact 120Γ—75Γ—30 mm design, offering a modern interface for lighting control.

Is the UB2 suitable for commercial as well as residential projects?

Yes, the UB2 is positioned for both residential and commercial lighting control. Its multi-zone capability, multi-scene functionality, and combination of Bluetooth Mesh with DMX output make it relevant for projects that need flexible and centralized lighting management.

What control systems is the UB2 compatible with?

The UB2 is designed around Bluetooth and DMX control, specifically Bluetooth 5.0 SIG Mesh wireless technology and DMX 512 output. That makes it relevant for buyers looking for a touch panel that fits Bluetooth-based control environments while also supporting DMX-based lighting systems.

What operating conditions is the UB2 rated for?

The UB2 is rated for operation from -20 Β°C to 55 Β°C. It also has a listed product weight of 0.225 kg and comes with a 2-year warranty period.
