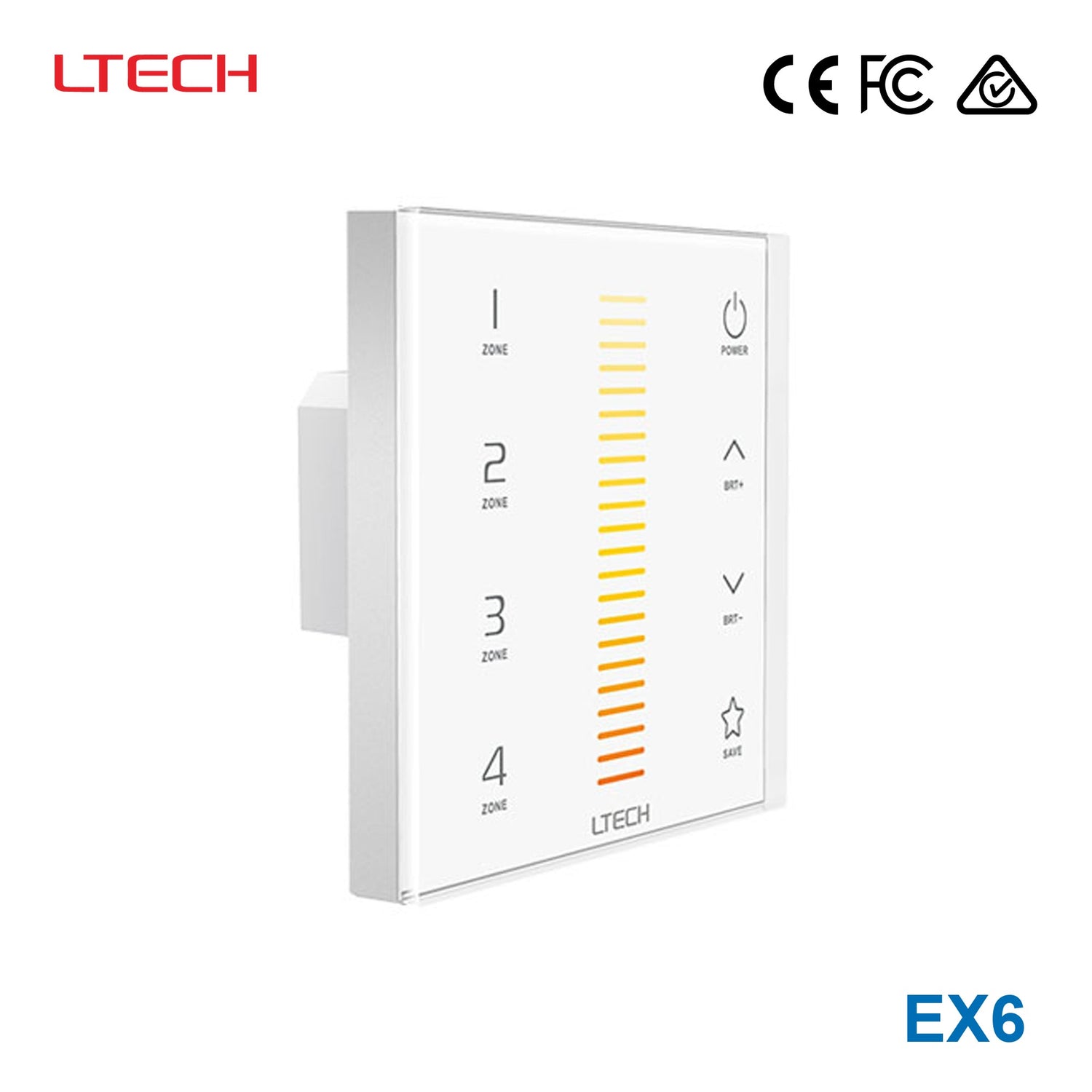

Ltech EX6 Wireless RF/DMX512 Multi-zone Touch Panel - Colour Temper...
Please Login for Pricing
Description
Description
- Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode
- more flexible and convenient for project installation.
- Advanced RF wireless sync/zone control technology
- make sure dynamic color modes synchronously among multiple drivers.
- Four zones can be combined arbitrarily
- for example: zone 1 and zone 2 as a group
- or zone 1
- zone 3
- zone 4 as a group
- or all the 4 zones as a group.
- No limit the quantity of drivers in each zone
- and all color modes keep synchronously.
- Support multiple panels linkage control
- no quantity limitation.
- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology on full color wheel
- make LED color selection more user-friendly.
- Compatible with remote and APP control with adding LTECH gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Input Voltage100V~240V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length8.6 cm
-
Width8.6 cm
-
Height3.6 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech EX6 used for?
The Ltech EX6 is a wall-mounted touch panel designed for colour temperature lighting control in commercial and professional projects. It combines wireless RF and DMX512 control capability in one model, making it suitable for multi-zone white-tunable LED control.
How many lighting zones can the EX6 control?
This model supports four zones, and those zones can be grouped in different combinations. That allows a buyer to control individual areas separately or operate multiple areas together from the same panel.
Does the EX6 support both RF and DMX control?
Yes. The EX6 is designed with wireless RF and wired DMX512 protocol support in a single touch panel. That makes it a flexible option for projects that need either standalone wireless control, DMX-based control, or a combination of both control methods within the product's supported use cases.
Can multiple LED drivers stay synchronized when using the EX6?
Yes. The product uses advanced RF wireless sync and zone control technology so dynamic modes remain synchronized across multiple drivers in the same zone. The description also states there is no quantity limit for drivers in each zone.
Is the EX6 compatible with app or remote control?
Yes, with the addition of an LTECH gateway, the EX6 can work with remote and app control. This makes it a stronger fit for projects that want touch-panel control now and expanded smart-control options later.
What kind of user interface does the EX6 have?
The EX6 uses capacitive touch control with touch keys, LED indicators, and a touch-panel interface designed for colour selection and zone operation. This gives it a more polished control experience than basic button-only controllers.
Is the EX6 suitable for demanding indoor environments?
The specified operating temperature range is -20°C to 55°C, which supports use in a wide range of commercial indoor environments. It also includes a 5-year warranty, which can be important for buyers planning longer-term installations.
