Ltech

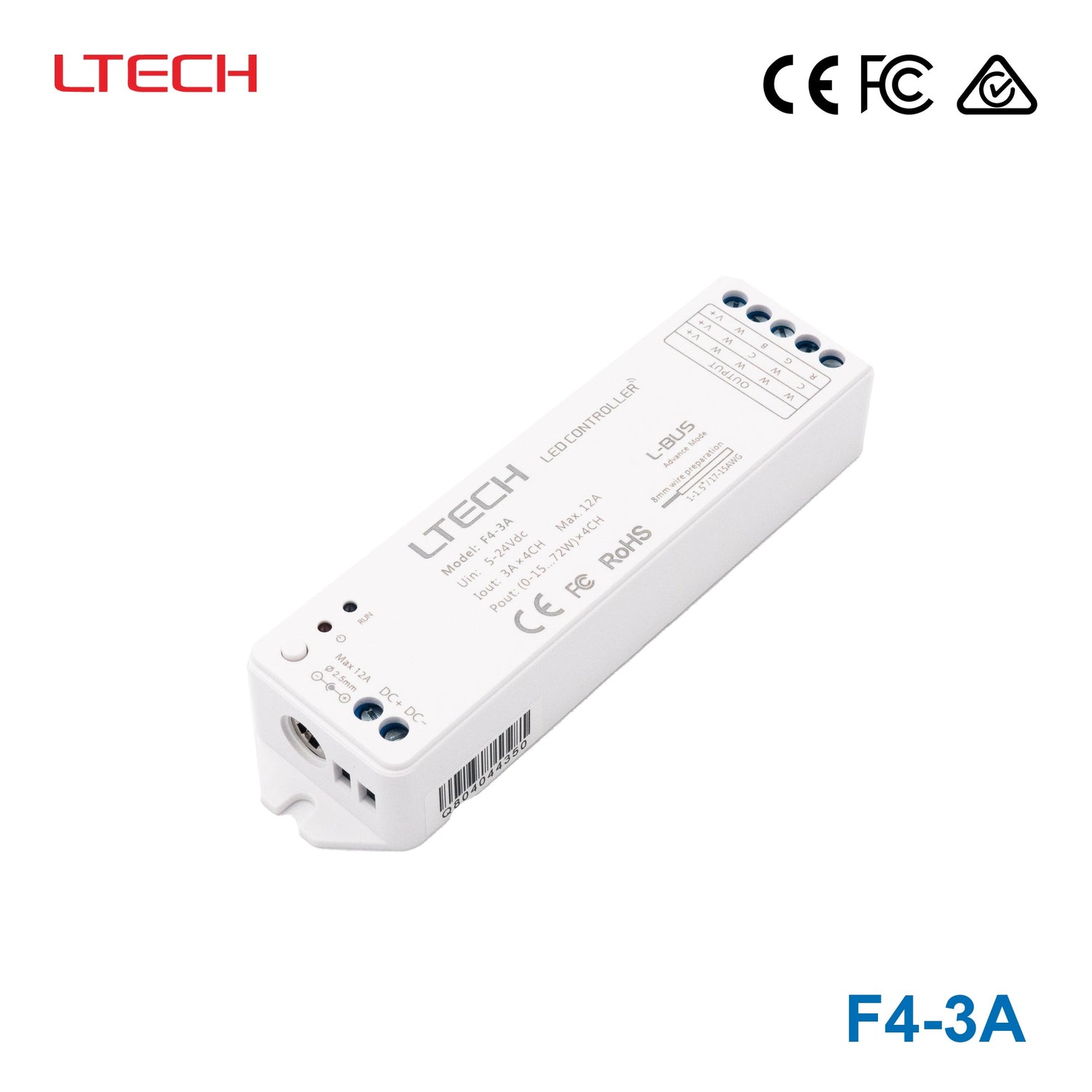

Ltech F4-3A Wireless RF Constant Voltage Controller - 4 Channel

SKU F4-3A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

F4-3A is the 5~24Vdc output model of this series.

Features

  • RF 2.4GHz wireless signal, no need signal cable.
  • Dimming, CT, RGB, RGBW LED lights can be controlled.
  • Compatible with F series remote.
  • Compatible with EX series touch panel.
  • Support APP and intelligent speaker control if equipped with wifi-108 gateway. (note: only with L-BUS identity can support advanced mode.)

Specifications

F4-3ASpecifications from the official datasheet (2019-08-30 edition)Download datasheet PDF

Specification

Name
CV LED wireless driver
Wireless signal
RF 2.4GHz
Input voltage
5~24Vdc
Output voltage
5~24Vdc
Current load
3A Γ— 4CH Max. 12A
Output power
0~15W...72W Γ— 4CH Max. 288W
Protection
Reverse connection protection
Working temperature
-30Β°C~55Β°C
Product size
L125Γ—W33Γ—H20(mm)
Package size
L127Γ—W35Γ—H22(mm)
Weight(G.W.)
60g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS

Technical drawings

F4-3A RF 2.4GHz wireless signal, no need signal cable.
RF 2.4GHz wireless signal, no need signal cable.
F4-3A System diagram
System diagram
F4-3A Product size
Product size

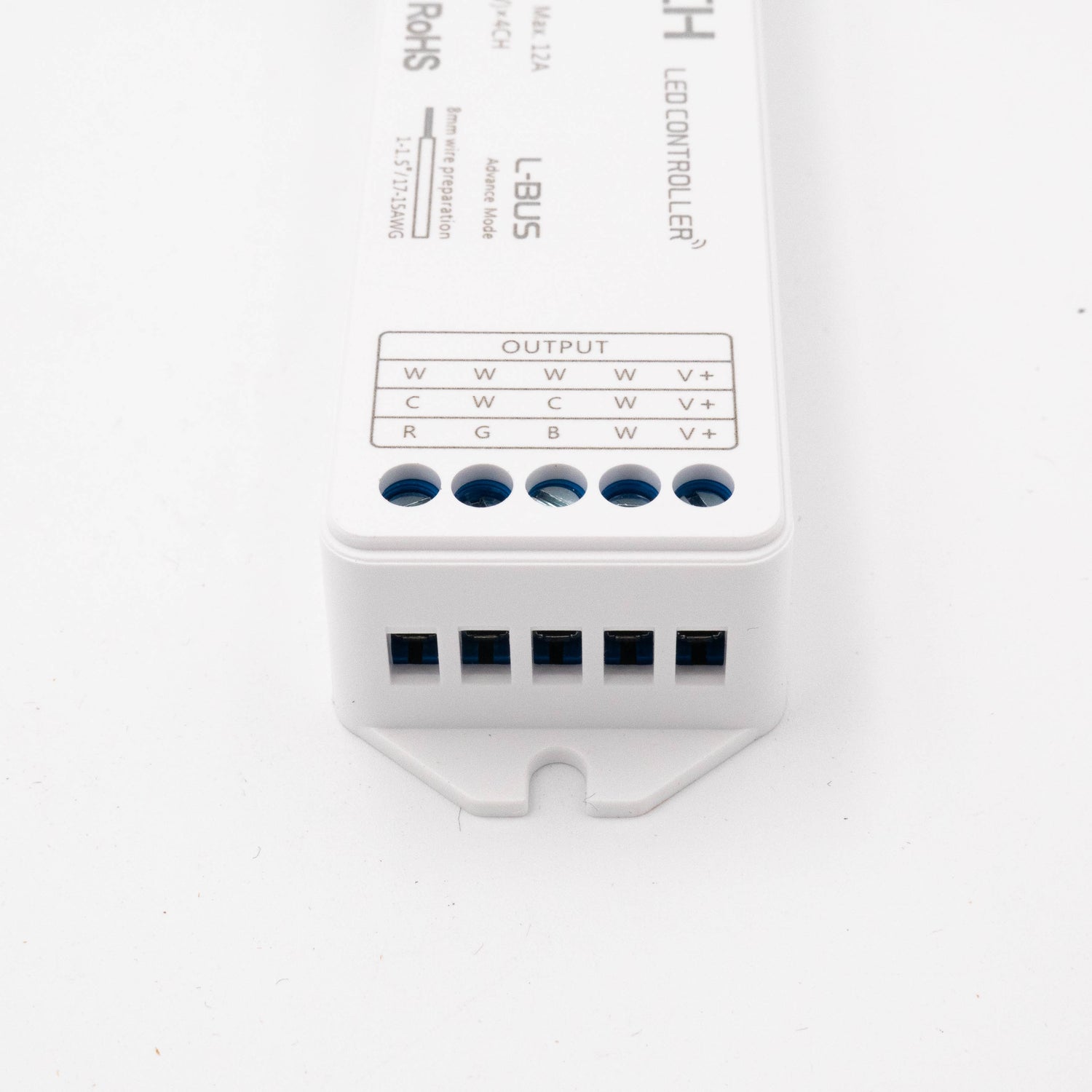

F4-3A Terminal description
Terminal description
F4-3A CV Wireless driver
CV Wireless driver
F4-3A CC Wireless driver
CC Wireless driver
F4-3A Clear code (power on method)
Clear code (power on method)

Downloads

FAQ

What type of lighting can the Ltech F4-3A control?

The Ltech F4-3A is designed for constant voltage LED lighting and supports dimming, color temperature control, RGB, and RGBW lighting modes. That makes it suitable for a range of LED lighting applications where multi-channel control is needed.

How many channels does the F4-3A controller have?

This model is a 4-channel wireless RF constant voltage controller. Its 4-channel design allows it to support lighting types such as RGBW and other multi-channel constant voltage LED loads.

Is the Ltech F4-3A compatible with Ltech remotes and control systems?

Yes. The F4-3A is compatible with Ltech F series remotes and EX series touch panels. It can also support app and intelligent speaker control when used with the WiFi-08 gateway.

What are the electrical ratings of the Ltech F4-3A?

The F4-3A supports an input and output voltage range of 5~24Vdc. It provides 4 channels with a maximum current of 3A per channel (12A total) and a maximum power of 72W per channel (288W total).

Can the F4-3A be used in demanding indoor or industrial environments?

It is rated for operation from -30Β°C to 55Β°C, which makes it suitable for a wide range of commercial and professional environments within that temperature range. Buyers should confirm the surrounding conditions stay within those limits for reliable performance.

What makes the F4-3A a good fit for commercial LED control applications?

This model combines 2.4GHz RF wireless control, 4-channel output capability, and support for dimming, tunable white, RGB, and RGBW lighting. For B2B buyers, that makes it a flexible option for projects that need one controller family to cover multiple LED lighting types.

Does the Ltech F4-3A include a warranty?

Yes. The Ltech F4-3A includes a 5-year warranty period. That longer warranty can be useful for commercial buyers looking for added confidence in long-term use.
