Ltech

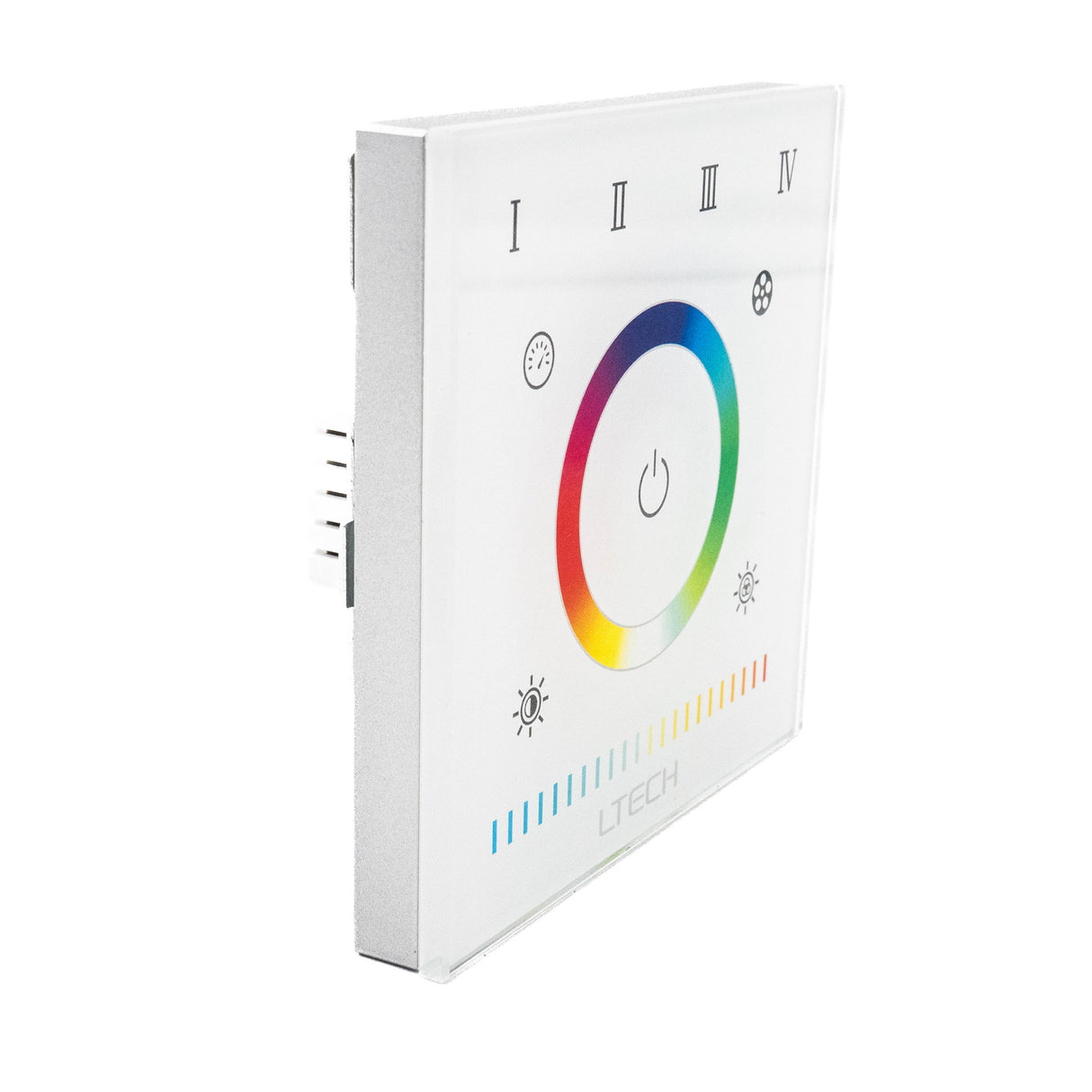

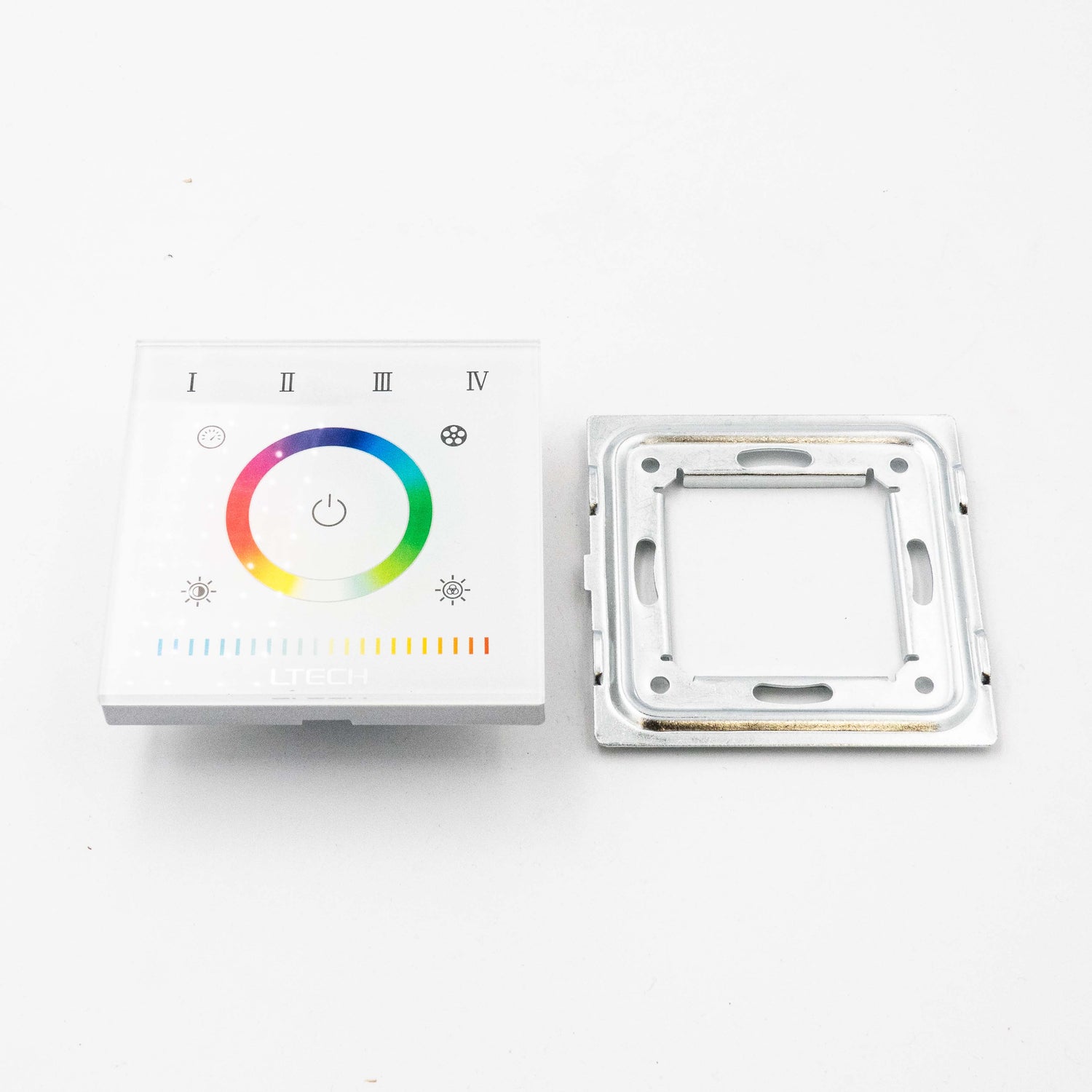

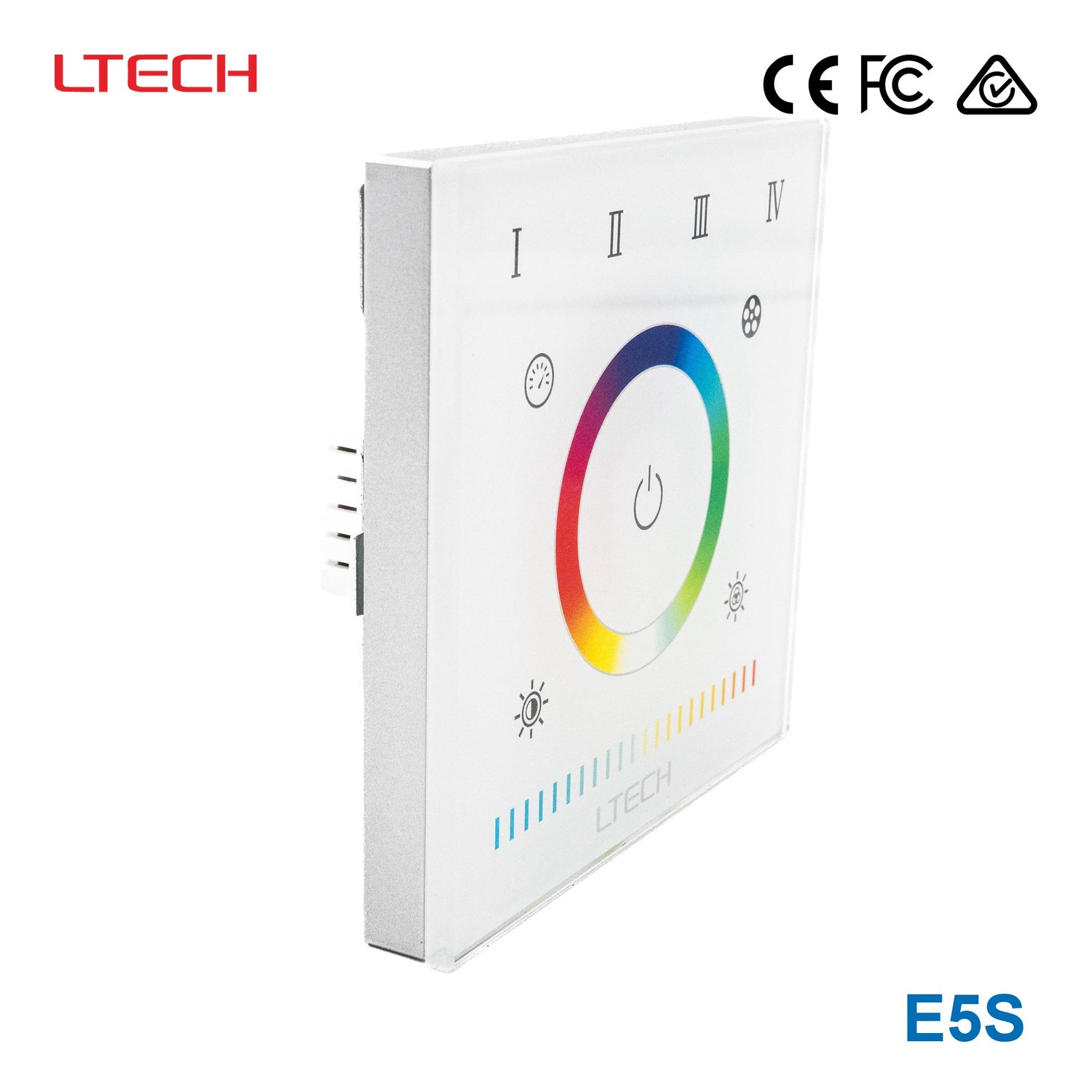

Ltech E5S Multi-zone Touch Panel - RGBWW

SKU E5S
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • 2 in 1 function: RF wireless control and PWM power output.
  • Power output, lamps can be connected directly, easy and convenient.
  • RGB, RGBW, RGB+CT LED lights can be controlled.

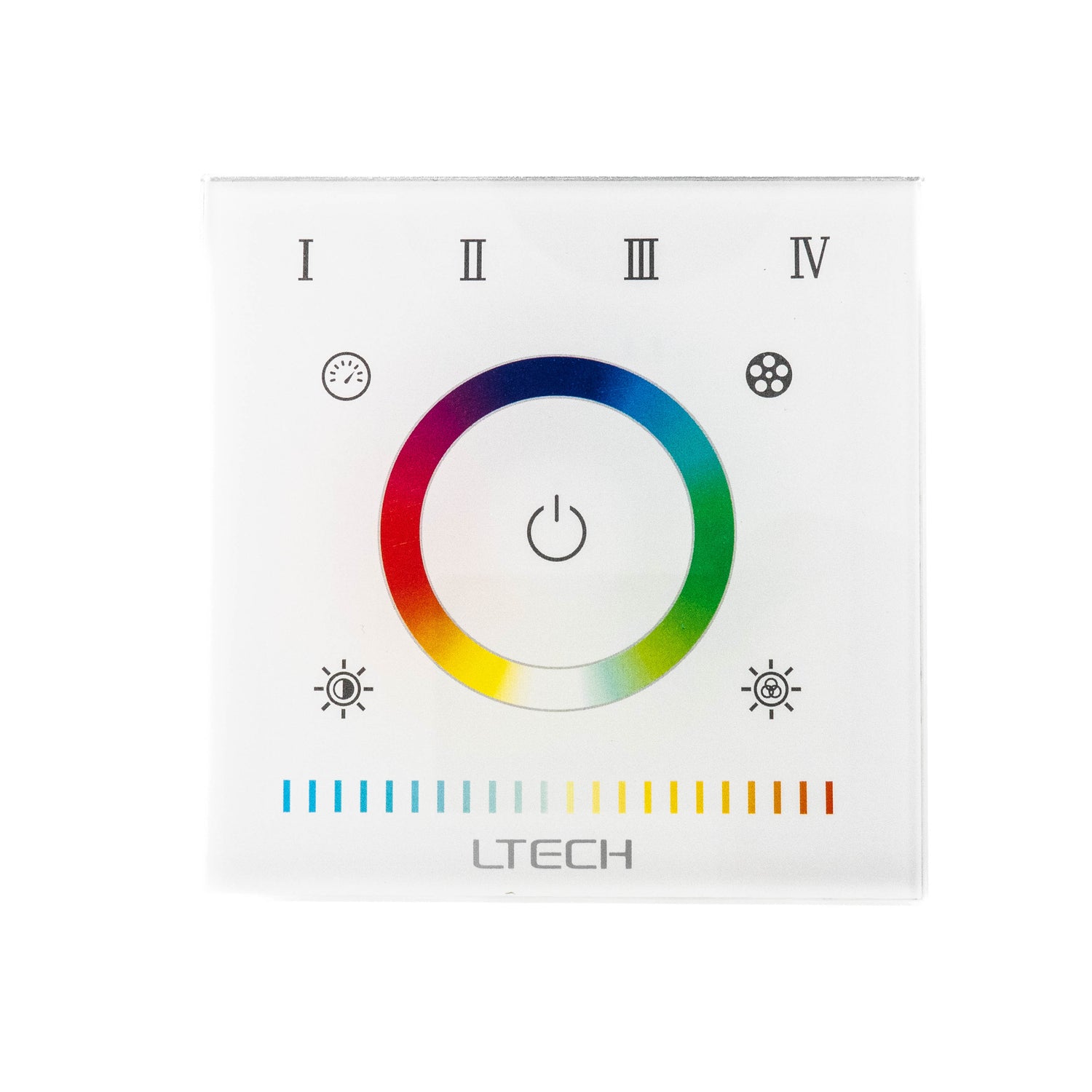

  • Touch keys with chord and LED indicator.
  • Panel adopts capacitive touch control technology, makes LED color selection more user-friendly.
  • Touch panel can be controlled by remote directly or smart phone if add a gateway.

Specifications

E5SSpecifications from the official datasheetDownload datasheet PDF

Technical Specs

Model
E5S
Working Temp.
-20Β°C~55Β°C

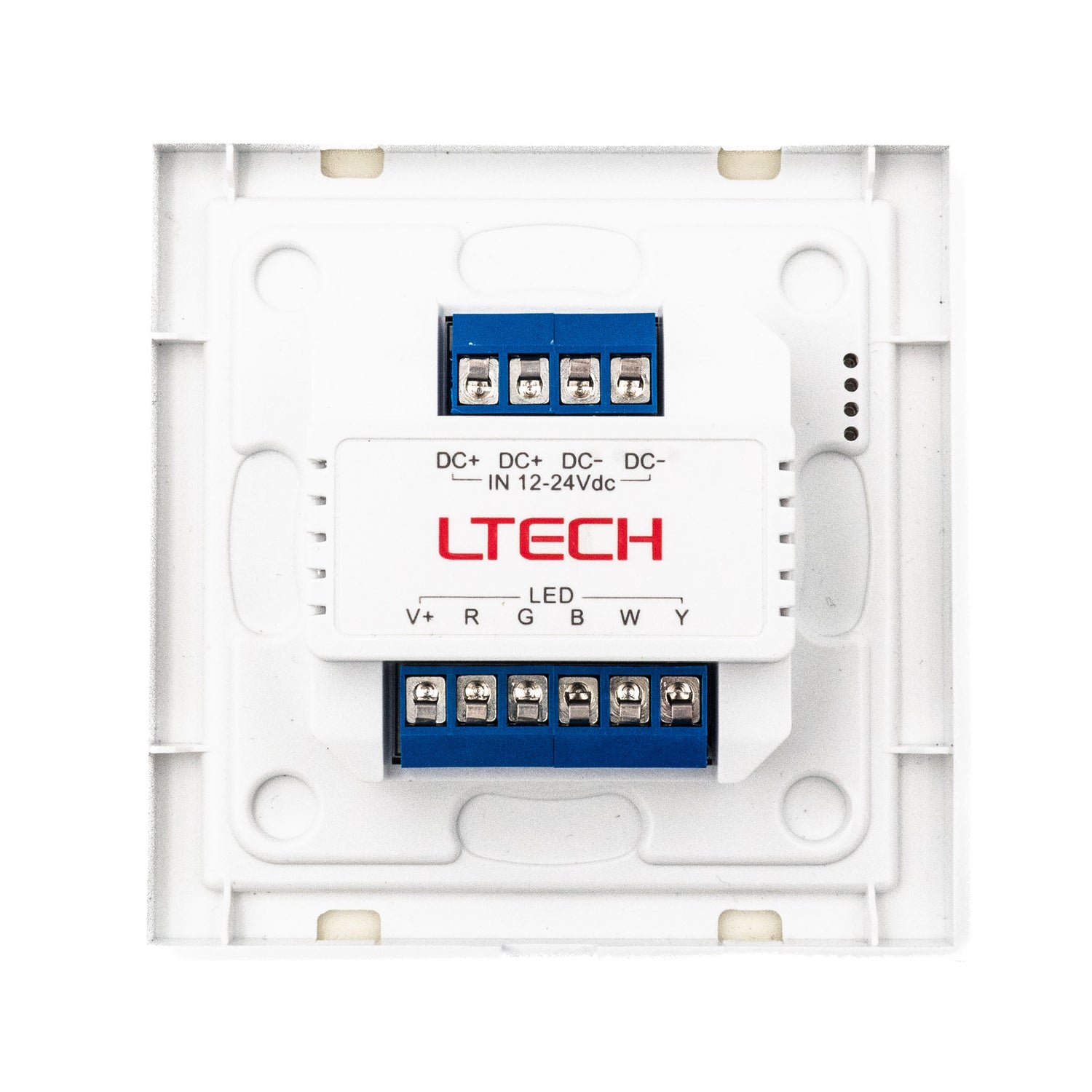

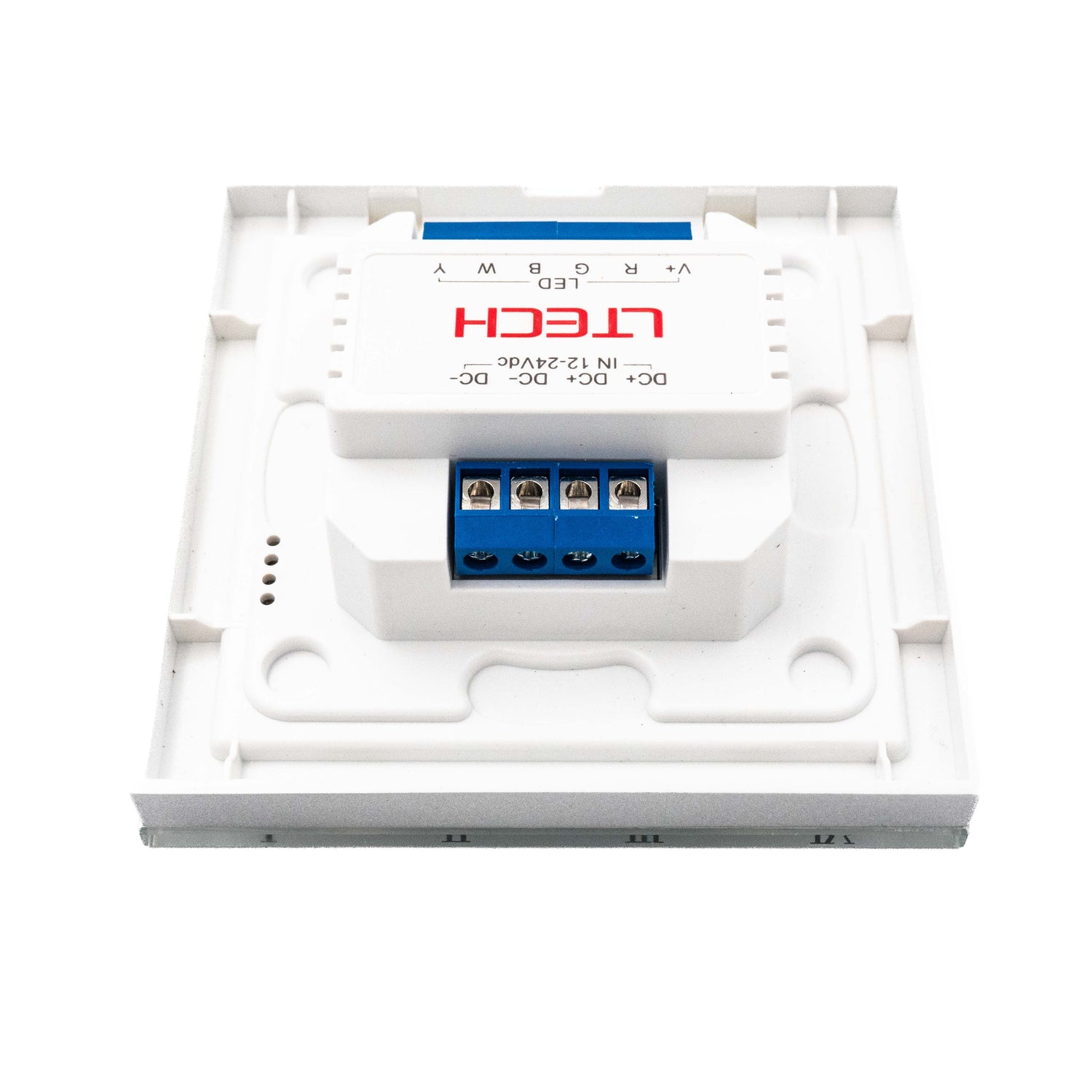

Input Voltage
12-24Vdc
Dimensions
L86Γ—W86Γ—H36(mm)
Wireless Frequency
RF 2.4GHz
Package Size
L113Γ—W112Γ—H50(mm)
Current Load
RGB: 3AΓ—3CH, CT: Max. 3A
Weight(G.W.)
225g
Output Power
RGB: (0~36W...72W)Γ—3CH, CT: 0~36W...72W

Others

warranty
5 years

Technical drawings

E5S System Diagram
System Diagram
E5S Application Composition
Application Composition
E5S Wiring Diagram
Wiring Diagram

Downloads

FAQ

What does the Ltech E5S Multi-zone Touch Panel control?

The Ltech E5S is designed to control RGB and CCT (Correlated Color Temperature) LED lighting. It combines RF wireless control with PWM power output in one model, making it suitable for color-changing and tunable-white lighting applications. This makes it a flexible option for projects that need more than simple single-color dimming.

Is the Ltech E5S only a wall panel, or does it also provide output for lighting control?

This model is more than a touch panel because it combines RF wireless control and PWM power output in a single unit. That 2-in-1 design helps distinguish it from panels that act only as control interfaces. It is intended for direct LED lighting control within its stated electrical ratings.

What are the electrical ratings of the Ltech E5S?

The Ltech E5S operates on a 12-24Vdc input voltage. It provides RGB output of 3A per channel (3 channels) and a CCT output of up to 3A. The output power ranges from 0-36W to 0-72W per channel depending on the configuration. Buyers should match the product to lighting systems that fit within these electrical limits.

Does the Ltech E5S support smartphone control?

The Ltech E5S supports RF wireless control. Smartphone control is available when used with a compatible gateway, which expands control options beyond direct remote use. This allows for smart-control capability without changing to a different controller model.

What type of dimming control does the Ltech E5S use?

The Ltech E5S uses PWM dimming control. PWM is commonly used for LED control because it supports smooth adjustment of brightness and color output in compatible lighting systems. For this model, PWM is part of its core control method.

Is the Ltech E5S suitable for demanding indoor environments?

The published operating temperature range is -20 degrees C to 55 degrees C, which supports use in a wide range of indoor commercial and architectural environments. Buyers with projects exposed to colder or warmer conditions should compare those conditions against this stated range. The product also carries a 5-year warranty period.
