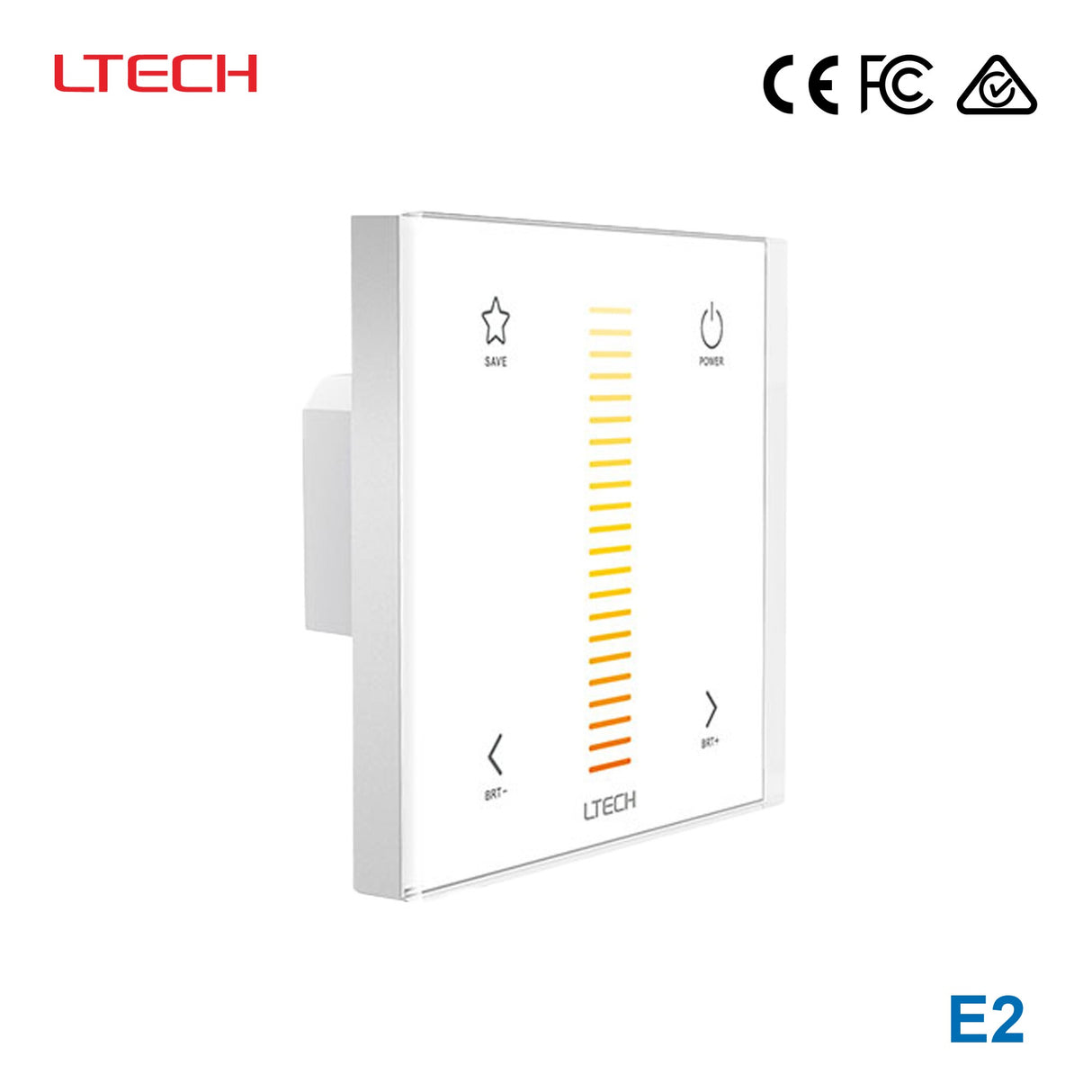

Ltech E2 Single-zone Touch Panel - Colour Temperature
Please Login for Pricing
Description
Description
- 2 in 1 function: RF wireless control and PWM power output.
- Power output
- lamps can be connected directly
- easy and convenient.
- Touch keys with chord and LED indicator.
- Save any scene you like
- touch 1 key to recall scene
- easy and convenient.
- Adopts capacitive touch control technology on the full color slider
- makes LED color selection more user-friendly.
- Touch panel can be controlled by remote directly or smart phone if add a gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage12V~24V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length8.6 cm
-
Width8.6 cm
-
Height3.6 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech E2 Single-zone Touch Panel control?
The Ltech E2 is a single-zone colour temperature controller designed for tunable white LED lighting. It combines RF wireless control with PWM power output in one unit, making it suitable for applications where colour temperature adjustment is needed from a wall-style touch panel.
Is the Ltech E2 a single-zone or multi-zone controller?
This model is a single-zone controller. It is intended for controlling one lighting zone, which makes it a good fit for individual rooms, dedicated areas, or standalone commercial lighting sections that need colour temperature adjustment.
What electrical rating does the Ltech E2 support?
The Ltech E2 is rated for 24 V output, 4 A current, and 96 W power. Those published ratings define the operating limits for this specific model and are important when matching it to a compatible tunable white LED load.
Does the Ltech E2 support smart control?
Yes. The product description states that the touch panel can be controlled by smartphone when a gateway is added. That means the E2 can be part of a smarter lighting control setup, while still offering direct touch-panel operation.
Can the Ltech E2 store lighting scenes?
Yes, this model supports scene saving and recall. According to the product description, you can save a preferred scene and recall it with one touch, which is useful in repeatable commercial or architectural lighting environments.
What kind of control interface does the Ltech E2 use?
The E2 uses touch keys with LED indicators and capacitive touch control. Its interface is designed to make colour temperature selection more user-friendly while keeping operation simple at the wall panel.
What environment is the Ltech E2 designed to operate in?
The published operating temperature range for the Ltech E2 is -20°C to 55°C. This gives it a broad working range for indoor control applications where environmental conditions may vary across commercial or technical spaces.
What warranty is offered for the Ltech E2?
The Ltech E2 has a 5-year warranty period based on the provided product data. For buyers comparing commercial-grade LED control products, that warranty can be a useful indicator of intended long-term service use.
