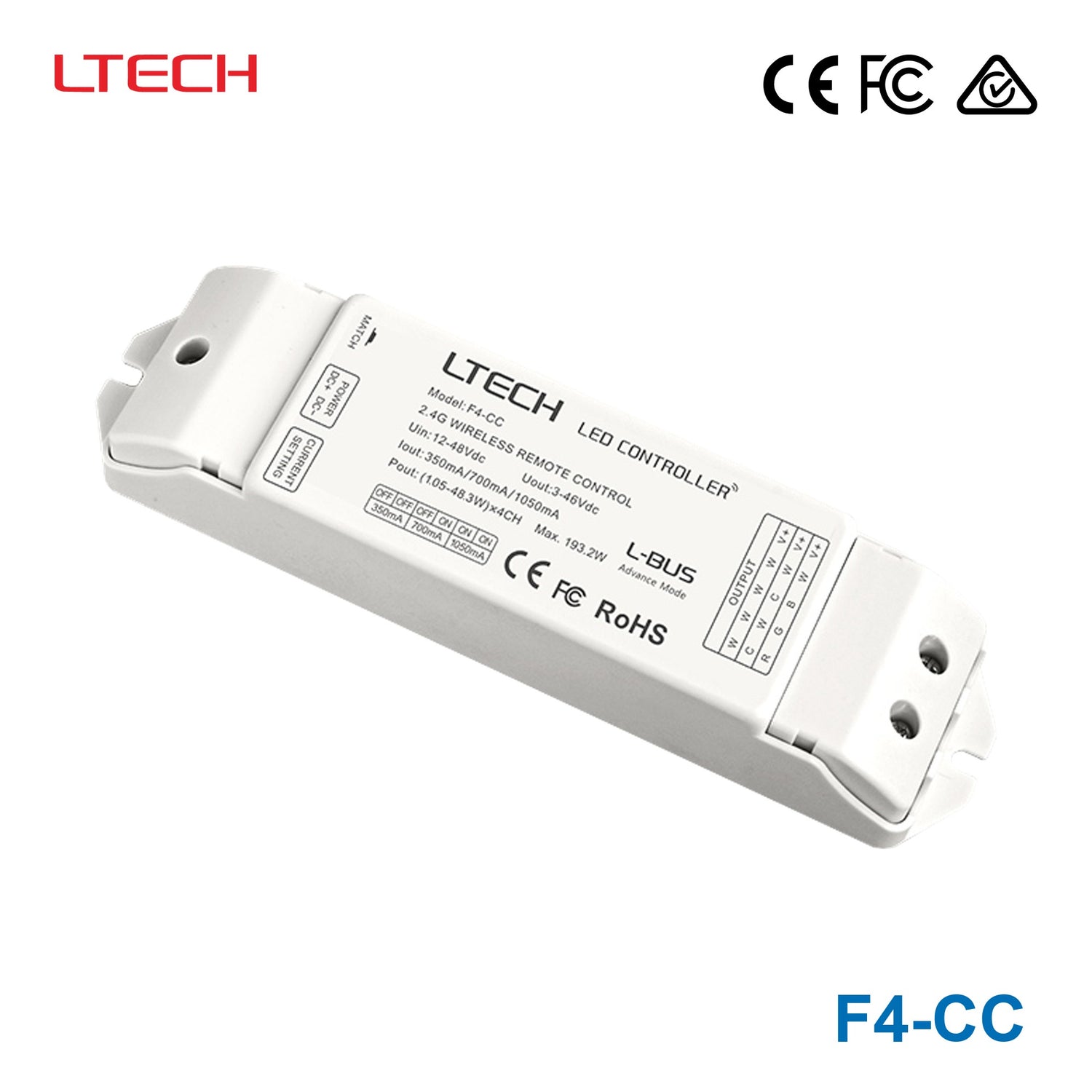

Ltech F4-CC Wireless RF Constant Current Controller - 4 Channel
Please Login for Pricing
Description
Description
- RF 2.4GHz wireless signal
- no need signal cable.
- Dimming
- CT
- RGB
- RGBW LED lights can be controlled.
- Compatible with F series remote.
- Compatible with EX series touch panel.
- Support APP and intelligent speaker control if equipped with wifi 08 gateway.
- (note: only with L-BUS identity can support advanced mode.)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Power Rating193.2 Watt
-
Rated Current1.05 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.4 cm
-
Height3 cm
-
Weight0.17 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of lighting can the Ltech F4-CC control?
The Ltech F4-CC is designed for constant current LED lighting control across four channels. It supports dimming as well as CCT, RGB, and RGBW lighting applications, making it suitable for a range of tunable and color-changing LED setups.
Does the Ltech F4-CC support wireless control?
Yes. This model uses a 2.4GHz RF wireless signal, so it is built for wireless control without requiring a signal cable. That makes it a practical option where wireless lighting control is preferred.
Which control devices are compatible with the Ltech F4-CC?
The F4-CC is compatible with Ltech F series remotes and EX series touch panels. It can also support app control and intelligent speaker control when used with the WiFi-08 gateway.
Can the Ltech F4-CC be used in smart lighting systems?
Yes, this controller can be part of a smart lighting setup when paired with the WiFi-08 gateway. In that configuration, it supports app-based control and intelligent speaker control for added flexibility.
What are the operating environment limits for the Ltech F4-CC?
The rated operating temperature range for this model is -30°C to 55°C. That range allows it to work in both cold and warm environments, provided the rest of the system is specified for the same conditions.
What are the main electrical ratings of the Ltech F4-CC?
This controller is listed at 193.2W power rating and 1.05A rated current. It uses PWM dimming control, which is commonly used for smooth LED dimming performance.
Does the Ltech F4-CC support advanced mode features?
Advanced mode support depends on the product having L-BUS identity. The product notes specify that only versions with L-BUS identity can support advanced mode.
What warranty is offered for the Ltech F4-CC?
The Ltech F4-CC includes a 5-year warranty period. That makes it a strong fit for commercial and professional projects where longer product coverage is important.
