Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well IOB-15-03C AC-DC On Board Type Power Module 9.9W 3.3V, Vertical 3A

1.75"x0.86" compact size85~305Vac inputno load power consumption<0.25W

SKU IOB-15-03C

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IOB-15-03C is the 3.3V output model of this series: rated current 3A, rated power 9.9W, typical efficiency 75%.

The IOB-15 series is a compact and reliable AC-DC open frame power module featuring high efficiency and low power consumption. It is particularly well-suited for space-constrained applications with stringent energy efficiency requirements. The product features a compact design and supports universal input voltage range of 85~305Vac. With ultra-low standby power consumption <0.25W, it is energy efficiency and eco-friendly. It also offers an ultra-wide operating temperature range of -40℃ ~+85℃ as well as complete protection functions to ensure safe and reliable operation. These features make the product suitable for applications with strict space constraints, such as industrial automation, power metering, and smart devices.

Features

Assemble on the main PCB of the system
1.75''x0.86''compact size
85~305Vac input (277Vac available)
No load power consumption <0.25W
-40~85℃ wide operating temperature
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Safety Class Ⅱ
3 years warranty

Specifications

IOB-15-03CSpecifications from the official datasheet (2025-09-23 edition)

OUTPUT

DC VOLTAGE: 3.3V
RATED CURRENT: 3A
CURRENT RANGE: 0 ~ 3A
RATED POWER: 9.9W
RIPPLE & NOISE (max.)^Note.2: 150mV
INITIAL SET POINT ACCURACY: ±3% for 3.3Vdc output, ±2% for other output
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2% for 3.3Vdc output, ±1.5% for 5Vdc output, ±1% for other output
CAPACITOR LOAD (Max.): 20000μF

INPUT

VOLTAGE RANGE: 85 ~ 305Vac 100 ~ 430Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 75%
AC CURRENT (Typ.): 0.4A/115Vac 0.25A/230Vac
INRUSH CURRENT (Typ.): 18A/115Vac 35A/230Vac
NO LOAD POWER CONSUMPTION: <0.25W

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery, Hiccup mode
OVERLOAD: >110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE (Max.): 9Vdc Protection type : Output voltage clamp

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.^Note.4: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.15% / ℃ max. (0 ~ 85℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: LVD IEC62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVac leakage current <5mA
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A without external components
Radiated BS EN/EN55032(CISPR32) Class B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±6KV contact criteria B
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10m/V contact criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, ±2KV
Surge BS EN/EN61000-4-5 Level 2, ±1KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions BS EN/EN61000-4-11 0%, 70% perf. Criteria B

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A without external components
Radiated	BS EN/EN55032(CISPR32)	Class B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±6KV contact criteria B
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10m/V contact criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, ±2KV
Surge	BS EN/EN61000-4-5	Level 2, ±1KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions	BS EN/EN61000-4-11	0%, 70% perf. Criteria B

OTHERS

MTBF (Typ.): >10000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): A Type : 44.5*25*15mm (1.751*0.984*0.59 inch) ; B Type : 44.5*25.5*15mm (1.751*1.003*0.59 inch) C Type : 44.5*23*15.5mm (1.751*0.905*0.61 inch)

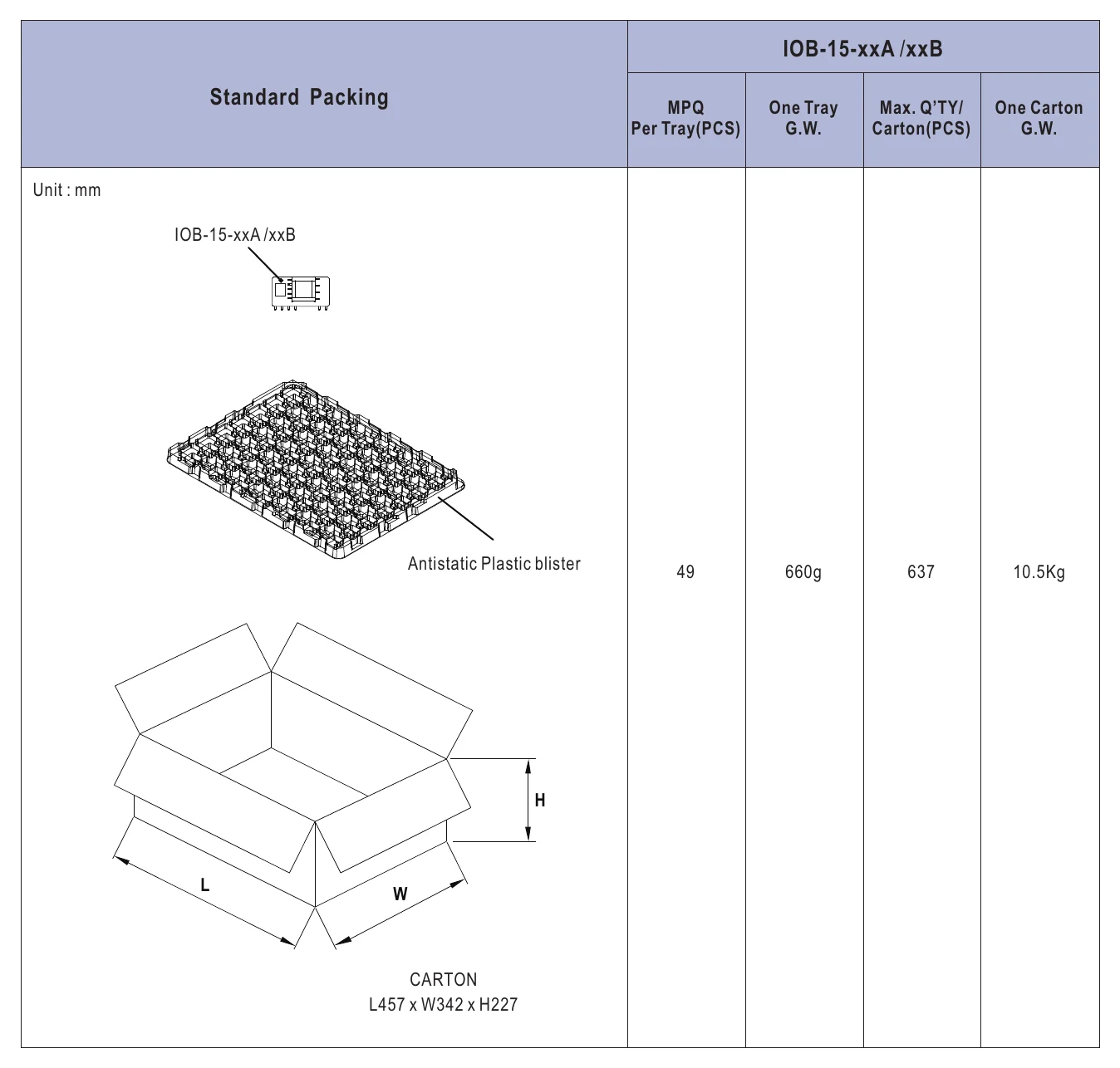

PACKING: A,B Type :11.2g ; 49pcs/per Tray, 637pcs/13 Tray/per carton C Type :11.2g ; 56pcs/per Tray, 448pcs/8 Tray/per carton

Test conditions and notes5

1.All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
4.When starting at a low temperature of -40℃, the output capacitor needs to be equipped with a solid capacitor to meet the load reduction curve requirements.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

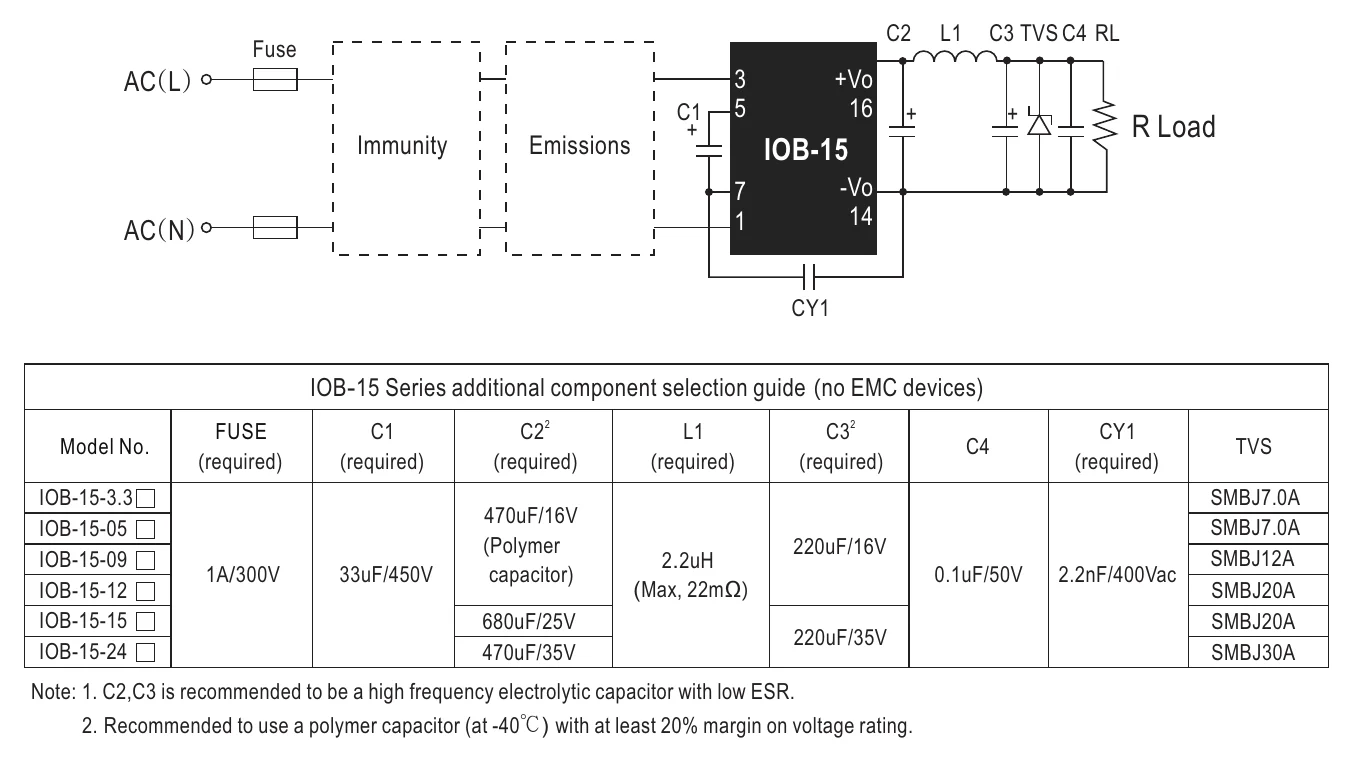

IOB-15-03C Additional Circuit Design Reference — Additional Circuit Design Reference

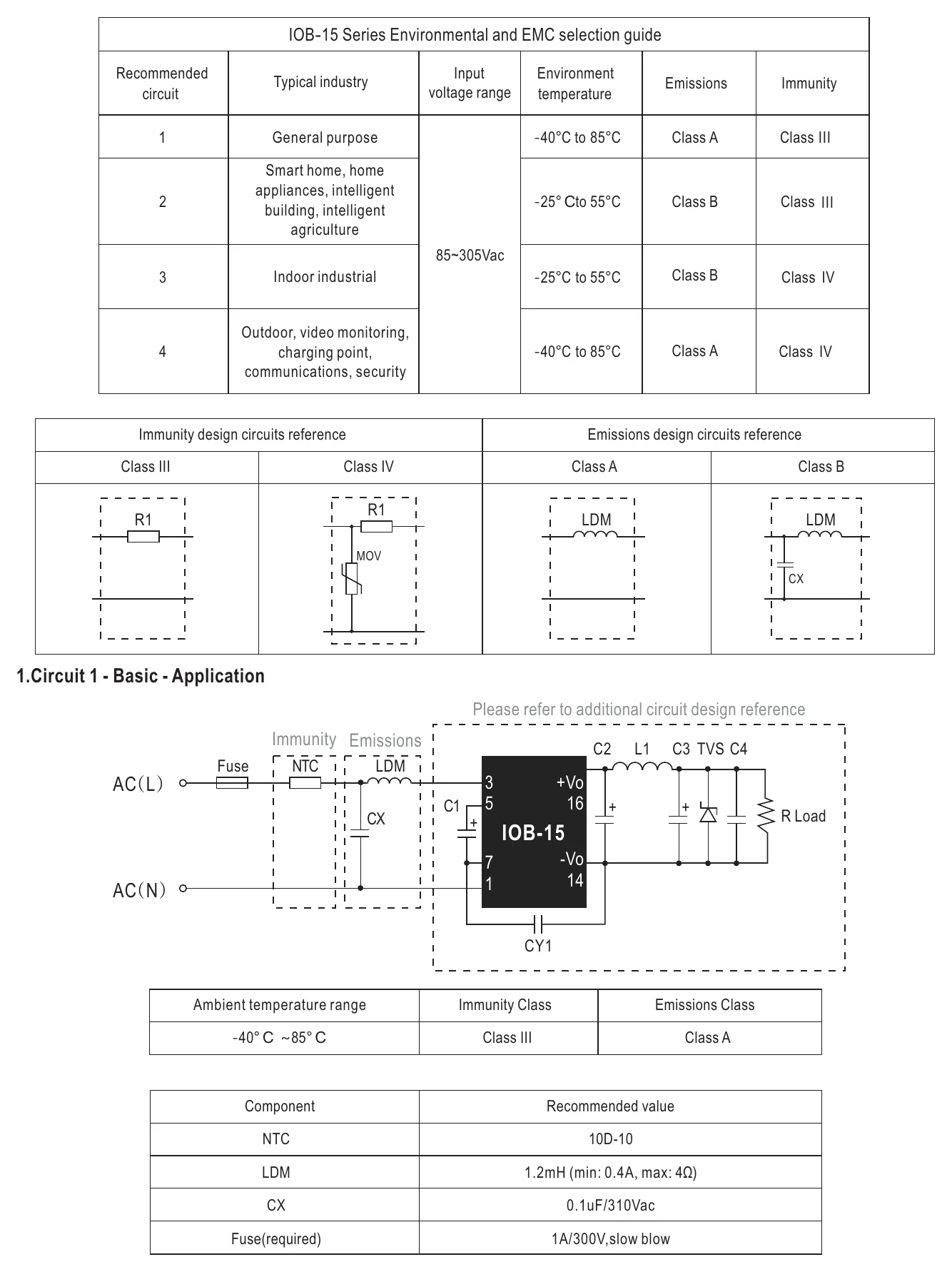

IOB-15-03C Additional EMC Suggestion Circuit — Additional EMC Suggestion Circuit

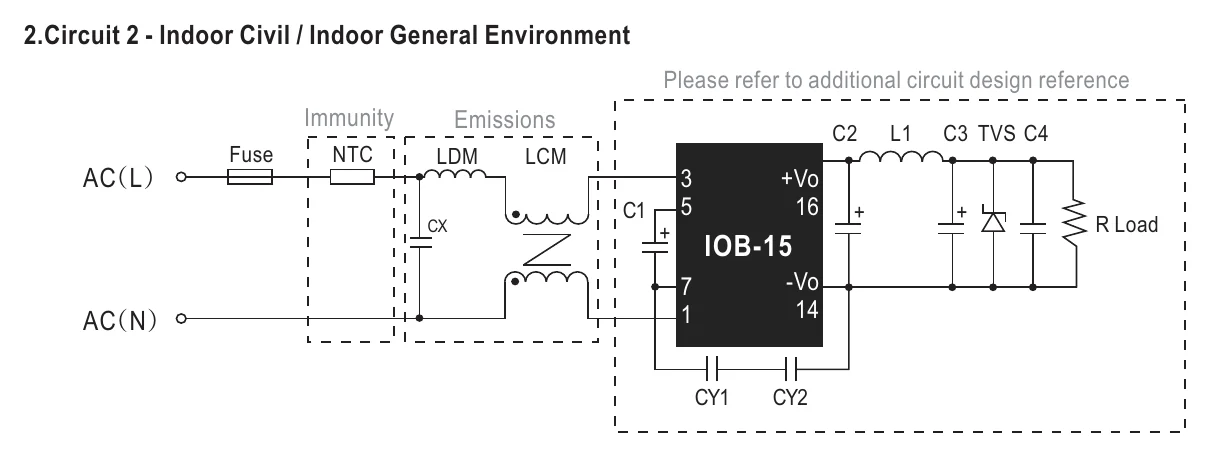

IOB-15-03C 2.Circuit 2 - Indoor Civil / Indoor General Environment — 2.Circuit 2 - Indoor Civil / Indoor General Environment

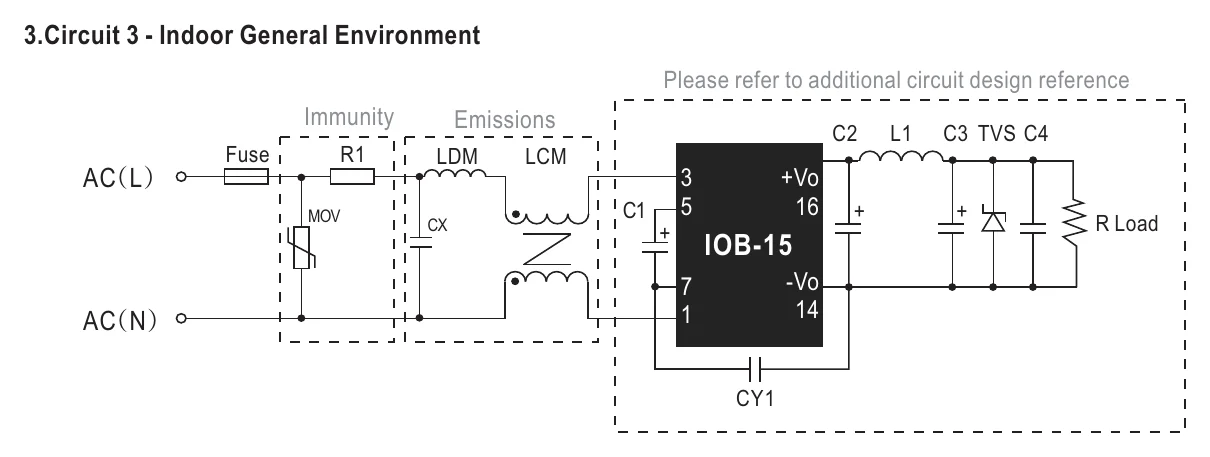

IOB-15-03C 3.Circuit 3 - Indoor General Environment — 3.Circuit 3 - Indoor General Environment

IOB-15-03C Immunity Emissions — Immunity Emissions

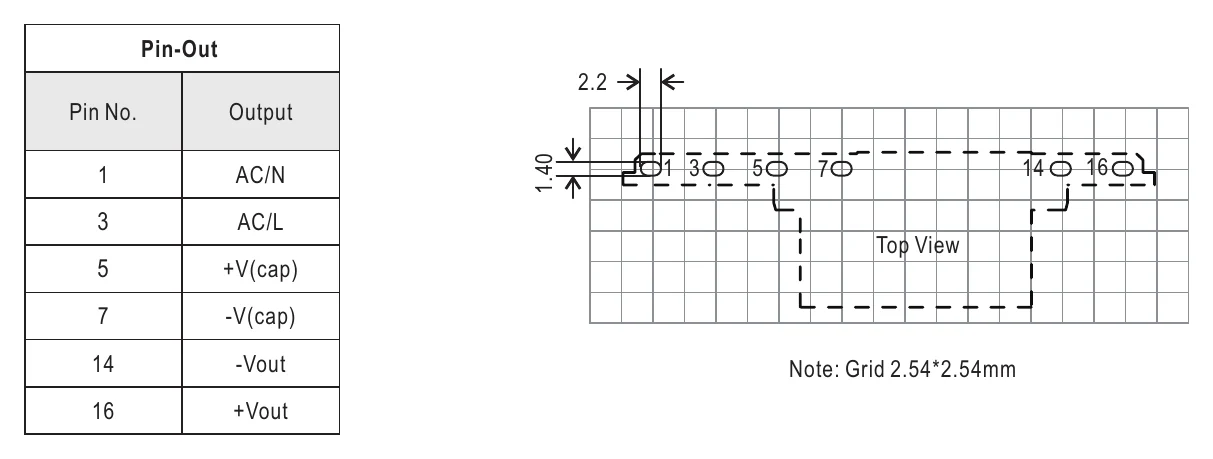

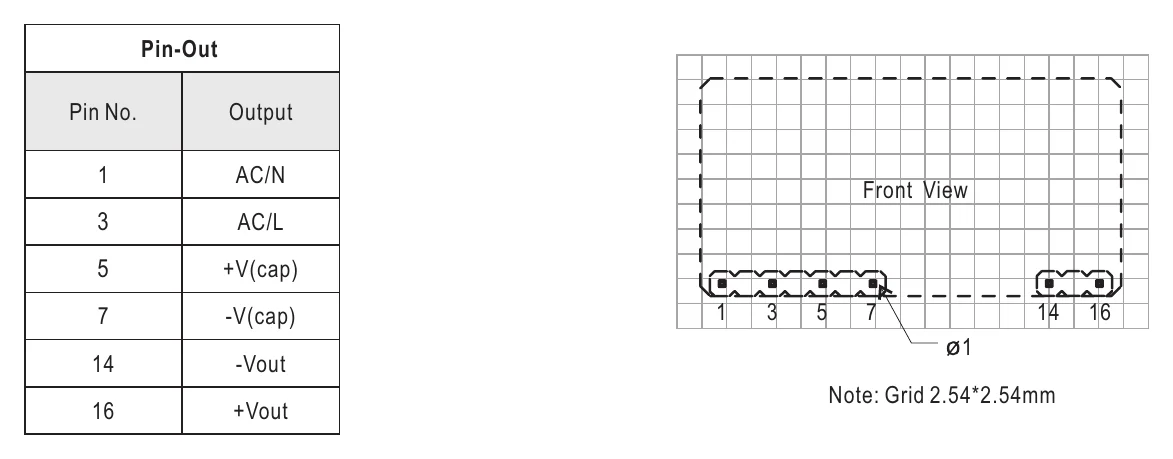

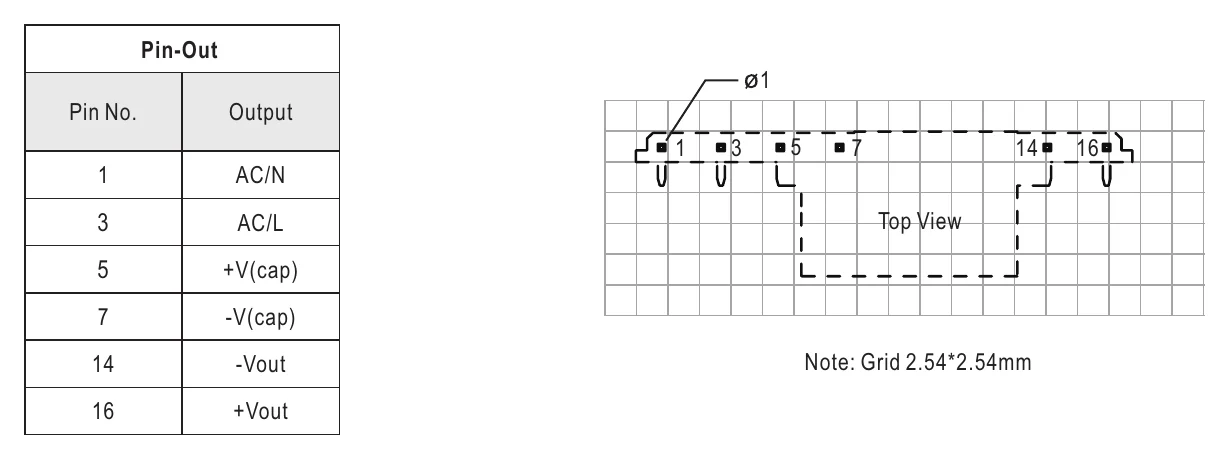

IOB-15-03C Pin Assignment — Pin Assignment

Typical applications

Downloads

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What kinds of equipment is the Mean Well IOB-15-03C best suited for?

The IOB-15-03C is designed for compact embedded equipment that needs an on-board AC-DC power module rather than a larger enclosed supply. Its vertical, PCB-mount form factor and 9.9W rating make it a practical fit for space-constrained industrial, control, and electronic system designs.

What makes the IOB-15-03C different from a larger enclosed AC-DC power supply?

This model is an on-board type power module intended to be assembled directly within the host system, so it targets compact internal power conversion rather than standalone power supply use. Its 44.5 x 24 x 15 mm size and vertical profile help reduce the footprint compared with bulkier chassis-style supplies.

Is the IOB-15-03C suitable for equipment used in a wide temperature range?

Yes. Mean Well specifies an operating temperature range of -40 to +85 degrees C, which makes this model suitable for demanding environments where ambient conditions can vary significantly. That range is useful for industrial and commercial equipment that may face cold starts or elevated internal temperatures.

Can the IOB-15-03C be used in products sold into different input-voltage regions?

Yes. The module supports a wide 85 to 305Vac input range, with 277Vac availability noted, so it is well suited for products intended for multiple mains environments. It also supports 100 to 430Vdc input, which adds flexibility for certain DC-fed systems.

What protection and safety features are included in the IOB-15-03C?

This model includes short circuit, overload, and over-voltage protection, with automatic recovery behavior noted for fault conditions. It is also specified as Safety Class II and approved to IEC62368-1, which is relevant for buyers evaluating protection and compliance requirements.
