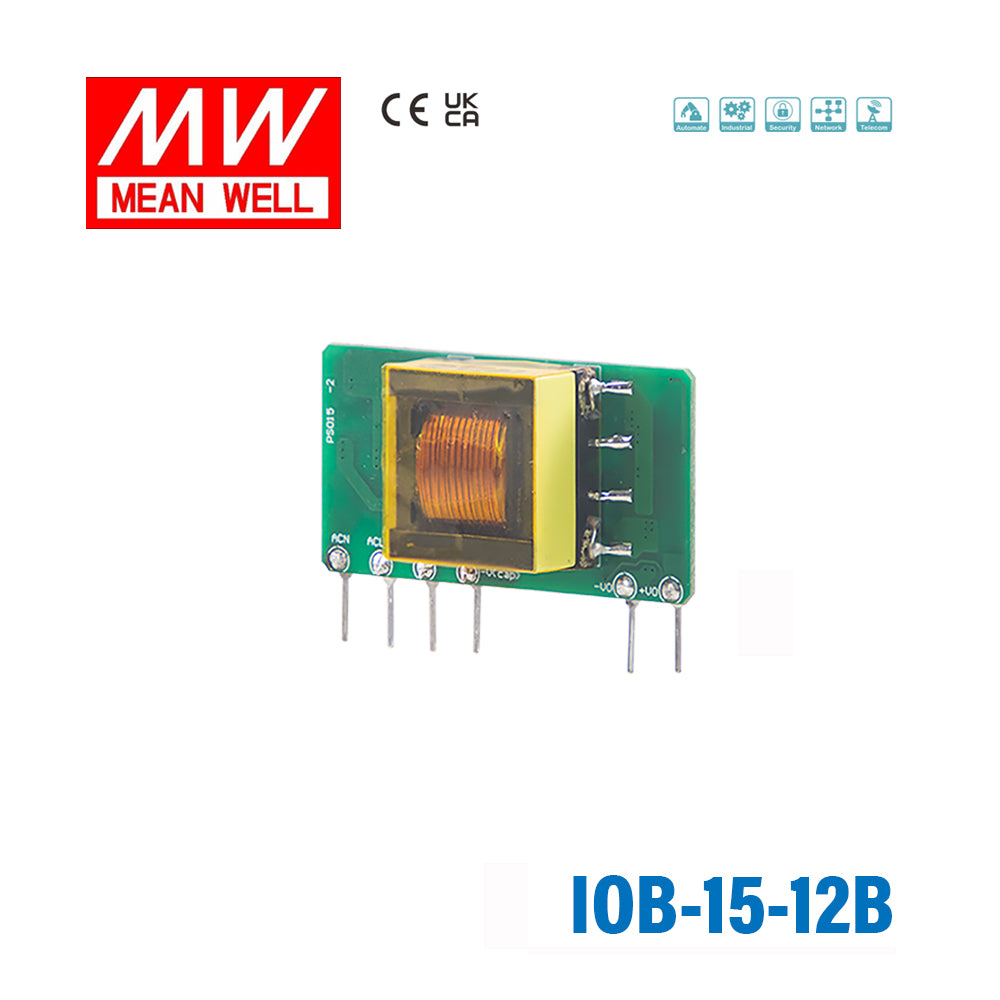

Mean Well IOB-15-12B AC-DC On Board Type Power Module 15W 12V, Horizontal 1.25A

1.75"x0.86" compact size85~305Vac inputno load power consumption<0.25W

SKU IOB-15-12B

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IOB-15-12B is the 12V output model of this series: rated current 1.25A, rated power 15W, typical efficiency 82%. Type B: Vertical.

The IOB-15 series is a compact and reliable AC-DC open frame power module featuring high efficiency and low power consumption. It is particularly well-suited for space-constrained applications with stringent energy efficiency requirements. The product features a compact design and supports universal input voltage range of 85~305Vac. With ultra-low standby power consumption <0.25W, it is energy efficiency and eco-friendly. It also offers an ultra-wide operating temperature range of -40℃ ~+85℃ as well as complete protection functions to ensure safe and reliable operation. These features make the product suitable for applications with strict space constraints, such as industrial automation, power metering, and smart devices.

Features

Assemble on the main PCB of the system
1.75''x0.86''compact size
85~305Vac input (277Vac available)
No load power consumption <0.25W
-40~85℃ wide operating temperature
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Safety Class Ⅱ
3 years warranty

Model encoding

Type	Function
A	Edge Connector
B (this model)	Vertical
C	Horizontal

Specifications

IOB-15-12BSpecifications from the official datasheet (2025-09-23 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 1.25A
CURRENT RANGE: 0 ~ 1.25A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 150mV
INITIAL SET POINT ACCURACY: ±3% for 3.3Vdc output, ±2% for other output
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2% for 3.3Vdc output, ±1.5% for 5Vdc output, ±1% for other output
CAPACITOR LOAD (Max.): 4000μF

INPUT

VOLTAGE RANGE: 85 ~ 305Vac 100 ~ 430Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 0.4A/115Vac 0.25A/230Vac
INRUSH CURRENT (Typ.): 18A/115Vac 35A/230Vac
NO LOAD POWER CONSUMPTION: <0.25W

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery, Hiccup mode
OVERLOAD: >110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE (Max.): 16Vdc Protection type : Output voltage clamp

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.^Note.4: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.15% / ℃ max. (0 ~ 85℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: LVD IEC62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVac leakage current <5mA
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A without external components
Radiated BS EN/EN55032(CISPR32) Class B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±6KV contact criteria B
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10m/V contact criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, ±2KV
Surge BS EN/EN61000-4-5 Level 2, ±1KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions BS EN/EN61000-4-11 0%, 70% perf. Criteria B

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A without external components
Radiated	BS EN/EN55032(CISPR32)	Class B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±6KV contact criteria B
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10m/V contact criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, ±2KV
Surge	BS EN/EN61000-4-5	Level 2, ±1KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions	BS EN/EN61000-4-11	0%, 70% perf. Criteria B

OTHERS

MTBF (Typ.): >10000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): B Type : 44.5*25.5*15mm (1.751*1.003*0.59 inch)
PACKING: A,B Type :11.2g ; 49pcs/per Tray, 637pcs/13 Tray/per carton C Type :11.2g ; 56pcs/per Tray, 448pcs/8 Tray/per carton

Test conditions and notes5

1.All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
4.When starting at a low temperature of -40℃, the output capacitor needs to be equipped with a solid capacitor to meet the load reduction curve requirements.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

IOB-15-12B Additional Circuit Design Reference — Additional Circuit Design Reference

IOB-15-12B Additional EMC Suggestion Circuit — Additional EMC Suggestion Circuit

IOB-15-12B 2.Circuit 2 - Indoor Civil / Indoor General Environment — 2.Circuit 2 - Indoor Civil / Indoor General Environment

IOB-15-12B 3.Circuit 3 - Indoor General Environment — 3.Circuit 3 - Indoor General Environment

IOB-15-12B Immunity Emissions — Immunity Emissions

IOB-15-12B Pin Assignment — Pin Assignment

Typical applications

Downloads

Datasheet1

IOB-15-12B datasheetIOB-15-SPEC.PDF · 2025-09-23 edition PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well IOB-15-12B designed for?

The IOB-15-12B is an AC-DC on-board power module intended for systems that need a compact embedded power supply. It is built to be assembled on the main PCB and is suited to space-constrained commercial or industrial equipment where a compact internal power module is needed.

What are the key electrical specifications of the IOB-15-12B?

This model is rated for 15W output power and accepts a wide 85 to 305Vac input range, with 100 to 430Vdc input also listed. It features low no-load power consumption below 0.25W and ripple and noise specified at 150mV.

Is the IOB-15-12B suitable for demanding temperature conditions?

Yes. The specified operating temperature range is -40 to +85 degrees C, which makes it suitable for equipment exposed to both cold and elevated ambient conditions. Cooling is by free air convection, so it is intended for designs that rely on passive thermal management.

What protection features are included in the IOB-15-12B?

The module includes short circuit, overload, and over voltage protection. Short circuit protection is continuous with automatic recovery in hiccup mode, and overload protection recovers automatically after the fault condition is removed.

How compact is the Mean Well IOB-15-12B?

The listed dimensions are 44.5 x 25.5 x 15 mm, making it a compact choice for on-board power conversion. Its small footprint is one of the main differentiators for designs where PCB space is limited.

What compliance and insulation characteristics does this module offer?

The IOB-15-12B is listed as Safety Class II and approved to LVD IEC62368-1. It also specifies 3KVac withstand voltage from input to output, with leakage current below 5mA.
