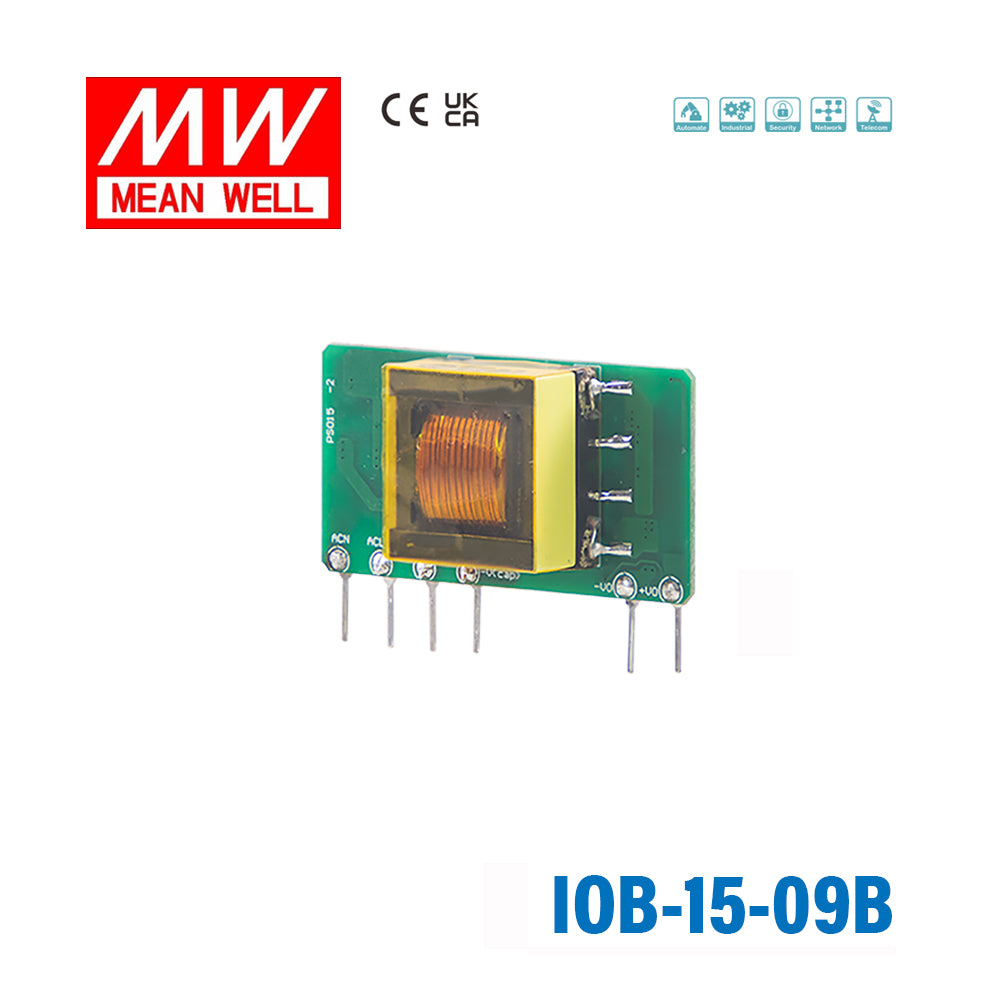

Mean Well IOB-15-09B AC-DC On Board Type Power Module 15W 9V, Horizontal 1.67A

1.75"x0.86" compact size85~305Vac inputno load power consumption<0.25W

SKU IOB-15-09B

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IOB-15-09B is the 9V output model of this series: rated current 1.67A, rated power 15W, typical efficiency 82%.

The IOB-15 series is a compact and reliable AC-DC open frame power module featuring high efficiency and low power consumption. It is particularly well-suited for space-constrained applications with stringent energy efficiency requirements. The product features a compact design and supports universal input voltage range of 85~305Vac. With ultra-low standby power consumption <0.25W, it is energy efficiency and eco-friendly. It also offers an ultra-wide operating temperature range of -40℃ ~+85℃ as well as complete protection functions to ensure safe and reliable operation. These features make the product suitable for applications with strict space constraints, such as industrial automation, power metering, and smart devices.

Features

Assemble on the main PCB of the system
1.75''x0.86''compact size
85~305Vac input (277Vac available)
No load power consumption <0.25W
-40~85℃ wide operating temperature
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Safety Class Ⅱ
3 years warranty

Specifications

IOB-15-09BSpecifications from the official datasheet (2025-09-23 edition)

OUTPUT

DC VOLTAGE: 9V
RATED CURRENT: 1.67A
CURRENT RANGE: 0 ~ 1.67A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 150mV
INITIAL SET POINT ACCURACY: ±3% for 3.3Vdc output, ±2% for other output
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2% for 3.3Vdc output, ±1.5% for 5Vdc output, ±1% for other output
CAPACITOR LOAD (Max.): 5000μF

INPUT

VOLTAGE RANGE: 85 ~ 305Vac 100 ~ 430Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 0.4A/115Vac 0.25A/230Vac
INRUSH CURRENT (Typ.): 18A/115Vac 35A/230Vac
NO LOAD POWER CONSUMPTION: <0.25W

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery, Hiccup mode
OVERLOAD: >110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE (Max.): 12Vdc Protection type : Output voltage clamp

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.^Note.4: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.15% / ℃ max. (0 ~ 85℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: LVD IEC62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVac leakage current <5mA
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A without external components
Radiated BS EN/EN55032(CISPR32) Class B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±6KV contact criteria B
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10m/V contact criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, ±2KV
Surge BS EN/EN61000-4-5 Level 2, ±1KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions BS EN/EN61000-4-11 0%, 70% perf. Criteria B

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A without external components
Radiated	BS EN/EN55032(CISPR32)	Class B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±6KV contact criteria B
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10m/V contact criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, ±2KV
Surge	BS EN/EN61000-4-5	Level 2, ±1KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions	BS EN/EN61000-4-11	0%, 70% perf. Criteria B

OTHERS

MTBF (Typ.): >10000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): A Type : 44.5*25*15mm (1.751*0.984*0.59 inch) ; B Type : 44.5*25.5*15mm (1.751*1.003*0.59 inch) C Type : 44.5*23*15.5mm (1.751*0.905*0.61 inch)
PACKING: A,B Type :11.2g ; 49pcs/per Tray, 637pcs/13 Tray/per carton C Type :11.2g ; 56pcs/per Tray, 448pcs/8 Tray/per carton

Test conditions and notes5

1.All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
4.When starting at a low temperature of -40℃, the output capacitor needs to be equipped with a solid capacitor to meet the load reduction curve requirements.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

IOB-15-09B Additional Circuit Design Reference — Additional Circuit Design Reference

IOB-15-09B Additional EMC Suggestion Circuit — Additional EMC Suggestion Circuit

IOB-15-09B 2.Circuit 2 - Indoor Civil / Indoor General Environment — 2.Circuit 2 - Indoor Civil / Indoor General Environment

IOB-15-09B 3.Circuit 3 - Indoor General Environment — 3.Circuit 3 - Indoor General Environment

IOB-15-09B Immunity Emissions — Immunity Emissions

IOB-15-09B Pin Assignment — Pin Assignment

Typical applications

Downloads

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What type of power supply is the Mean Well IOB-15-09B?

The IOB-15-09B is an AC-DC on-board power module designed to be used as a compact embedded power supply inside larger equipment. It is a 15W model in Mean Well's IOB series and is the vertical (B) version of this module.

What input voltage range does the IOB-15-09B support?

This model accepts a wide 85-305Vac input range and also supports 100-430Vdc input. That wide-range input makes it suitable for equipment intended for varied mains environments without needing a narrowly matched input source.

What applications is the IOB-15-09B best suited for?

This module is aimed at embedded industrial and commercial electronics that need a compact on-board AC-DC power source. Its small footprint, low no-load power consumption, and wide input range make it a fit for space-constrained control, monitoring, and internal system power applications.

Can the IOB-15-09B operate in demanding temperature conditions?

Yes. The specified operating temperature range is -40 to +85 degrees C, which is broad for an on-board power module. That makes it appropriate for equipment exposed to cold starts or elevated internal enclosure temperatures, provided the overall design stays within the product's derating guidance.

What protection features are included in the IOB-15-09B?

The IOB-15-09B includes short circuit, overload, and over-voltage protection. The short circuit and overload responses are described as hiccup-mode protection with automatic recovery after the fault condition is removed.

How compact is the Mean Well IOB-15-09B?

This module is specified at 44.5 x 25.5 x 15 mm, making it a compact option for designs where board space is limited. The product description also highlights its small on-board form factor as a key feature.

What safety and efficiency-related points stand out on this model?

The IOB-15-09B is listed as Safety Class II and approved to IEC62368-1. It also has no-load power consumption below 0.25W and uses free-air convection cooling, which supports efficient operation in embedded equipment without requiring active cooling hardware.
