Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

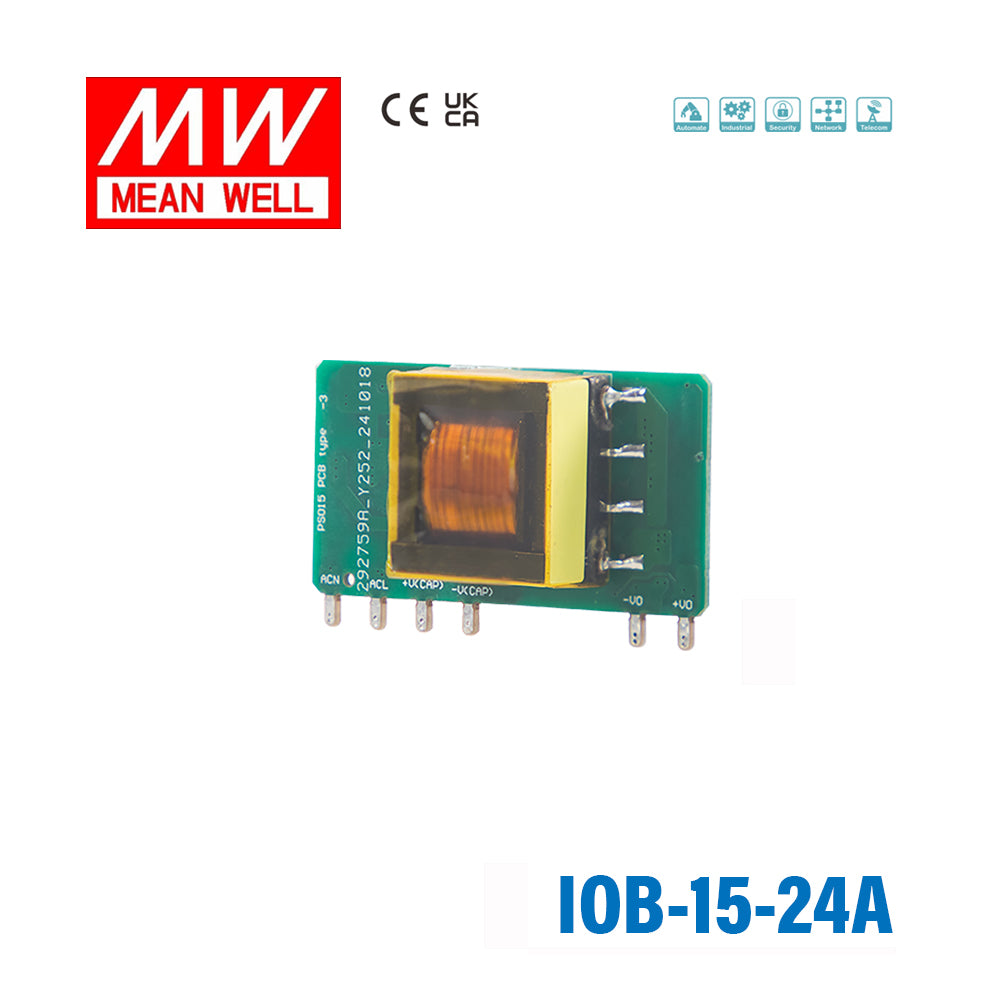

Mean Well IOB-15-24A AC-DC On Board Type Power Module 15W 24V, Gold...
Please Login for Pricing
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage85V~305V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length4.45 cm
-
Width2.5 cm
-
Height1.5 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-24A designed for?
The IOB-15-24A is a 15W AC-DC on-board power module intended for OEM and embedded equipment that needs a regulated 24V DC output. Its gold finger PCB format and compact body make it suitable for space-constrained industrial or commercial system designs.
What output does the IOB-15-24A provide?
This model provides a single 24V DC output rated at 0.625A, with a total power rating of 15W. It is intended for applications that need a compact low-power AC-DC conversion stage rather than a higher-current external power supply.
What input range does the IOB-15-24A support?
The IOB-15-24A accepts a wide 85 to 305Vac input range and also supports 100 to 430Vdc input. That broad range is useful for equipment that may be deployed across regions or in systems with varying available input power conditions.
Can the IOB-15-24A be used in demanding temperature environments?
Yes, this module is specified for operation from -40C to +85C, subject to the product's derating guidance. That makes it a practical choice for many industrial and enclosed equipment environments where ambient temperatures can vary widely.
What protection features are included in the IOB-15-24A?
The IOB-15-24A includes short circuit, overload, and over-voltage protection. Short circuit and overload protection use automatic recovery behavior, which helps protect the power module and downstream equipment during fault conditions.
How compact is the IOB-15-24A compared with larger enclosed power supplies?
The IOB-15-24A measures 44.5 x 24 x 15 mm and weighs about 0.0112 kg, making it much smaller and lighter than typical enclosed chassis-mounted power supplies. It is better suited to applications where board-level integration and space savings matter more than higher output power.
