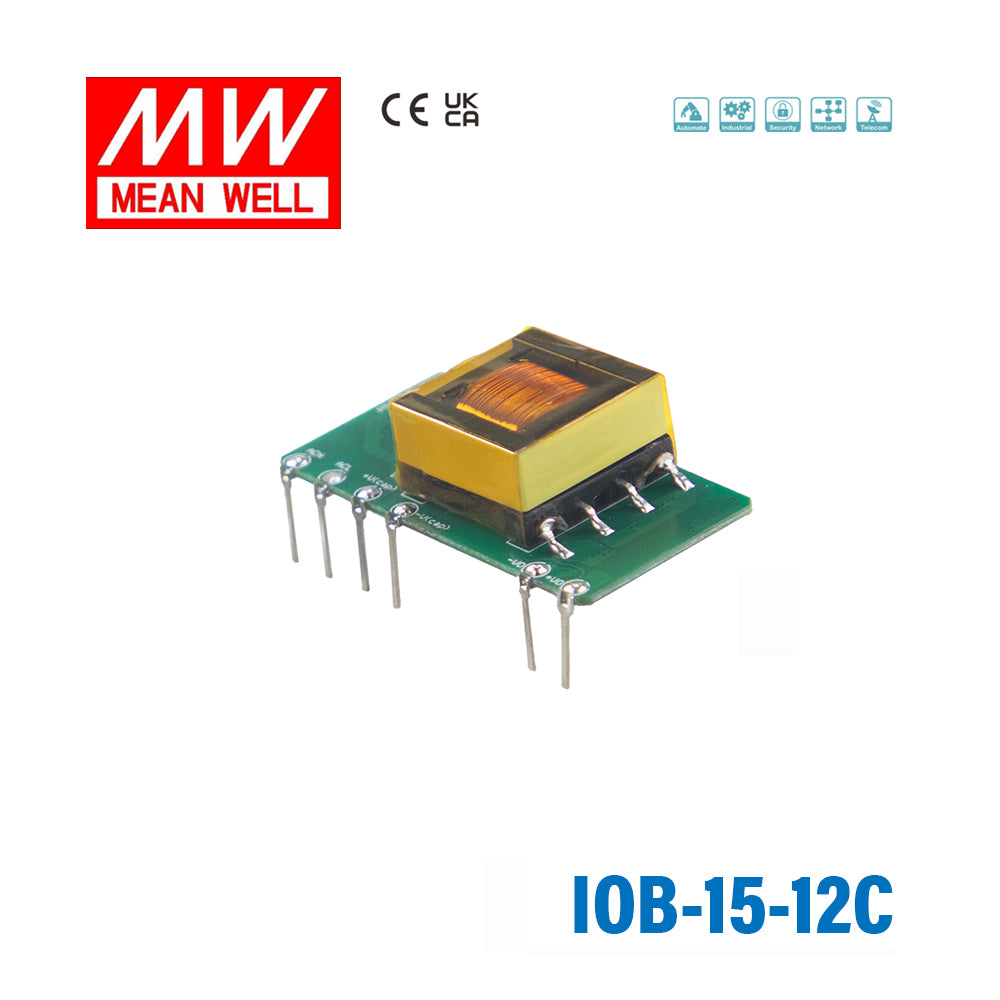

Mean Well IOB-15-12C AC-DC On Board Type Power Module 15W 12V, Vert...
Please Login for Pricing
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage3.3 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~305V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length4.45 cm
-
Width2.5 cm
-
Height1.5 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-12C designed for?
The IOB-15-12C is an AC-DC on-board power module intended for OEM and industrial equipment that needs a compact embedded power supply. It is built to mount on the system’s main PCB and provides up to 15W of output power in a vertical form factor.
What are the key electrical specifications of the IOB-15-12C?
This model is rated for 15W output and is identified as a 12V version in the product name. It accepts a wide 85 to 305Vac input range, or 100 to 430Vdc, and lists ripple and noise at 150mV. The rated current is 1.25A.
Is the IOB-15-12C suitable for harsh temperature environments?
Yes. The specified operating temperature range is -40°C to +85°C, which makes it suitable for demanding indoor equipment environments where wide thermal tolerance is required. The product is designed for cooling by free air convection.
What protections are built into the IOB-15-12C?
The module includes short circuit, overload, and over voltage protection. Short circuit protection is continuous with automatic recovery in hiccup mode, and overload protection also recovers automatically after the fault condition is removed.
How compact is the Mean Well IOB-15-12C?
The module is designed for space-constrained equipment, with dimensions of 44.5 x 24 x 15 mm. Mean Well also highlights its compact footprint for on-board integration and vertical mounting orientation.
What compliance and reliability details are listed for this model?
The IOB-15-12C is listed as Safety Class II and approved to IEC62368-1. It also carries a 3-year warranty and has no-load power consumption below 0.25W, which supports use in efficient embedded designs.
