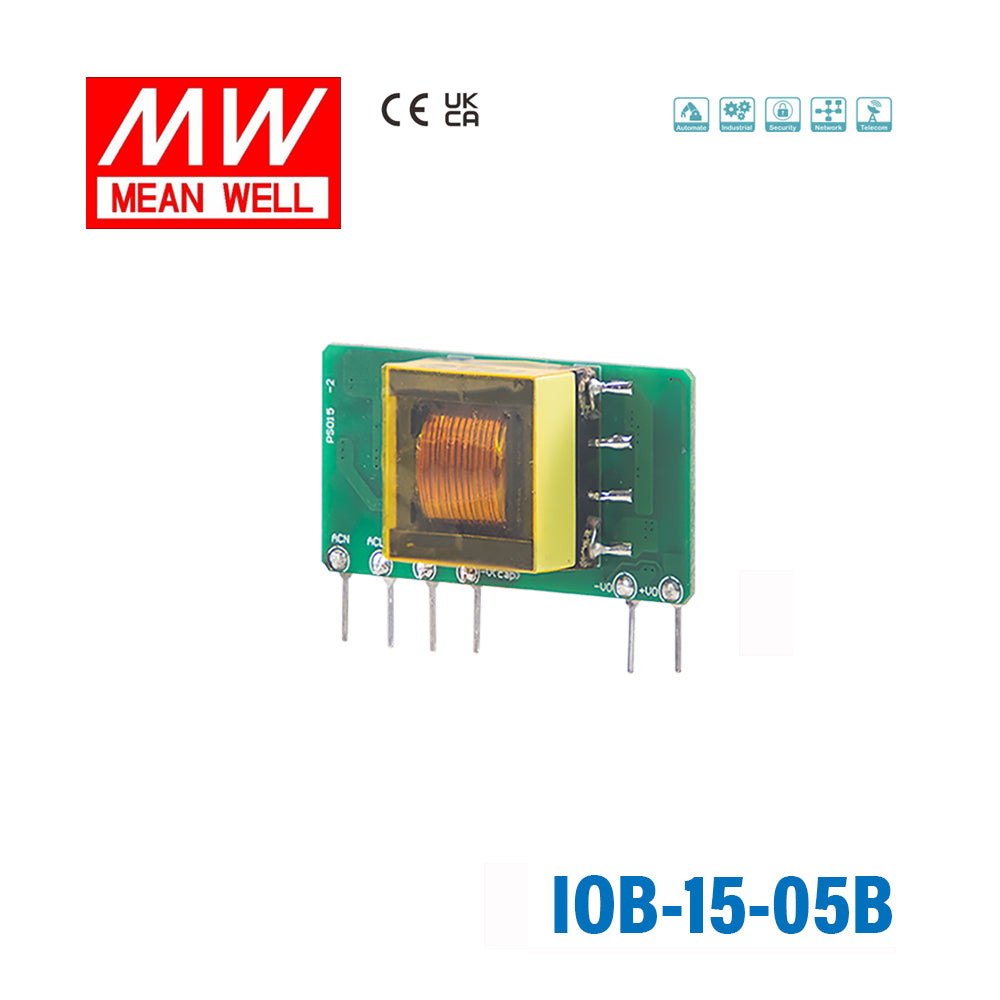

Mean Well IOB-15-05B AC-DC On Board Type Power Module 14W 5V, Horizontal 2.8A

1.75"x0.86" compact size85~305Vac inputno load power consumption<0.25W

SKU IOB-15-05B

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IOB-15-05B is the 5V output model of this series: rated current 2.8A, rated power 14W, typical efficiency 77%.

The IOB-15 series is a compact and reliable AC-DC open frame power module featuring high efficiency and low power consumption. It is particularly well-suited for space-constrained applications with stringent energy efficiency requirements. The product features a compact design and supports universal input voltage range of 85~305Vac. With ultra-low standby power consumption <0.25W, it is energy efficiency and eco-friendly. It also offers an ultra-wide operating temperature range of -40℃ ~+85℃ as well as complete protection functions to ensure safe and reliable operation. These features make the product suitable for applications with strict space constraints, such as industrial automation, power metering, and smart devices.

Features

Assemble on the main PCB of the system
1.75''x0.86''compact size
85~305Vac input (277Vac available)
No load power consumption <0.25W
-40~85℃ wide operating temperature
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Safety Class Ⅱ
3 years warranty

Specifications

IOB-15-05BSpecifications from the official datasheet (2025-09-23 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 2.8A
CURRENT RANGE: 0 ~ 2.8A
RATED POWER: 14W
RIPPLE & NOISE (max.)^Note.2: 150mV
INITIAL SET POINT ACCURACY: ±3% for 3.3Vdc output, ±2% for other output
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2% for 3.3Vdc output, ±1.5% for 5Vdc output, ±1% for other output
CAPACITOR LOAD (Max.): 15000μF

INPUT

VOLTAGE RANGE: 85 ~ 305Vac 100 ~ 430Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 77%
AC CURRENT (Typ.): 0.4A/115Vac 0.25A/230Vac
INRUSH CURRENT (Typ.): 18A/115Vac 35A/230Vac
NO LOAD POWER CONSUMPTION: <0.25W

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery, Hiccup mode
OVERLOAD: >110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE (Max.): 9Vdc Protection type : Output voltage clamp

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.^Note.4: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.15% / ℃ max. (0 ~ 85℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: LVD IEC62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVac leakage current <5mA
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A without external components
Radiated BS EN/EN55032(CISPR32) Class B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±6KV contact criteria B
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10m/V contact criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, ±2KV
Surge BS EN/EN61000-4-5 Level 2, ±1KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions BS EN/EN61000-4-11 0%, 70% perf. Criteria B

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A without external components
Radiated	BS EN/EN55032(CISPR32)	Class B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±6KV contact criteria B
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10m/V contact criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, ±2KV
Surge	BS EN/EN61000-4-5	Level 2, ±1KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 10Vrms Criteria A
Voltage Dips and Interruptions	BS EN/EN61000-4-11	0%, 70% perf. Criteria B

OTHERS

MTBF (Typ.): >10000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): A Type : 44.5*25*15mm (1.751*0.984*0.59 inch) ; B Type : 44.5*25.5*15mm (1.751*1.003*0.59 inch) C Type : 44.5*23*15.5mm (1.751*0.905*0.61 inch)
PACKING: A,B Type :11.2g ; 49pcs/per Tray, 637pcs/13 Tray/per carton C Type :11.2g ; 56pcs/per Tray, 448pcs/8 Tray/per carton

Test conditions and notes5

1.All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
4.When starting at a low temperature of -40℃, the output capacitor needs to be equipped with a solid capacitor to meet the load reduction curve requirements.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

IOB-15-05B Additional Circuit Design Reference — Additional Circuit Design Reference

IOB-15-05B Additional EMC Suggestion Circuit — Additional EMC Suggestion Circuit

IOB-15-05B 2.Circuit 2 - Indoor Civil / Indoor General Environment — 2.Circuit 2 - Indoor Civil / Indoor General Environment

IOB-15-05B 3.Circuit 3 - Indoor General Environment — 3.Circuit 3 - Indoor General Environment

IOB-15-05B Immunity Emissions — Immunity Emissions

IOB-15-05B Pin Assignment — Pin Assignment

Typical applications

Downloads

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What type of applications is the Mean Well IOB-15-05B best suited for?

The IOB-15-05B is designed for embedded power use inside OEM and industrial equipment where a compact on-board AC-DC module is preferred. It is a practical fit for space-constrained control boards, monitoring devices, and other PCB-based systems that need a low-power isolated supply.

What input range does the IOB-15-05B support?

This model supports a wide 85 to 305Vac input range and also accepts 100 to 430Vdc. That broad range makes it suitable for equipment intended for global input conditions rather than a single local mains standard.

Is the IOB-15-05B a good choice for compact product designs?

Yes. Mean Well specifies this module as an on-board type power supply with a compact 44.5 x 25.5 x 15 mm body, making it suitable where PCB area and enclosure space are limited. Its vertical form factor also helps when height and layout matter in dense assemblies.

Can the IOB-15-05B operate in harsh temperature conditions?

This model is rated for a wide operating temperature range of -40 to +85 C, subject to the manufacturer's derating guidance. That makes it better suited than many general-purpose modules for equipment exposed to cold starts or elevated internal temperatures.

What protection features are included on the IOB-15-05B?

The IOB-15-05B includes short circuit, overload, and overvoltage protection. Mean Well specifies automatic recovery behavior, with hiccup-mode protection for short circuit and overload conditions and output-voltage clamp protection for overvoltage.

How efficient is the IOB-15-05B when the equipment is idle or lightly loaded?

A key advantage of this module is its low no-load power consumption of less than 0.25W. That helps reduce standby energy use in equipment that spends long periods powered but not actively drawing much load.

What certifications or safety characteristics does the IOB-15-05B offer?

Mean Well lists this model as Safety Class II and states compliance with IEC62368-1 under LVD approval. It also has 3KVac input-to-output withstand voltage and is backed by a 3-year warranty.
