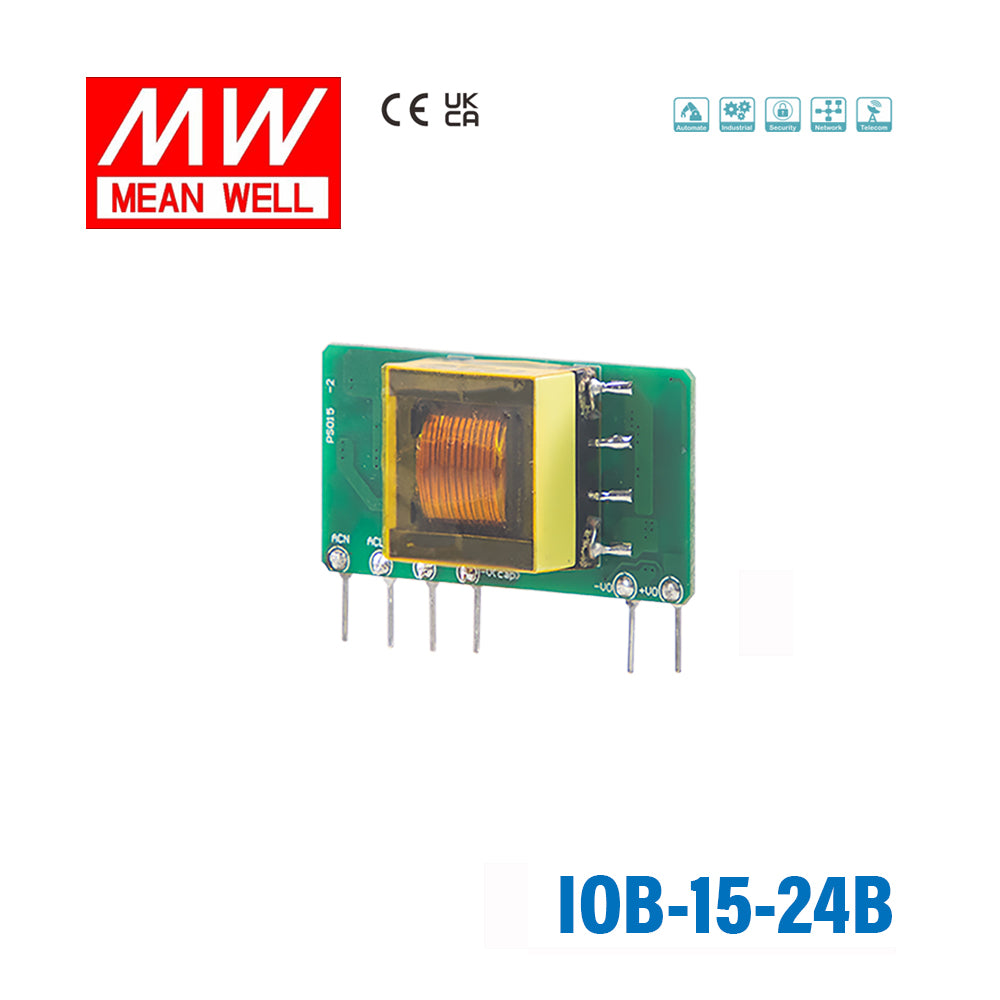

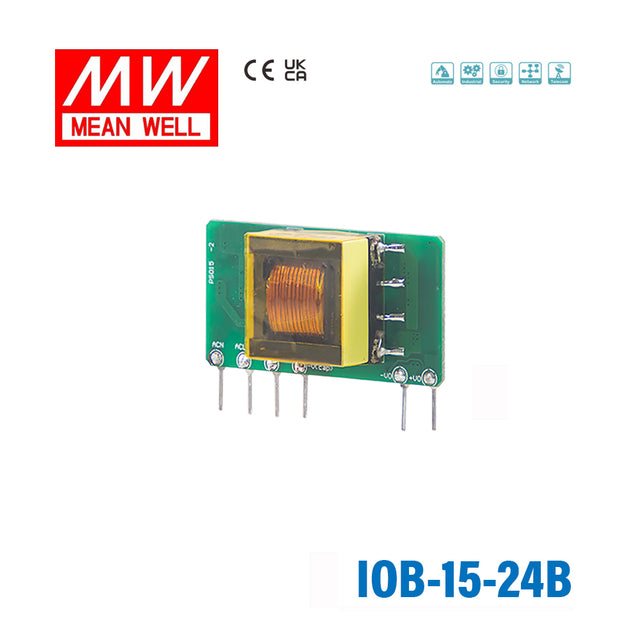

Mean Well IOB-15-24B AC-DC On Board Type Power Module 15W 24V, Hori...
Please Login for Pricing
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current0.62 Ampere
-
Input Voltage85V~305V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length4.45 cm
-
Width2.5 cm
-
Height1.5 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-24B designed for?
The IOB-15-24B is a 15W AC-DC on-board power module intended for systems that need a regulated 24V DC output in a compact form factor. Its horizontal package and small footprint make it suitable for space-constrained embedded or industrial equipment designs.
What input voltage range does the IOB-15-24B support?
This model accepts a wide input range of 85 to 305Vac, and it also supports 100 to 430Vdc input. That broad range helps it fit applications that may see varying global mains conditions.
What output does the IOB-15-24B provide?
The IOB-15-24B provides a 24V DC output with a 15W power rating. The product data also lists a rated current of 0.625A for this model.
Is the IOB-15-24B suitable for harsh temperature environments?
Yes, this power module is rated for operation from -40°C to +85°C, which is a wide operating range for demanding environments. That makes it a practical option for industrial equipment exposed to cold starts or elevated internal temperatures.
What protection features are included in the IOB-15-24B?
The IOB-15-24B includes short circuit, overload, and over-voltage protection. Short circuit and overload conditions recover automatically after the fault is removed, helping protect both the module and the host system.
How compact is the Mean Well IOB-15-24B?
This module is built for compact applications, with dimensions listed as 44.5 x 24 x 15 mm. The product description also highlights its small on-board form factor for designs where board space matters.
