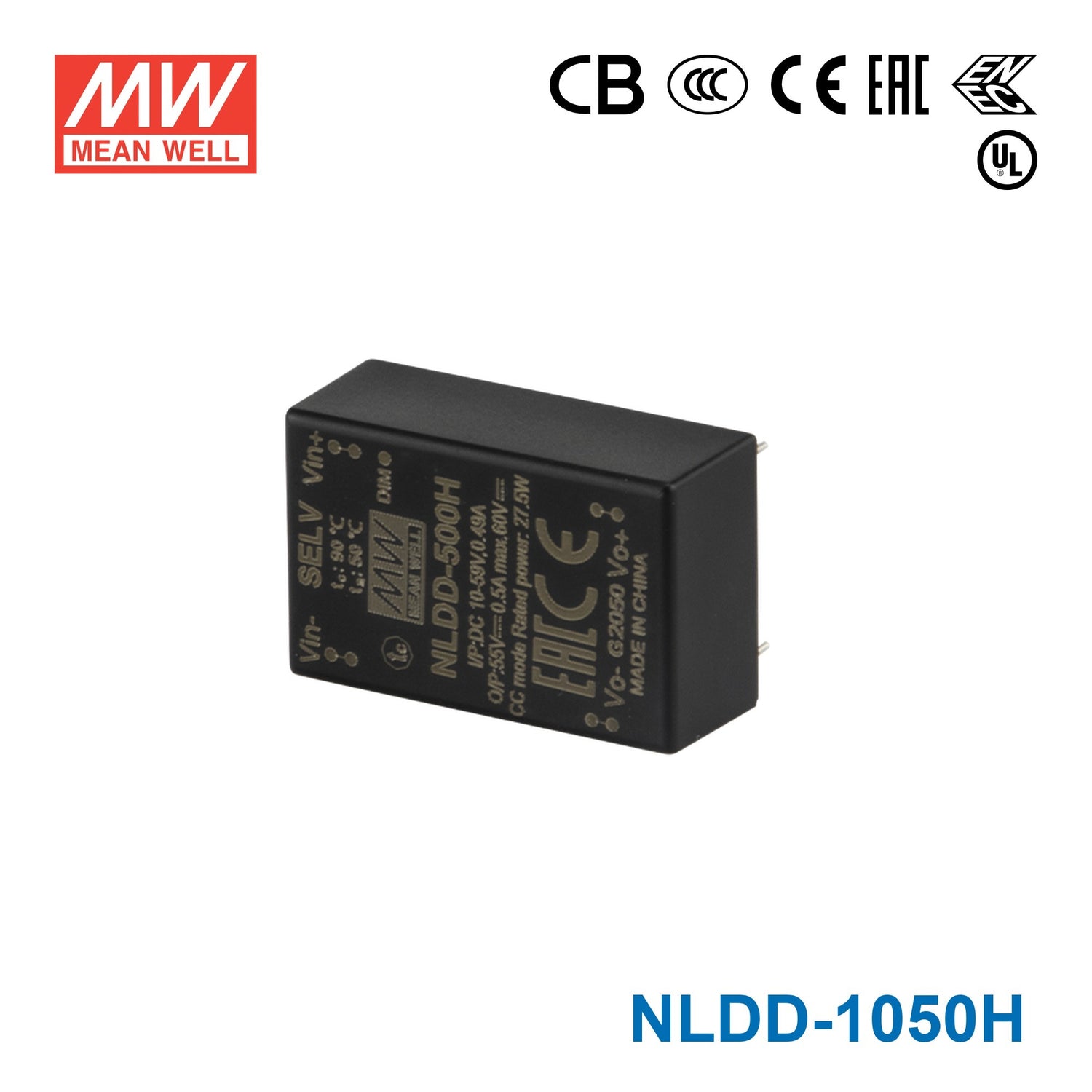

Mean Well NLDD-1050H DC/DC LED Driver CC 1050mA - Step-down

constant currentstep downhigh efficiency up to 97%IP67pin style

SKU NLDD-1050H

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NLDD-1050H is the model of this series: typical efficiency 96% at full load and 36VDC/48VDC input.

NLDD-H series is a 60W DC/DC LED driver featuring constant current output. NLDD-H operates from 10~56VDC and offers models with different rated current ranging between 350mA and 1400mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone to enhance the heat dissipation allows this series to fit for classⅢ or DC bus lighting application.

Features

DC/DC step-down converter
Constant current output: 350mA to 1400mA
Wide input voltage: 10 ~ 56VDC(59VDC Max.)
Wide output LED forward voltage: 6 ~ 52VDC
High efficiency up to 96%
Comply with BS EN/EN61347 and BS EN/EN55015 regulation
For class Ⅲ application(SELV)
Built-in PWM and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully encapsulated and compact site
Suitable for driving illumination LED
3 years warranty

Specifications

NLDD-1050HSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

CURRENT RANGE: 1050mA
VOLTAGE RANGE^Note.4: 6 ~ 52VDC
CURRENT ACCURACY (Typ.): ±5% at 48VDC input
RIPPLE & NOISE(max.)^Note.2: 350mVp-p
SWITCHING FREQENCY: 200KHz

INPUT

VOLTAGE RANGE: 10 ~ 56VDC (59VDC Max.)
EFFICIENCY (max.): 96% at full load and 36VDC/48VDC input
DC CURRENT Full load^Note.3: 1100mA
DC CURRENT No load: 5mA

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF: Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY: 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(max.): 2mA at PWM dimming OFF at 48VDC input

PROTECTION

SHORT CIRCUIT: Regulated at rated current Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE: Tj 165℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ + 50℃(Refer to derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.): 90℃
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF: 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H)
WEIGHT: NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing)
POTTING MATERIAL: Expoxy(UL94-V0)

Test conditions and notes7

1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
3.Test condition: 48VDC input.
4.Output voltage will always step down by 4 volts from input DC voltage.
5.The output of NLDD-H should not be connected to the input of the same unit or output from other sources.
6.The power supply is regarded as a part of the components in the system, and the final EMI test needs to be tested with the final device. If an additional EMI filter circuit is required to meet the electromagnetic compatibility requirements, please refer to the EMC test report for details. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7.Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

NLDD-1050H Mechanical Specification — Mechanical Specification

NLDD-1050H Derating Curve — Derating Curve

NLDD-1050H PWM Dimming Control — PWM Dimming Control

NLDD-1050H Efficiency VS Output Voltage — Efficiency VS Output Voltage

Typical applications

DC battery source lighting
Portable lighting
Commercial lighting
DC 48V Track lighting
DC 24V landscape lighting

Downloads

Certificates3

Mean Well NLDD-H-EMC Certificate PDF Download

Mean Well NLDD-CE-dec Certificate PDF Download

Mean Well NLDD-UK-dec Certificate PDF Download

Test reports1

Mean Well NLDD-1050H Test Report PDF Download

FAQ

Can I use the Mean Well NLDD-1050H for LED downlights?

Yes, this model can fit LED downlights that need a constant current driver rated at 1050mA. It is a step-down LED driver with a constant-current output range of 6V to 52V and up to 60W, so the downlight load needs to stay within that range.

Is the NLDD-1050H suitable for LED signage modules?

It can be used for LED signage modules when the modules are designed for constant current operation at 1050mA rather than constant voltage. The available constant-current range is 6V to 52V with up to 60W output. Note that this unit is fully encapsulated but does not carry an IP rating, so it requires protection from direct exposure to water and dust.

Can this driver power a small LED array?

Yes, it can work with a small LED array if the array is a constant-current load rated for 1050mA. The array's combined forward voltage must fall within 6V to 52V, and total load must remain within the 60W rating.

Is the NLDD-1050H a good choice for compact constant-current LED designs?

This driver is suited to compact LED designs that need constant current at 1050mA in a small form factor. Its dimensions are 32.1 x 20.5 x 12.5 mm, and it is designed as a pin-style step-down LED driver with efficiency up to 96%.

How do I know if my LEDs are compatible with the NLDD-1050H?

Your LEDs need to be designed for constant current operation at 1050mA, not constant voltage. The driver supports a constant-current output voltage range of 6V to 52V, and the number of LEDs depends on the forward voltage of each LED in the load.

Can the NLDD-1050H be used in outdoor or high-exposure environments?

This model operates from -40°C to +50°C and is fully encapsulated in epoxy, making it suitable for demanding internal environments. It does not have an IP rating, so it is not intended for direct outdoor exposure without additional housing or protection.
