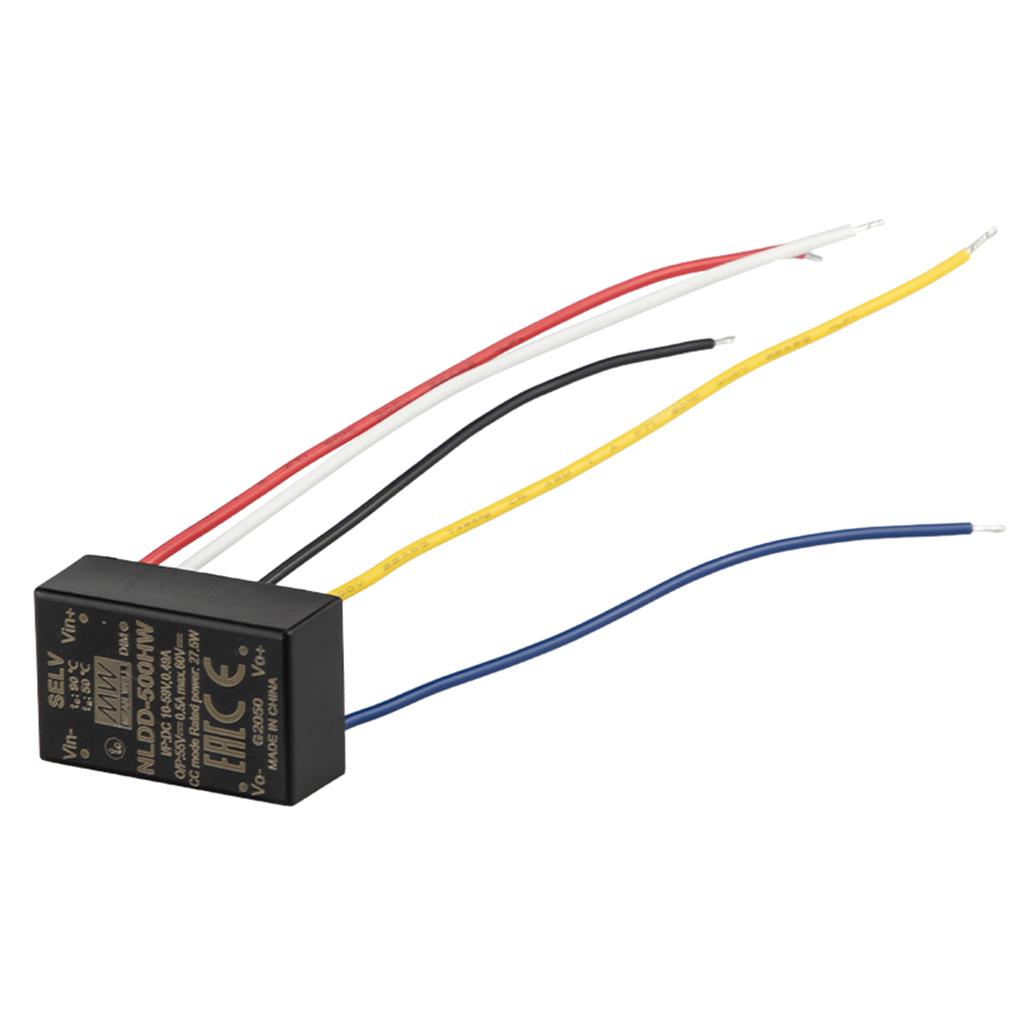

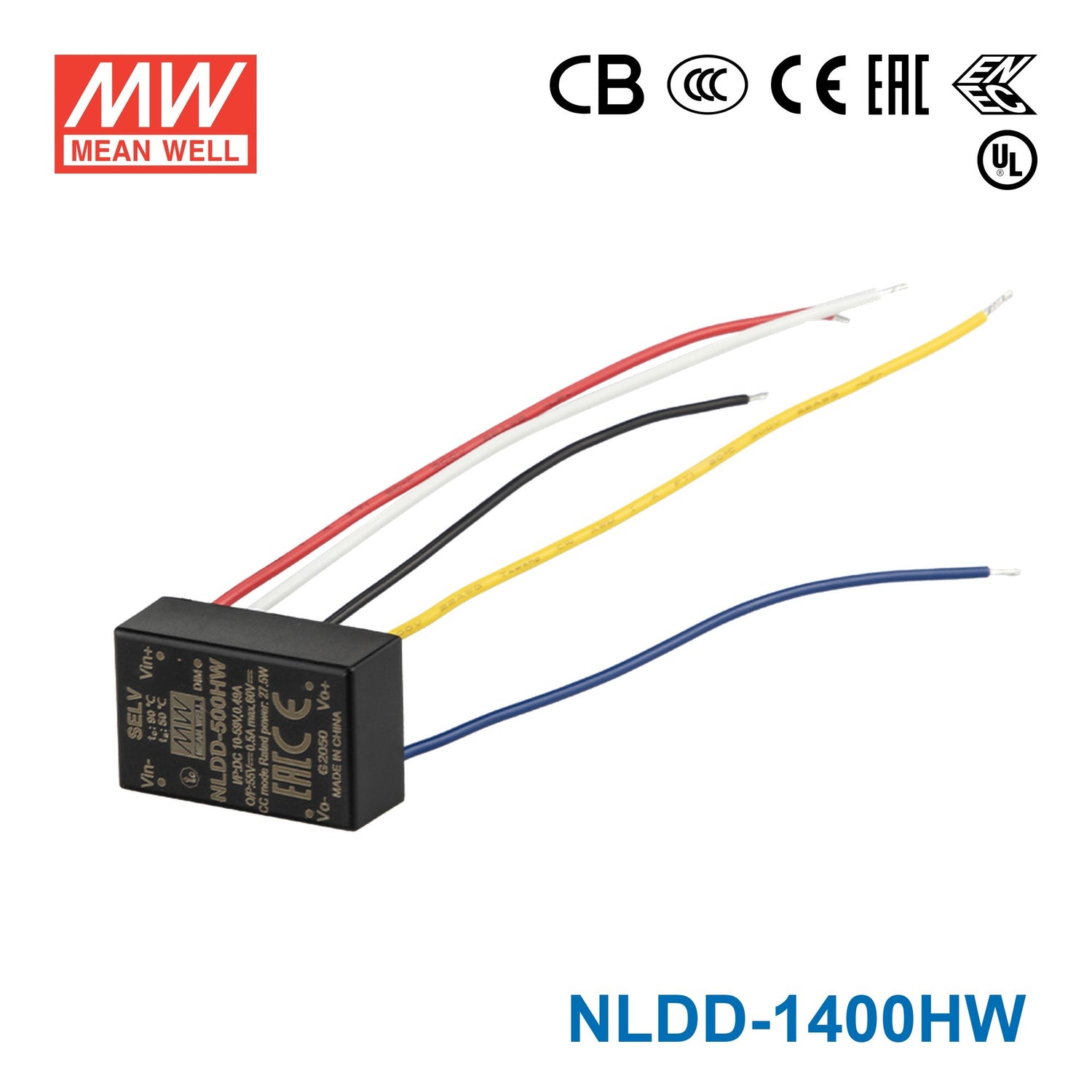

Mean Well NLDD-1400HW DC/DC LED Driver CC 1400mA - Step-down Wire Type

constant current, step down, high efficiency up to 97%, IP67, wire style
SKU:
NLDD-1400HW

|

Description

Features

DC/DC step-down converter
Constant current output: 350mA to 1400mA
Wide input voltage: 10~56VDC(59VDC Max.)
Wide output LED forward voltage: 6~52VDC
High efficiency up to 96%
Comply with BS EN/EN61347 and BS EN/EN55015 regulation
Build-in PWM and remote ON/OFF control
Protections: Short circuit/Over temperature
Cooling by free air convection
Fully encapsulated and compact size
Suitable for driving illumination LED
3 years warranty

General Specification

Current accuracy ±5% at 48V
Over temperature protection Protection type : Shut down, recovers automatically after temperature goes down
Efficiency 96% at full load and 36VDC/48VDC input
Short circuit protection Regulated at rated output current
Working temperature -40°C to +50°C
EMC Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient ±0.03% / °C
Dimension (LxWxH) (mm) 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch
Potting material Epoxy

Specifications

  • Brand
    Mean Well
  • Series
    NLDD Series
  • Power Rating
    60 Watt
  • Output Voltage
    46 Volt
  • Rated Current
    1.4 Ampere
  • Input Voltage
    6V~46V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~50°C
  • Warranty
    3 Year
  • Length
    3.21 cm
  • Width
    2.05 cm
  • Height
    1.25 cm
  • Weight
    0.02 kg
