Can the NLDD-1200HW power a constant-current LED downlight module?

Yes, if the downlight module is specified for constant current operation and its total forward voltage stays within 6-46V. This is a 60W step-down constant current driver, so it is not the right choice for constant-voltage LED products.

Is this driver suitable for LED signage modules in wet or dusty areas?

It can be used in harsher environments because the NLDD-1200HW is rated IP67. The driver also has an operating temperature range of -40°C to +50°C, so it is suited to applications where ambient conditions are broader than typical indoor electronics.

Can I use the NLDD-1200HW for a small LED array fed from a low-voltage source?

Yes, when the source is within the 6-46VAC input range and the LED array is a constant current load. The array also needs to stay within the 6-46V constant-current output range and within the 60W power rating.

How many LEDs can the NLDD-1200HW drive?

That depends on the forward voltage of each LED in the load, not on a fixed LED count. For compatibility, the full LED load must remain within the driver's 6-46V constant-current output range.

How does the NLDD-1200HW sit within the NLDD family?

This model is one of the 60W NLDD variants and shares the 46-6V constant-current range with the 1200H, 1400H, and 1400HW. The 350H/350HW, 500H/500HW, 700H/700HW, and 1050H/1050HW versions use a wider 52-6V constant-current range with output currents of 0.35mA, 0.5mA, 0.7mA, and 1.05mA respectively.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

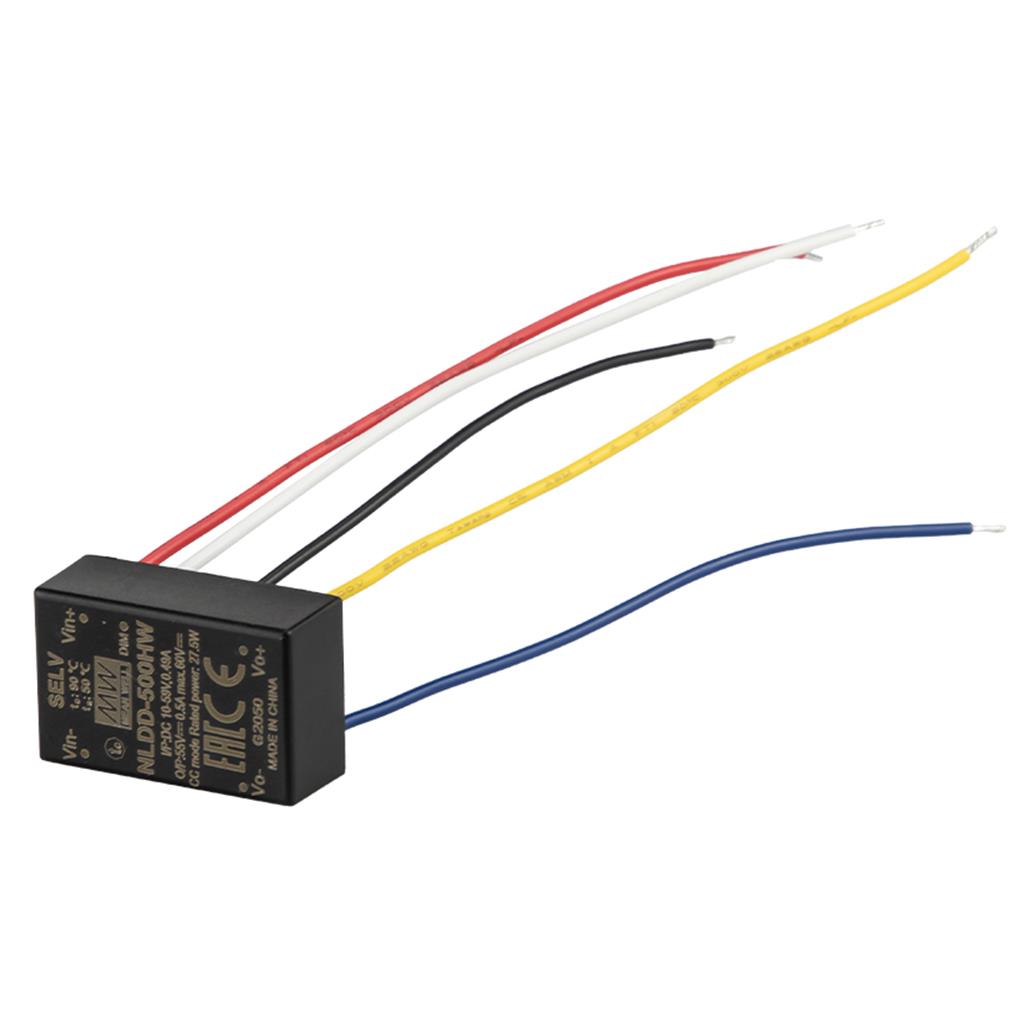

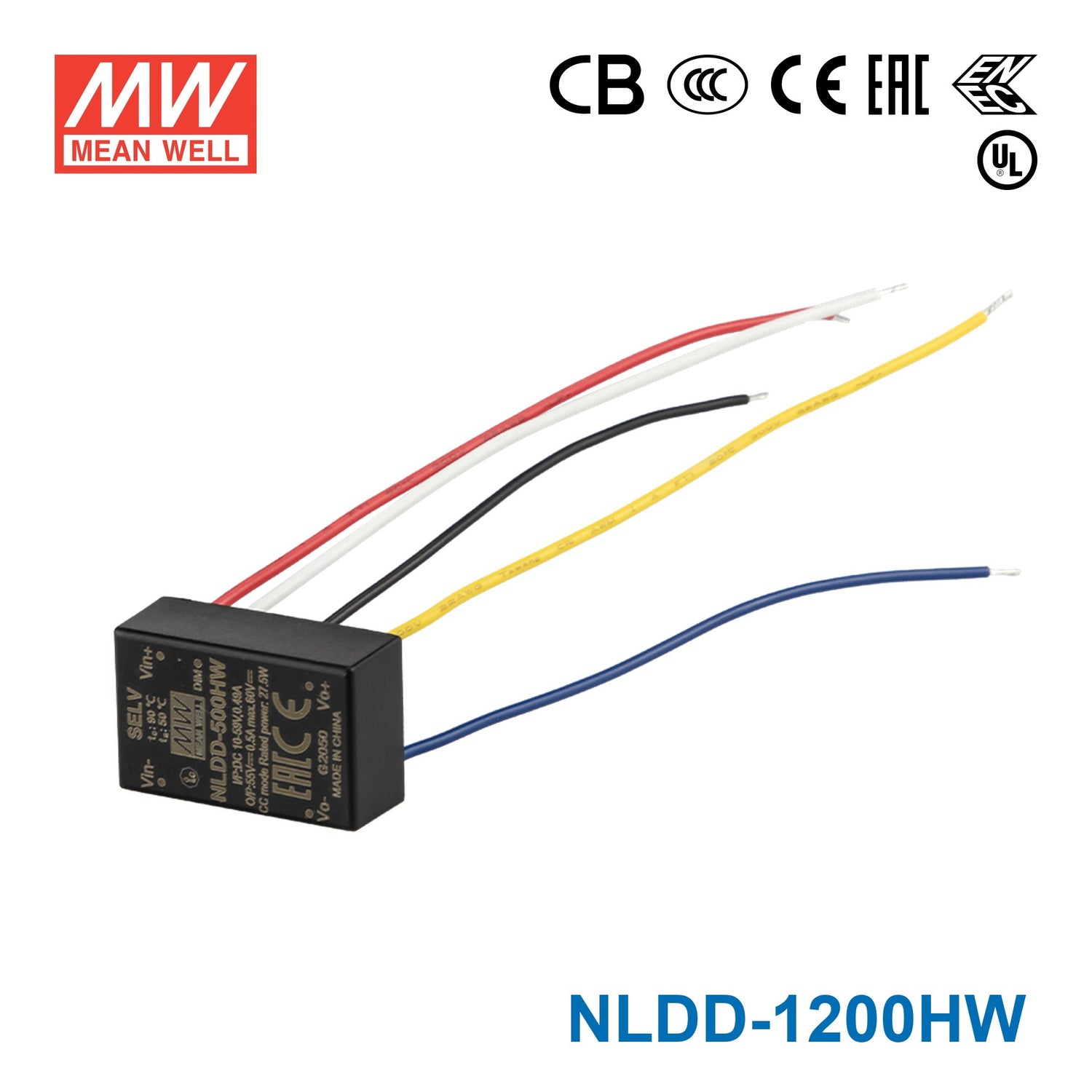

Mean Well NLDD-1200HW DC/DC LED Driver CC 1200mA - Step-down Wire Type

constant currentstep downhigh efficiency up to 97%IP67wire style

SKU:

NLDD-1200HW

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NLDD is a Mean Well power converter (input range: 6~52VDC, operating temperature: -40~+85℃).

Key Features

✓ Input voltage range: 6~52VDC
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Over temperature
✓ Remote ON/OFF control
✓ Safety approvals: IEC61347 and EAC TP TC004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NLDD-1050HW DC/DC LED Driver CC 1050mA - Step-down Wire Type	60W	52V	1.05A	Indoor	View
Mean Well NLDD-700HW DC/DC LED Driver CC 700mA - Step-down Wire Type	60W	52V	0.7A	Indoor	View
Mean Well NLDD-700H DC/DC LED Driver CC 700mA - Step-down	60W	52V	0.7A	Indoor	View
Mean Well NLDD-500HW DC/DC LED Driver CC 500mA - Step-down Wire Type	60W	52V	0.5A	Indoor	View
Mean Well NLDD-500H DC/DC LED Driver CC 500mA - Step-down	60W	52V	0.5A	Indoor	View
Mean Well NLDD-350HW DC/DC LED Driver CC 350mA - Step-down Wire Type	60W	52V	0.35A	Indoor	View
Mean Well NLDD-350H DC/DC LED Driver CC 350mA - Step-down	60W	52V	0.35A	Indoor	View
Mean Well NLDD-1400HW DC/DC LED Driver CC 1400mA - Step-down Wire Type	60W	46V	1.4A	Indoor	View
Mean Well NLDD-1400H DC/DC LED Driver CC 1400mA - Step-down	60W	46V	1.4A	Indoor	View
Mean Well NLDD-1200H DC/DC LED Driver CC 1200mA - Step-down	60W	46V	1.2A	Indoor	View
Mean Well NLDD-1050H DC/DC LED Driver CC 1050mA - Step-down	60W	52V	1.05A	Indoor	View
