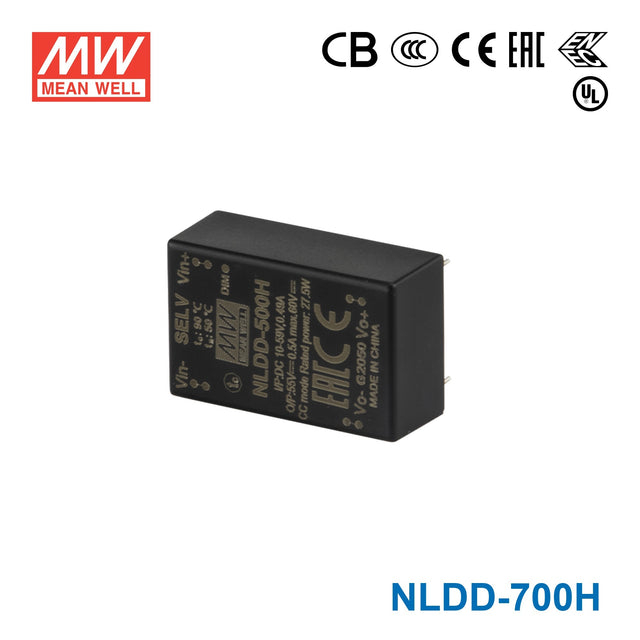

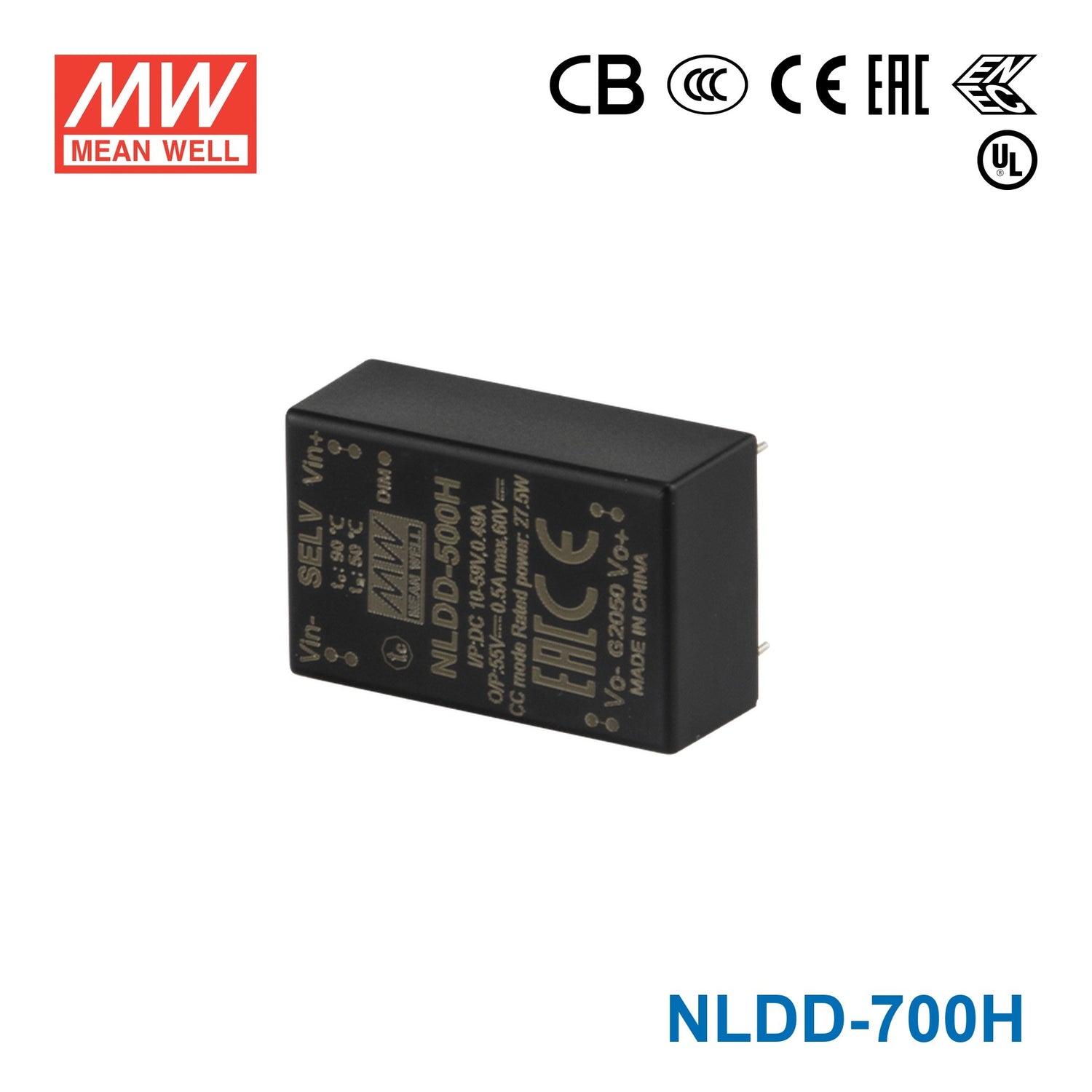

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well NLDD-700H DC/DC LED Driver CC 700mA - Step-down

constant currentstep downhigh efficiency up to 97%IP67pin style

SKU NLDD-700H

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NLDD-700H is the model of this series: typical efficiency 96% at full load and 36VDC/48VDC input.

NLDD-H series is a 60W DC/DC LED driver featuring constant current output. NLDD-H operates from 10~56VDC and offers models with different rated current ranging between 350mA and 1400mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone to enhance the heat dissipation allows this series to fit for classⅢ or DC bus lighting application.

Features

DC/DC step-down converter
Constant current output: 350mA to 1400mA
Wide input voltage: 10 ~ 56VDC(59VDC Max.)
Wide output LED forward voltage: 6 ~ 52VDC
High efficiency up to 96%
Comply with BS EN/EN61347 and BS EN/EN55015 regulation
For class Ⅲ application(SELV)
Built-in PWM and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully encapsulated and compact site
Suitable for driving illumination LED
3 years warranty

Specifications

NLDD-700HSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

CURRENT RANGE: 700mA
VOLTAGE RANGE^Note.4: 6 ~ 52VDC
CURRENT ACCURACY (Typ.): ±5% at 48VDC input
RIPPLE & NOISE(max.)^Note.2: 200mVp-p
SWITCHING FREQENCY: 200KHz

INPUT

VOLTAGE RANGE: 10 ~ 56VDC (59VDC Max.)
EFFICIENCY (max.): 96% at full load and 36VDC/48VDC input
DC CURRENT Full load^Note.3: 700mA
DC CURRENT No load: 5mA

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF: Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY: 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(max.): 2mA at PWM dimming OFF at 48VDC input

PROTECTION

SHORT CIRCUIT: Regulated at rated current Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE: Tj 165℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ + 50℃(Refer to derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.): 90℃
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF: 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H)
WEIGHT: NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing)
POTTING MATERIAL: Expoxy(UL94-V0)

Test conditions and notes7

1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
3.Test condition: 48VDC input.
4.Output voltage will always step down by 4 volts from input DC voltage.
5.The output of NLDD-H should not be connected to the input of the same unit or output from other sources.
6.The power supply is regarded as a part of the components in the system, and the final EMI test needs to be tested with the final device. If an additional EMI filter circuit is required to meet the electromagnetic compatibility requirements, please refer to the EMC test report for details. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7.Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

NLDD-700H Mechanical Specification — Mechanical Specification

NLDD-700H Derating Curve — Derating Curve

NLDD-700H PWM Dimming Control — PWM Dimming Control

NLDD-700H Efficiency VS Output Voltage — Efficiency VS Output Voltage

Typical applications

DC battery source lighting
Portable lighting
Commercial lighting
DC 48V Track lighting
DC 24V landscape lighting

Downloads

Certificates3

Mean Well NLDD-H-EMC Certificate PDF Download

Mean Well NLDD-CE-dec Certificate PDF Download

Mean Well NLDD-UK-dec Certificate PDF Download

Test reports1

Mean Well NLDD-700H Test Report PDF Download

FAQ

Can the NLDD-700H drive a higher-current LED downlight module?

Yes, when the LED downlight is built for constant current operation at 700mA. This is a 60W step-down constant current driver, so it is intended for LED loads that require regulated current rather than constant voltage.

Is the NLDD-700H a fit for signage modules or dense small LED arrays?

It can be, provided the signage module or LED array is specified for 700mA constant current drive. The load also needs to stay inside the 52-6V constant current range of the driver.

Can this model be used where a small driver footprint matters?

Yes, the NLDD-700H measures 32.1 × 20.5 × 12.5 mm and weighs 0.0156 kg, so it can suit compact LED assemblies. It still delivers up to 60W, so both thermal design and electrical compatibility need to be considered in the final product.

How do I size an LED load for the NLDD-700H?

This driver should be matched to constant current LED loads, not constant voltage LED products. Its constant current output range is 52-6V, and the number of LEDs depends on the forward voltage of each LED in the array rather than on a fixed LED quantity.

Can the NLDD-700H operate in demanding environmental conditions?

The unit operates from -40°C to +50°C (refer to derating curve) and is fully encapsulated in epoxy (UL94-V0). It is designed for indoor or protected applications, as it does not carry an IP rating for outdoor exposure.
