Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

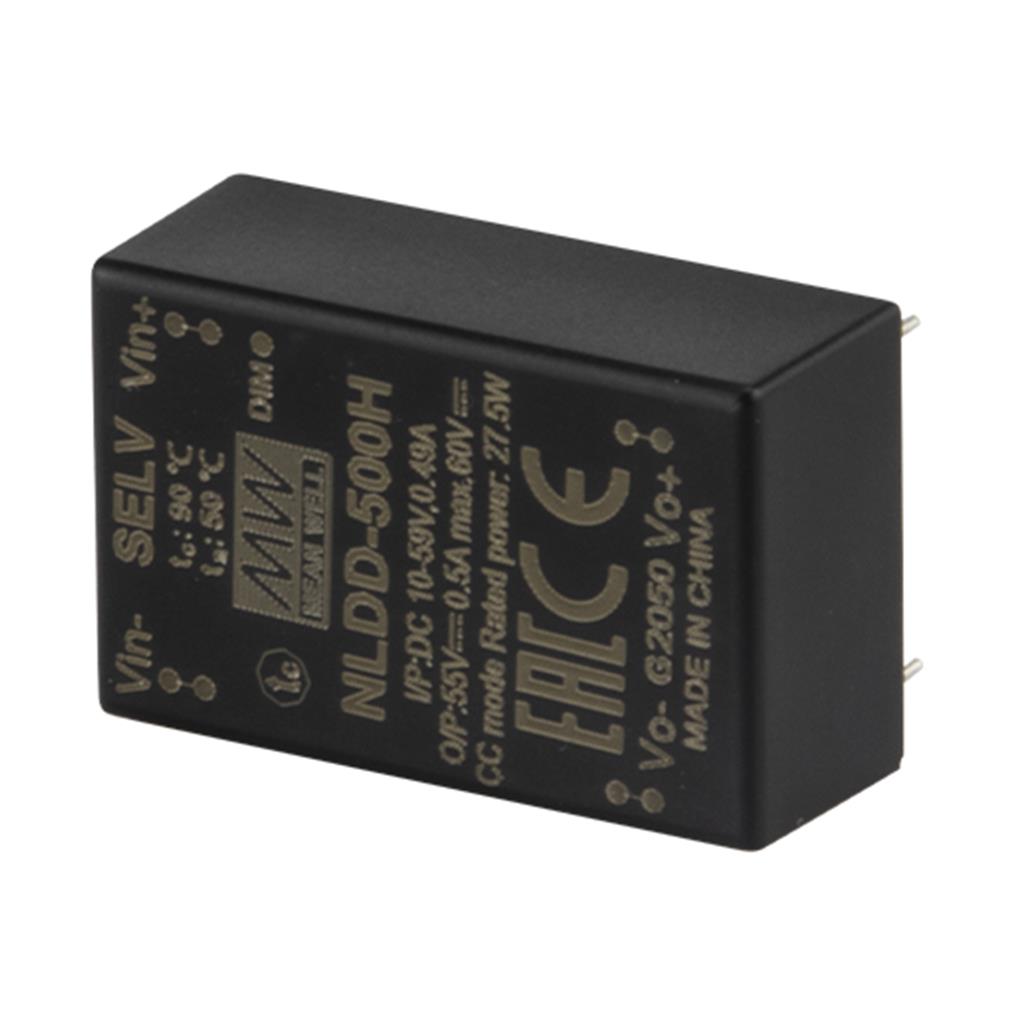

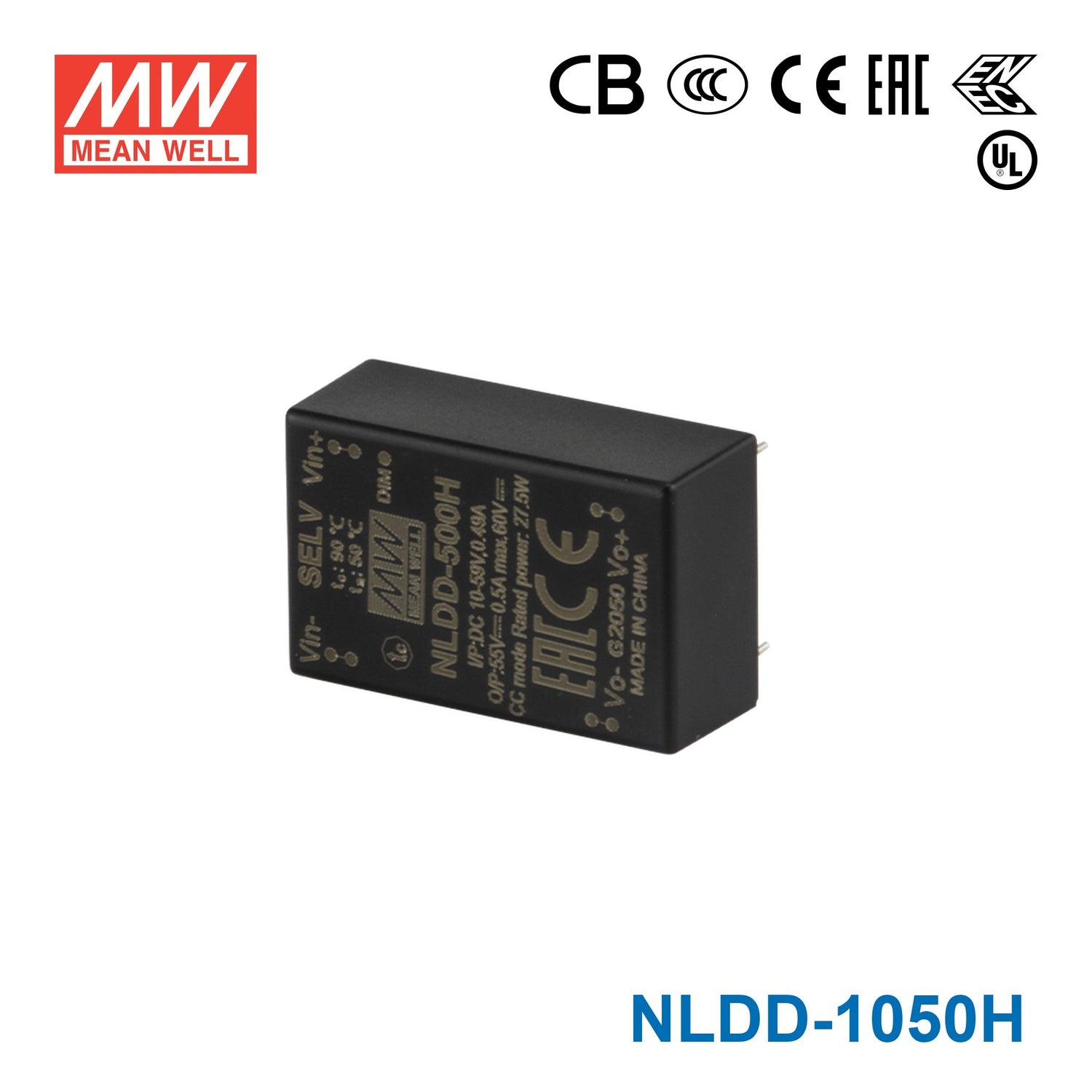

Mean Well NLDD-1050H DC/DC LED Driver CC 1050mA - Step-down
Please Login for Pricing
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 350mA to 1400mA |
| Wide input voltage: 10~56VDC(59VDC Max.) |
| Wide output LED forward voltage: 6~52VDC |
| High efficiency up to 96% |
| Comply with BS EN/EN61347 and BS EN/EN55015 regulation |
| Build-in PWM and remote ON/OFF control |
| Protections: Short circuit/Over temperature |
| Cooling by free air convection |
| Fully encapsulated and compact size |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±5% at 48V |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 96% at full load and 36VDC/48VDC input |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +50°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch |
| Potting material | Epoxy |
Specifications
Specifications
-
BrandMean Well
-
SeriesNLDD Series
-
Power Rating60 Watt
-
Output Voltage52 Volt
-
Rated Current1.05 Ampere
-
Input Voltage6V~52V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length3.21 cm
-
Width2.05 cm
-
Height1.25 cm
-
Weight0.02 kg
