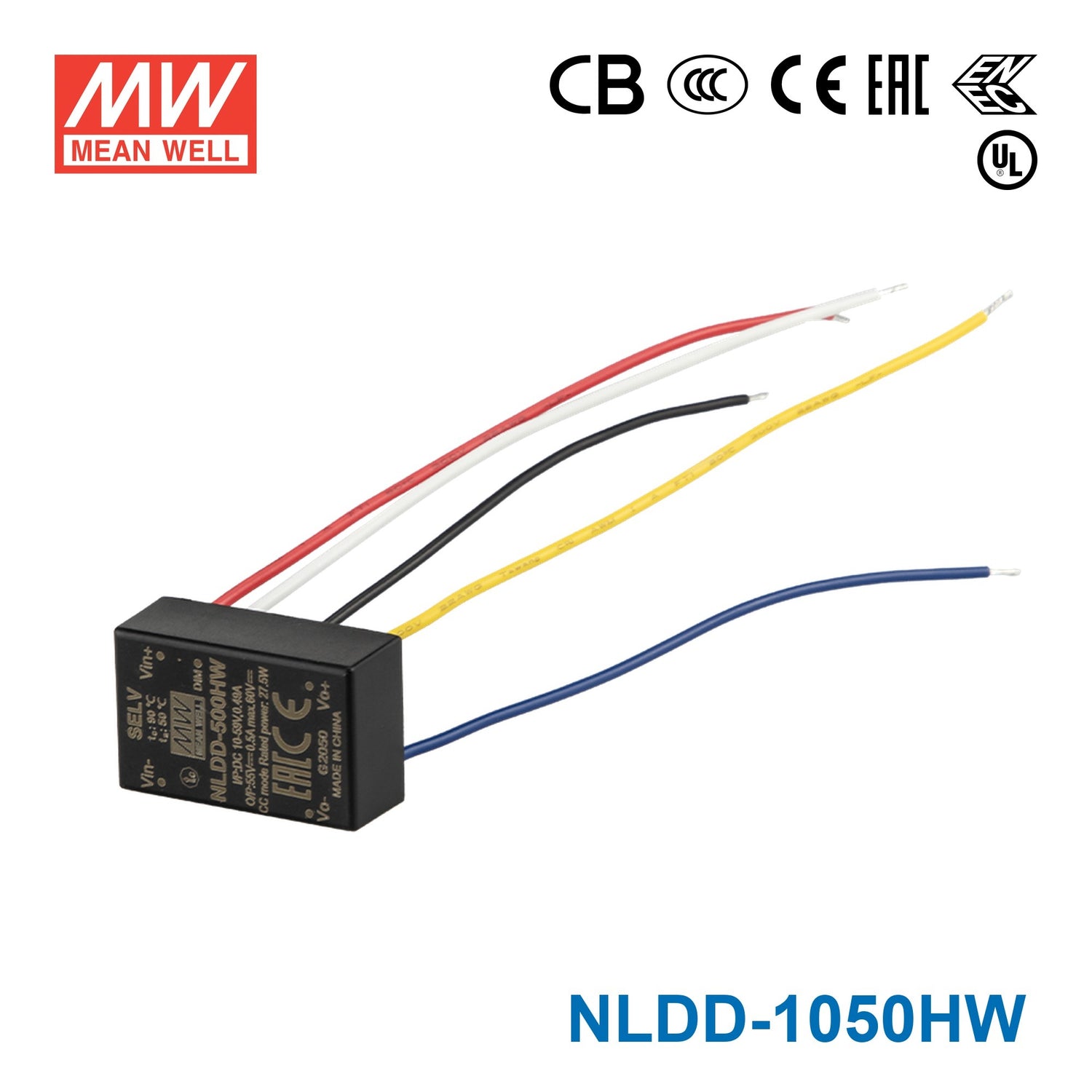

Mean Well NLDD-1050HW DC/DC LED Driver CC 1050mA - Step-down Wire Type

constant currentstep downhigh efficiency up to 97%IP67wire style

SKU NLDD-1050HW

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

NLDD-1050HW is the model of this series: typical efficiency 96% at full load and 36VDC/48VDC input.

NLDD-H series is a 60W DC/DC LED driver featuring constant current output. NLDD-H operates from 10~56VDC and offers models with different rated current ranging between 350mA and 1400mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone to enhance the heat dissipation allows this series to fit for classⅢ or DC bus lighting application.

Features

DC/DC step-down converter
Constant current output: 350mA to 1400mA
Wide input voltage: 10 ~ 56VDC(59VDC Max.)
Wide output LED forward voltage: 6 ~ 52VDC
High efficiency up to 96%
Comply with BS EN/EN61347 and BS EN/EN55015 regulation
For class Ⅲ application(SELV)
Built-in PWM and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully encapsulated and compact site
Suitable for driving illumination LED
3 years warranty

Specifications

NLDD-1050HWSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

CURRENT RANGE: 1050mA
VOLTAGE RANGE^Note.4: 6 ~ 52VDC
CURRENT ACCURACY (Typ.): ±5% at 48VDC input
RIPPLE & NOISE(max.)^Note.2: 350mVp-p
SWITCHING FREQENCY: 200KHz

INPUT

VOLTAGE RANGE: 10 ~ 56VDC (59VDC Max.)
EFFICIENCY (max.): 96% at full load and 36VDC/48VDC input
DC CURRENT Full load^Note.3: 1100mA
DC CURRENT No load: 5mA

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF: Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY: 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(max.): 2mA at PWM dimming OFF at 48VDC input

PROTECTION

SHORT CIRCUIT: Regulated at rated current Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE: Tj 165℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ + 50℃(Refer to derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.): 90℃
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF: 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H)
WEIGHT: NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing)
POTTING MATERIAL: Expoxy(UL94-V0)

Test conditions and notes7

1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
3.Test condition: 48VDC input.
4.Output voltage will always step down by 4 volts from input DC voltage.
5.The output of NLDD-H should not be connected to the input of the same unit or output from other sources.
6.The power supply is regarded as a part of the components in the system, and the final EMI test needs to be tested with the final device. If an additional EMI filter circuit is required to meet the electromagnetic compatibility requirements, please refer to the EMC test report for details. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7.Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

NLDD-1050HW Mechanical Specification — Mechanical Specification

NLDD-1050HW Derating Curve — Derating Curve

NLDD-1050HW PWM Dimming Control — PWM Dimming Control

NLDD-1050HW Efficiency VS Output Voltage — Efficiency VS Output Voltage

Typical applications

DC battery source lighting
Portable lighting
Commercial lighting
DC 48V Track lighting
DC 24V landscape lighting

Downloads

Certificates3

Mean Well NLDD-H-EMC Certificate PDF Download

Mean Well NLDD-CE-dec Certificate PDF Download

Mean Well NLDD-UK-dec Certificate PDF Download

Test reports1

Mean Well NLDD-1050H Test Report PDF Download

FAQ

Can I use the NLDD-1050HW for a constant-current LED downlight?

Yes, if the downlight is designed for a constant current driver and the LED load stays within the 6-52V constant-current output range. This model is a 60W step-down constant current driver, so it is not intended for constant-voltage LED products.

Is the NLDD-1050HW suitable for signage modules or small LED arrays?

It can be used for signage modules or small LED arrays when the LEDs are driven at constant current and the combined forward voltage falls within 6-52V. The output is constant current, not constant voltage, and the total load must remain within 60W.

Can this driver run a compact LED array in a sealed or exposed location?

The NLDD-1050HW is a fully potted, compact module with an epoxy (UL94-V0) case, suitable for integration into sealed fixtures or protected enclosures. It supports operation from -40°C to +50°C, which helps in installations exposed to wide temperature swings.

How do I know if my LED load is compatible with the NLDD-1050HW?

Your LED load needs to be a constant current load that operates within the 6-52V constant-current output range of this driver. The number of LEDs depends on the forward voltage of each LED, so compatibility is determined by total forward voltage rather than a fixed LED count.

How does the NLDD-1050HW compare with other NLDD H-series models?

Within this 60W series, the 350H and 350HW are 350mA with a 6-52V CC range, the 500H and 500HW are 500mA with a 6-52V CC range, the 700H and 700HW are 700mA with a 6-52V CC range, and the 1050H and 1050HW are 1050mA with a 6-52V CC range. The 1200H and 1200HW are 1200mA with a 6-46V CC range, while the 1400H and 1400HW are 1400mA with a 6-46V CC range.
