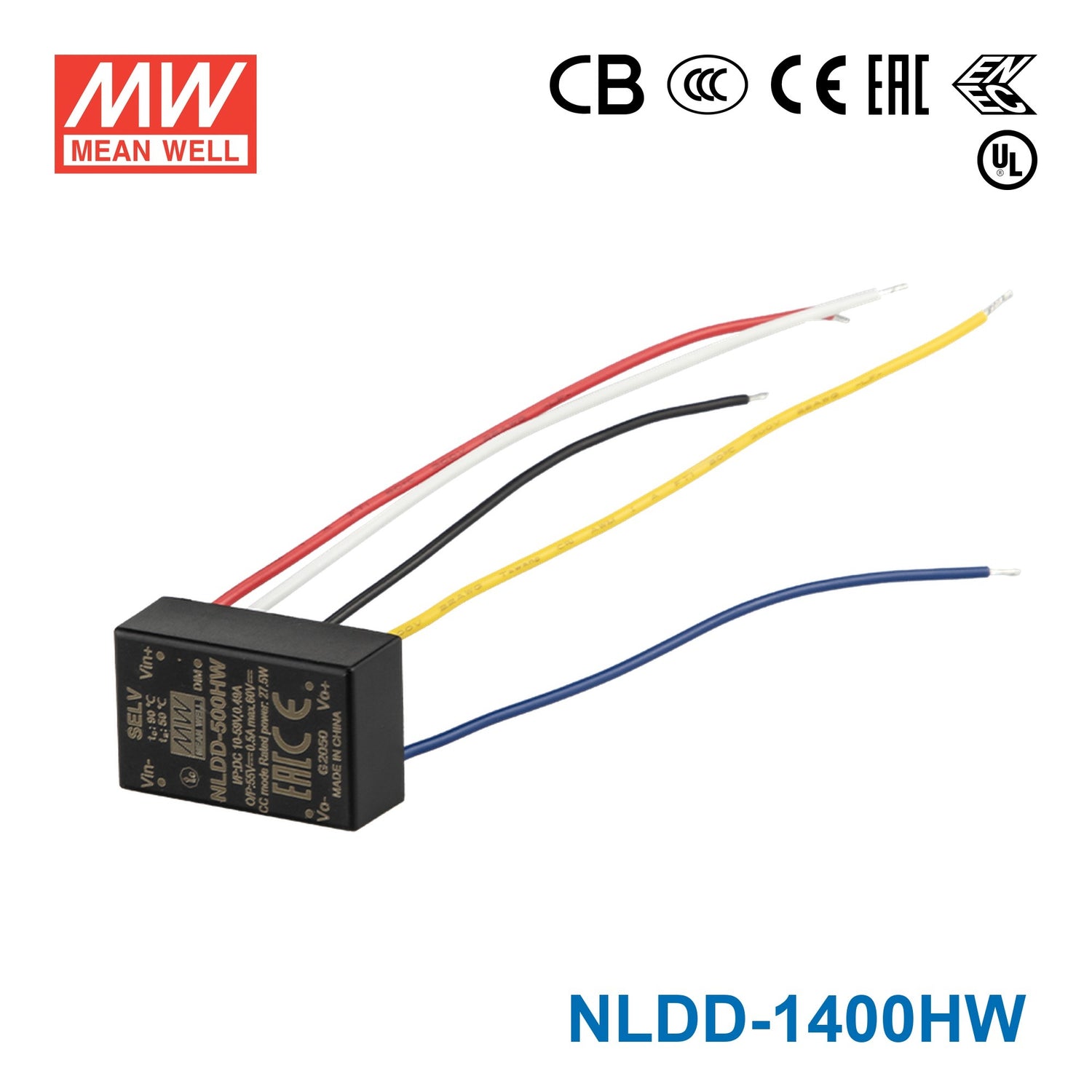

Mean Well NLDD-1400HW DC/DC LED Driver CC 1400mA - Step-down Wire Type

constant currentstep downhigh efficiency up to 97%IP67wire style

SKU NLDD-1400HW

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NLDD-1400HW is the model of this series: typical efficiency 95% at full load and 36VDC/48VDC input.

NLDD-H series is a 60W DC/DC LED driver featuring constant current output. NLDD-H operates from 10~56VDC and offers models with different rated current ranging between 350mA and 1400mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone to enhance the heat dissipation allows this series to fit for classⅢ or DC bus lighting application.

Features

DC/DC step-down converter
Constant current output: 350mA to 1400mA
Wide input voltage: 10 ~ 56VDC(59VDC Max.)
Wide output LED forward voltage: 6 ~ 52VDC
High efficiency up to 96%
Comply with BS EN/EN61347 and BS EN/EN55015 regulation
For class Ⅲ application(SELV)
Built-in PWM and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully encapsulated and compact site
Suitable for driving illumination LED
3 years warranty

Specifications

NLDD-1400HWSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

CURRENT RANGE: 1400mA
VOLTAGE RANGE^Note.4: 6 ~ 46VDC
CURRENT ACCURACY (Typ.): ±5% at 48VDC input
RIPPLE & NOISE(max.)^Note.2: 350mVp-p
SWITCHING FREQENCY: 200KHz

INPUT

VOLTAGE RANGE: 10 ~ 56VDC (59VDC Max.)
EFFICIENCY (max.): 95% at full load and 36VDC/48VDC input
DC CURRENT Full load^Note.3: 1360mA
DC CURRENT No load: 5mA

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF: Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY: 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(max.): 2mA at PWM dimming OFF at 48VDC input

PROTECTION

SHORT CIRCUIT: Regulated at rated current Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE: Tj 165℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ + 50℃(Refer to derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.): 90℃
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF: 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H)
WEIGHT: NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing)
POTTING MATERIAL: Expoxy(UL94-V0)

Test conditions and notes7

1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
3.Test condition: 48VDC input.
4.Output voltage will always step down by 4 volts from input DC voltage.
5.The output of NLDD-H should not be connected to the input of the same unit or output from other sources.
6.The power supply is regarded as a part of the components in the system, and the final EMI test needs to be tested with the final device. If an additional EMI filter circuit is required to meet the electromagnetic compatibility requirements, please refer to the EMC test report for details. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7.Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

NLDD-1400HW Mechanical Specification — Mechanical Specification

NLDD-1400HW Derating Curve — Derating Curve

NLDD-1400HW PWM Dimming Control — PWM Dimming Control

NLDD-1400HW Efficiency VS Output Voltage — Efficiency VS Output Voltage

Typical applications

DC battery source lighting
Portable lighting
Commercial lighting
DC 48V Track lighting
DC 24V landscape lighting

Downloads

Certificates3

Mean Well NLDD-H-EMC Certificate PDF Download

Mean Well NLDD-CE-dec Certificate PDF Download

Mean Well NLDD-UK-dec Certificate PDF Download

Test reports1

Mean Well NLDD-1400H Test Report PDF Download

FAQ

Can the NLDD-1400HW be used for constant-current LED downlights in compact fixtures?

Yes, if the LED downlight is specified for constant current operation and the total LED forward voltage stays within 6-46V. The driver is rated for 60W and uses a step-down constant current output, so it is not a replacement for a constant-voltage supply.

Is the NLDD-1400HW suitable for signage modules that need weather-resistant electronics?

It can be a fit where the LED load is constant current and environmental protection matters, because this model is fully potted in epoxy (UL94-V0). It also operates across -40°C to +50°C, which supports use in installations exposed to industrial temperature conditions.

Can I use this driver for a small high-power LED array?

Yes, if the array is a constant current LED load and its combined forward voltage remains within the 6-46V constant-current range. The total load also needs to stay within the 60W rating of the driver.

How do I size an LED load for the NLDD-1400HW?

Start with the LED load's total forward voltage and confirm it falls within the 6-46V constant-current output range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count that applies to every design.

What are the main differences between the NLDD-1400HW and its series siblings?

This model shares the 60W rating with the full sibling group but uses 1400mA output and a 6-46V constant-current range, the same as the 1400H. The 1200H and 1200HW are 1200mA at 6-46V, while the 1050H/1050HW, 700H/700HW, 500H/500HW, and 350H/350HW use a 6-52V constant-current range with output currents of 1050mA, 700mA, 500mA, and 350mA.
