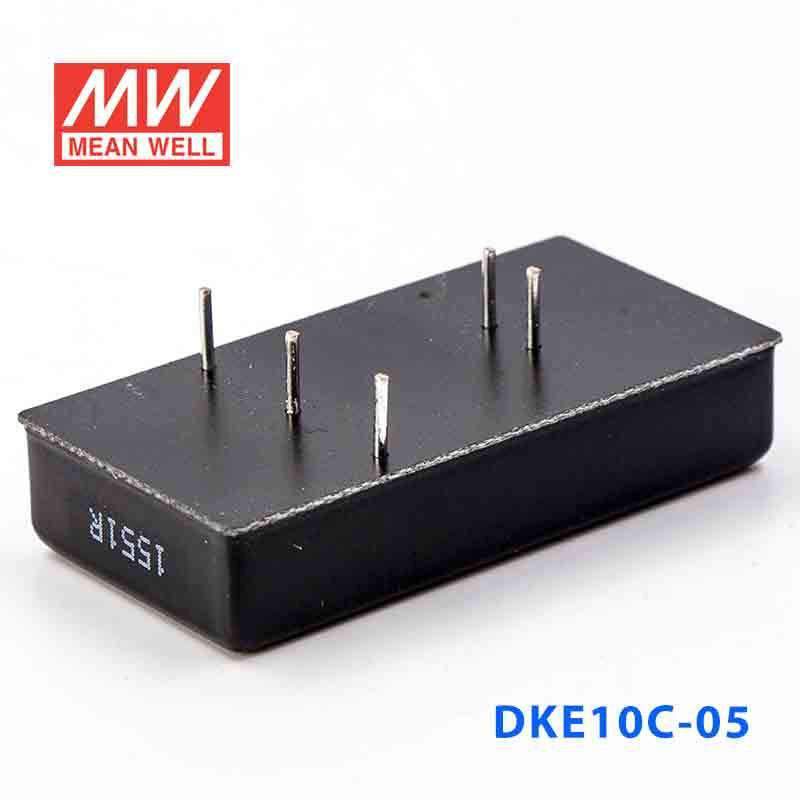

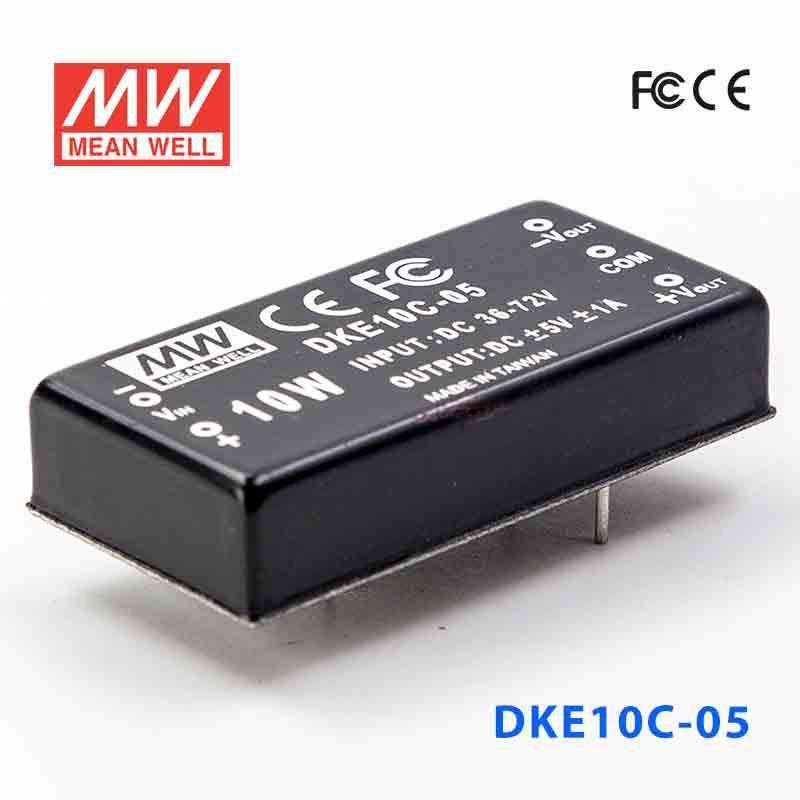

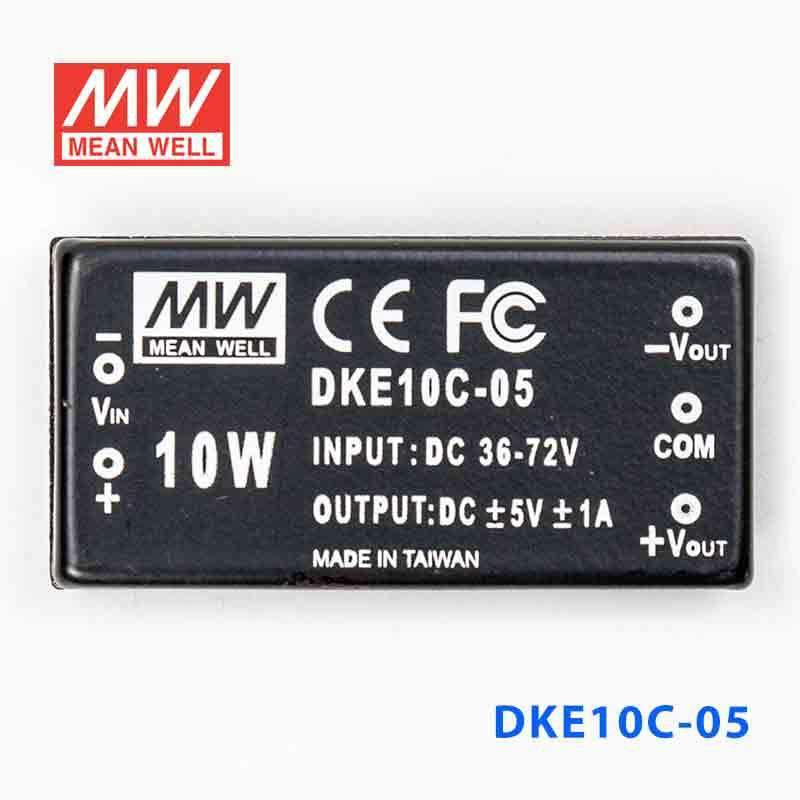

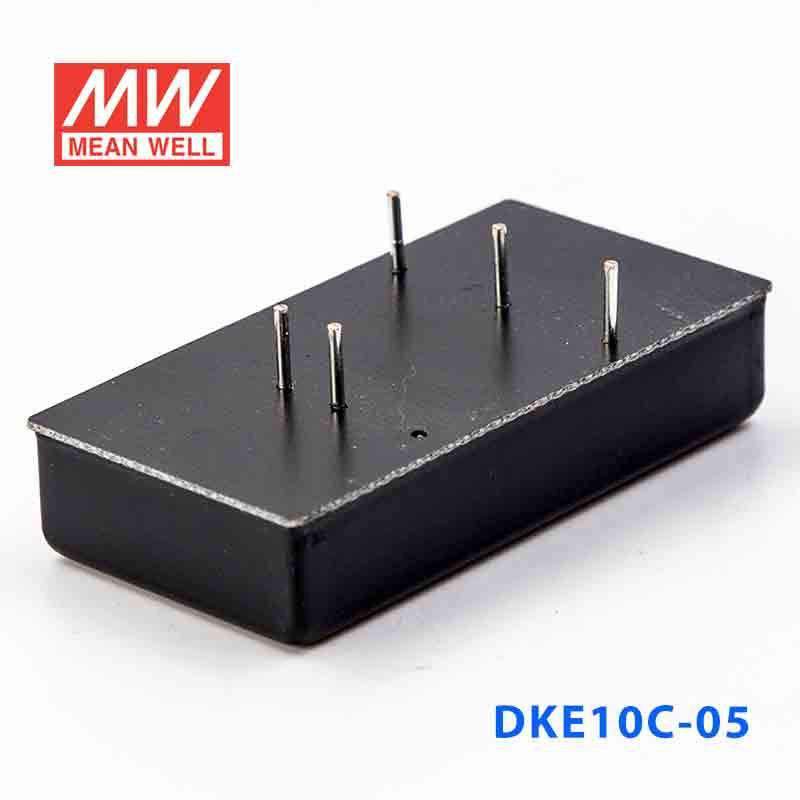

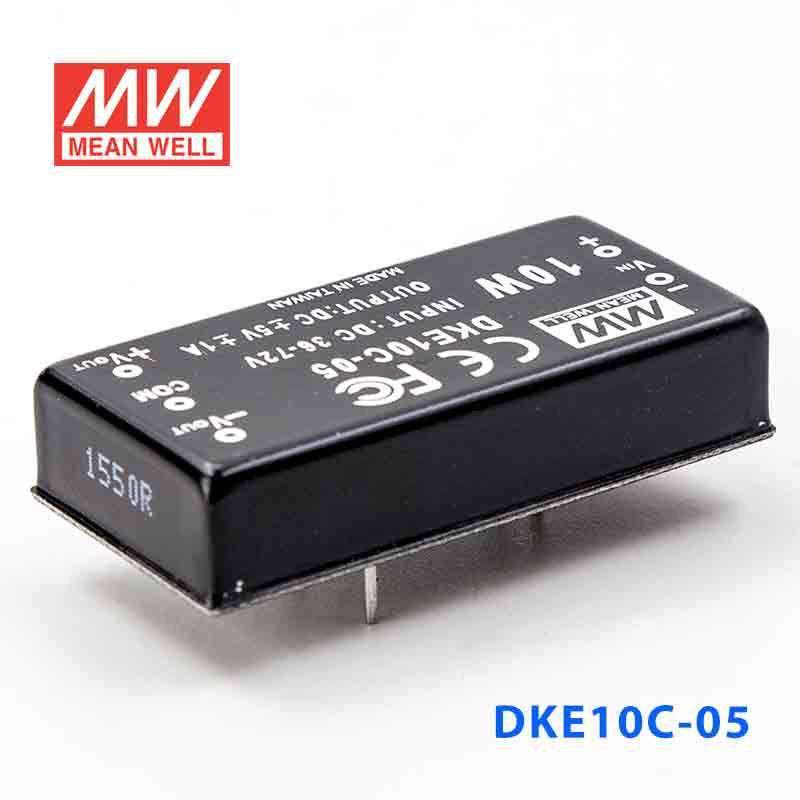

Mean Well DKE10C-05 DC-DC Converter - 10W - 36~72V in ±5V out 1A

SKU DKE10C-05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

DKE10C-05 is the ±5V output model of this series: rated power 10W, typical efficiency 82%.

Features

  • 2:1 wide input range
  • 4:1 wide input range(option)
  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

DKE10C-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
±5V
CURRENT RANGE
±100 ~ ±1000mA
RATED POWER
10W
RIPPLE & NOISE (max.)Note.2
50mVp-p
LINE REGULATIONNote.3
±0.3%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
250KHz min.

INPUT

VOLTAGE RANGE
36 ~ 72VDC
EFFICIENCY (Typ.)
82%
DC CURRENT Full load
270mA
DC CURRENT No load
8mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF
500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION
50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H)
PACKING
31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

DKE10C-05 Mechanical Specification
Mechanical Specification
DKE10C-05 Packing
Packing

Downloads

FAQ

Can I use the DKE10C-05 for 5V industrial control electronics in a 36-72V system?

Yes, this model provides a regulated ±5V dual output where the available input is 36-72VDC. With a 10W rating, it fits low-power industrial control, embedded, or automation circuits that need ±5V rather than ±12V, ±15V, or ±24V.

Is the DKE10C-05 suitable for powering 5V embedded boards inside automation equipment?

It can fit embedded electronics that require a regulated ±5V dual output and stay within the 10W power rating. Its compact 50.8 × 25.4 × 11.2 mm size also makes it easier to place inside dense control assemblies.

Can this converter be used for 5V sensor or logic-level loads in industrial equipment?

This model is designed for a ±5V dual output, so it is better aligned with 5V logic, sensor, or controller-side loads than higher-voltage devices. The key fit points are the 36-72VDC input range and the 10W power limit.

How does the DKE10C-05 compare with the other DKE10C models?

All DKE10C versions in this group are 10W dual-output converters with 36-72VDC input, 50.8 × 25.4 × 11.2 mm dimensions, 31.2 g weight, and -25°C to +71°C operation (refer to the derating curve). The difference is output: DKE10C-05 is ±5V at up to ±1000mA, DKE10C-12 is ±12V at up to ±420mA, DKE10C-15 is ±15V at up to ±333mA, and DKE10C-24 is ±24V at up to ±210mA.

Is the DKE10C-05 suitable for outdoor or exposed environments?

The listed specs give an operating temperature range of -25°C to +71°C, but no IP rating is provided. That means temperature suitability is stated, while outdoor or washdown suitability cannot be confirmed from the published specs alone.
