Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

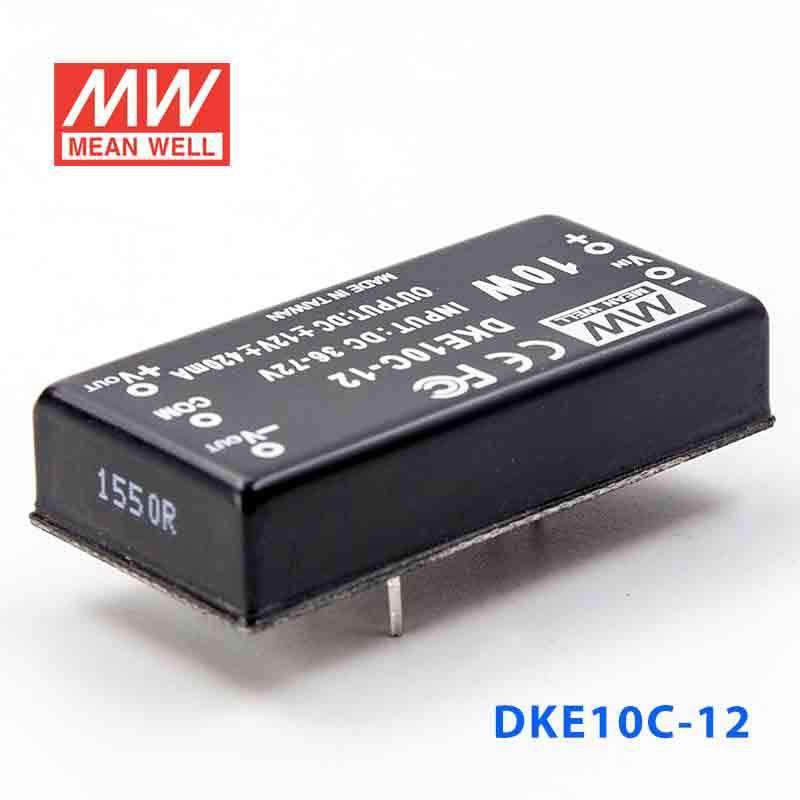

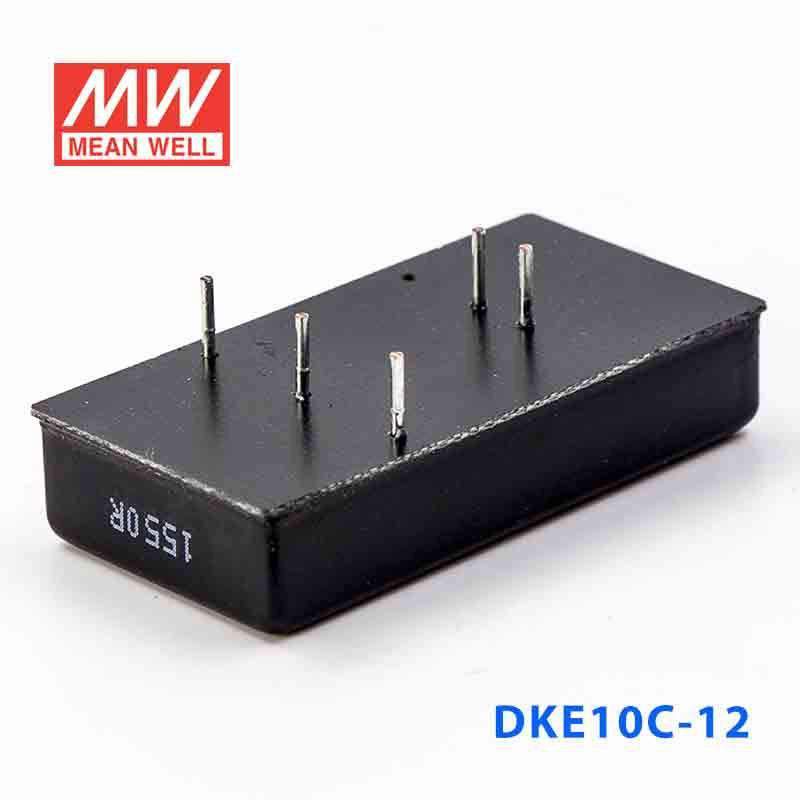

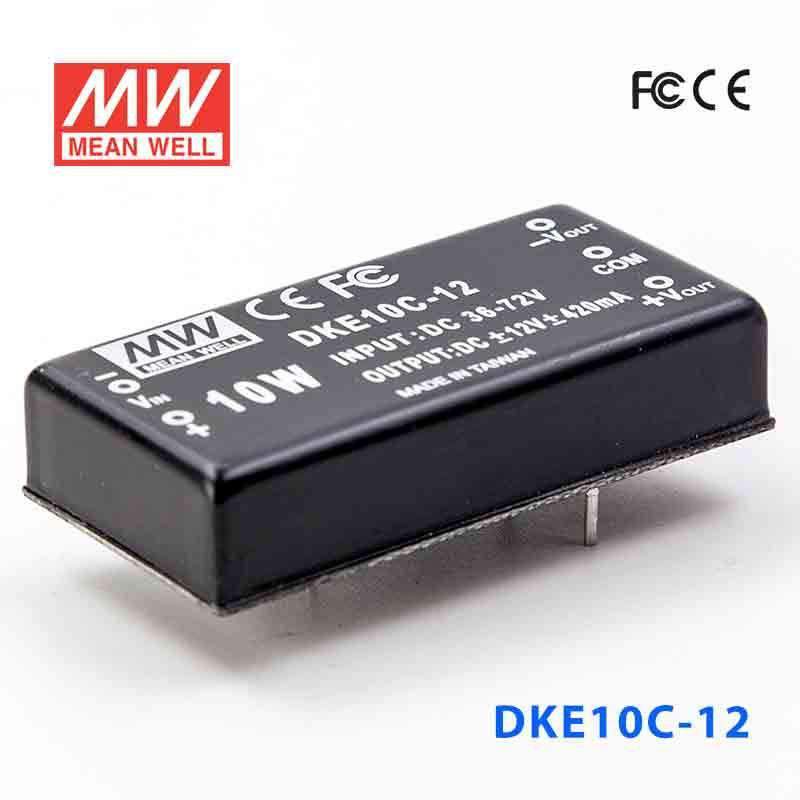

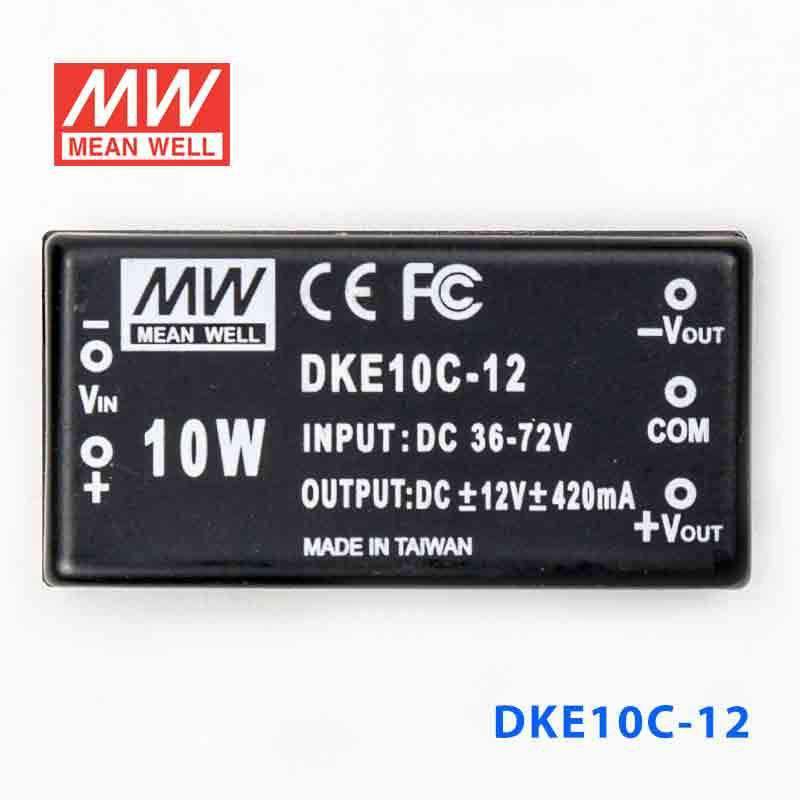

Mean Well DKE10C-12 DC-DC Converter - 10W - 36~72V in ±12V out

SKU:

DKE10C-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / °C (max.)
Dimension (LxWxH) (mm)	2"x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

DKE Series
Power Rating

10 Watt
Output Voltage

12 Volt
Rated Current

0.42 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DKE10C-12 for 12V PLC or control-panel electronics?

Yes, this version is intended for constant-voltage 12V output applications with a 36-72VAC input range. Its 10W rating makes it more appropriate for low-power PLC-related electronics and panel control circuits than for larger 12V loads.

Is the DKE10C-12 a good fit for 12V industrial sensors or interface modules?

It is suited to 12V constant-voltage loads that fit within the 10W power rating. That makes it relevant for smaller industrial sensor, interface, or signal-conditioning uses where the source available is 36-72VAC.

Can this model power 12V embedded or automation devices inside compact equipment?

Yes, if the device needs 12V constant-voltage output and does not exceed the 10W rating. The 50.8 × 25.4 × 11.2 mm package is also useful where board or enclosure space is limited.

What is the difference between the DKE10C-12 and the other DKE10C outputs?

The shared platform stays the same across the series: 10W power, 36-72VAC input, constant-voltage operation, 50.8 × 25.4 × 11.2 mm dimensions, 0.032 kg weight, and -25°C to +71°C operation. The output options are 5V at 1000A for DKE10C-05, 12V at 420A for DKE10C-12, 15V at 333A for DKE10C-15, and 24V at 210A for DKE10C-24.

Can the DKE10C-12 be used in cold or warm indoor equipment environments?

The stated operating temperature range is -25°C to +71°C, so the published specs cover both cold and warm equipment conditions within that band. No IP rating is listed, so the specs do not establish suitability for exposed outdoor environments.

Model	Power	Voltage	Current	IP Rating
Mean Well DKE10C-24 DC-DC Converter - 10W - 36~72V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10C-15 DC-DC Converter - 10W - 36~72V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10C-05 DC-DC Converter - 10W - 36~72V in ±5V out	10W	5V	1A	Indoor	View
Mean Well DKE10B-24 DC-DC Converter - 10W - 18~36V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10B-15 DC-DC Converter - 10W - 18~36V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10B-12 DC-DC Converter - 10W - 18~36V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10B-05 DC-DC Converter - 10W - 18~36V in ±5V out	10W	5V	1A	Indoor	View
Mean Well DKE10A-24 DC-DC Converter - 10W - 9~18V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10A-15 DC-DC Converter - 10W - 9~18V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10A-12 DC-DC Converter - 10W - 9~18V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10A-05 DC-DC Converter - 10W - 9~18V in ±5V out	10W	5V	1A	Indoor	View
