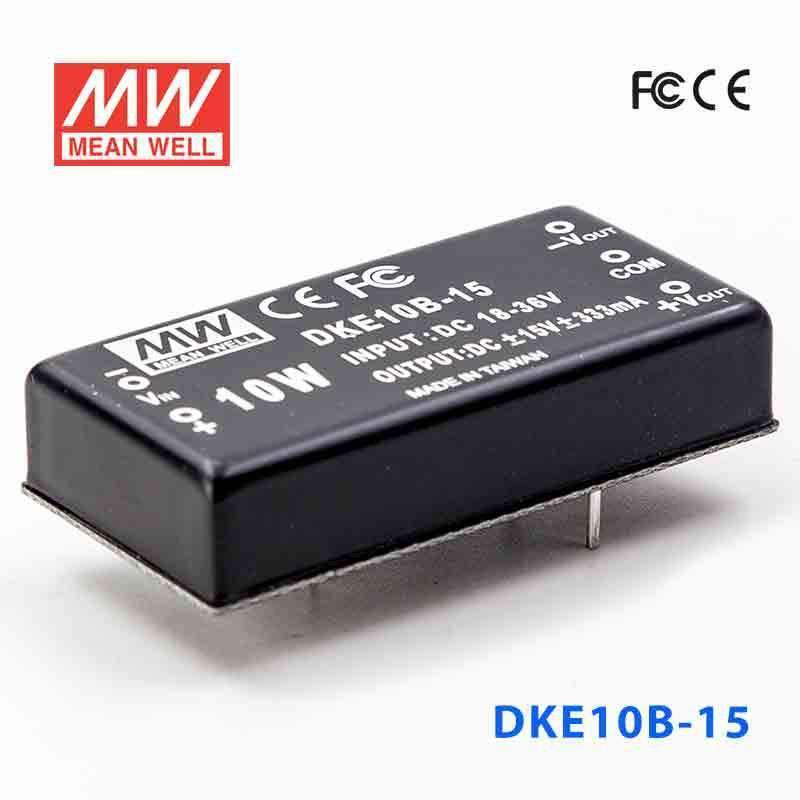

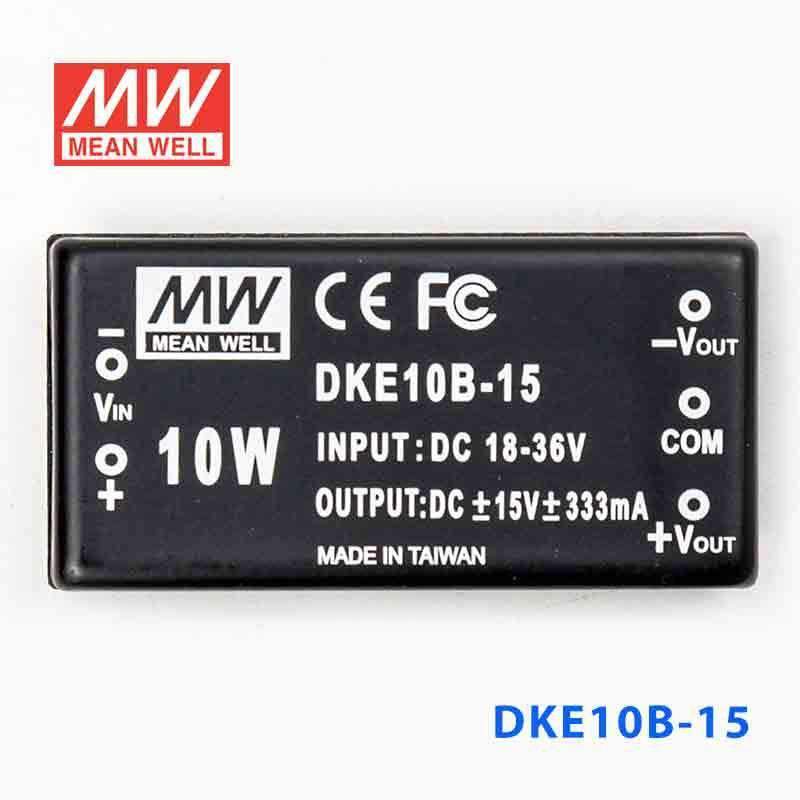

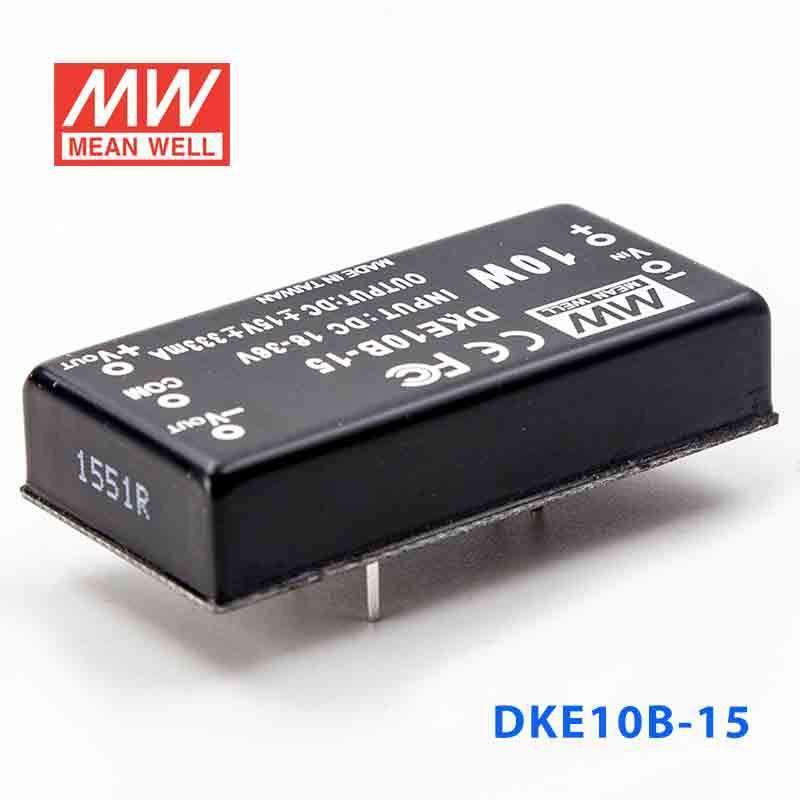

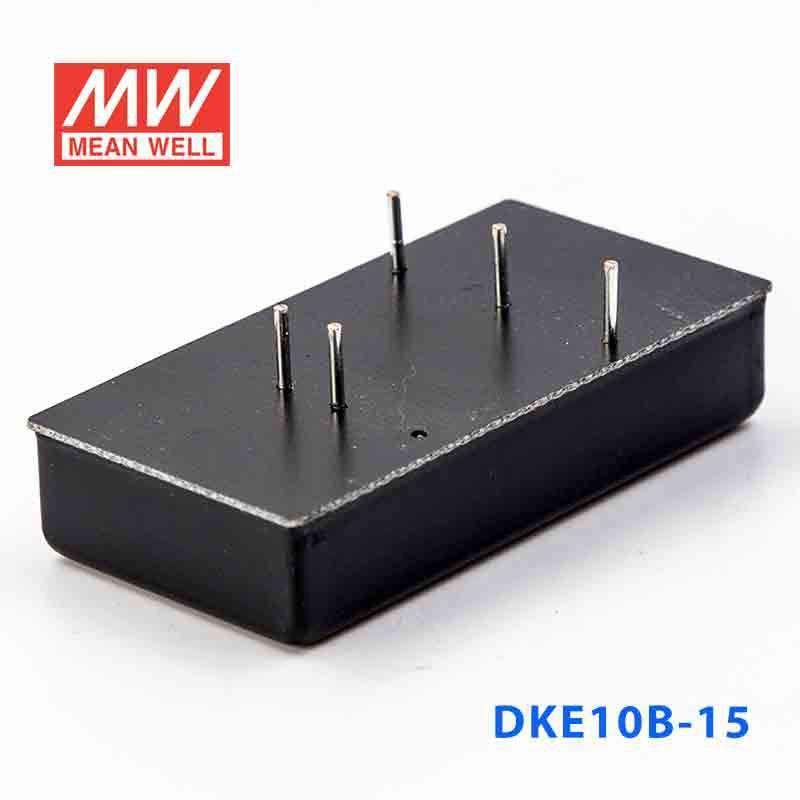

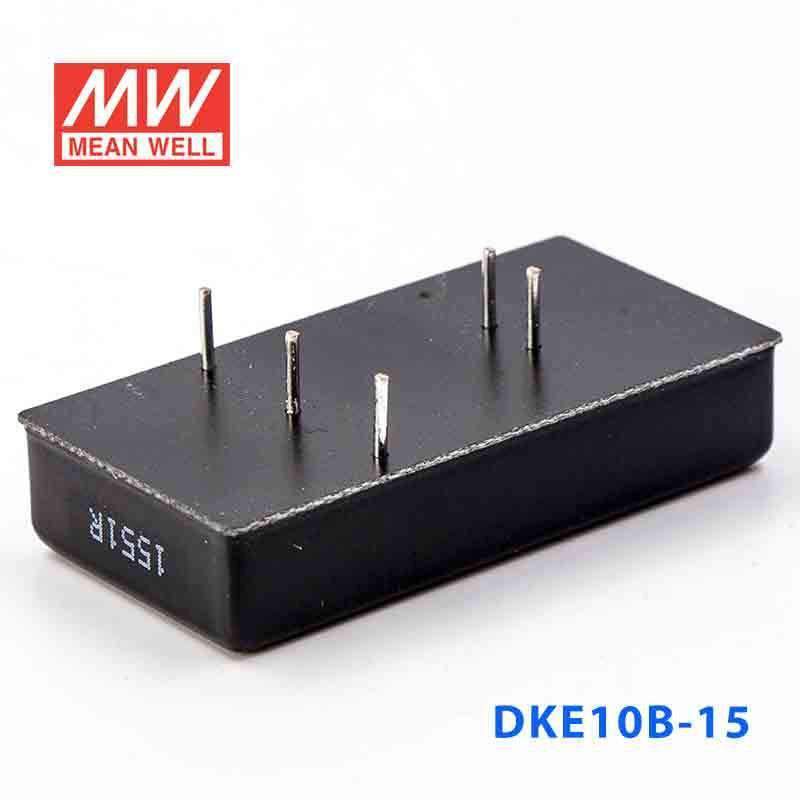

Mean Well DKE10B-15 DC-DC Converter - 10W - 18~36V in ±15V out

10W, ±15V out, 18~36V in

SKU:

DKE10B-15

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / °C (max.)
Dimension (LxWxH) (mm)	2"x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

DKE Series
Power Rating

10 Watt
Output Voltage

15 Volt
Rated Current

0.33 Ampere
Input Voltage

18V~36V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DKE10B-15 for analog measurement or control boards that need ±15V rails?

Yes, this model fits low-power analog measurement, conditioning, or control circuits that require constant-voltage ±15V output. It is rated for 10W and accepts 18-36VAC input, so it is best matched to compact support-power applications.

Is the DKE10B-15 suitable for embedded data acquisition or instrumentation modules?

It can be a good fit for embedded instrumentation or data-acquisition modules that use bipolar 15V rails. The converter stays compact at 50.8 × 25.4 × 11.2 mm, which is useful when installing it inside small housings or dense assemblies.

Can this model be used in industrial automation equipment with a 24V-class source range?

It is intended for equipment powered from an 18-36VAC input range and needing a constant-voltage ±15V output. That makes it suitable for low-power automation support circuits where the electrical range matches the listed input and output values.

Is the DKE10B-15 appropriate for outdoor or unsealed environments?

The specs give an operating temperature range of -25°C to +71°C, but they do not include any IP rating. On the provided data alone, it should be treated as a converter for protected indoor equipment rather than exposed weather or splash-prone locations.

What are the output options across the DKE10B series if I am comparing models?

The DKE10B series includes four 10W options: DKE10B-05 at 5V and 1000A, DKE10B-12 at 12V and 420A, DKE10B-15 at 15V and 333A, and DKE10B-24 at 24V and 210A. This model is the ±15V version in that same input family of 18-36VAC.

Model	Power	Voltage	Current	IP Rating
Mean Well DKE10C-24 DC-DC Converter - 10W - 36~72V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10C-15 DC-DC Converter - 10W - 36~72V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10C-12 DC-DC Converter - 10W - 36~72V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10C-05 DC-DC Converter - 10W - 36~72V in ±5V out	10W	5V	1A	Indoor	View
Mean Well DKE10B-24 DC-DC Converter - 10W - 18~36V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10B-12 DC-DC Converter - 10W - 18~36V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10B-05 DC-DC Converter - 10W - 18~36V in ±5V out	10W	5V	1A	Indoor	View
Mean Well DKE10A-24 DC-DC Converter - 10W - 9~18V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10A-15 DC-DC Converter - 10W - 9~18V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10A-12 DC-DC Converter - 10W - 9~18V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10A-05 DC-DC Converter - 10W - 9~18V in ±5V out	10W	5V	1A	Indoor	View
