Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

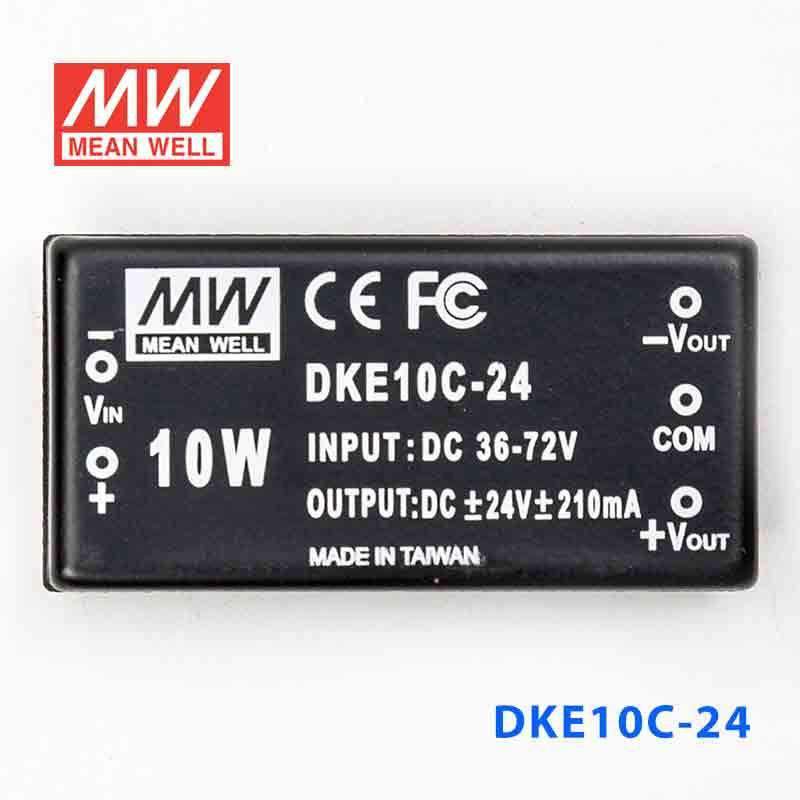

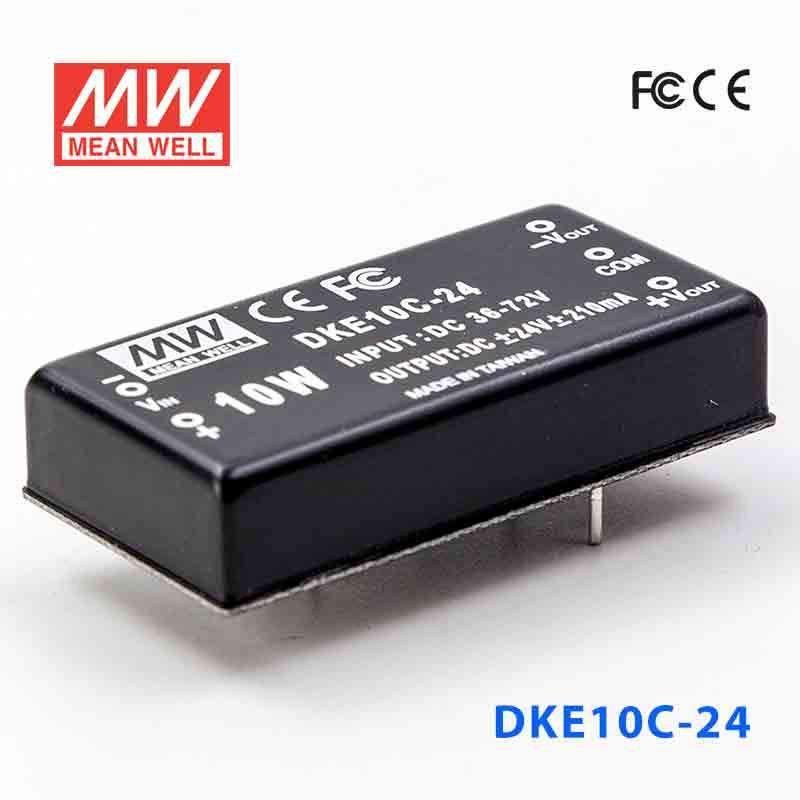

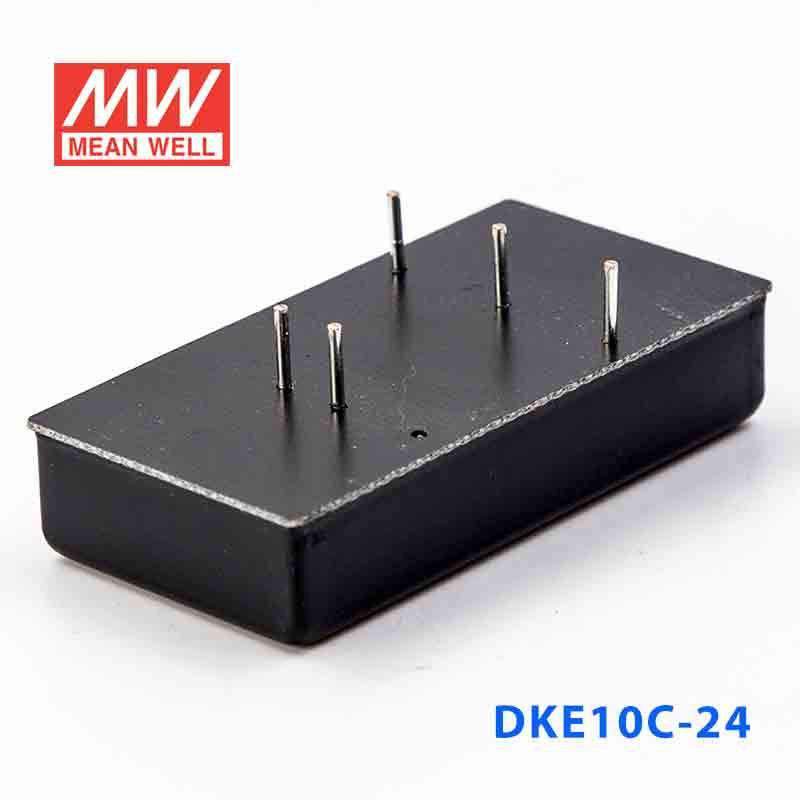

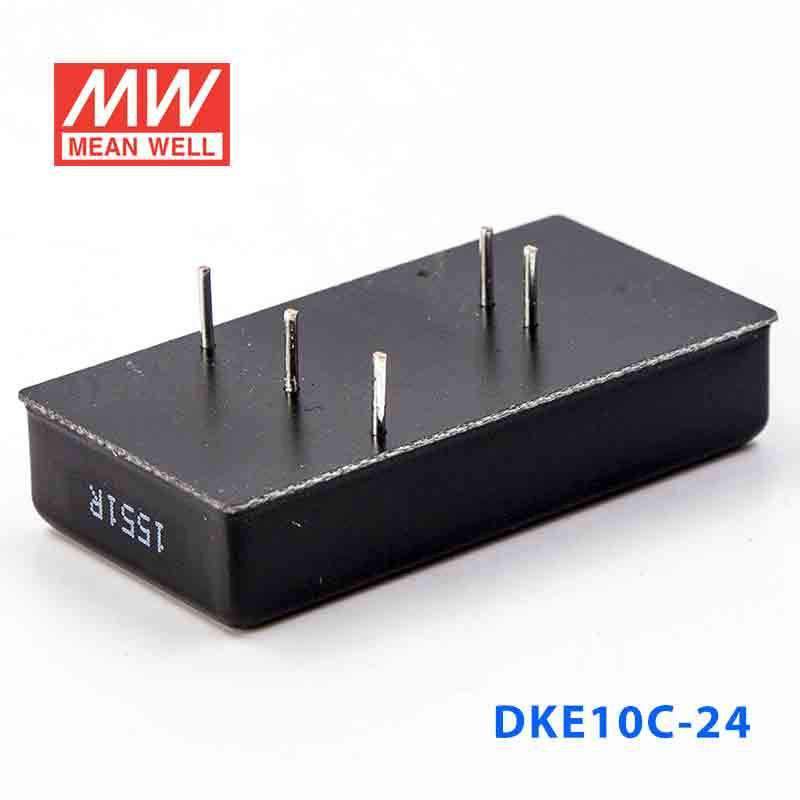

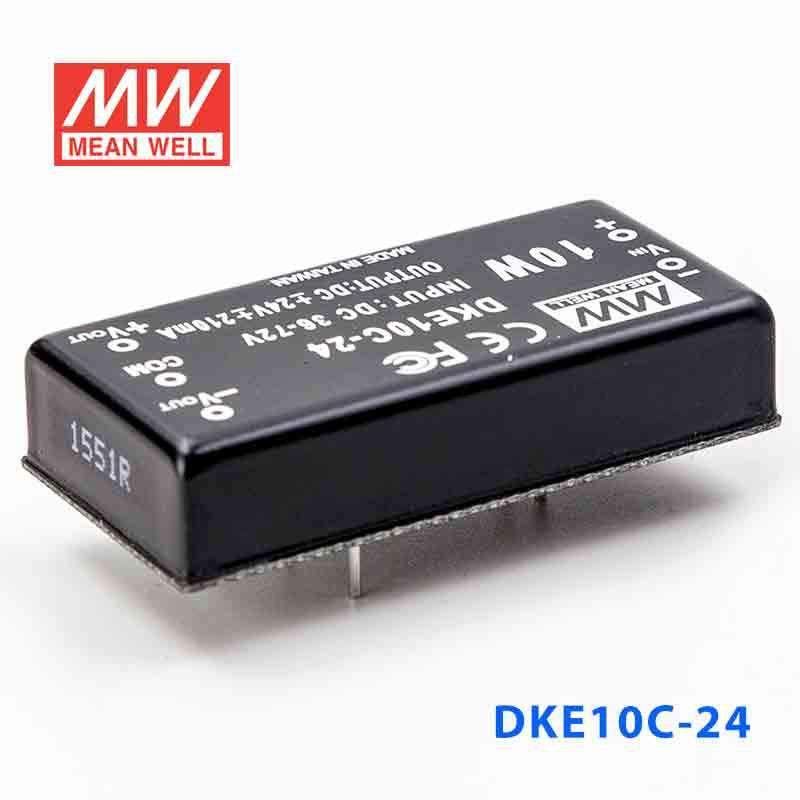

Mean Well DKE10C-24 DC-DC Converter - 10W - 36~72V in ±24V out

SKU:

DKE10C-24

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / °C (max.)
Dimension (LxWxH) (mm)	2"x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

DKE Series
Power Rating

10 Watt
Output Voltage

24 Volt
Rated Current

0.21 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DKE10C-24 for 24V automation or industrial control devices?

Yes, this version is intended for constant-voltage 24V output applications when the source is 36-72VAC. Its 10W rating makes it more suitable for lower-power automation, monitoring, or control electronics than for larger 24V loads.

Is the DKE10C-24 appropriate for 24V sensors, relays, or interface circuits?

It can fit 24V constant-voltage loads that remain within the 10W power rating. That makes it relevant for smaller 24V industrial electronics where compact size and a wide 36-72VAC input range matter.

Can this model power compact 24V embedded equipment inside a control enclosure?

Yes, if the equipment requires 24V constant-voltage output and does not exceed 10W. The converter measures 50.8 × 25.4 × 11.2 mm and weighs 0.032 kg, which helps where enclosure space is limited.

What are the output differences across the DKE10C family?

The family keeps the same base platform: 10W power, 36-72VAC input, constant-voltage operation, 50.8 × 25.4 × 11.2 mm size, 0.032 kg weight, and -25°C to +71°C operation. The output choices are 5V at 1000A, 12V at 420A, 15V at 333A, and 24V at 210A for the DKE10C-24.

Can the DKE10C-24 be used in harsh temperature conditions?

Its specified operating temperature range is -25°C to +71°C, so it is rated across a fairly wide temperature band. No IP rating is listed, so the specs do not confirm outdoor, washdown, or exposed-environment use.

Model	Power	Voltage	Current	IP Rating
Mean Well DKE10C-15 DC-DC Converter - 10W - 36~72V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10C-12 DC-DC Converter - 10W - 36~72V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10C-05 DC-DC Converter - 10W - 36~72V in ±5V out	10W	5V	1A	Indoor	View
Mean Well DKE10B-24 DC-DC Converter - 10W - 18~36V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10B-15 DC-DC Converter - 10W - 18~36V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10B-12 DC-DC Converter - 10W - 18~36V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10B-05 DC-DC Converter - 10W - 18~36V in ±5V out	10W	5V	1A	Indoor	View
Mean Well DKE10A-24 DC-DC Converter - 10W - 9~18V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10A-15 DC-DC Converter - 10W - 9~18V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10A-12 DC-DC Converter - 10W - 9~18V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10A-05 DC-DC Converter - 10W - 9~18V in ±5V out	10W	5V	1A	Indoor	View
