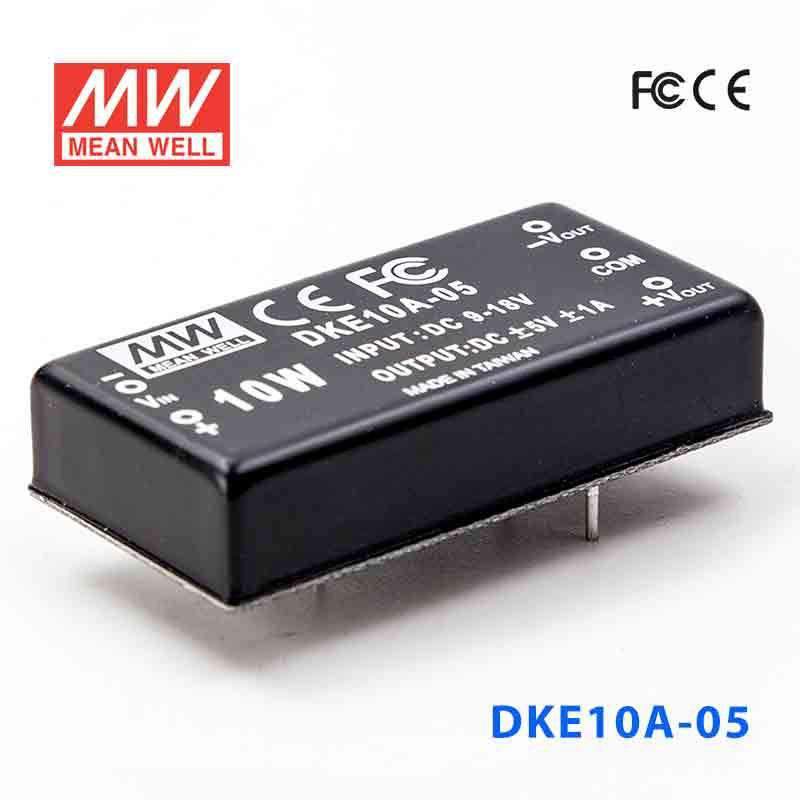

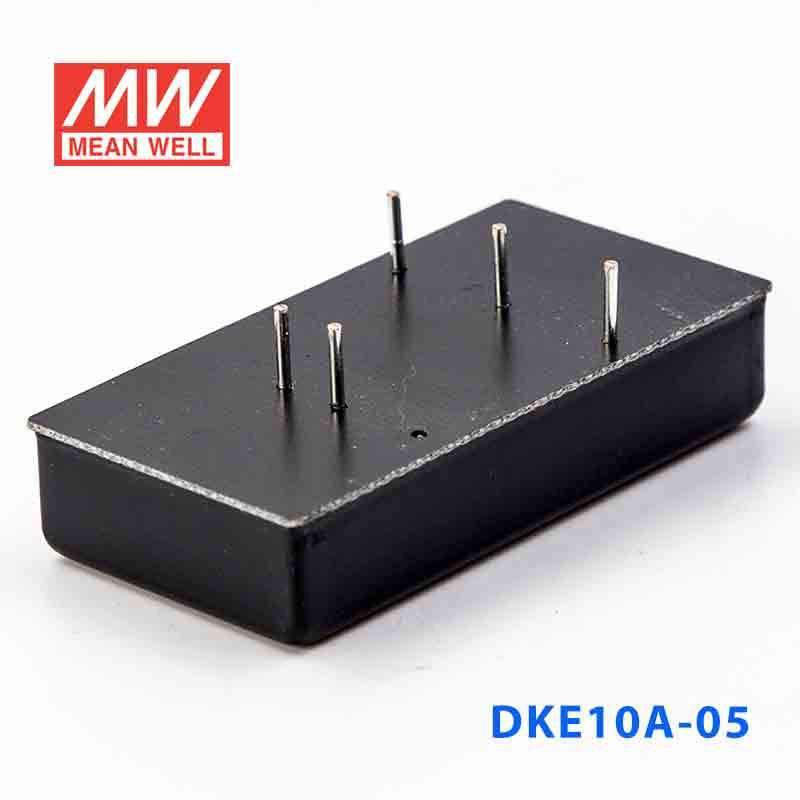

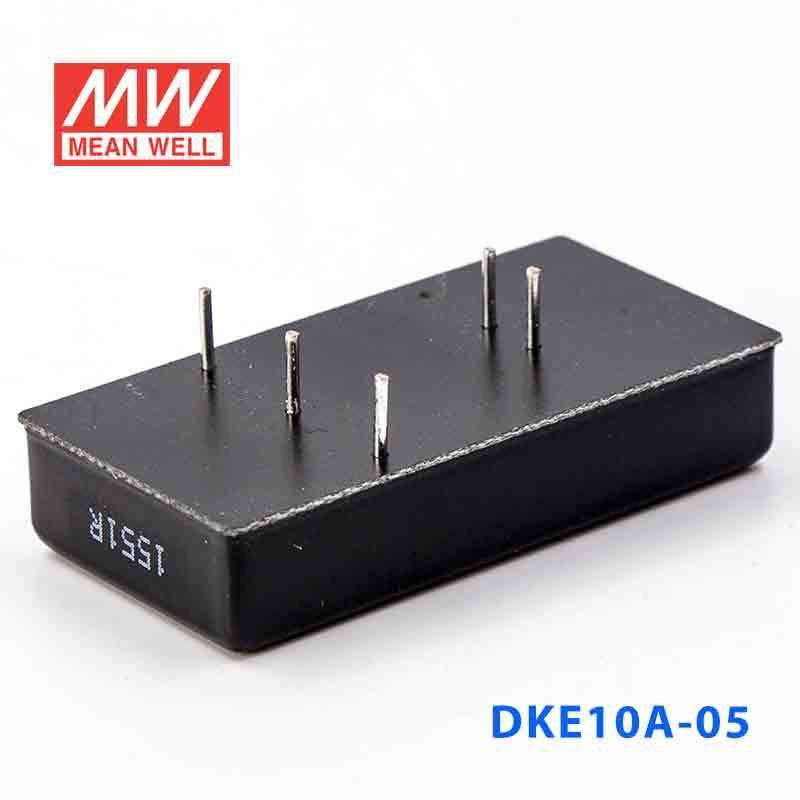

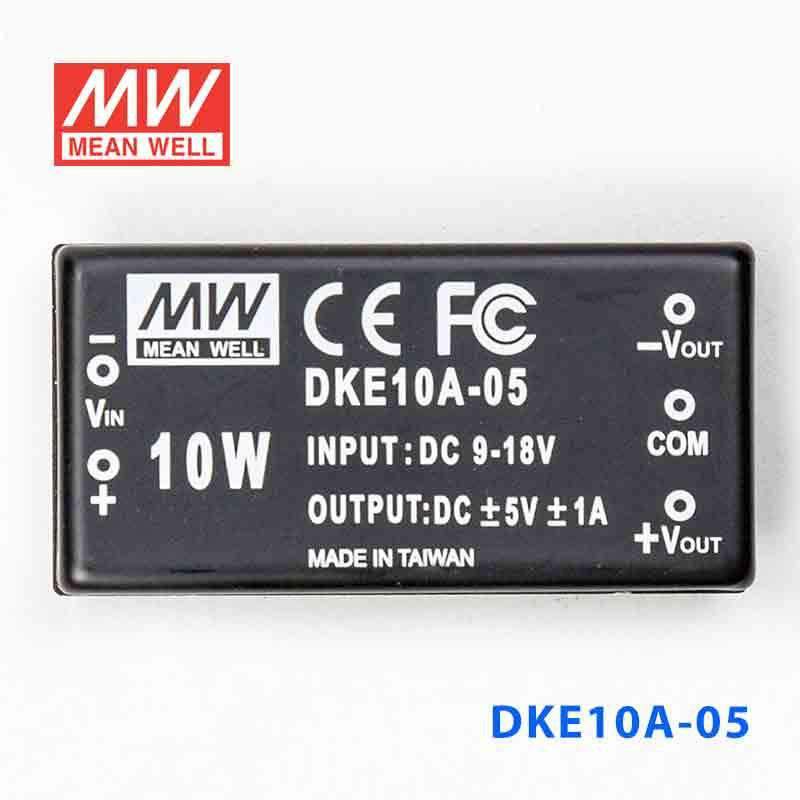

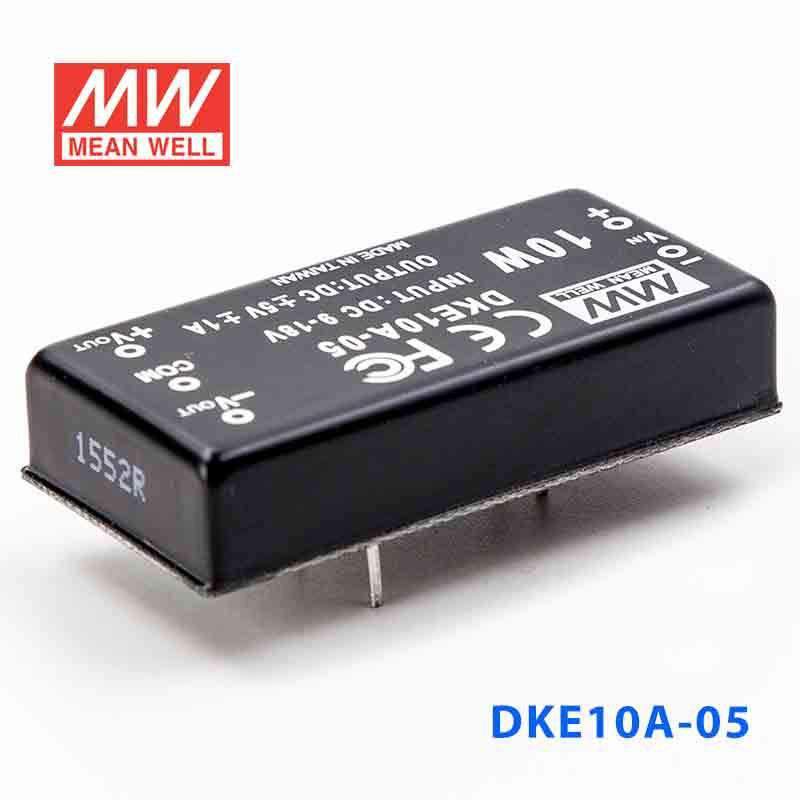

Mean Well DKE10A-05 DC-DC Converter - 10W - 9~18V in ±5V out 1A

SKU DKE10A-05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

DKE10A-05 is the ±5V output model of this series: rated power 10W, typical efficiency 78%.

Features

  • 2:1 wide input range
  • 4:1 wide input range(option)
  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

DKE10A-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
±5V
CURRENT RANGE
±100 ~ ±1000mA
RATED POWER
10W
RIPPLE & NOISE (max.)Note.2
50mVp-p
LINE REGULATIONNote.3
±0.3%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
250KHz min.

INPUT

VOLTAGE RANGE
9 ~ 18VDC
EFFICIENCY (Typ.)
78%
DC CURRENT Full load
1100mA
DC CURRENT No load
30mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF
500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION
50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H)
PACKING
31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

DKE10A-05 Mechanical Specification
Mechanical Specification
DKE10A-05 Packing
Packing

Downloads

FAQ

Can I use the DKE10A-05 for 5V embedded electronics in a compact industrial device?

It is designed for a regulated ±5V dual output with a 10W power rating. The compact 50.8 × 25.4 × 11.2 mm form factor is useful where board or enclosure space is limited.

Is the DKE10A-05 suitable for powering 5V logic or microprocessor sections in automation equipment?

For equipment that needs regulated 5V rails, this model provides a ±5V dual output. The listed input range is 9-18VDC, so it is intended for systems operating within that input span.

Can this model be used for low-power 5V monitoring or communication modules?

Yes, if the module works from a regulated ±5V dual output and the load stays within the product's 10W rating. Its low weight of 31.2 g also helps in compact assemblies where component mass matters.

Does the DKE10A-05 work in harsh indoor industrial temperatures?

The specified operating temperature range is -25°C to +71°C (refer to the derating curve). That makes it suitable for indoor equipment exposed to a fairly wide temperature range, as long as the application needs ±5V output and 10W capacity.

Is the DKE10A-05 rated for outdoor or wet locations?

The published data includes an operating range of -25°C to +71°C, but it does not list an IP rating. Because no ingress protection rating is stated, outdoor or wet-environment suitability is not defined in the provided specs.

How does the DKE10A-05 differ from the other DKE10A versions?

All listed siblings are 10W models, but the outputs differ: DKE10A-12 is ±12V and up to ±420mA, DKE10A-15 is ±15V and up to ±333mA, and DKE10A-24 is ±24V and up to ±210mA. The DKE10A-05 is the ±5V version and is listed at up to ±1000mA.
