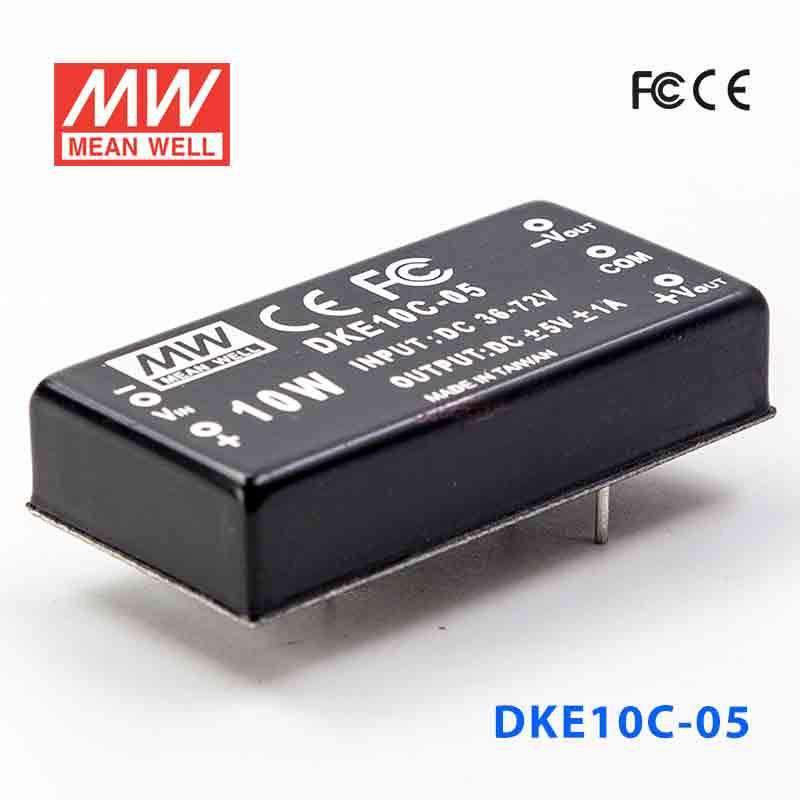

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

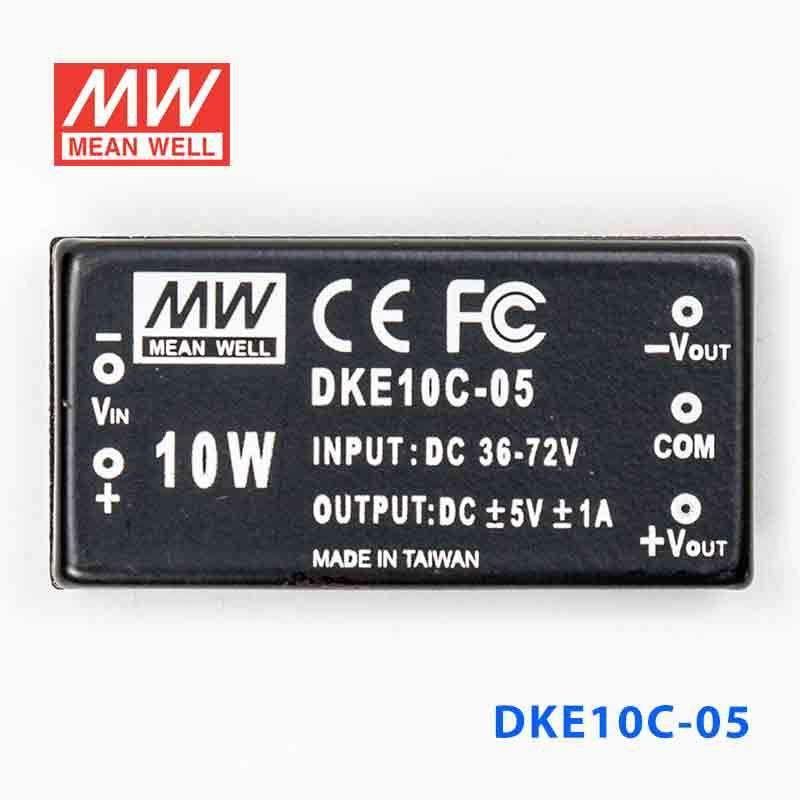

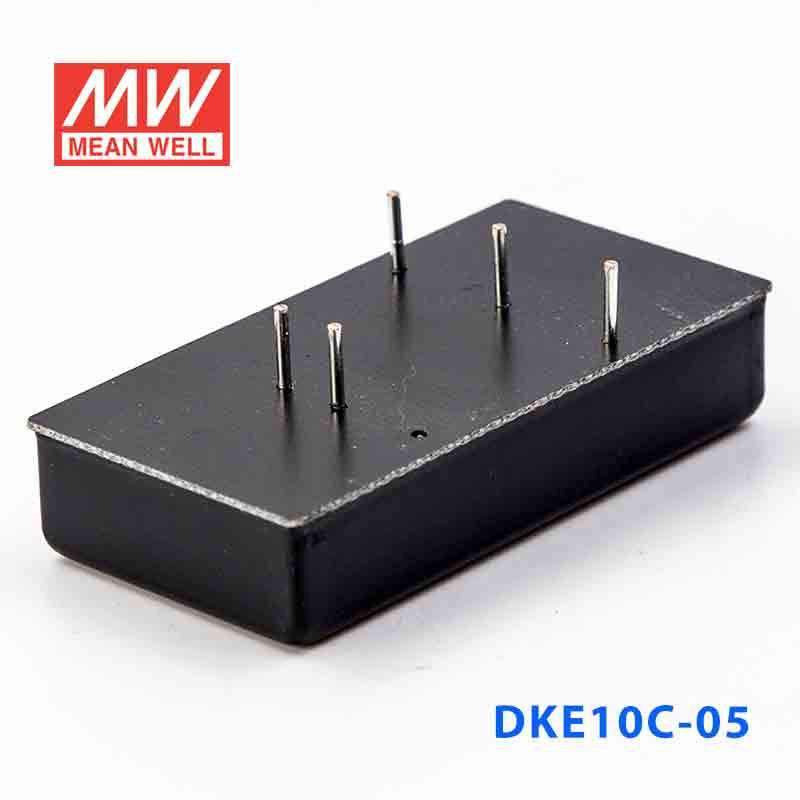

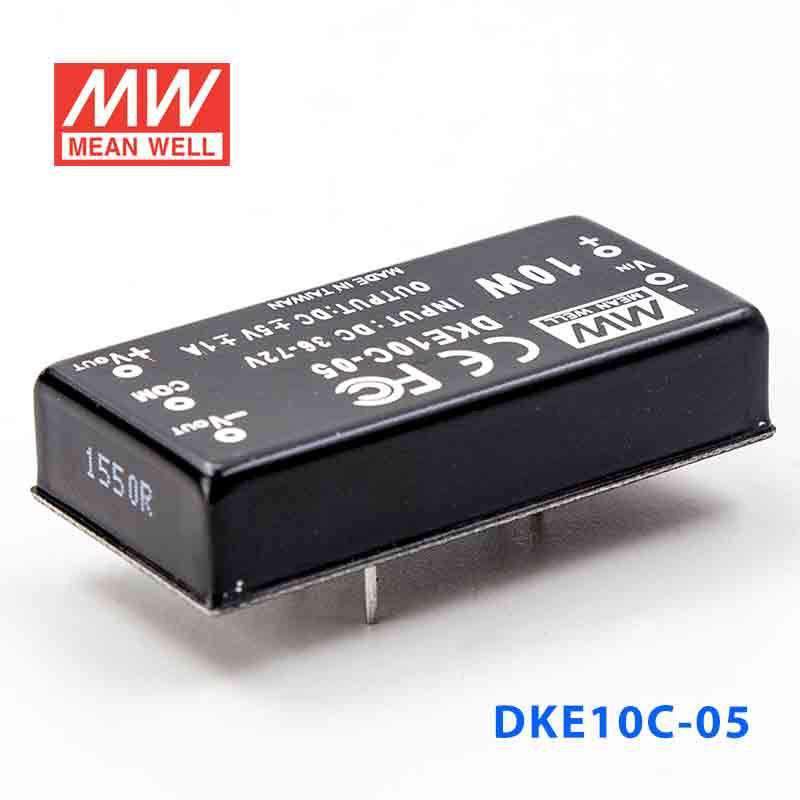

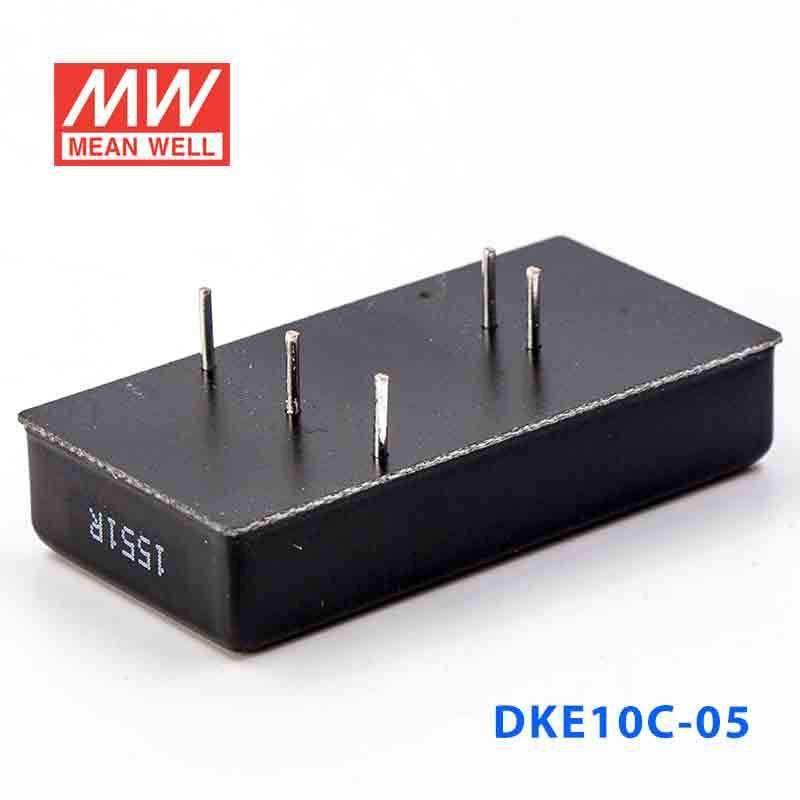

Mean Well DKE10C-05 DC-DC Converter - 10W - 36~72V in ±5V out

SKU:

DKE10C-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / °C (max.)
Dimension (LxWxH) (mm)	2"x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

DKE Series
Power Rating

10 Watt
Output Voltage

5 Volt
Rated Current

1 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DKE10C-05 for 5V industrial control electronics in a 36-72V system?

Yes, this model is intended for constant-voltage 5V output applications where the available input is 36-72VAC. With a 10W rating, it fits low-power industrial control, embedded, or automation circuits that need 5V rather than 12V, 15V, or 24V.

Is the DKE10C-05 suitable for powering 5V embedded boards inside automation equipment?

It can fit embedded electronics that require a regulated 5V constant-voltage output and stay within the 10W power rating. Its compact 50.8 × 25.4 × 11.2 mm size also makes it easier to place inside dense control assemblies.

Can this converter be used for 5V sensor or logic-level loads in industrial equipment?

This model is designed for 5V constant-voltage output, so it is better aligned with 5V logic, sensor, or controller-side loads than higher-voltage devices. The key fit points are the 36-72VAC input range and the 10W power limit.

How does the DKE10C-05 compare with the other DKE10C models?

All DKE10C versions in this group are 10W constant-voltage converters with 36-72VAC input, 50.8 × 25.4 × 11.2 mm dimensions, 0.032 kg weight, and -25°C to +71°C operation. The difference is output: DKE10C-05 is 5V at 1000A, DKE10C-12 is 12V at 420A, DKE10C-15 is 15V at 333A, and DKE10C-24 is 24V at 210A.

Is the DKE10C-05 suitable for outdoor or exposed environments?

The listed specs give an operating temperature range of -25°C to +71°C, but no IP rating is provided. That means temperature suitability is stated, while outdoor or washdown suitability cannot be confirmed from the published specs alone.

Model	Power	Voltage	Current	IP Rating
Mean Well DKE10C-24 DC-DC Converter - 10W - 36~72V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10C-15 DC-DC Converter - 10W - 36~72V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10C-12 DC-DC Converter - 10W - 36~72V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10B-24 DC-DC Converter - 10W - 18~36V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10B-15 DC-DC Converter - 10W - 18~36V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10B-12 DC-DC Converter - 10W - 18~36V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10B-05 DC-DC Converter - 10W - 18~36V in ±5V out	10W	5V	1A	Indoor	View
Mean Well DKE10A-24 DC-DC Converter - 10W - 9~18V in ±24V out	10W	24V	0.21A	Indoor	View
Mean Well DKE10A-15 DC-DC Converter - 10W - 9~18V in ±15V out	10W	15V	0.33A	Indoor	View
Mean Well DKE10A-12 DC-DC Converter - 10W - 9~18V in ±12V out	10W	12V	0.42A	Indoor	View
Mean Well DKE10A-05 DC-DC Converter - 10W - 9~18V in ±5V out	10W	5V	1A	Indoor	View
