What does the ENVO ZigBee 2Gang In-wall Switch control?

This model provides on/off control for two separate channels in one compact in-wall device. It is designed for switching connected loads rather than dimming them, and each ZigBee endpoint can be controlled independently.

Is this switch a dimmer or only an on/off controller?

The EV-ZB9101SAC-HPS2CH is an on/off controller, not a dimmer. It is intended for applications where you need ZigBee-based switching of two loads without brightness adjustment.

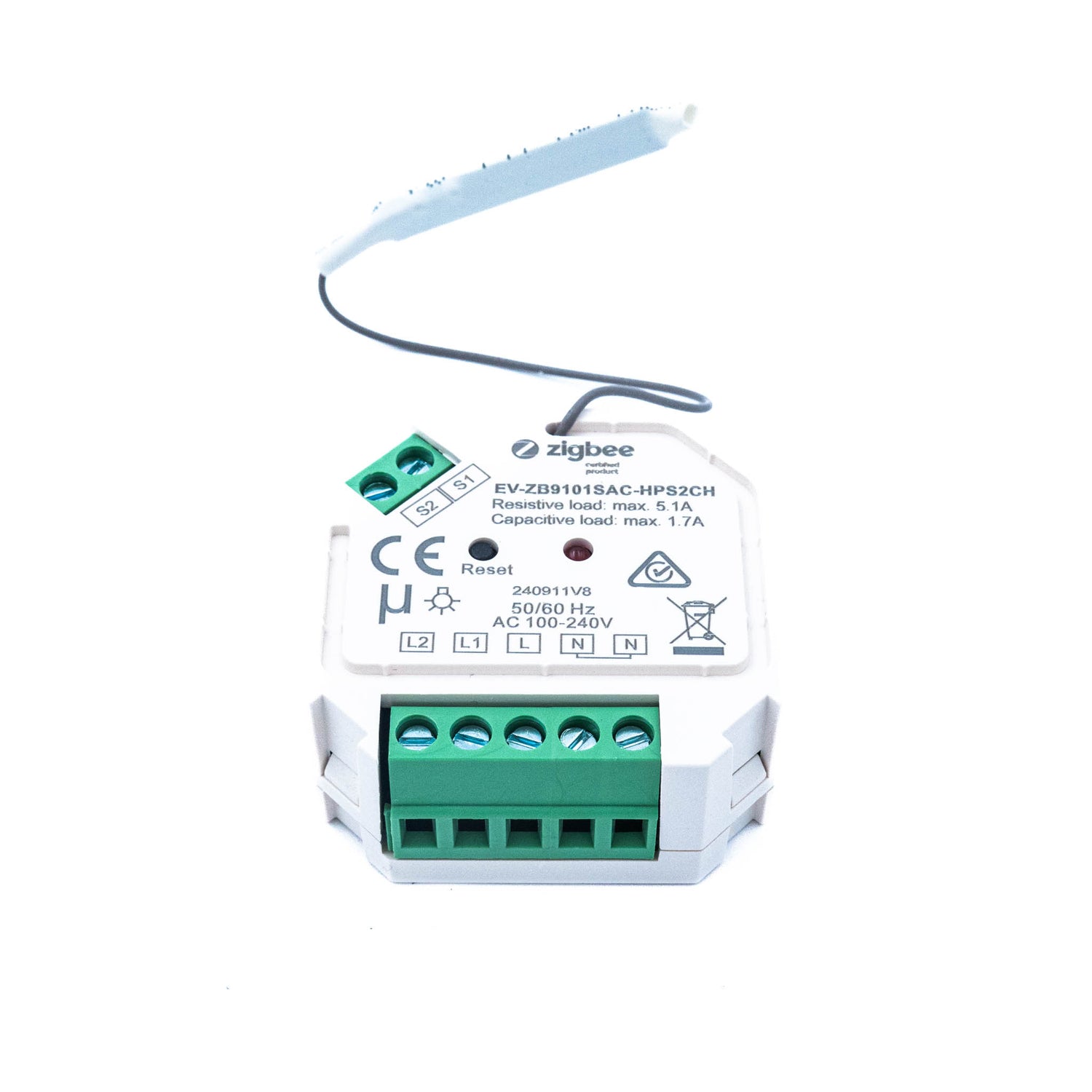

What load capacity does this ZigBee switch support?

This 2-channel model supports up to 5.1A per channel for resistive loads and up to 1.7A per channel for capacitive loads. It operates on 100-240VAC input and output, with a listed power rating of 390W.

Is the ENVO ZigBee 2Gang switch compatible with standard ZigBee systems?

Yes. It uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway products. It also supports Touchlink commissioning, find-and-bind mode, ZigBee Green Power, and can bind up to 20 ZigBee Green Power switches.

Does this model support energy monitoring?

Yes. The switch includes active power and energy metering functionality, which can be useful for monitoring load usage in commercial or smart building environments. This adds visibility beyond basic on/off control.

Where can this switch be used?

This model is intended for indoor use, with an IP20 rating and an operating temperature range of -20°C to 50°C. It should not be exposed to moisture, making it better suited to dry interior environments.

1 3

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Envo

ENVO ZigBee 2Gang In-wall Switch - On/Off Control

ZigBee 3.0 protocolsupport Touchlinkcan be controlled by remote

SKU EV-ZB9101SAC-HPS2CH

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The EV-ZB9101SAC-HPS2CH is a 390W ENVO AC-DC constant voltage LED driver (input: 100~240VAC, output: 230V, operating temperature: -20~+50°C).

Key Features

✓ Input voltage: 100~240VAC
✓ Output voltage: 230V
✓ Rated output current: 1.7A
✓ Zigbee controllable
✓ Operating temperature: -20~+50°C
✓ Safety certifications: CE, FCC, RoHS
✓ 5 year warranty
