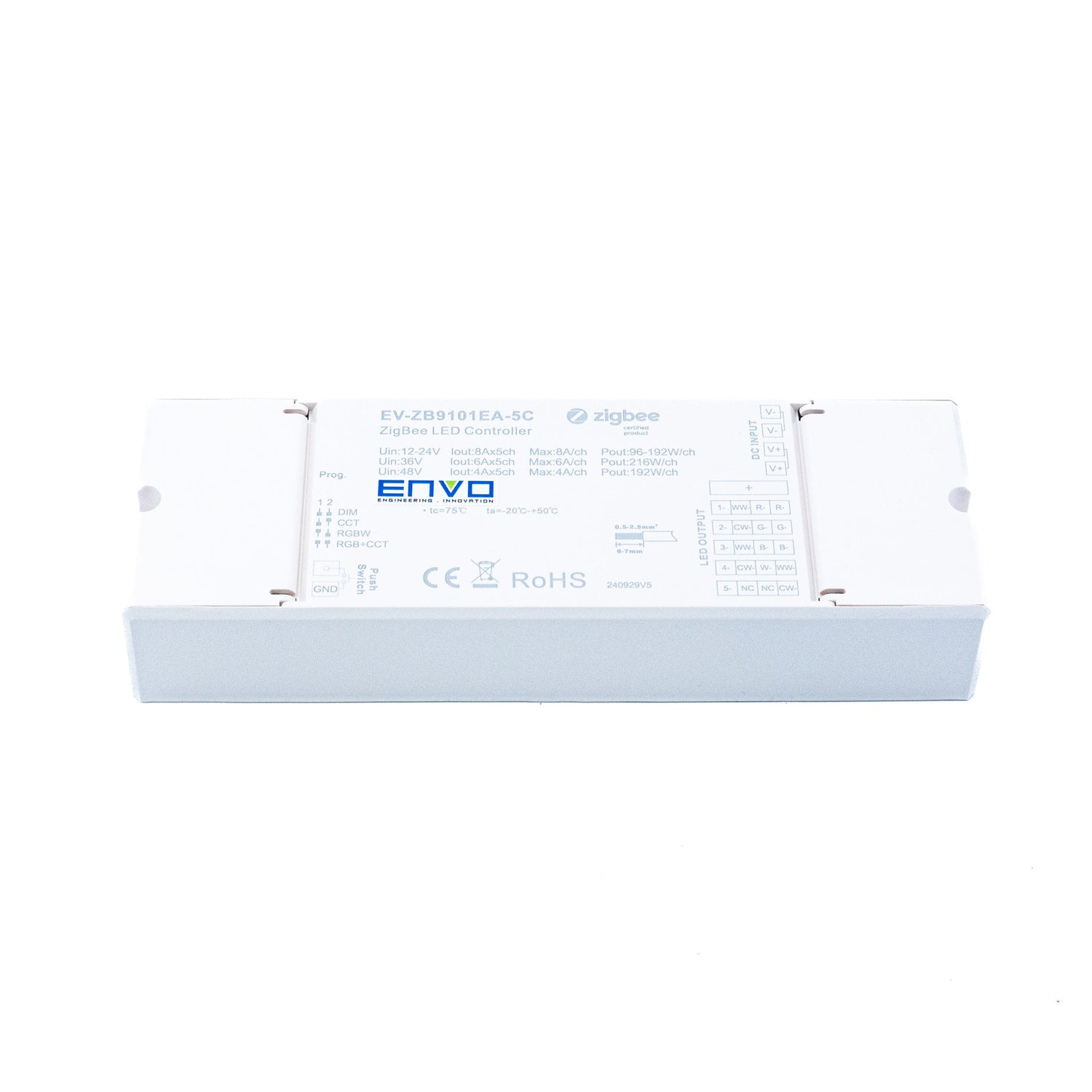

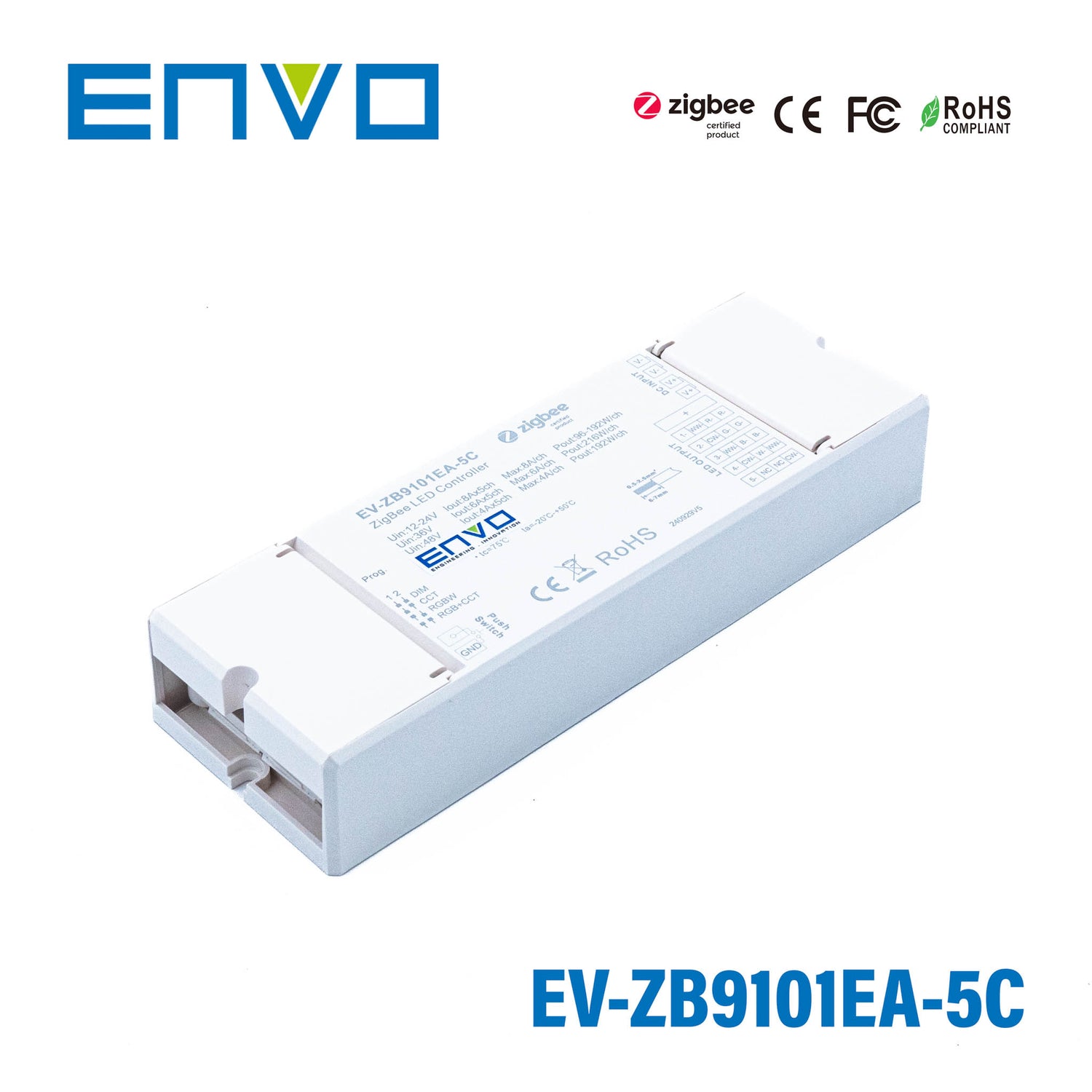

ENVO ZigBee 5 Channel Controller 12-48V 4-8A per Channel
Please Login for Pricing
Description
Description
Features:
- 4 in 1 universal Zigbee LED controller based on latest ZigBee 3.0 protocol

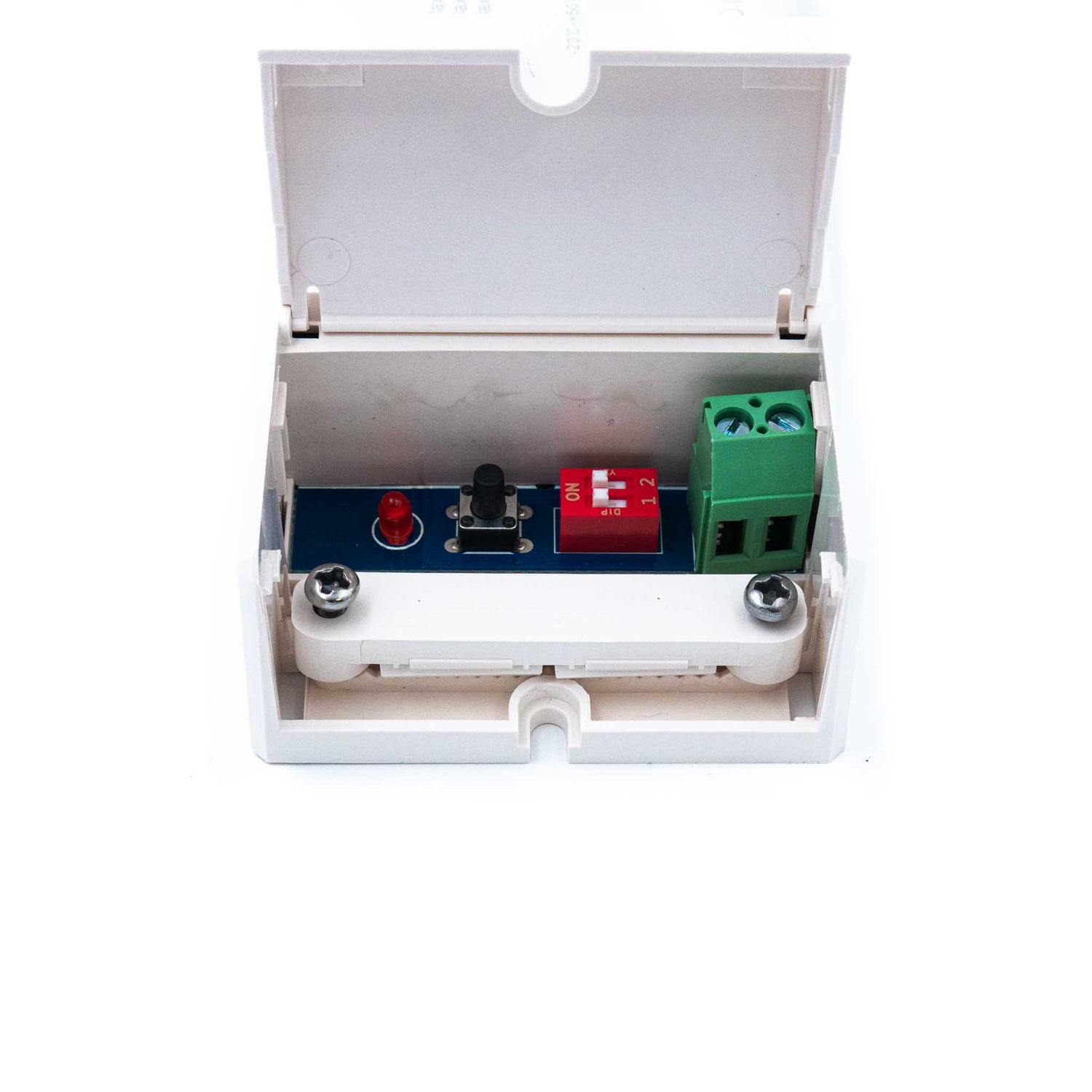

- 4 different device modes DIM, CCT, RGBW and RGB+CCT in 1 controller, and selectable by dial switch
- Enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights
- Can directly pair to a compatible ZigBee remote via Touchlink
- Supports self-forming zigbee network without coordinator
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power switches
- Compatible with universal Zigbee gateway or hub products
- Compatible with universal Zigbee remotes
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
12-48VDC
Output Current
Max. 8A/CH@12V/24V
Max. 6A/CH@36V
Max. 4A/CH@48V
Output Power
Max. 96W/CH@12V
Max. 192W/CH@24V
Max. 216W/CH@36V
Max. 192W/CH@48V
Connector Current Rating
Max. 20A

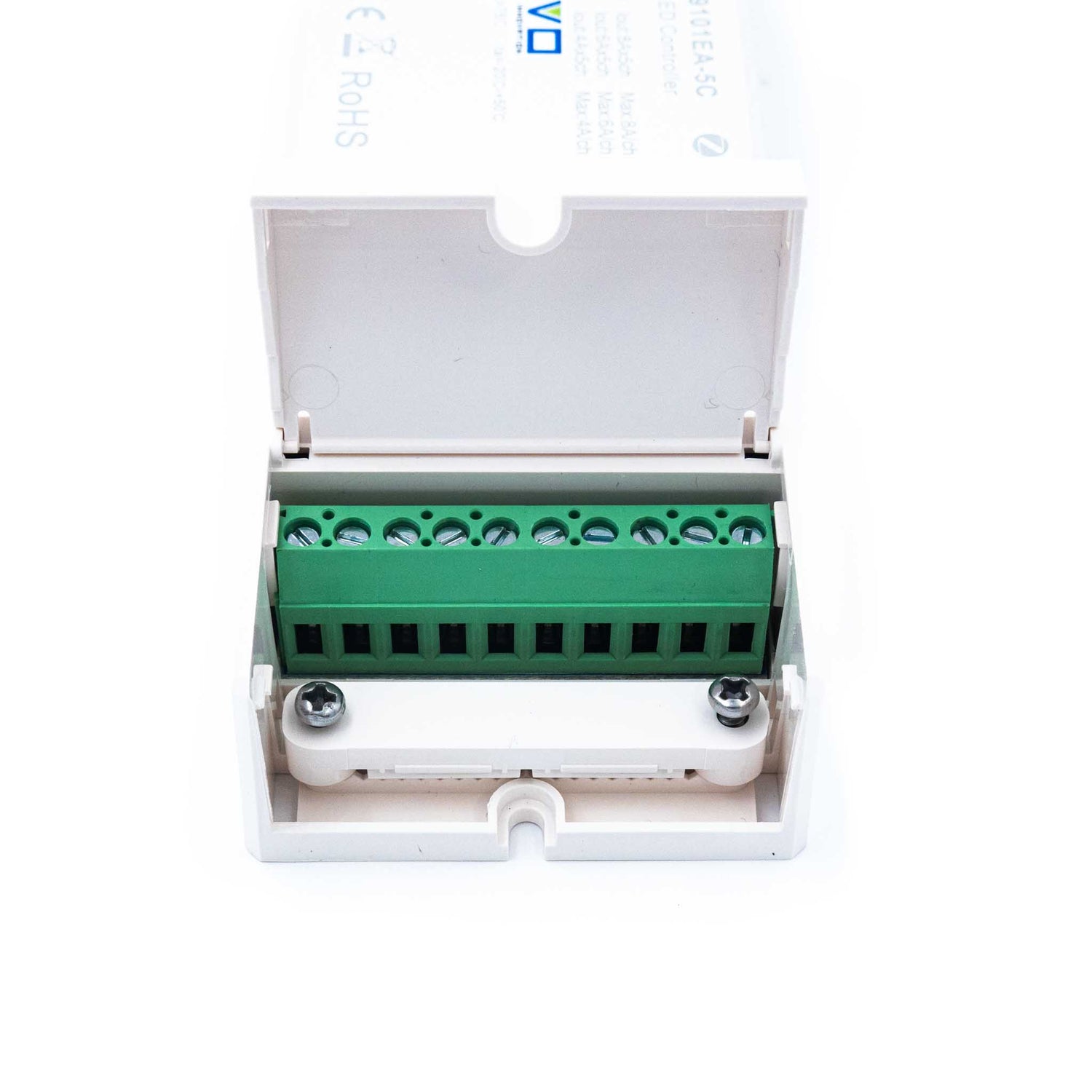

Wire Size
0.05-3.3mm (12-30AWG)
Input Type
Constant voltage
Ambient Temperature
-20°C ~ +50°C
Max. Casing Temperature
75°C
Dimension (LxWxH)
95x37x20mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current8 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length17 cm
-
Width5.9 cm
-
Height2.9 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kinds of LED lighting can the ENVO ZigBee 5 Channel Controller support?
This controller supports four selectable device modes in one unit: DIM, CCT, RGBW, and RGB+CCT. That makes it suitable for single-color dimming, tunable white, RGBW, and RGB+CCT constant-voltage LED lighting applications. It is designed for 12-48VDC systems and can serve a wide range of commercial and residential LED control needs.
Is this controller compatible with ZigBee hubs and remotes?
Yes. The ENVO ZigBee 5 Channel Controller uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway or hub products as well as universal ZigBee remotes. It also supports direct pairing to a compatible ZigBee remote via Touchlink and supports find-and-bind mode.
What are the voltage and current limits for this model?
This model accepts a 12-48VDC constant-voltage input. Output current is rated up to 8A per channel at 12V or 24V, up to 6A per channel at 36V, and up to 4A per channel at 48V. The connector current rating is listed as a maximum of 20A.
How much output power can this controller handle?
The output power depends on the operating voltage. It supports up to 96W per channel at 12V, 192W per channel at 24V, 216W per channel at 36V, and 192W per channel at 48V. The product data also lists a 480W power rating for this model.
Can this ZigBee controller work without a central coordinator?
Yes. According to the product specification, it supports a self-forming ZigBee network without a coordinator. That can make it useful in applications where a standalone ZigBee control approach is preferred.
Is the ENVO ZigBee 5 Channel Controller suitable for demanding environments?
It is rated for ambient temperatures from -20°C to +50°C, with a maximum casing temperature of 75°C. The housing is IP20, so it is intended for dry indoor environments rather than exposure to moisture. This makes it better suited to protected installations than wet or outdoor locations.
What makes this model different from a single-function LED controller?
A key differentiator is that it combines four control modes in one controller: DIM, CCT, RGBW, and RGB+CCT. Instead of using separate controllers for different LED types, this model offers broader application flexibility within a single ZigBee 3.0 device. It is positioned as a universal controller for multiple constant-voltage LED lighting formats.
What warranty is offered for this controller?
The listed warranty period for the ENVO ZigBee 5 Channel Controller is 5 years. That can be a useful consideration for buyers evaluating long-term reliability and lifecycle value for LED control projects.
