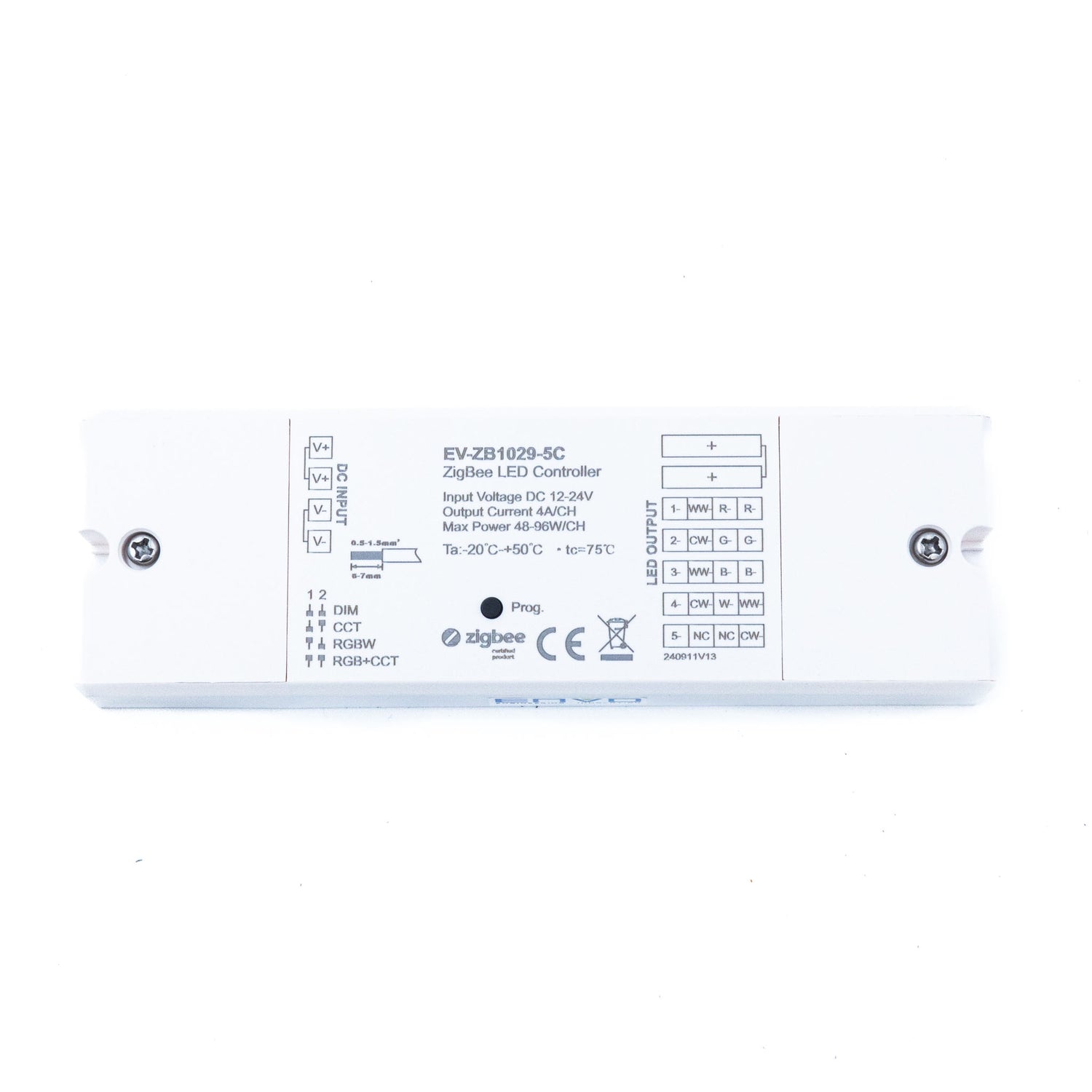

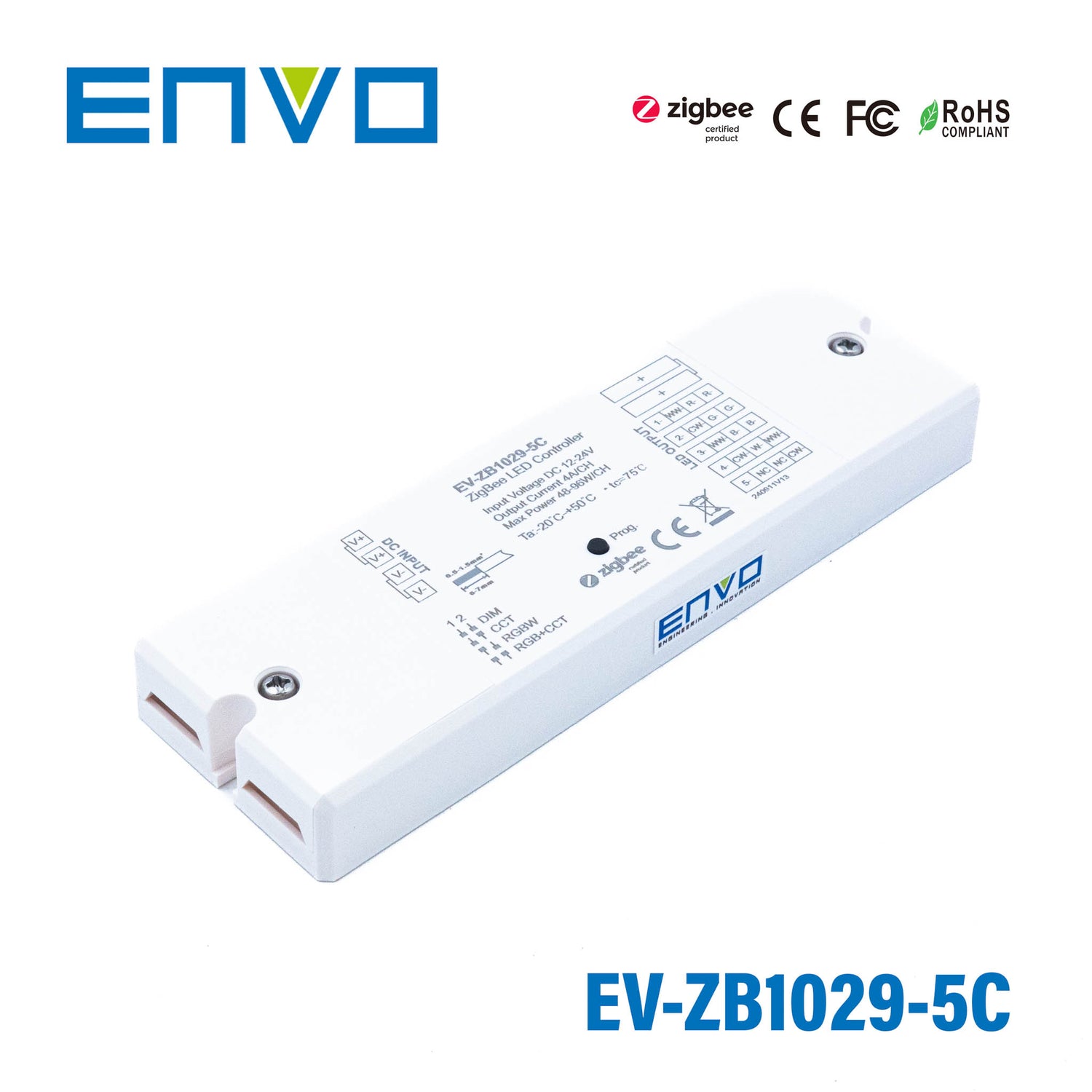

ENVO ZigBee Super Thin 5 Channel Controller 12-24V 4A per Channel

16mm height4-in-1 universal controllerZigBee 3.0 protocolsupport Touchlink

SKU EV-ZB1029-5C

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features:

4 in 1 universal Zigbee LED controller based on the latest ZigBee 3.0 protocol

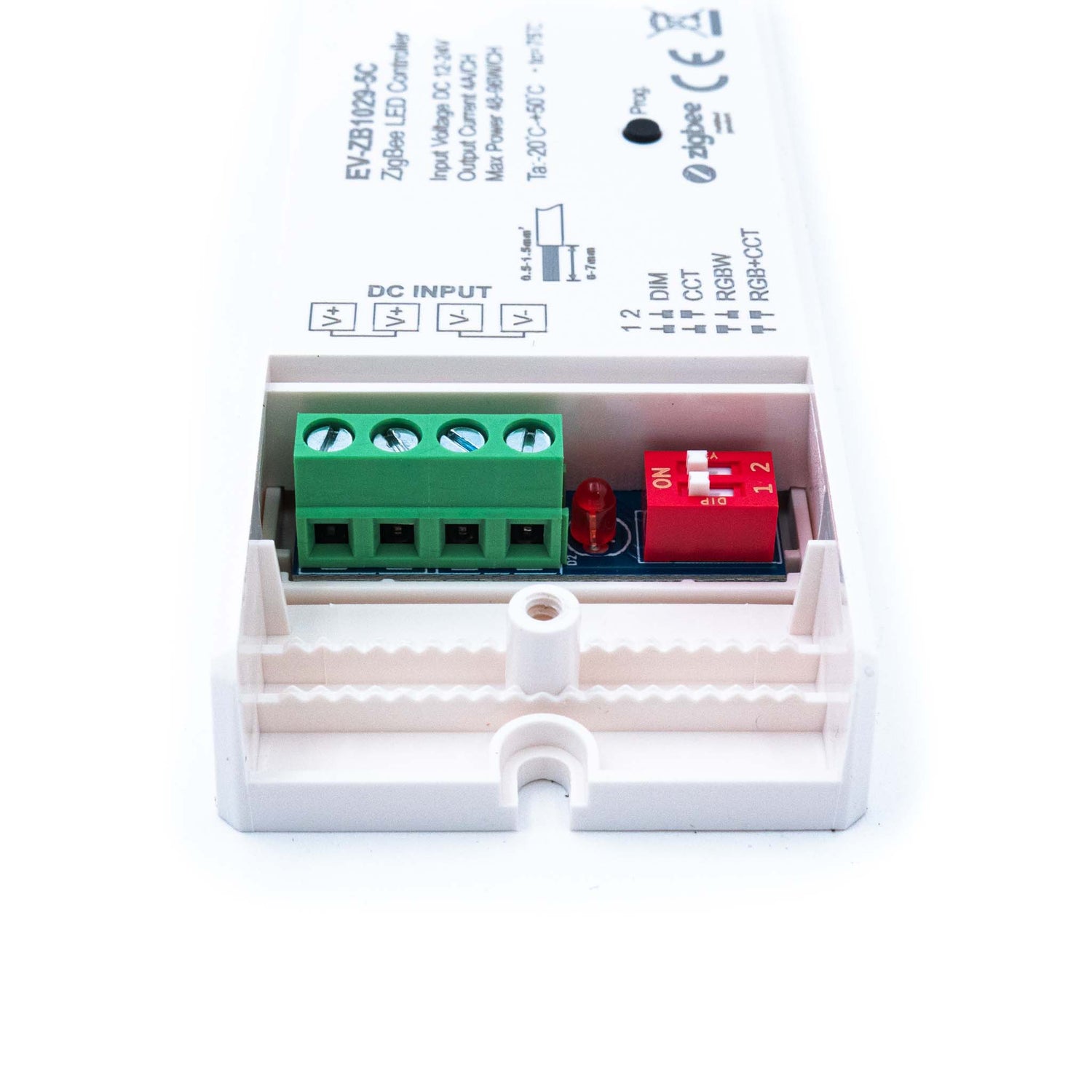

4 different device modes DIM, CCT, RGBW, and RGB+CCT in 1 controller, and selectable by dial switch
Enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights
Can directly pair to a compatible ZigBee remote via Touchlink
Supports self-forming Zigbee network without a coordinator
Supports find and bind mode to bind a ZigBee remote
It supports Zigbee green power and can bind max. 20 Zigbee Green power remotes
Compatible with universal Zigbee gateway or hub products
Compatible with universal Zigbee remotes
Waterproof grade: IP20

General Specification

Input Voltage

12-24VDC

Output Current

4A/CH

Output Power

48-96W/CH

Output Type

Constant Voltage

Ambient Temperature

-20°C ~ +50°C

Max. Casing Temperature

75°C

Dimension (LxWxH)

145x46.5x16mm

Frequently Asked Questions

What types of LED lighting can this controller manage?

This model is a 4-in-1 ZigBee LED controller that supports DIM, CCT, RGBW, and RGB+CCT device modes. That makes it suitable for a wide range of constant-voltage LED lighting applications where different control types may be needed from one controller platform.

What are the electrical ratings of the ENVO ZigBee Super Thin 5 Channel Controller?

The controller operates on 12-24VDC input and provides up to 4A per channel. Output power is rated at 48-96W per channel depending on voltage, with a listed maximum power rating of 240W. It is designed for constant-voltage LED loads.

How is this controller different from a single-mode LED controller?

Unlike a single-mode controller, this unit combines four device modes in one housing: DIM, CCT, RGBW, and RGB+CCT. That flexibility can simplify product selection when a project may use different LED control types but still needs ZigBee-based control.

Is this controller compatible with ZigBee hubs and remotes?

Yes. It is based on ZigBee 3.0 and is described as compatible with universal ZigBee gateway or hub products as well as universal ZigBee remotes. It can also directly pair with a compatible ZigBee remote via Touchlink.

Can this controller work without a ZigBee coordinator?

Yes. This model supports a self-forming ZigBee network without a coordinator. It also supports find-and-bind mode for binding a ZigBee remote and supports ZigBee Green Power with binding for up to 20 ZigBee Green Power remotes.

What environmental conditions is this controller rated for?

The rated ambient operating temperature range is -20°C to +50°C, and the maximum casing temperature is 75°C. Its enclosure is rated IP20, so it is intended for indoor applications where protection from direct exposure is needed.

How compact is the ENVO ZigBee Super Thin 5 Channel Controller?

This controller has a slim form factor measuring 145 x 46.5 x 16 mm. Its super-thin profile helps it fit where space is limited while still providing five-channel control capability.
