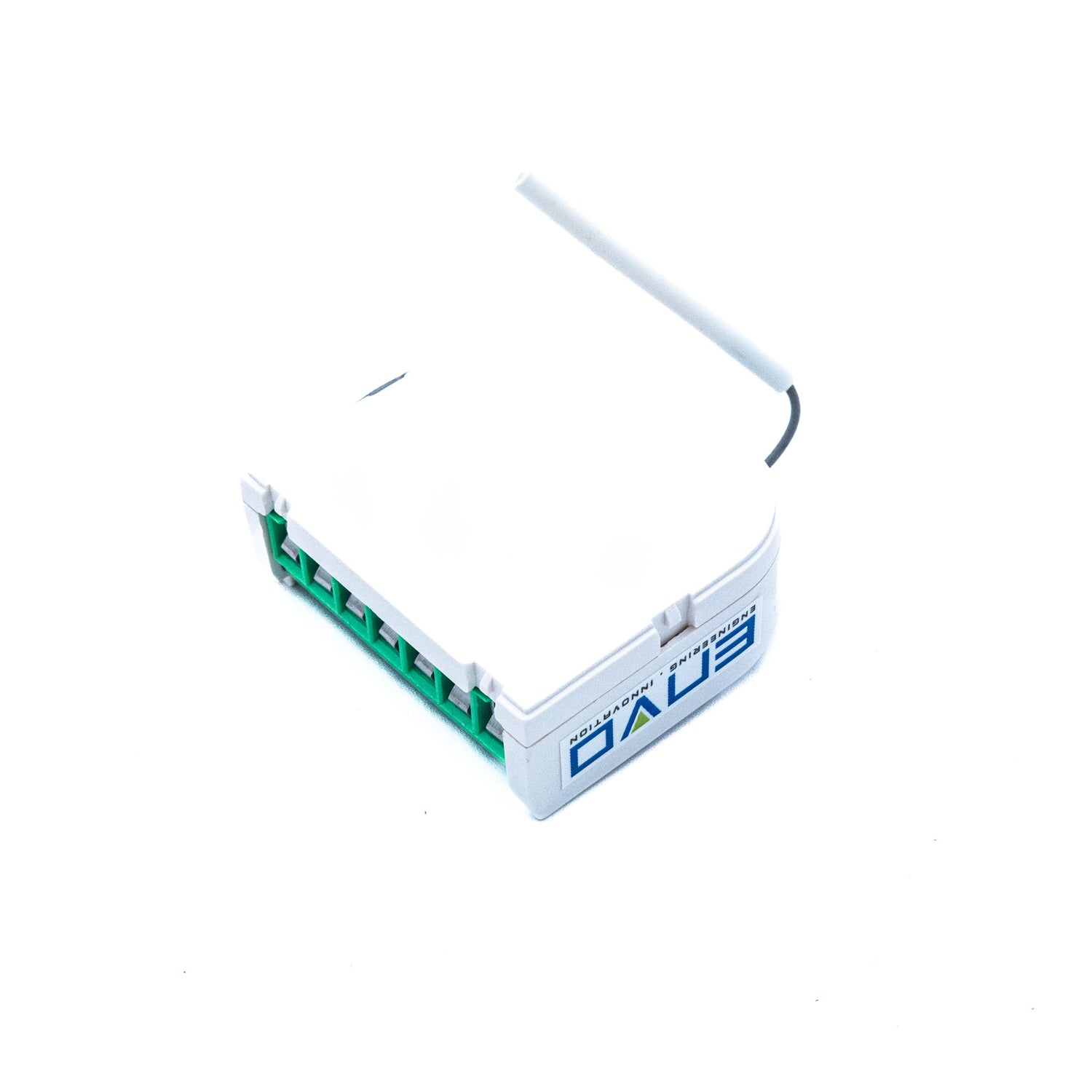

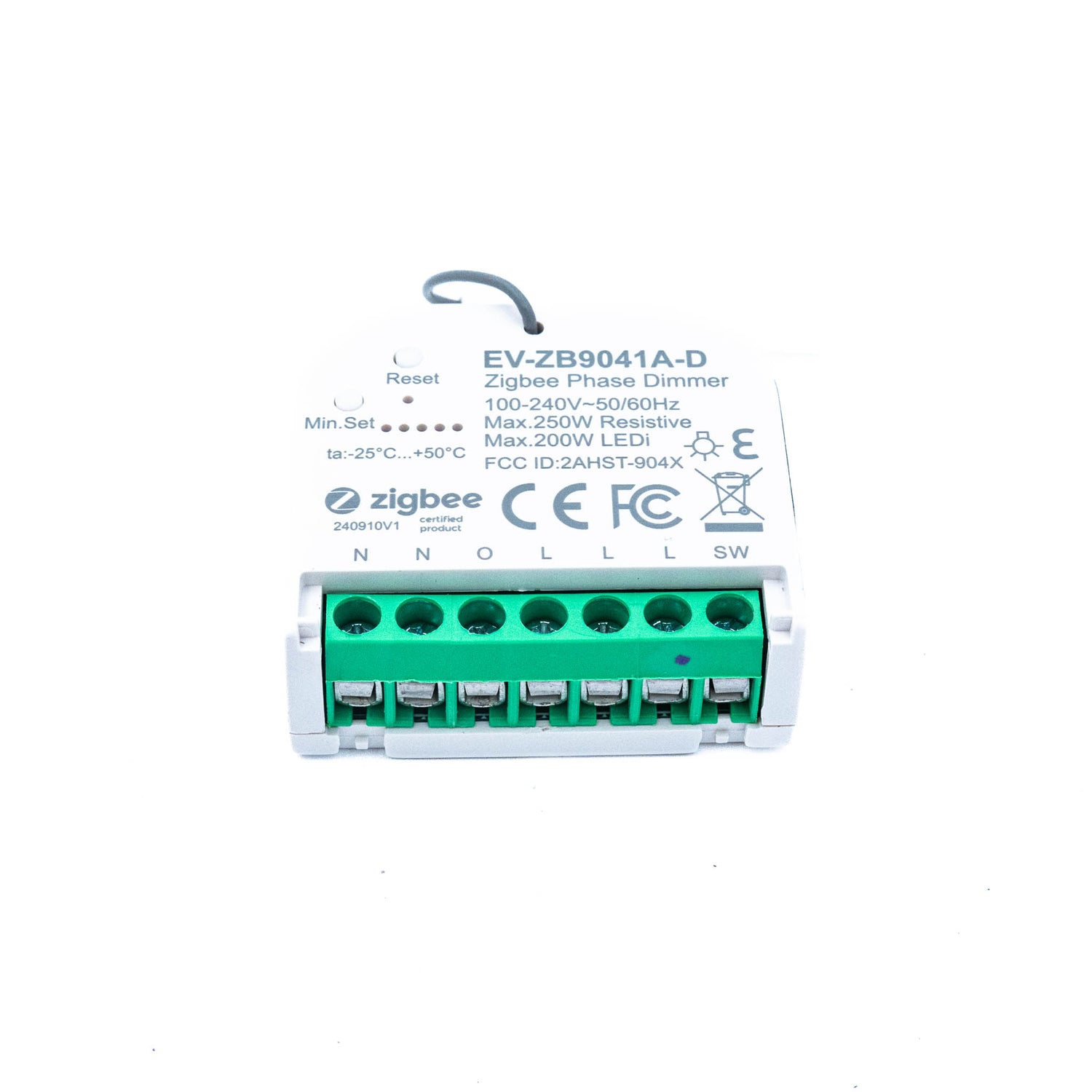

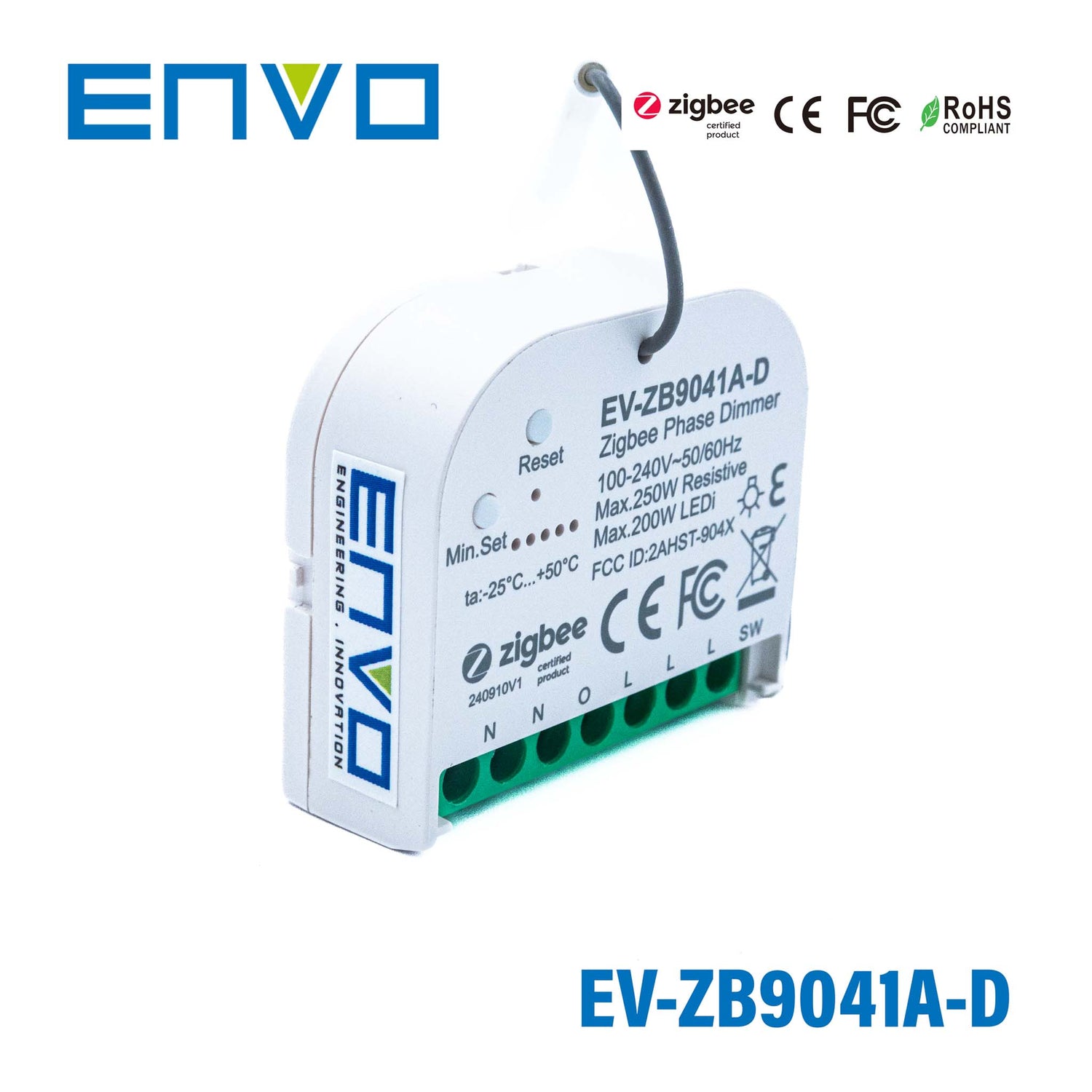

ENVO ZigbBee Mini In Wall AC Phase Smart Dimmer
Please Login for Pricing
Description
Description
Features:
- Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Active power and energy metering functionality
- Soft start function
- Innovative minimum dimming level and startup brightness setting function
- Works with various types of switches – momentary, toggle, three-way, etc.
- Active element: semiconductor electronic switch
- To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
- The Bypass is an extension unit
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Input Voltage
100-240VAC
Output Voltage
100-240VAC
Output Current
0.1-1.1A
Dimmable LED lamps
200W @ 230V
100W @ 110V
Dimmable LED drivers
200W @ 230V
100W @ 110V
Incandescent lighting, HV Halogen lamps
250W @ 230V
125W @ 110V
Low voltage halogen lighting with electronic transformers
200W @ 230V
100W @ 110V
Dimension (LxWxH)
42x38x16mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating250 Watt
-
Output Voltage110 Volt
-
Rated Current1.1 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length4.2 cm
-
Width3.8 cm
-
Height1.6 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of lighting loads can the ENVO ZigbBee Mini In Wall AC Phase Smart Dimmer control?
This model is designed for dimmable LED lamps, dimmable LED drivers, incandescent lighting, high-voltage halogen lamps, and low-voltage halogen lighting used with electronic transformers. Its AC input and output range is 100-240VAC, which makes it suitable for common mains-voltage dimming applications within its rated load limits.
Can this dimmer operate without a neutral lead?
Yes. The EV-ZB9041A-D can operate in either a two-wire configuration with no neutral lead or a three-wire configuration with a neutral lead. That flexibility makes it useful for retrofit and new-build dimming applications where neutral availability may vary.
What is the maximum load this smart dimmer can handle?
At 110V, this model supports up to 100W for dimmable LED lamps and dimmable LED drivers, 125W for incandescent or high-voltage halogen loads, and 100W for low-voltage halogen lighting with electronic transformers. At 230V, the ratings increase to 200W for most compatible dimmable loads and 250W for incandescent or high-voltage halogen lighting.
What makes this model different from a basic in-wall dimmer?
This unit adds smart dimming features beyond simple brightness control, including Zigbee capability, active power and energy metering, soft start, and smart light source detection. It also supports minimum dimming level and startup brightness settings, which can help improve performance with compatible lighting loads.
Is the EV-ZB9041A-D suitable for commercial or professional lighting control projects?
It can be a practical option for professional projects that need compact in-wall dimming for compatible 100-240VAC lighting loads. Features such as energy metering, broad switch compatibility, and support for multiple load types make it relevant for smart lighting upgrades where space is limited.
Will this dimmer work with different switch types?
Yes. The product description states that it works with various types of switches, including momentary, toggle, and three-way styles. That gives buyers more flexibility when evaluating it for existing control schemes or standardized project specifications.
What operating temperature range is this dimmer rated for?
The rated operating temperature range is -20°C to 50°C. That allows the unit to be considered for a wide range of indoor applications, provided the surrounding conditions stay within that specified range.
