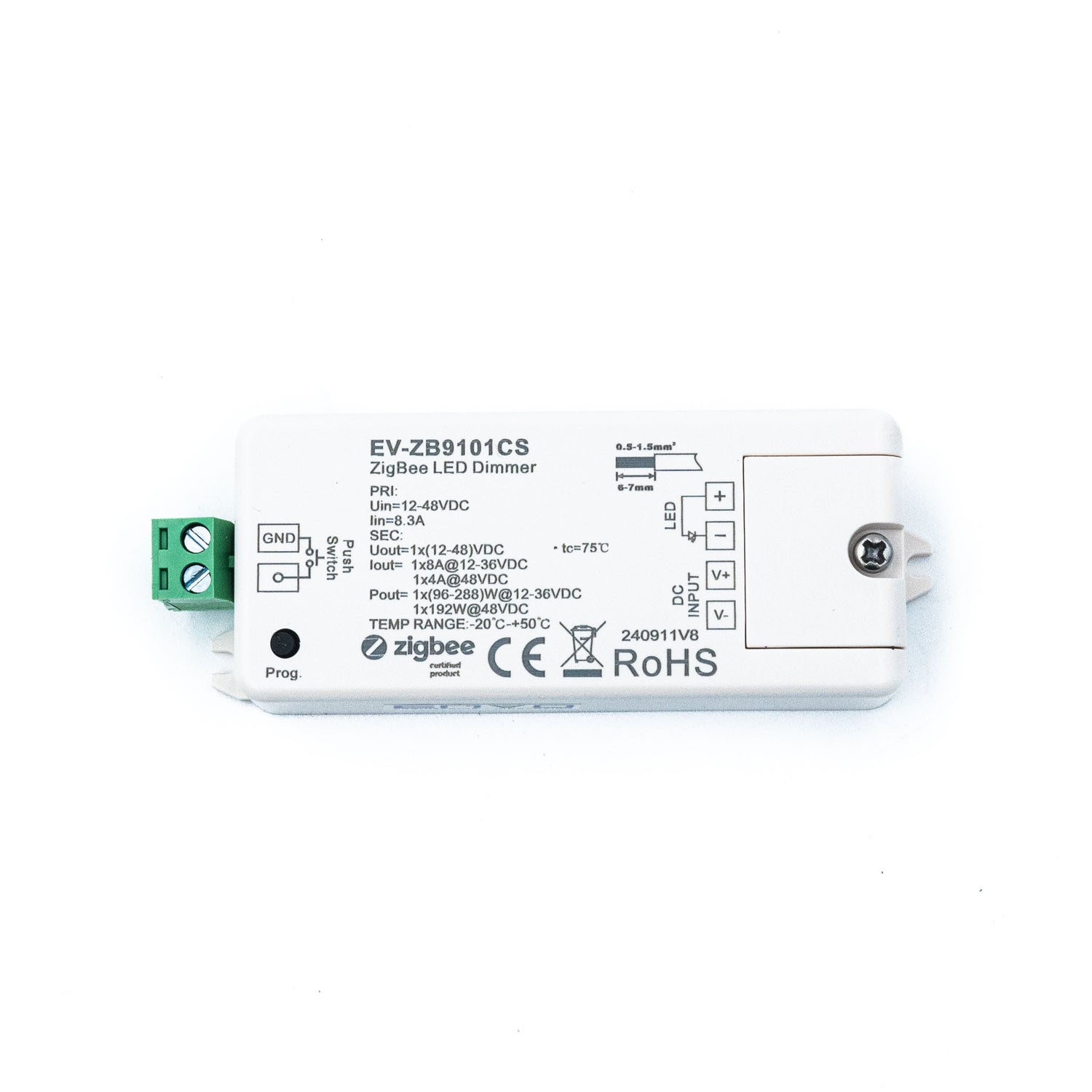

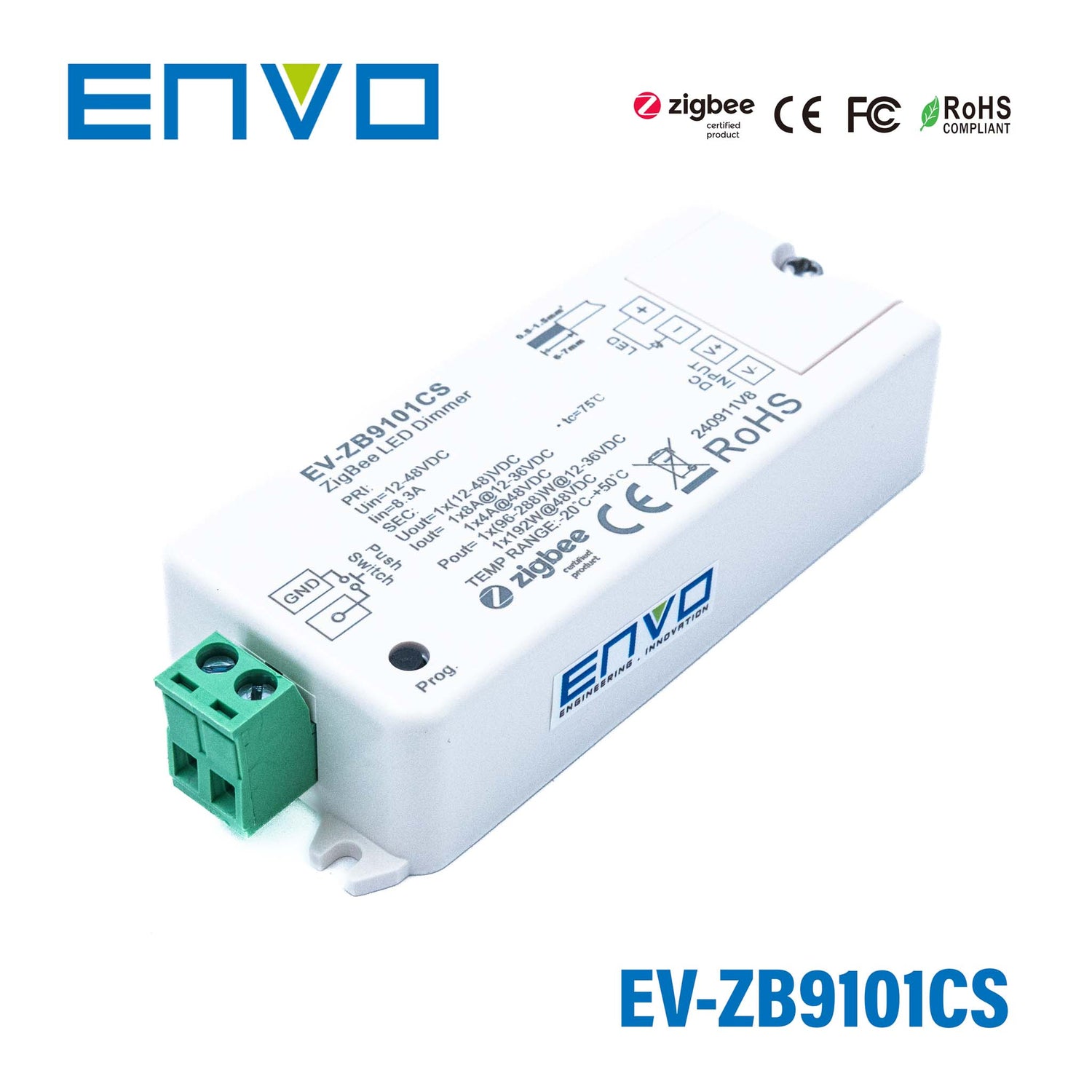

ENVO ZigBee Single Colour Mini Controller 12-36V 8A 1 Channel
Please Login for Pricing
Description
Description
Features:
- ZigBee LED dimming light device based on latest ZigBee 3.0 protocol
- Enables to control ON/OFF and light intensity of connected LED lights
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator
- Enables to add devices to the self-formed zigbee network
- Supports slef-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
12-48VDC
Output Current
1x8A@12-36VDC
1x4A@48VDC
Output Power
1x(96-288)W@12-36VDC
1x192W@48VDC
Output Type
Constant voltage
Dimension (LxWxH)
95x37x20mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating96 Watt
-
Output Voltage12 Volt
-
Rated Current8 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,FC,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length9.3 cm
-
Width3.7 cm
-
Height2 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the ENVO ZigBee Single Colour Mini Controller used for?
This model is designed to control single-colour constant-voltage LED lighting. It provides ZigBee-based ON/OFF control and dimming for one lighting channel. Its compact size makes it suitable for applications where a small controller is preferred.
Is this controller for single-colour lights only?
Yes. This is a 1-channel controller specifically intended for single-colour LED lighting. If you need control for tunable white or RGB/RGBW lighting, you would need a different controller type with more channels.
What ZigBee systems is this controller compatible with?
This controller uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway products. It also supports Touchlink commissioning and Find and Bind mode for compatible ZigBee remotes. In addition, it supports ZigBee Green Power and can bind up to 20 ZigBee Green Power remotes.
Can this controller work without a ZigBee coordinator?
Yes. According to the product details, it can pair directly with a compatible ZigBee remote through Touchlink without a coordinator. It also supports a self-forming ZigBee network, which allows operation without relying on a separate coordinator.
What are the main electrical specifications of this controller?
This model is a constant-voltage ZigBee controller with a specified input range of 12-48V DC. Its output current is rated at 8A for 12-36V DC and 4A at 48V DC. Output power is listed as 96-288W at 12-36V DC and 192W at 48V DC.
What operating environment is this controller rated for?
The stated operating temperature range is -20°C to 50°C. It has an IP20 rating, so it is intended for dry indoor environments rather than exposed or wet locations. The product information also states that it should not be exposed to moisture.
