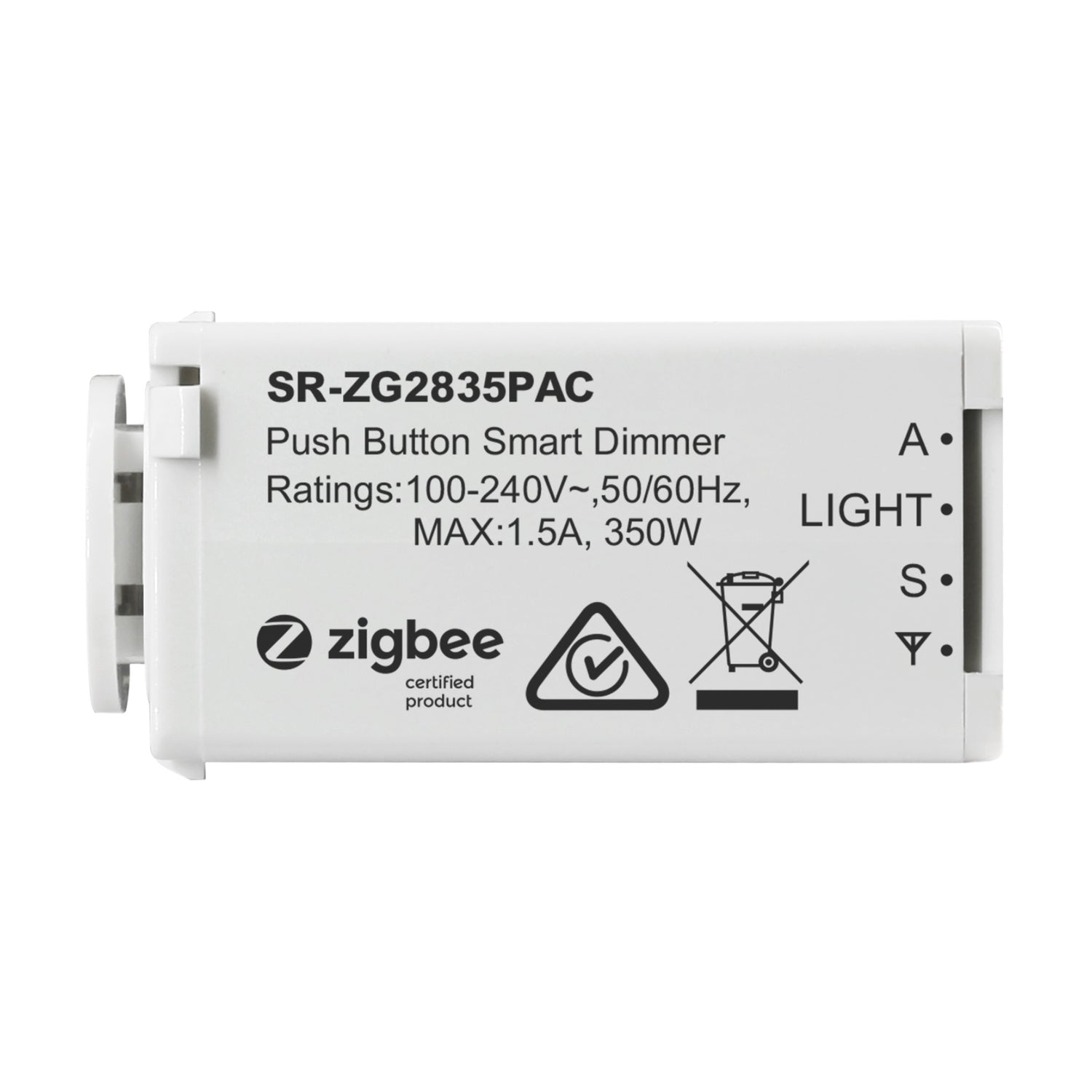

ENVO ZigBee US Standard Push Button Smart Dimmer
Please Login for Pricing
Description
Description
Features:
- Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Active power and energy metering functionality
- Soft start function
- Innovative minimum dimming level and startup brightness setting functions
- The Bypass is an extension unit
General Specification
Input Voltage
120VAC
Output Voltage
120VAC
Output Current
2.5A max
Ambient Temperature
-20°C ~ +50°C
Dimension (LxWxH)
105.5x54.7x40.03mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating150 Watt
-
Output Voltage120 Volt
-
Rated Current2.5 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Length10.55 cm
-
Width5.47 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ENVO Zigbee Series Models
16 other models
{
