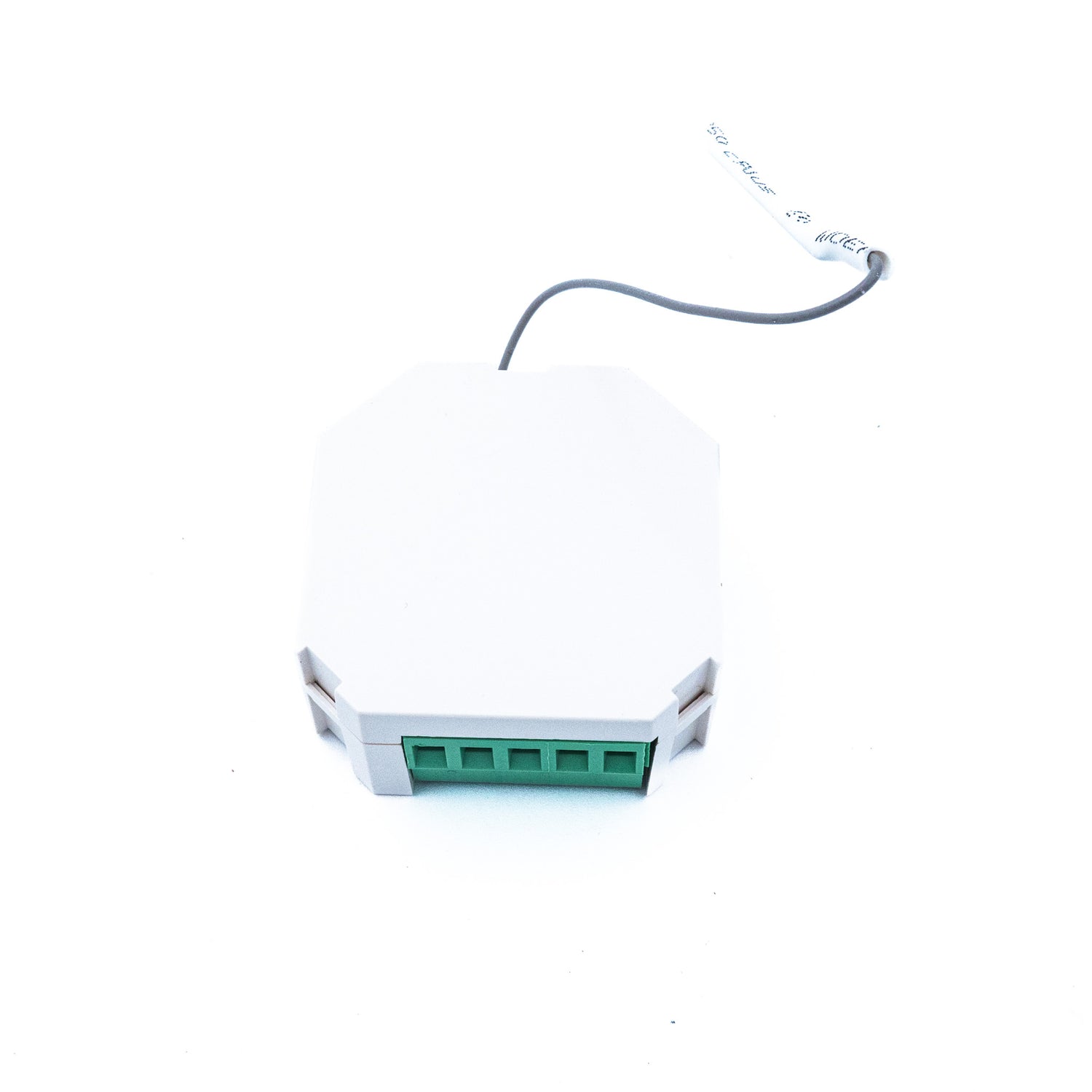

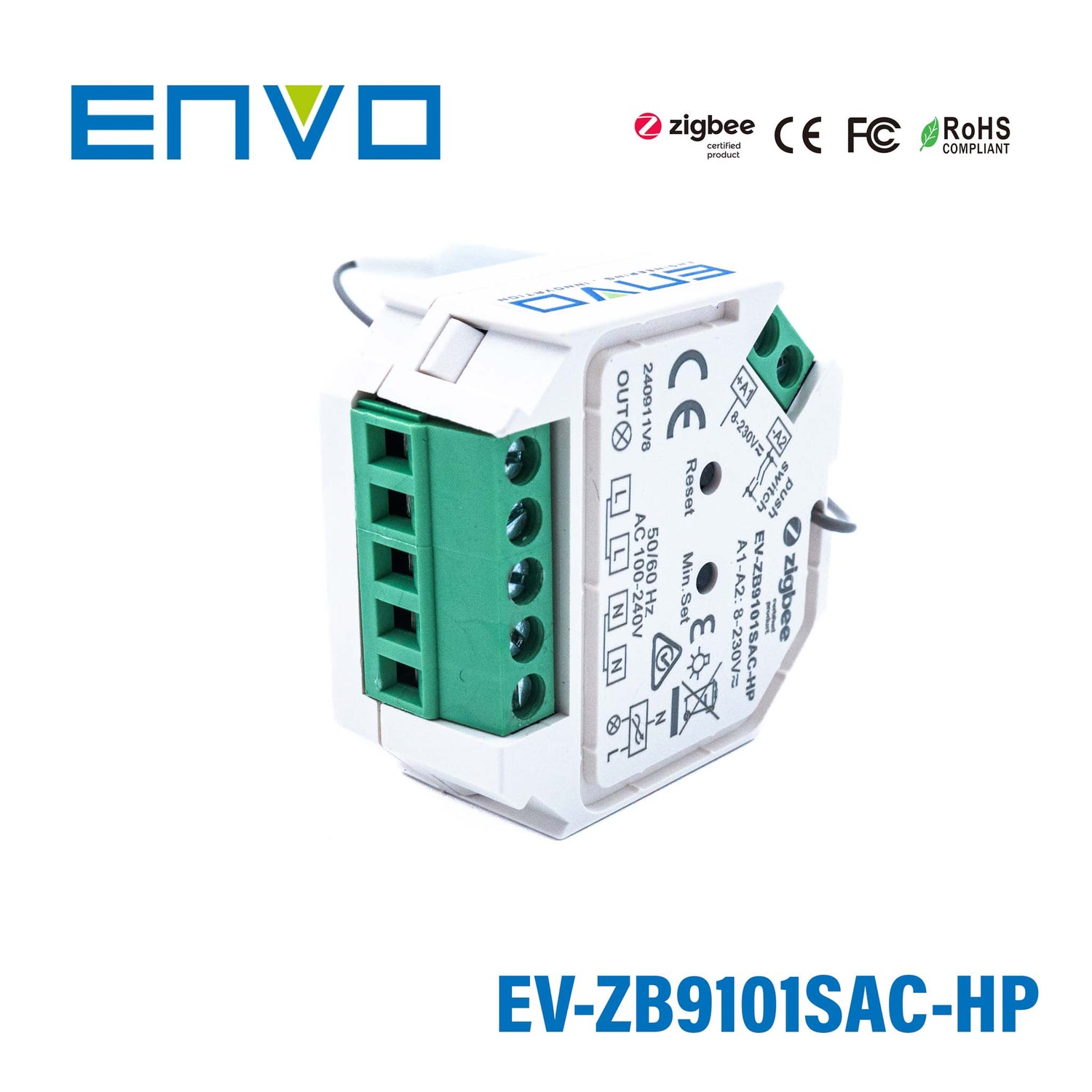

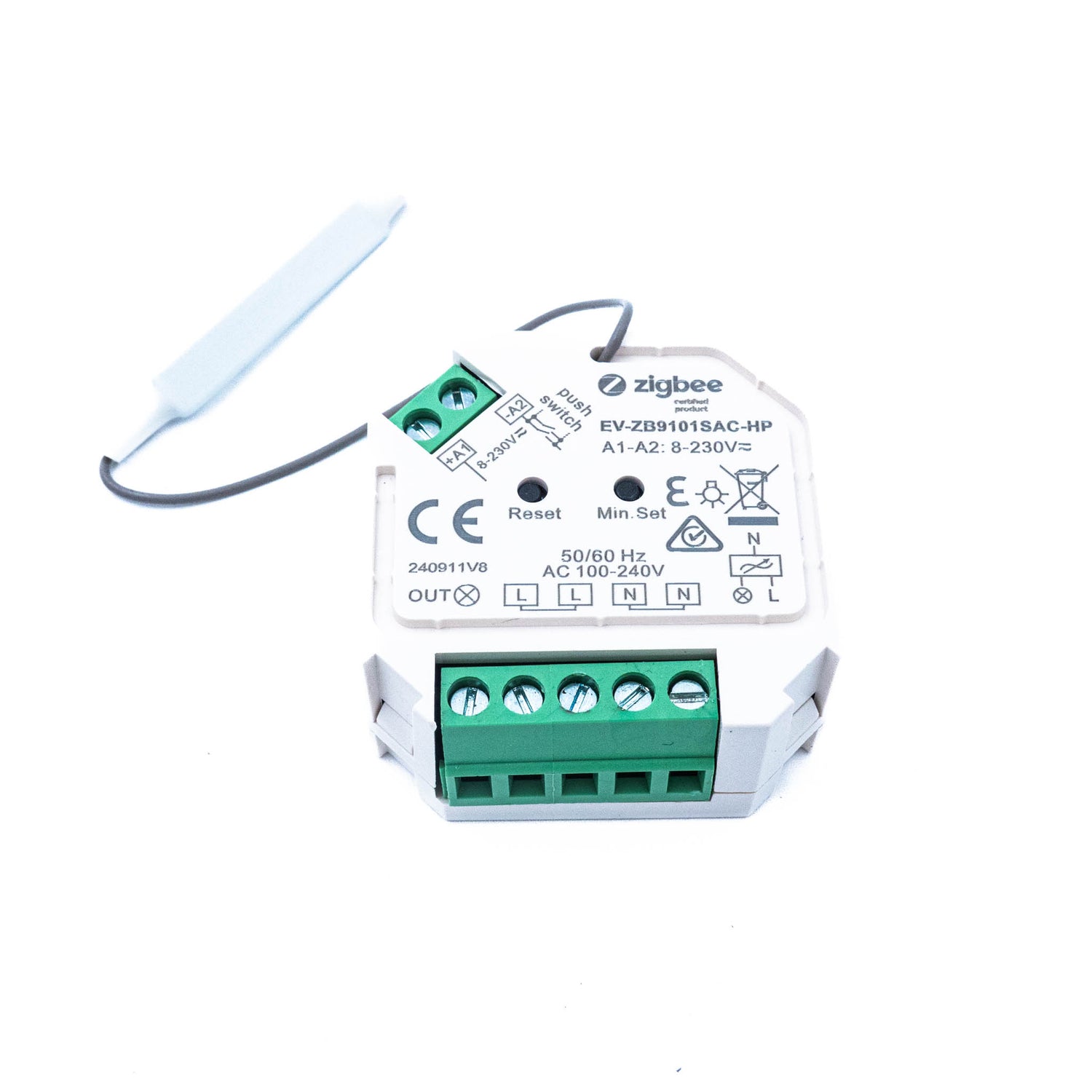

ENVO ZigBee AC Phase Dimmer
Log in to see priceThe EV-ZB9101SAC-HP is a 400W ENVO AC-DC constant voltage LED driver (input: 100~240VAC, output: 220V, operating temperature: -20~+50°C).
Key Features
- ✓ Input voltage: 100~240VAC
- ✓ Output voltage: 220V
- ✓ Rated output current: 1.5A
- ✓ Zigbee controllable
- ✓ Operating temperature: -20~+50°C
- ✓ Safety certifications: CE, FCC, RoHS
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating400 Watt
-
Output Voltage220 Volt
-
Rated Current1.5 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length4.55 cm
-
Width4.5 cm
-
Height2.03 cm
::specification::
Frequently Asked Questions
What type of lighting is the ENVO ZigBee AC Phase Dimmer designed to control?
This model is designed to control triac dimmable LED lights or LED drivers using AC phase cut dimming. It supports both resistive and capacitive loads, making it suitable for a range of compatible dimmable AC lighting applications. It is a 1-channel dimmer intended for on/off control and light intensity adjustment.
Does this dimmer work with ZigBee 3.0 systems?
Yes. The EV-ZB9101SAC-HP uses ZigBee 3.0 and is compatible with universal ZigBee gateway products. It also supports Touchlink commissioning, find-and-bind mode, and ZigBee Green Power remote binding.
Can the ENVO ZigBee AC Phase Dimmer be used without a ZigBee coordinator?
Yes. This dimmer can directly pair with a compatible ZigBee remote through Touchlink without requiring a coordinator. It also supports self-forming ZigBee networking, which adds flexibility for standalone control scenarios.
What are the electrical ratings of this dimmer?
The ENVO ZigBee AC Phase Dimmer operates on 100-240VAC input and output voltage. It provides 1 channel with up to 400W capacity, and the specification lists output current up to 1.8A max. These ratings make it suitable for AC phase dimming within its stated load limits.
What makes this model different from basic non-networked AC dimmers?
This model adds ZigBee 3.0 wireless control instead of functioning only as a local dimmer. It supports gateway-based control, direct remote pairing, Touchlink, and ZigBee Green Power remotes. That makes it a stronger fit for smart lighting projects that need broader control options.
Where can this dimmer typically be used?
Its compact 45.5 x 45 x 20.3 mm housing is intended for installations where space is limited, including standard 86 x 86 mm wall box applications. With IP20 protection, it is intended for indoor use in dry environments. It is not designed for exposure to moisture.
What operating conditions is this dimmer rated for?
The specified operating temperature range is -20°C to 50°C. The unit also carries an IP20 rating, so it should be used in indoor locations where it will remain dry. These limits are important for maintaining normal performance and product longevity.
