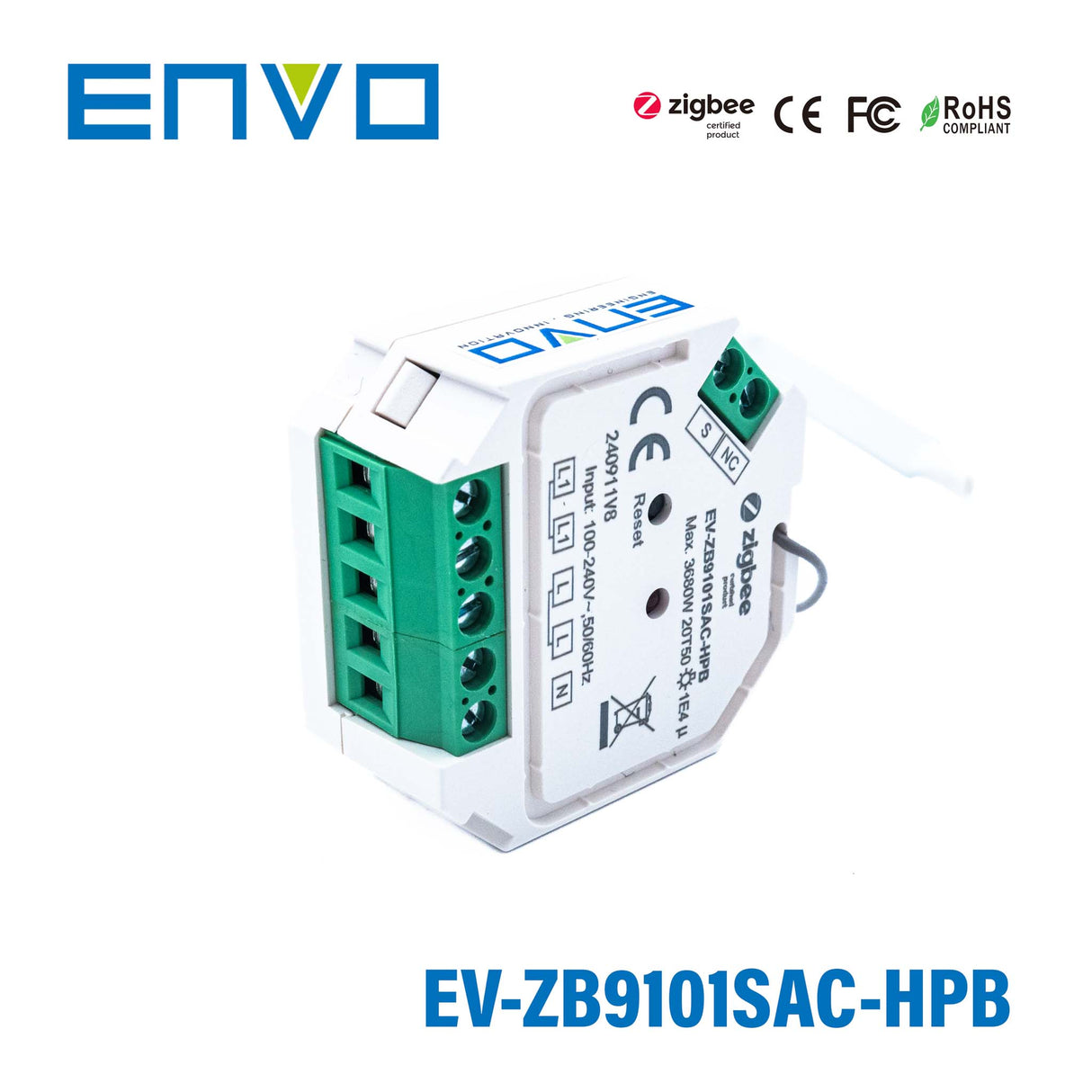

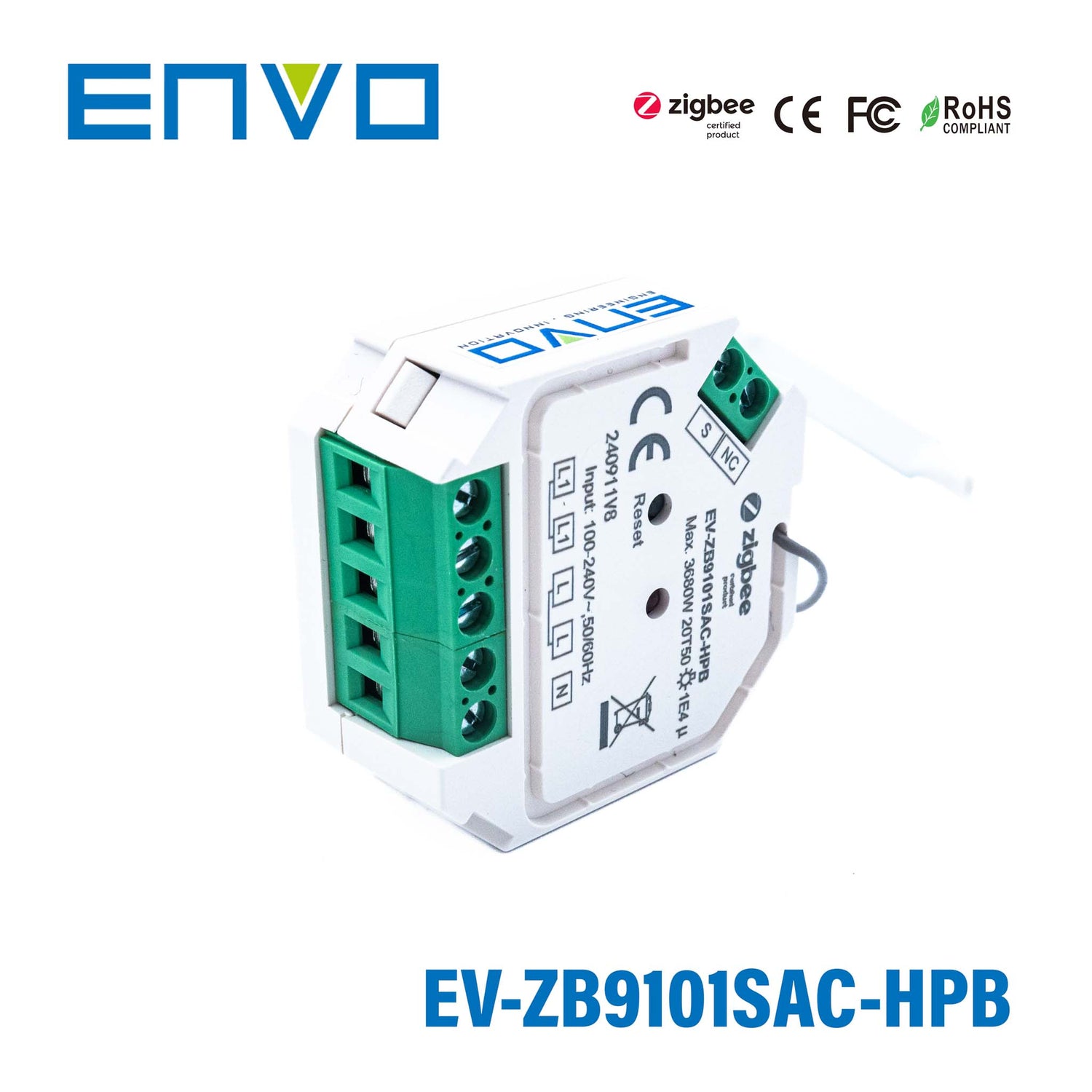

ENVO ZigBee In-wall Switch - On/Off Control, 16A

ZigBee 3.0 protocolsupport Touchlinkcan be controlled by remote

SKU EV-ZB9101SAC-HPB

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The EV-ZB9101SAC-HPB is a 3680W ENVO AC-DC constant voltage LED driver (input: 100~240VAC, output: 220V, operating temperature: -20~+50°C).

Key Features

✓ Input voltage: 100~240VAC
✓ Output voltage: 220V
✓ Rated output current: 16A
✓ Zigbee controllable
✓ Operating temperature: -20~+50°C
✓ Safety certifications: CE, RoHS
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO ZigBee In-wall Switch - On/Off Control, 16A used for?

This model is a ZigBee 3.0 in-wall controller for switching compatible AC lighting loads on and off. It is designed for use with triac dimmable LED lights or LED drivers and supports resistive and capacitive loads. Its compact size also makes it suitable for space-limited control applications.

What electrical capacity does this switch support?

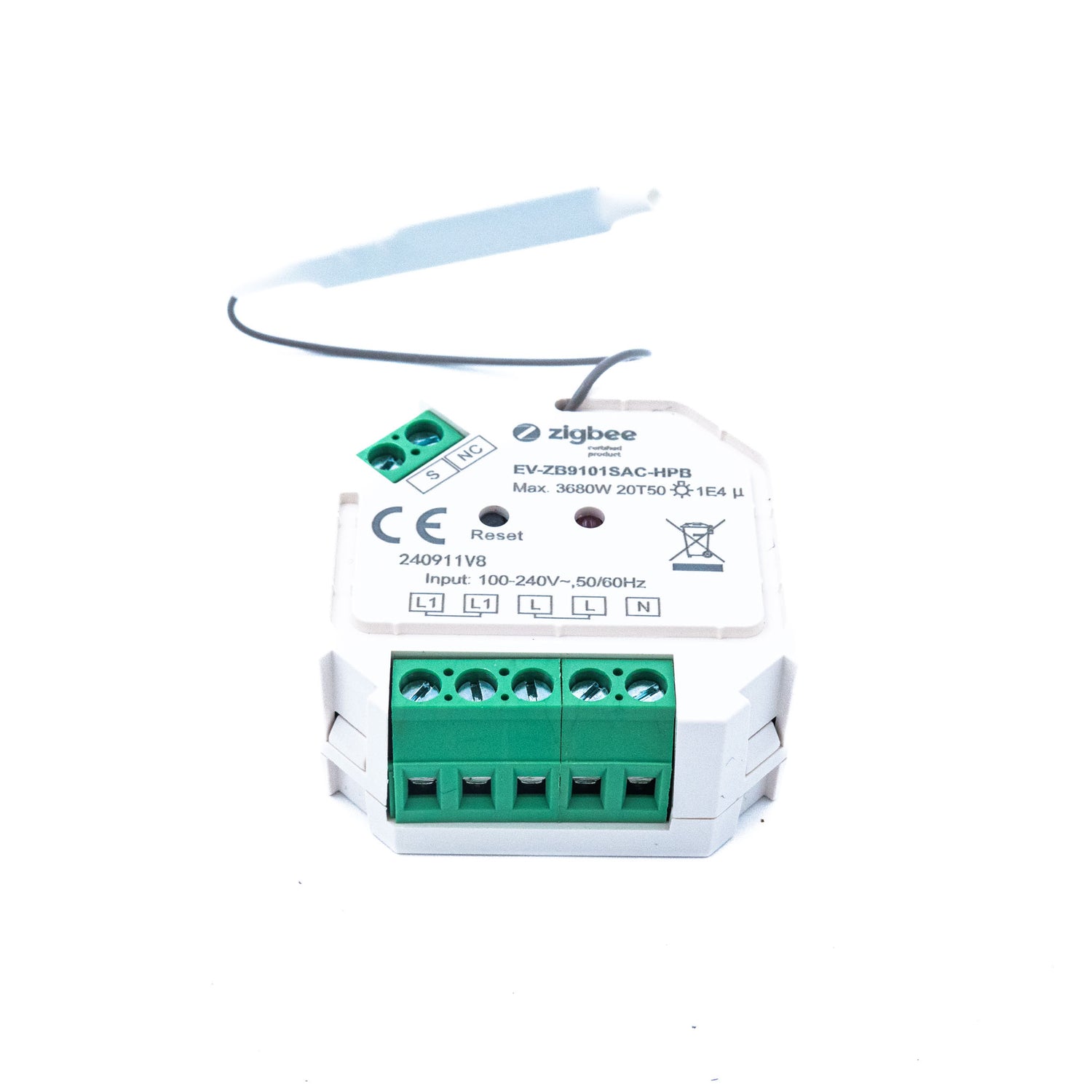

The EV-ZB9101SAC-HPB operates on 100-240VAC and is rated for up to 16A maximum load. The product data also lists a 3680W power rating. This makes it appropriate for higher-capacity AC lighting control within its stated voltage and current limits.

Is this model compatible with standard ZigBee systems?

Yes, this switch uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway products. It also supports Touchlink commissioning, find-and-bind mode, and ZigBee Green Power remote binding. Those features make it suitable for integration into a wide range of ZigBee-based lighting control environments.

Can this switch work without a ZigBee coordinator?

Yes, this model can directly pair with a compatible ZigBee remote through Touchlink without requiring a coordinator. It also supports a self-forming ZigBee network, which adds flexibility for standalone or smaller control deployments. That can be useful where a full gateway-based system is not required.

What types of loads does this model support?

The EV-ZB9101SAC-HPB supports both resistive and capacitive loads. It is intended for controlling connected triac dimmable LED lighting or LED drivers. This gives it broader application coverage than products limited to only one load type.

What environmental conditions is this switch rated for?

This model is rated for operation from -20°C to 50°C. It has an IP20 rating, so it is intended for indoor use where it is protected from moisture exposure. The product information specifically states that it should not be exposed to moisture.

What are the physical dimensions of this in-wall ZigBee switch?

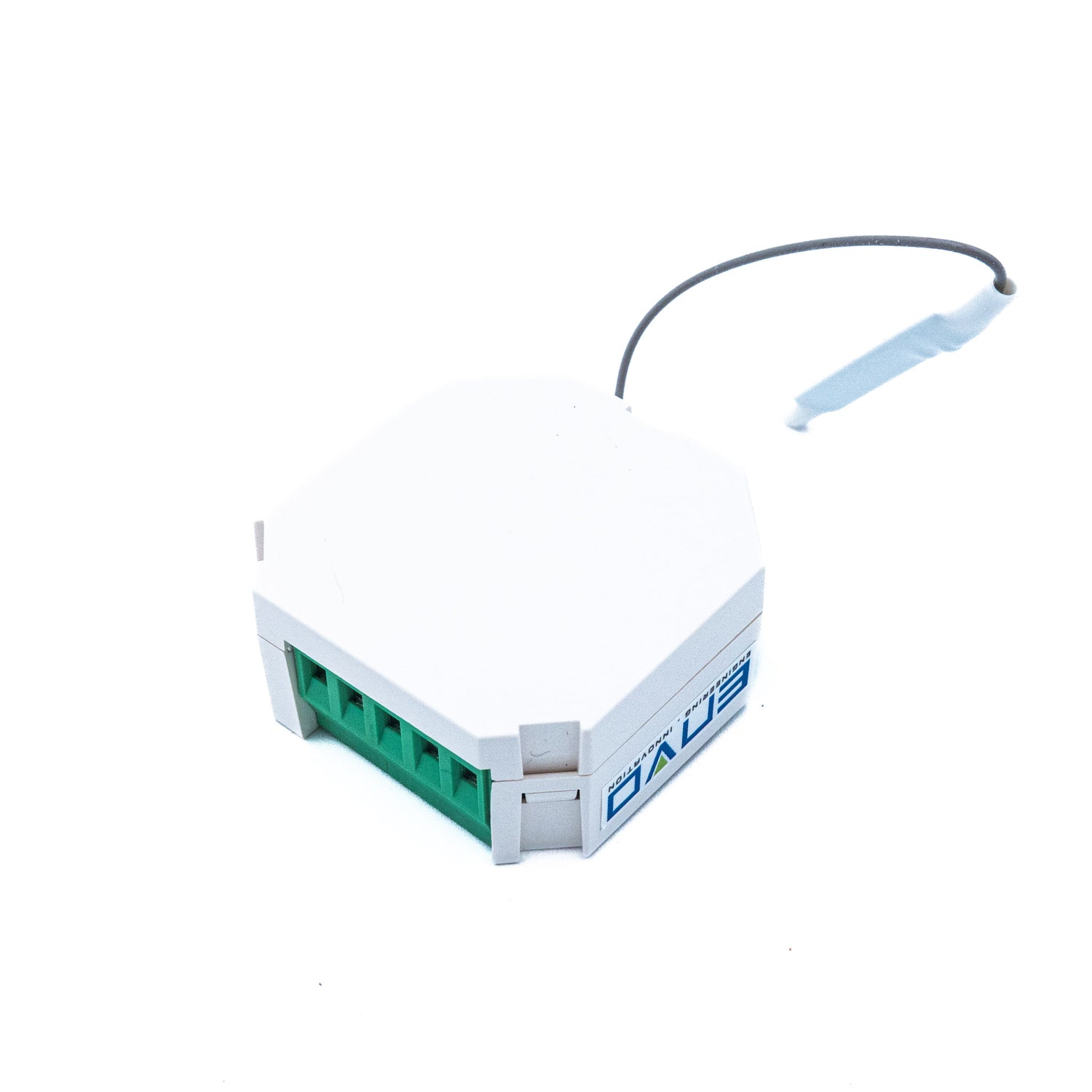

The listed dimensions are 45.5 x 45 x 20.3 mm. Its mini-size form factor is intended for installation in a standard 86 x 86 mm wall box. That compact footprint can help when product size matters in retrofit or space-constrained projects.
