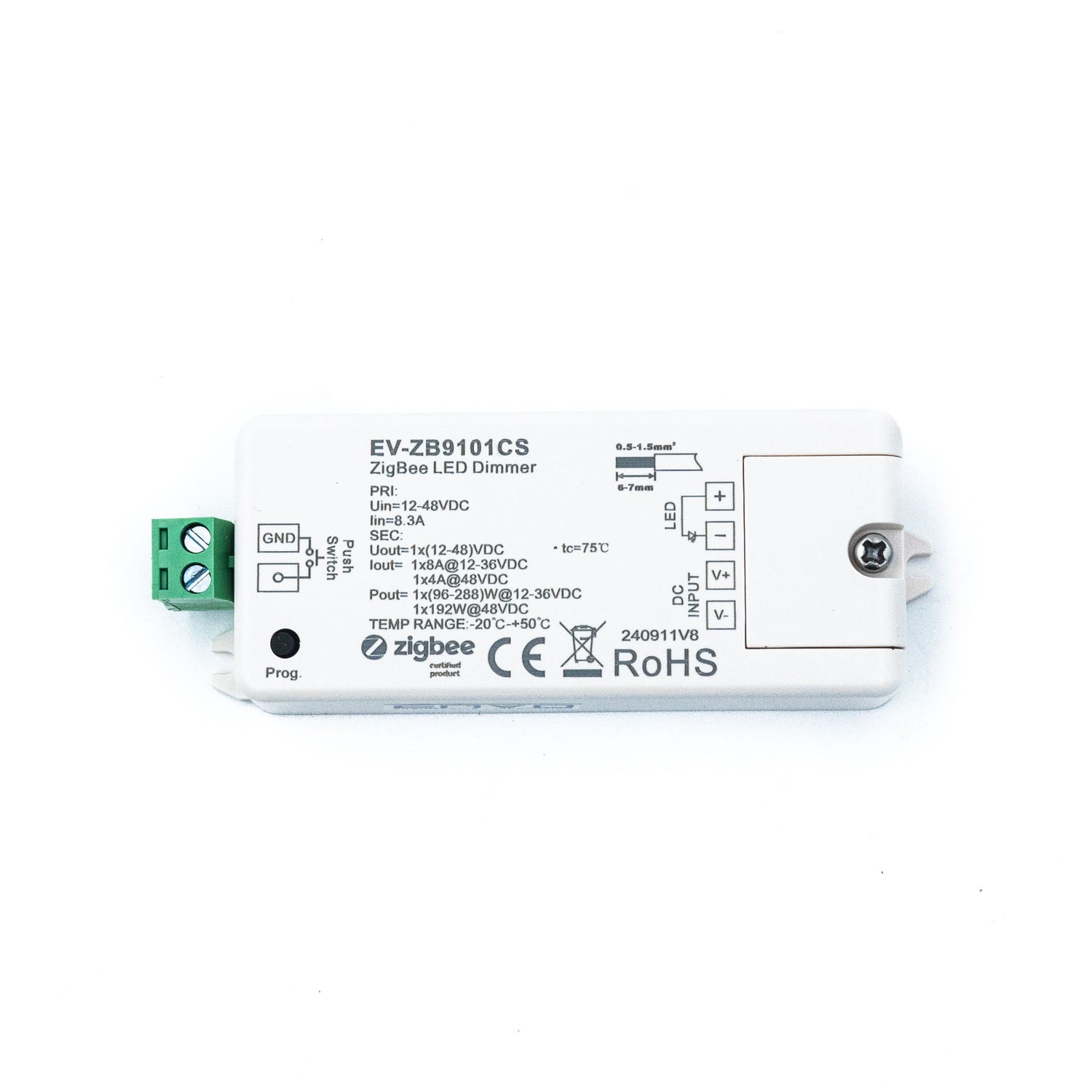

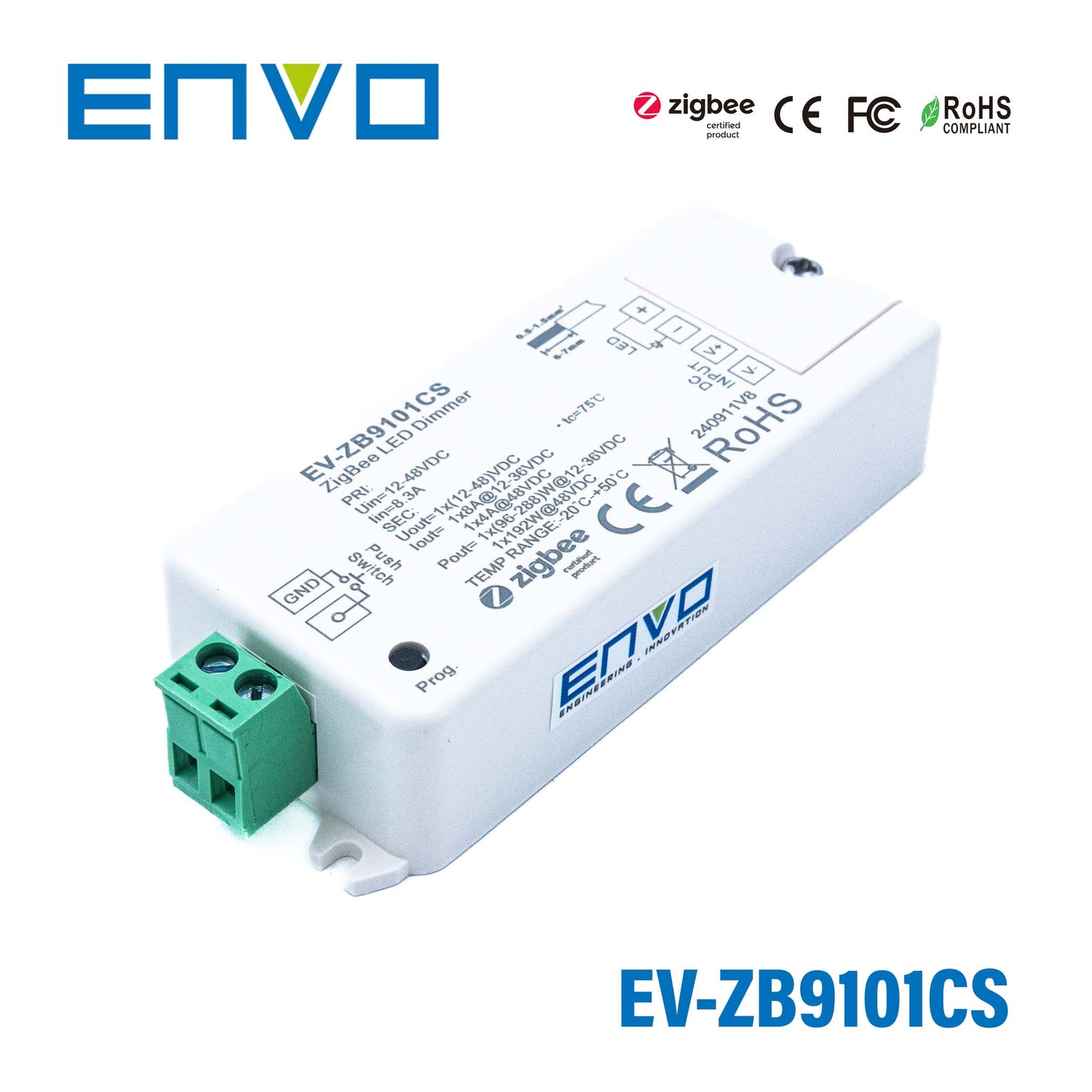

ENVO ZigBee Single Colour Mini Controller 12-36V 8A 1 Channel

mini sizeZigBee 3.0 protocolsupport Touchlink

SKU EV-ZB9101CS

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The EV-ZB9101CS is a 96W ENVO AC-DC constant voltage LED driver (input: 12~48VDC, output: 12V, operating temperature: -20~+50°C).

Key Features

✓ Input voltage: 12~48VDC
✓ Output voltage: 12V
✓ Rated output current: 8A
✓ Zigbee controllable
✓ Operating temperature: -20~+50°C
✓ Safety certifications: CE, FCC, RoHS, TÜV
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO ZigBee Single Colour Mini Controller used for?

This model is designed to control single-colour constant-voltage LED lighting. It provides ZigBee-based ON/OFF control and dimming for one lighting channel. Its compact size makes it suitable for applications where a small controller is preferred.

Is this controller for single-colour lights only?

Yes. This is a 1-channel controller specifically intended for single-colour LED lighting. If you need control for tunable white or RGB/RGBW lighting, you would need a different controller type with more channels.

What ZigBee systems is this controller compatible with?

This controller uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway products. It also supports Touchlink commissioning and Find and Bind mode for compatible ZigBee remotes. In addition, it supports ZigBee Green Power and can bind up to 20 ZigBee Green Power remotes.

Can this controller work without a ZigBee coordinator?

Yes. According to the product details, it can pair directly with a compatible ZigBee remote through Touchlink without a coordinator. It also supports a self-forming ZigBee network, which allows operation without relying on a separate coordinator.

What are the main electrical specifications of this controller?

This model is a constant-voltage ZigBee controller with a specified input range of 12-48V DC. Its output current is rated at 8A for 12-36V DC and 4A at 48V DC. Output power is listed as 96-288W at 12-36V DC and 192W at 48V DC.

What operating environment is this controller rated for?

The stated operating temperature range is -20°C to 50°C. It has an IP20 rating, so it is intended for dry indoor environments rather than exposed or wet locations. The product information also states that it should not be exposed to moisture.
