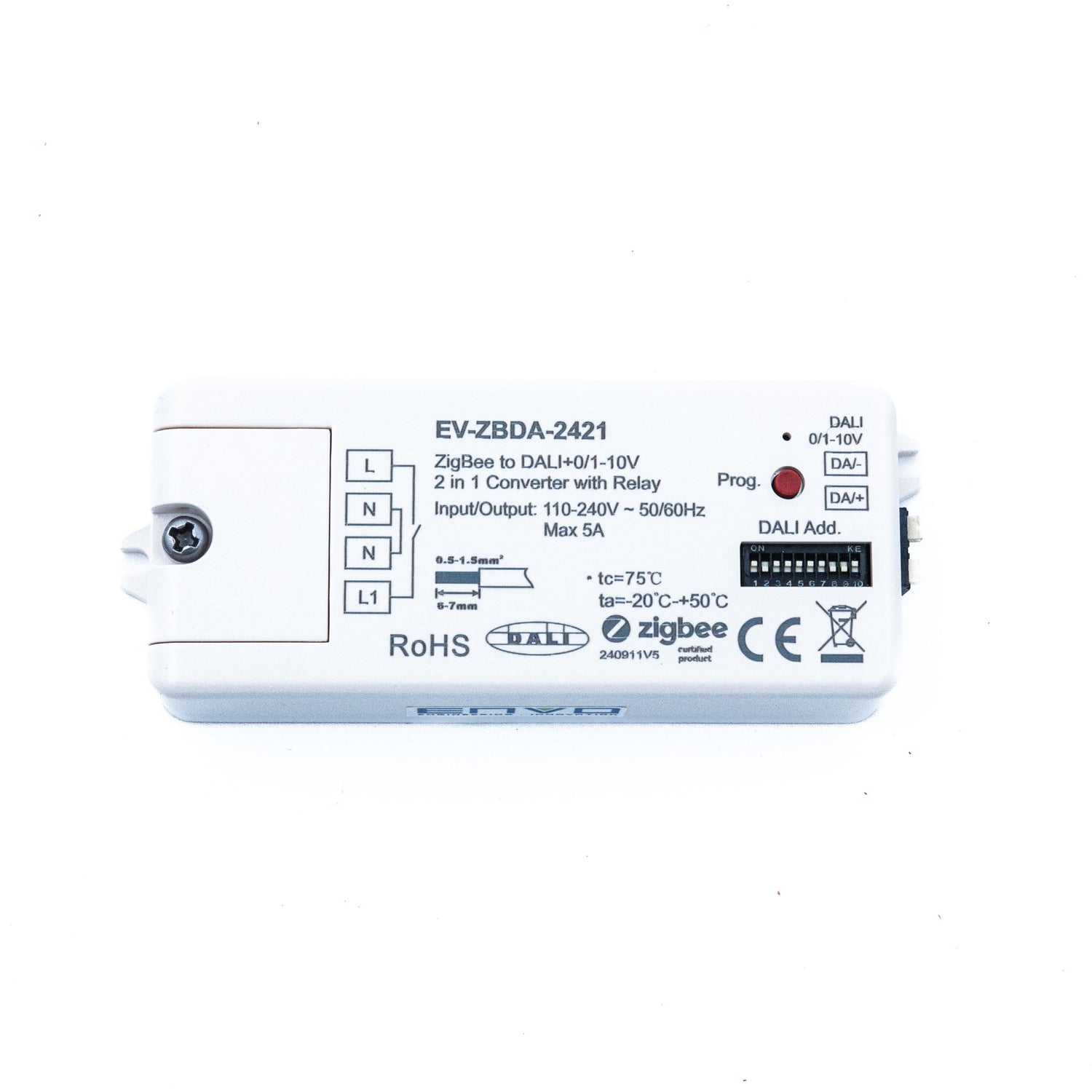

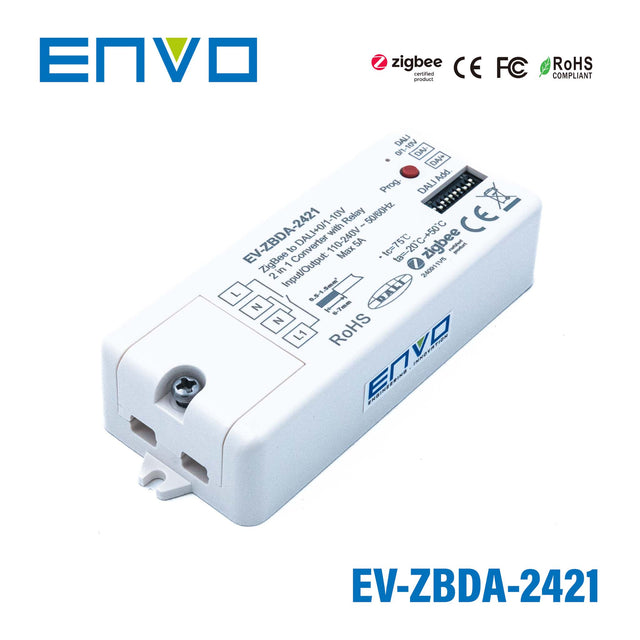

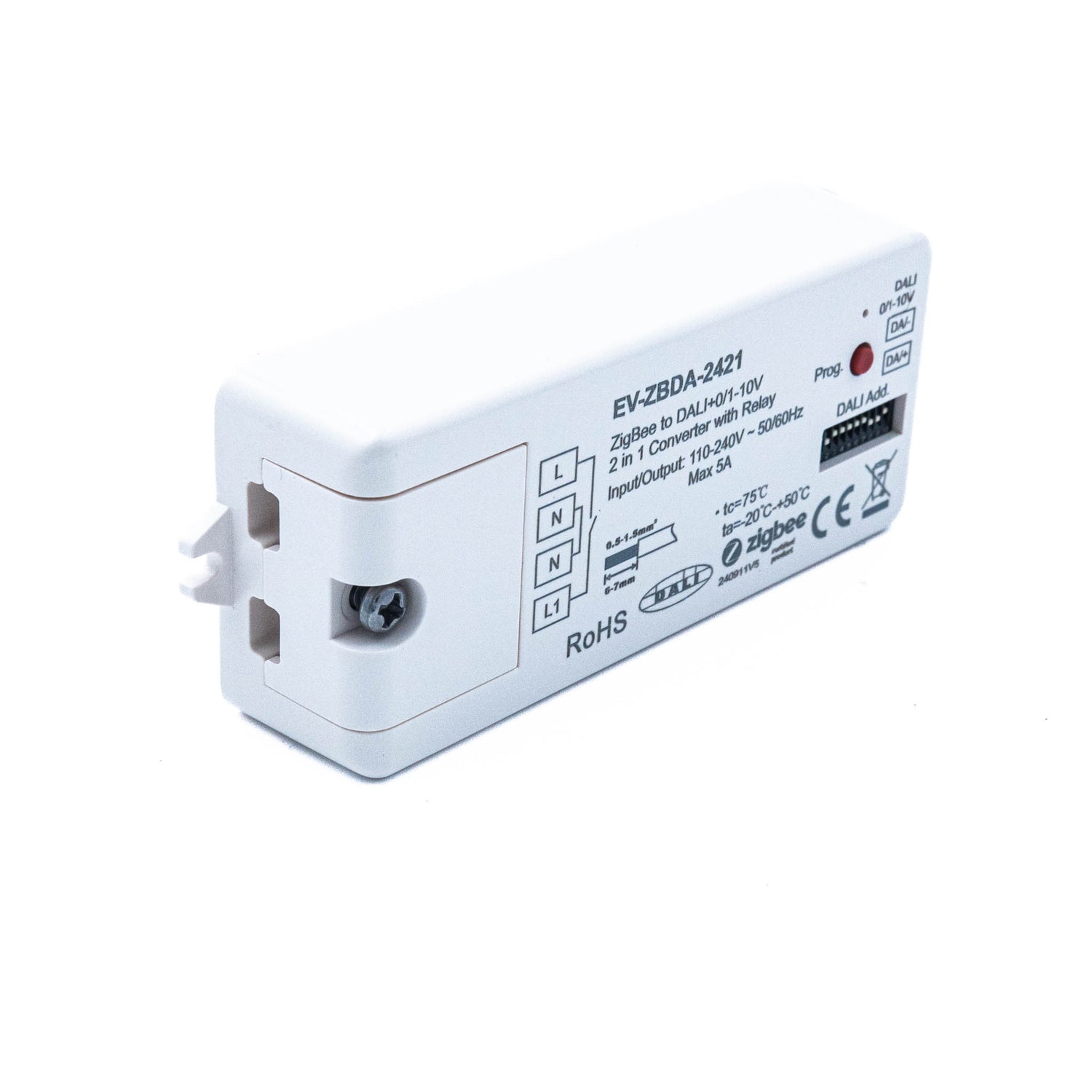

ENVO ZigBee to DALI + 0/1-10V 2-in-1 Conveter
Log in to see priceThe EV-ZBDA-2421 is a ENVO AC-DC constant voltage LED driver (input: 110~240VAC, output: 110V, operating temperature: -20~+50°C).
Key Features
- ✓ Input voltage: 110~240VAC
- ✓ Output voltage: 110V
- ✓ Rated output current: 5A
- ✓ Zigbee controllable
- ✓ Operating temperature: -20~+50°C
- ✓ Safety certifications: CE, FCC, RoHS
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Output Voltage110 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~240V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length9.5 cm
-
Width3.7 cm
-
Height2 cm
::specification::
Frequently Asked Questions
What does the ENVO ZigBee to DALI + 0/1-10V 2-in-1 Converter do?
This model converts a Zigbee 3.0 control signal into either DALI or 0/1-10V control output, depending on its selectable operating mode. It is intended for commercial and professional lighting control applications where Zigbee needs to interface with DALI gear or 0/1-10V dimming systems.
Is this converter compatible with standard Zigbee hubs and remotes?
Yes. The product is designed to work with universal Zigbee gateway or hub products and is also compatible with universal Zigbee remotes. It supports Touchlink pairing, find-and-bind mode, and Zigbee Green Power with support for up to 20 Zigbee Green Power remotes.
Can this model control both DALI and 0/1-10V lighting systems?
Yes, this is a 2-in-1 converter that supports either DALI signal output or 0/1-10V signal output. The output mode is selectable, which makes it useful when different projects standardize on different dimming protocols.
Does this converter include DALI bus power, or is a separate DALI power supply required?
It has a built-in DALI bus power supply, so no additional DALI bus power supply is required for supported use. The unit provides up to 50mA DALI bus power current and can supply control current for up to 25 DALI control gears.
What kinds of DALI devices can this converter work with?
Under DALI mode, the device supports selectable DT6 or DT8 device types. For DT8 color control, it supports selectable color types including Tc, XY coordinates, and RGBW, making it suitable for tunable white and color-capable DALI lighting systems.
What electrical and operating limits should buyers know about?
This model uses 110-240VAC input power and has a relay output rated up to 5A for traditional incandescent and high-voltage halogen lamps, or up to 1.6A for LED load. Its operating temperature range is -20°C to +50°C, and the housing size is 95 x 37 x 20 mm.
Is this converter suitable for damp or outdoor locations?
No, this model is rated IP20, which means it is intended for indoor environments where it is protected from moisture exposure. The product description specifically states that it should not be exposed to moisture.
