Vimar Eikon Frame 2M without screws 71mm
Log in to see priceOverview
VM-21603 is Vimar EIKON 21603, frame 2M without screws 71mm.
2-module mounting frame, without screws, for 60 mm fixing centres or 56x56 mm mounting box, modular, 71 mm distance between centres
Features
- The honeycomb structure gives structural strength
- The slots in the corners enable fixing to the panel
- The hooking teeth encourage fixing in series for the installation of multiple modules
- Thanks to the central slots, the support can be fixed onto the wall level
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- No
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352421363
- Packed size (cm)
- 7.4 × 7.4 × 2
- Packed weight
- 19.9 g
- Pieces per box
- 50
Certifications
- Certifications
- CE marking (EU), IMQ (Italy), Product Environm. Profile

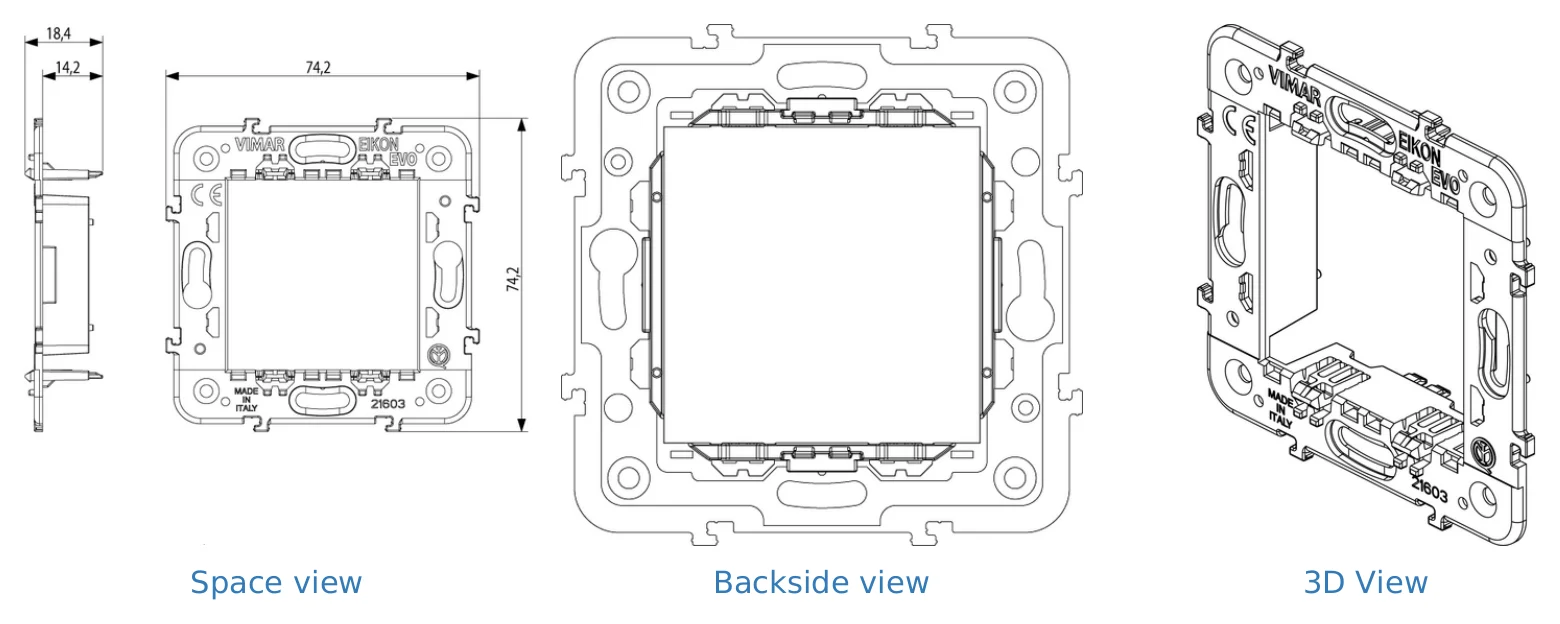

Technical drawings
Downloads
FAQ
What is the Vimar VM-21603 used for?
The Vimar VM-21603 is a 2-module mounting frame for Vimar Eikon switch installations. It is designed to support modular switch components in applications that use 60 mm fixing centres or a 56x56 mm mounting box.
Is this frame compatible with Vimar Eikon Evo and Eikon Exe products?
Yes. This product is categorized for Vimar Eikon Evo and Eikon Exe switch frame applications. It is intended for use within the Eikon modular switch system.
Does the VM-21603 include screws?
No. The VM-21603 is supplied as a 2-module mounting frame without screws. Buyers should confirm any required fastening hardware separately based on the project requirements.
What are the key dimensions for this mounting frame?
This frame is made for 60 mm fixing centres or a 56x56 mm mounting box. It also has a 71 mm distance between centres, as specified for this model.
What design features does this frame have?
The VM-21603 has a honeycomb structure intended to provide structural strength. It also includes corner slots, hooking teeth for series mounting of multiple modules, and central slots for positioning at wall level.
What colour is the Vimar VM-21603 frame?
The finish colour for this model is black. This makes it suitable for matching black components or installations where a dark mounting frame is required.
What is the warranty period and weight of this product?
The VM-21603 has a listed warranty period of 3 years. Its listed weight is 0.0199 kg, making it a lightweight mounting frame component.
