Vimar 3-Sound-Sequence Chime 12V White
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandVimar
-
SeriesVimar By-me Plus
-
Output Voltage12 Volt
-
Standards MetCE,EAC,KNX,ROHS,WEEE
-
Operating Temperature-25°C~45°C
-
Warranty3 Year
-
Length4.48 cm
-
Width4.65 cm
-
Height4.9 cm
-
Weight0.08 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of sound options does the Vimar VM-14380 chime offer?
This model is a 3-sound-sequence electronic chime with three selectable alert types: three-tone, two-tone, and buzzer. That gives buyers more flexibility than a single-sound chime when matching the alert style to the application.
What power supply does this Vimar chime require?
The Vimar VM-14380 is designed for 12 V supply operation. It supports either 12 V~ at 50-60 Hz or 12 Vdc SELV, which makes it suitable for low-voltage applications built around those power types.
Is the volume fixed or adjustable on this chime?
This model includes adjustable volume, so the sound level is not fixed at one setting. That can be useful in spaces where the alert needs to be more noticeable without changing to a different chime model.
Where is this 12V electronic chime typically used?
Based on its low-voltage 12 V design and compact 2-module format, this chime is suited to building and smart-home applications that use a compatible low-voltage signaling device. It is a practical choice when a buyer needs a compact audible alert with multiple sound options rather than a basic buzzer only.
What operating temperature range does the Vimar 3-Sound-Sequence Chime support?
The specified operating temperature range is from -25 °C to 45 °C. Buyers evaluating it for location and environmental suitability should use that range as the reference for this exact model.

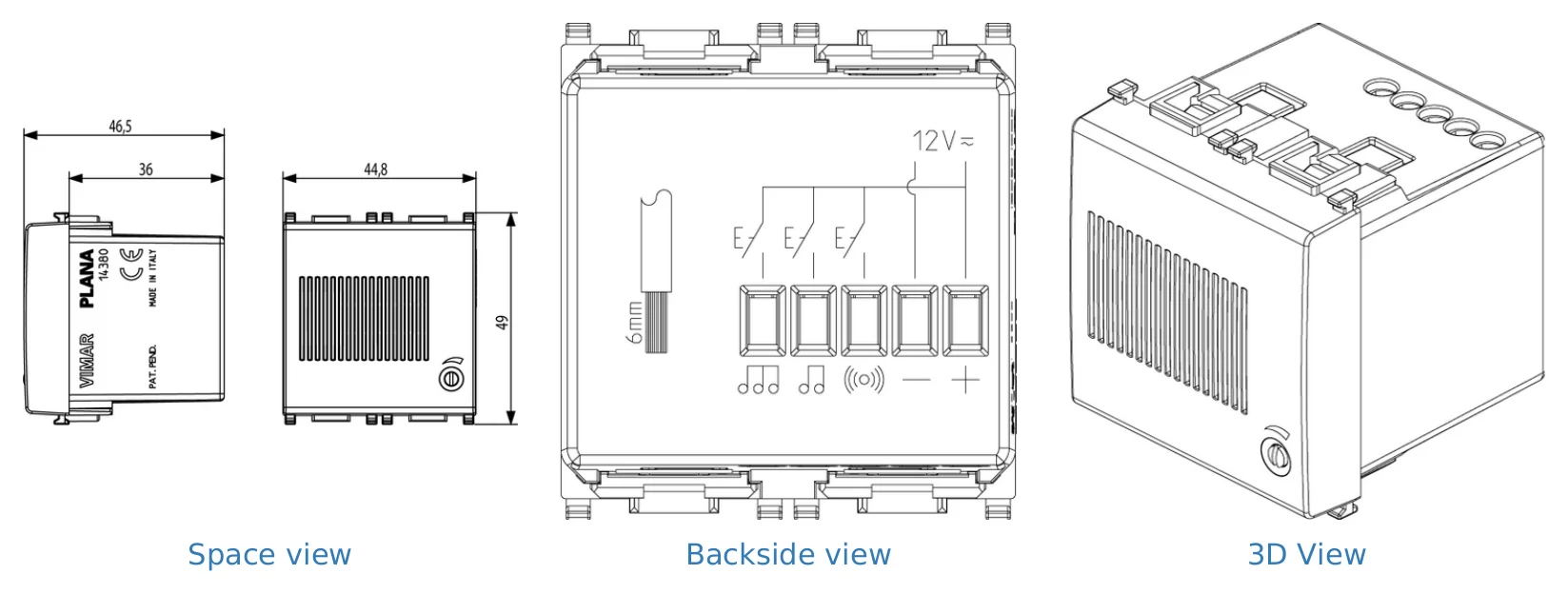

What are the key physical and product specifications for this model?
The Vimar VM-14380 is a white electronic chime in a 2-module format and weighs 0.0823 kg. It also carries a stated warranty period of 3 years, which is useful for commercial product comparisons and project documentation.
