Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

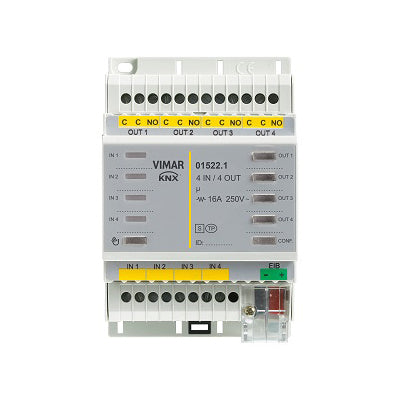

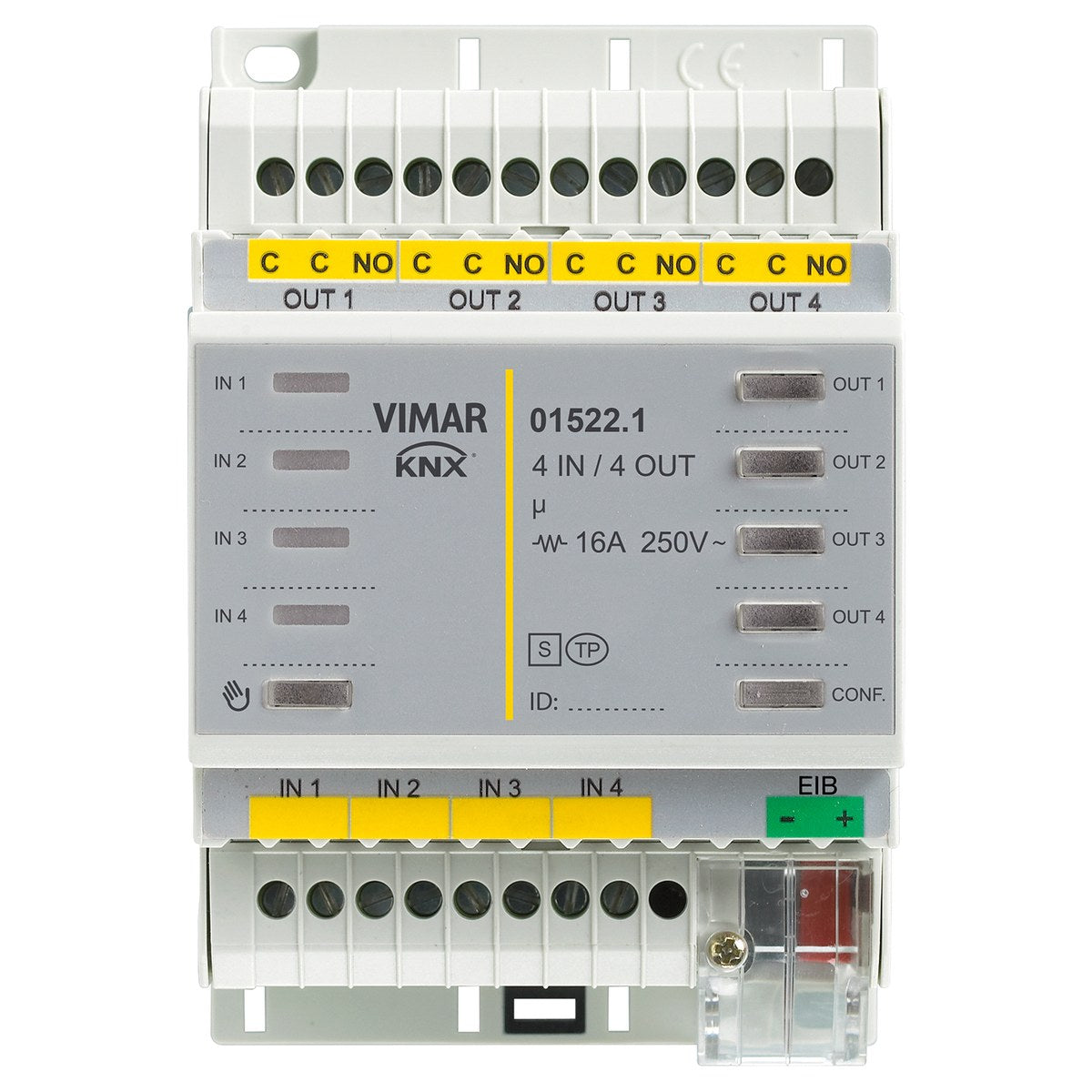

Vimar Device 4inputs/outs KNX 16A

4 NO 16Aprogrammable

SKU VM-01522.1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Device with 4 inputs/outputs, 4 NO relay outputs 16 A 250 V~, programmable with control function for lights, roller shutters with slat orientation, push buttons for local control, 4 programmable digital inputs for potential-free contacts, KNX standard, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Frequently Asked Questions

What is the Vimar Device 4inputs/outs KNX used for?

This model is designed for KNX building automation applications where you need both relay control and digital input capability in one DIN-rail device. It supports functions for lighting control and roller shutters with slat orientation, making it suitable for commercial or professional smart building panels.

How many outputs and inputs does this KNX device provide?

The unit includes 4 normally open relay outputs and 4 programmable digital inputs for potential-free contacts. That makes it useful for projects that need multiple control points and switching functions within a single compact module.

What electrical load can the relay outputs handle?

Each relay output is rated up to 16 A at 250 V~. For buyers evaluating switching capacity, that gives this model a relatively robust output rating for KNX-controlled loads within its specified electrical limits.

Is this device compatible with KNX systems?

Yes, this model is specified as KNX standard. It is intended for use in KNX-based building automation environments where standardized KNX communication is required.

How much space does this device take in a control cabinet?

The device is made for DIN rail installation on 60715 TH35 rail and occupies 4 modules of 17.5 mm each. That compact footprint can help when panel space is limited and multiple automation devices need to fit on the same rail.

What operating temperature range is specified for this model?

This device is rated for ambient temperatures from -25 °C to 45 °C. That range makes it suitable for professional indoor control environments that may experience colder or warmer conditions within those limits.

What are the warranty and product weight for this Vimar unit?

The listed warranty period is 3 years, and the product weight is 0.283 kg. These details can be useful for procurement, maintenance planning, and cabinet load considerations.
