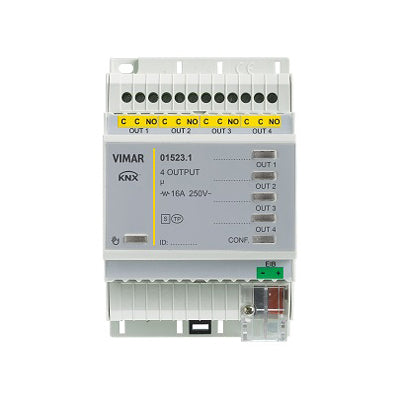

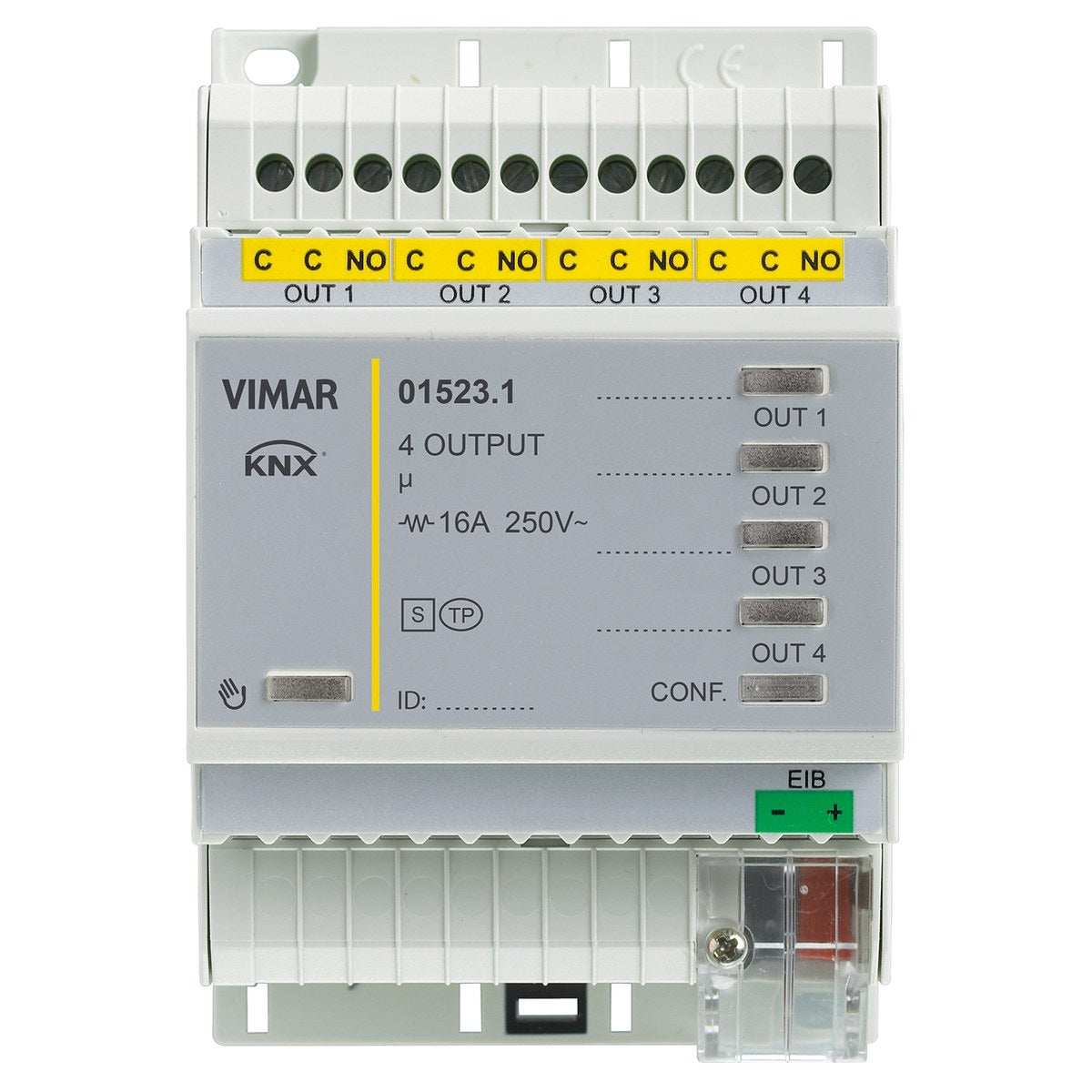

Vimar 250V 16A 4-output actuator KNX
Log in to see priceOverview
VM-01523.1 is Vimar 01523.1, 250V 16A 4-output actuator KNX.
Actuator with 4 NO relay outputs 16 A 250 V~, programmable with control function for lights, roller shutters with slat orientation, push buttons for local control, KNX standard, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm
Specifications
Technical data
- Product type
- Actuating drive for bus system
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- With bus connection
- Yes
- Temperature control with built-in continuous control
- No
- Buttons for manual operation at the drive
- Yes
- Function master/slave
- No
- Nominal voltage
- 250 V
- Voltage supply over bus
- No
Packaging
- EAN
- 8007352644359
- Packed size (cm)
- 11.7 Γ 10.8 Γ 7.1
- Packed weight
- 273 g
Certifications
- Certifications
- CE marking (EU), UK PSTI compliance, KNX, RoHS UAE, WEEE Directive

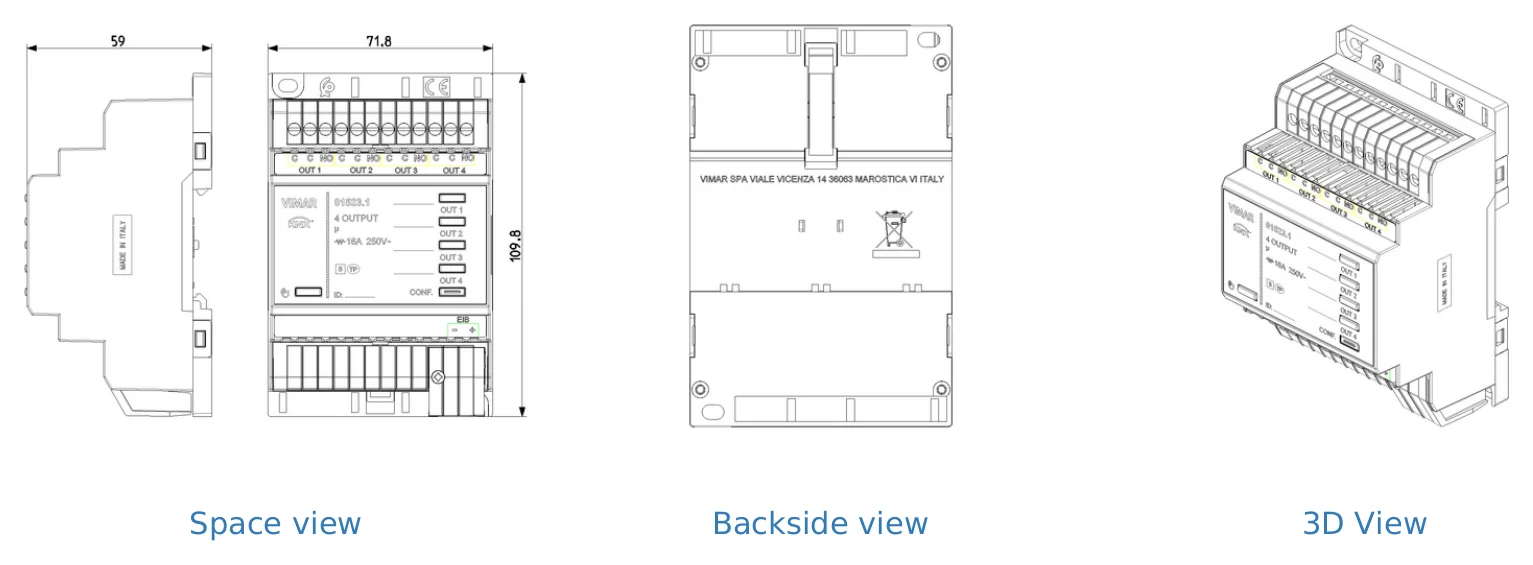

Technical drawings
Downloads
FAQ
What is the Vimar 250V 16A 4-output actuator KNX used for?
This model is designed for KNX building automation applications where four separate loads need to be controlled from one DIN rail device. It supports lighting control and roller shutter operation, including slat orientation functions, which makes it suitable for commercial and smart building panels.
How many outputs does this KNX actuator provide?
The actuator has 4 normally open relay outputs. Each output is rated for up to 16 A at 250 V~, giving it capacity for higher-load switching tasks within a KNX installation.
Is this actuator suitable for lighting and roller shutter control?
Yes. The product description specifically states programmable control functions for both lights and roller shutters, including slat orientation. That makes it a multi-purpose actuator for projects that need one device to cover more than basic on/off switching.
Is the Vimar 250V 16A 4-output actuator compatible with KNX systems?
Yes. This model is identified as a KNX standard device, so it is intended for use in KNX-based automation environments. Buyers looking for a DIN rail actuator for a KNX building control setup would consider it within that ecosystem.
How much space does this actuator take in a DIN rail panel?
It is made for DIN rail mounting on a 60715 TH35 rail and occupies 4 modules of 17.5 mm each. That helps panel planners estimate space requirements before selecting it for a control cabinet.
What operating temperature range is specified for this actuator?
The specified operating temperature range is -25Β°C to 45Β°C. That range supports use in typical indoor control panel environments where KNX automation hardware is installed within its rated conditions.
What practical advantage does this model offer compared with a single-output actuator?
The main difference is channel density: this Vimar unit provides 4 outputs in one DIN rail device instead of controlling only one circuit. That can reduce the number of separate actuators needed when a project requires multiple lighting or shutter control points in the same panel.
