Vimar Actuator 1-10Vdc LED 120-230V Marine
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandVimar
-
SeriesVimar By-me Plus
-
Standards MetCCC,IMQ,QCERT
-
Operating Temperature-20°C~50°C
-
Warranty3 Year
-
Length5.35 cm
-
Width6.07 cm
-
Height9 cm
-
Weight0.18 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions

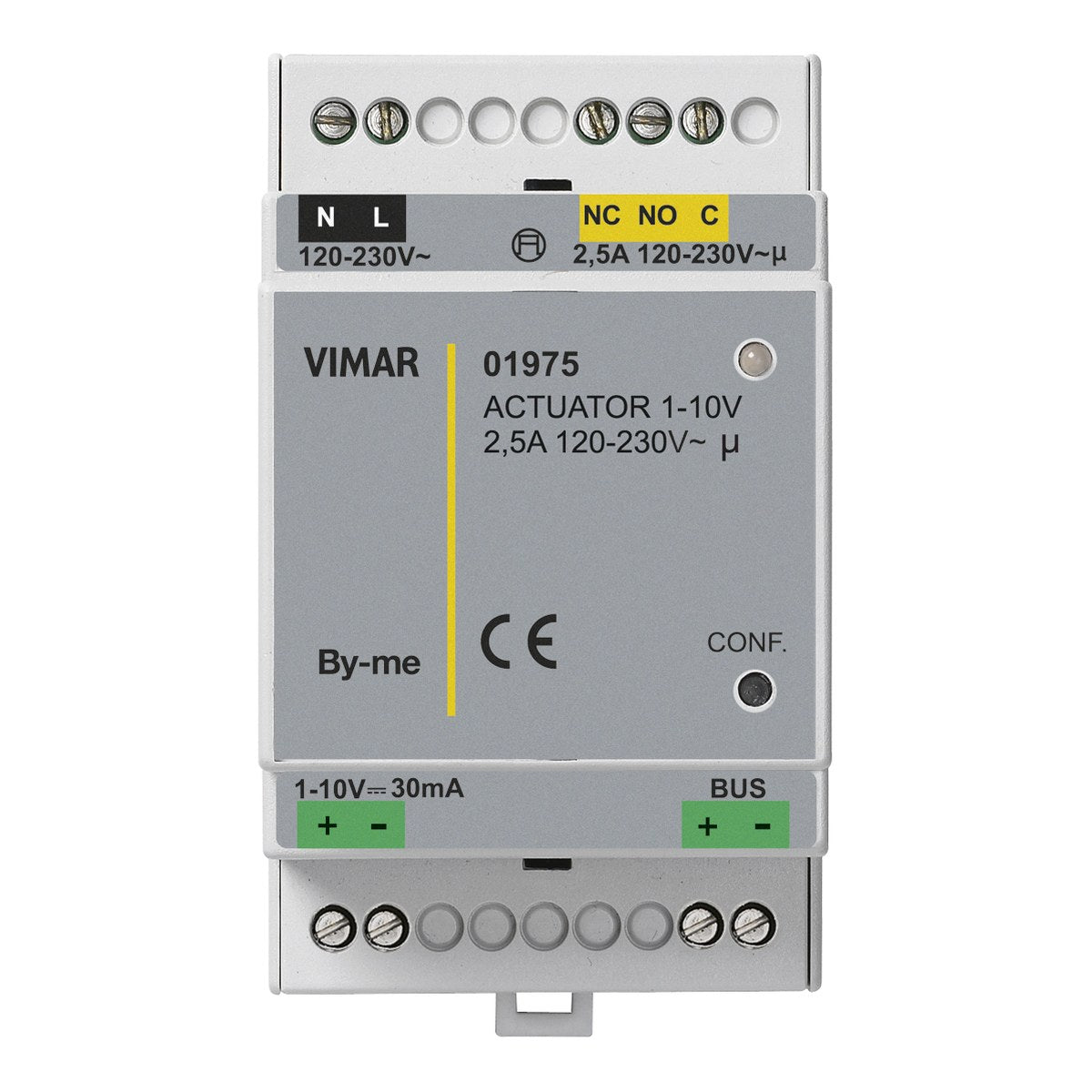

What does the Vimar VM-01975 actuator do?
The Vimar VM-01975 is an actuator for LED control with a 1-10 Vdc output rated at 30 mA. It also includes a 120-230 V~ change-over relay output rated at 2.5 A, making it suitable for control functions in compatible building or marine electrical systems.
Is this model intended for marine environments?
Yes. This specific version is designated for the MARINE sector, which distinguishes it from general-purpose variants intended for standard building applications. Buyers looking for a marine-focused actuator should verify this model designation when comparing options.
What are the main electrical specifications of this actuator?
This model provides a 1-10 Vdc output at 30 mA for LED control. It also has a 120-230 V~ 2.5 A change-over relay output and operates on a 120-230 V~ 50/60 Hz supply.
What installation format does the VM-01975 use?
The actuator is designed for DIN rail installation on a 60715 TH35 rail. It occupies 3 modules of 17.5 mm each, which helps buyers assess panel space requirements before specifying it.
What temperature range is this actuator rated for?
The stated operating temperature range is from -20 °C to 50 °C. That makes it suitable for applications that need reliable performance across both low and moderately high ambient temperatures within that range.
How heavy is the Vimar VM-01975?
This actuator has a listed weight of 0.177 kg. That relatively compact weight can be useful when reviewing enclosure loading or comparing DIN rail components for panel planning.
What warranty period is listed for this model?
The listed warranty period for the Vimar VM-01975 is 3 years. For procurement or project documentation, this can be referenced as part of the product's support and lifecycle expectations.
