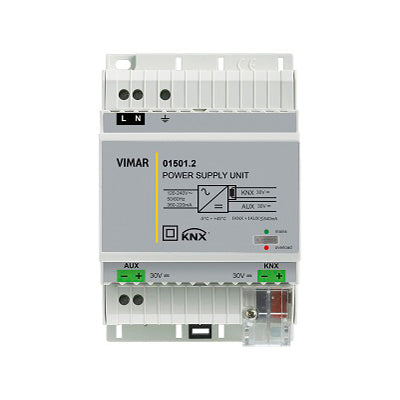

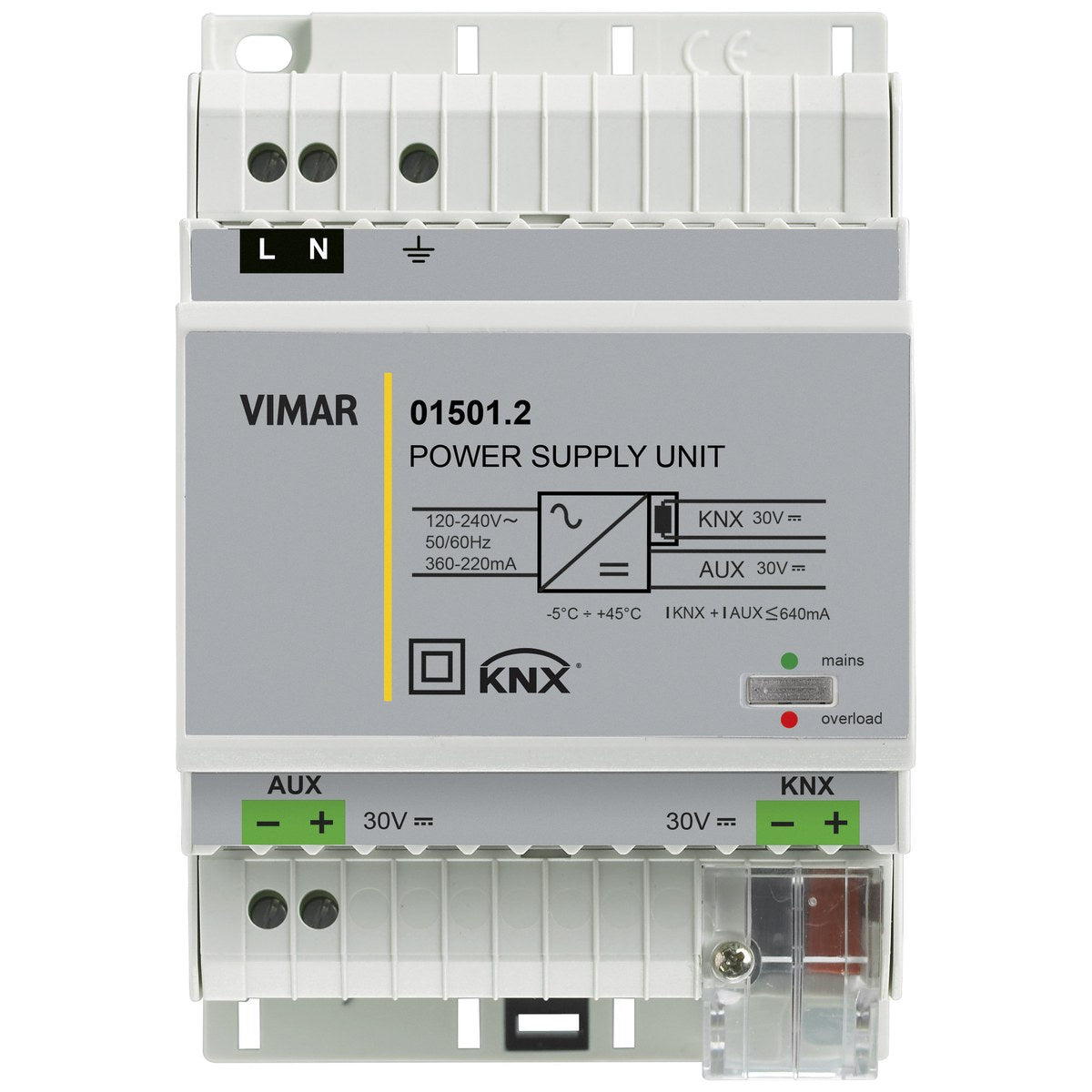

Vimar Supply Unit 640mA KNX 640A

30VKNX bus supply
SKU VM-01501.2
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Overview

VM-01501.2 is Vimar 01501.2, supply unit 640mA KNX.

Power supply unit for home automation with Bus output of 30 Vdc 640 mA, auxiliary output 30 V d.c., power supply 120-240 V~ 50/60 Hz, with decoupling coil, KNX standard, installation on DIN rail (60715 TH35) occupies 4 17,5 mm modules

Specifications

VM-01501.2Specifications from the official datasheet

Technical data

Product type
Power supply for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
Yes
Bus system LON
No
Bus system Powernet
No
Width in number of modular spacings
4
Width
72 mm
Height
110 mm
Depth
59 mm
With LED indication
Yes
Bus voltage stockable
Yes
Number of lines to feed
2
Max. output current
640 mA

Packaging

EAN
8007352550148
Packed size (cm)
11.7 Γ— 10.8 Γ— 7.1
Packed weight
276.8 g

Certifications

Certifications
CE marking (EU), NOM (Mexico), RoHS UAE, KNX, WEEE Directive

Technical drawings

VM-01501.2 Drawings
Drawings

Downloads

FAQ

What is the Vimar Supply Unit 640mA KNX used for?

This model is a KNX power supply unit intended for home and building automation systems. It provides a 30 V DC bus output rated at 640 mA for KNX applications and also includes an auxiliary 30 V DC output. It is suited to projects where a dedicated KNX-standard power source is required.

Is this power supply compatible with KNX systems?

Yes. The Vimar Supply Unit 640mA KNX is specified as a KNX standard device. That makes it appropriate for KNX-based smart home and building automation environments where a compliant bus power supply is needed.

What are the main electrical specifications of this model?

This unit provides a 30 V DC bus output with a rated current of 640 mA. It also includes an auxiliary 30 V DC output. The input power supply range is 120-240 V AC at 50/60 Hz.

What makes this Vimar KNX supply unit different from lower-capacity options?

The main differentiator for this model is its 640 mA rated bus output, which can matter when comparing KNX power supplies within the same category. It also includes a decoupling coil and an auxiliary 30 V DC output. Buyers comparing options should focus on required current capacity and KNX-standard compatibility.

What environmental conditions is the Vimar Supply Unit 640mA KNX rated for?

This model is specified for operation from -25 C to 45 C. That range makes it suitable for a variety of indoor control panel and building automation environments, provided the surrounding conditions stay within the stated limits.

What physical and product details should buyers know for planning purposes?

The unit is designed for DIN rail format and occupies 4 modules of 17.5 mm each. Its listed weight is 0.2768 kg, which can help with panel and project planning. The warranty period for this model is 3 years.
