Illumax

iLLUMAX LED Strip ULTRA Series 120LEDs/m 14.4W/m 24V

SKU Z-3014-1202400SCX-WW-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

Z-3014-1202400SCX-WW-5
Length
LED Colour
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

iLLUMAX LED Strip ULTRA Series 120LEDs/m 14.4W/m 24VSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUWarranty PeriodLED ColourBrightnessLengthWidth
3014-1202400SCX-CW2 yrCool White 6000K1,500 lm1 m8 mm
3014-1202400SCX-NW2 yrNatural White 4000K1,500 lm1 m8 mm
3014-1202400SCX-WW2 yrWarm White 3000K1,500 lm1 m8 mm
Z-3014-1202400SCX-CW-53 yrCool White 6000K1,500 lm5 m10 mm
Z-3014-1202400SCX-NW-52 yrNatural White 4000K1,500 lm5 m8 mm
Z-3014-1202400SCX-WW-53 yrWarm White 3000K1,200 lm5 m10 mm

Specifications

Power Rating
14.4W/m
Input Voltage
24V DC
LED Density
120 LEDs/m
Cutting Length
50mm
Beam angle
120 °
Width
10mm (Non-waterproof) 12mm (Waterproof)
Lifetime
50000 hrs @ 25 °C
Connections
200mm Wire P1J Female Connector (only available for 5m roll)
Mounting
Standard: 3M Tape Waterproof: Mounting Clip
Warranty
3 Years
Test conditions and notes2
  1. [ ] = 1, 2, 3, 4 or 5
  2. 1 = 1 meter ; 2 = 2 meters ; 3 = 3 meters ; 4 = 4 meters ; 5 = 5 metres

Technical drawings

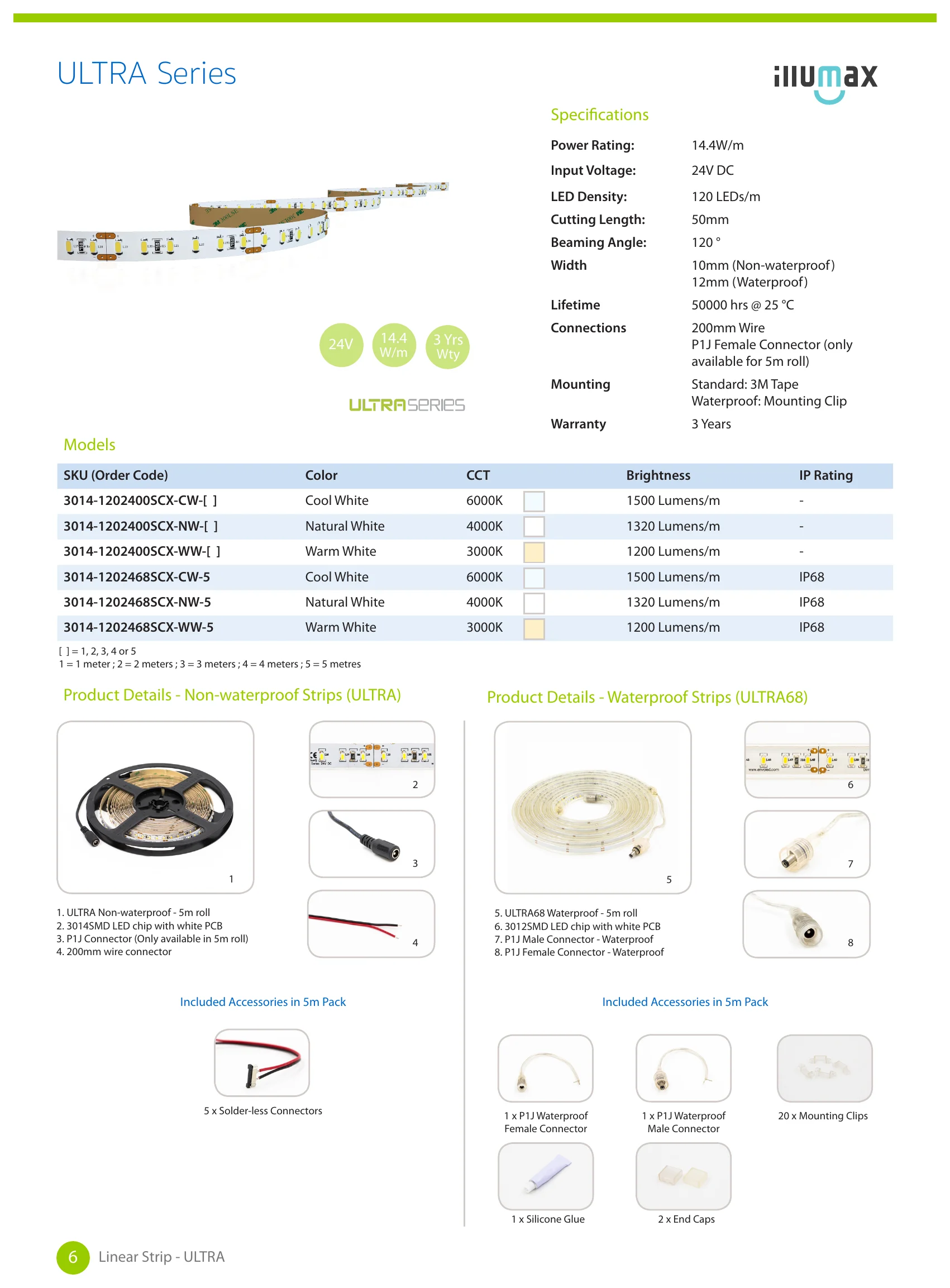

iLLUMAX LED Strip ULTRA Series 120LEDs/m 14.4W/m 24V Catalogue page
Catalogue page

Downloads

FAQ

What are the main specifications of the Illumax LED Strip ULTRA Series 120 LEDs/m 24V strip?

This LED strip is rated at 14.4W per metre and operates on 24V DC. It uses 120 LEDs per metre, has a 120 degree beam angle, and can be cut every 50mm. The strip is supplied in a 5m (16.4 ft) package and is backed by a 2-year warranty.

What light colour options are available in this LED strip family?

This parent product family is available in three colour temperatures: 3000K warm white, 4000K neutral white, and 6000K cool white. These options let buyers choose a warmer, more balanced, or crisper appearance while keeping the same core strip specifications. Power rating, voltage, dimming capability, and warranty remain consistent across the family.

Is this LED strip dimmable?

Yes, this LED strip family is listed as dimmable with optional dimming control. That means the strip itself supports dimming, but the required control gear is not included with the product. Buyers should confirm compatibility with their planned dimming setup before purchase.

Does this LED strip include a driver?

No, the driver is not included with this product family. The strip is designed for 24V DC input, so a suitable external driver must be selected separately. This is important for B2B buyers planning complete project bill-of-materials.

How bright is this LED strip family?

The child variants shown for this family are rated at 1500 lumens. That brightness figure is consistent across the listed warm white, neutral white, and cool white options. This helps buyers compare colour temperature options without changing expected output.

What kinds of projects is this LED strip suited for?

With 120 LEDs per metre, 14.4W per metre, and a slim strip format, this family is suited to linear interior lighting applications where even illumination is important. It is relevant for commercial and architectural uses such as display, cove, joinery, and accent lighting. The available colour temperature options also make it easier to match different project environments.
