Illumax

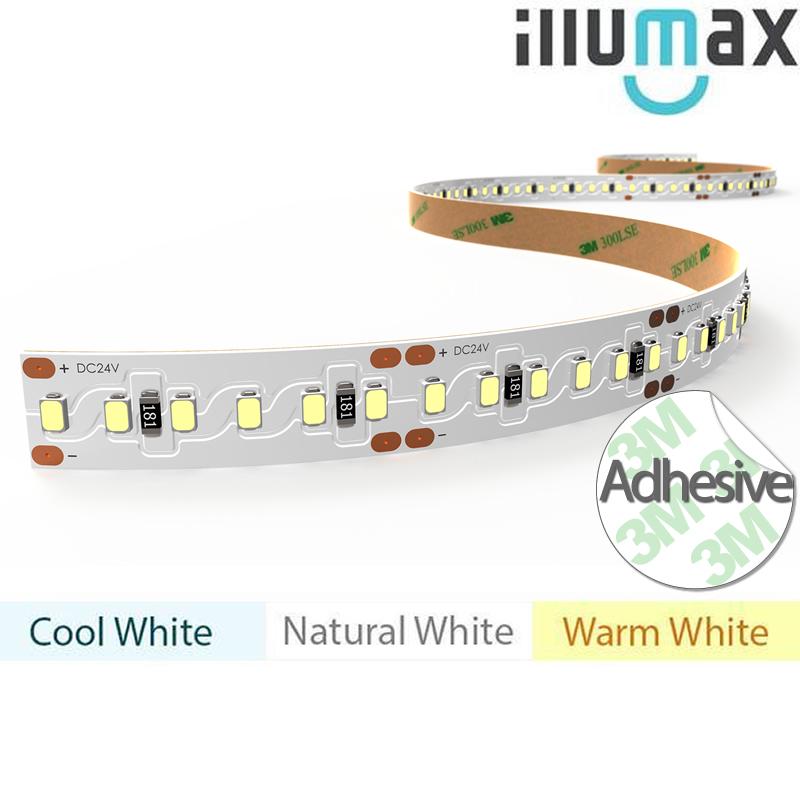

iLLUMAX LED Strip ARCH+ Series 240LEDs/m 19.2W/m 24V - CRI>90

SKU:
2216-2402400SCX-CW
Length
LED Colour
Please for Pricing
|

Description

Specifications:


  • Power Rating:      19.2W/m
  • Input Voltage:      24V DC
  • LED Density:        240 LEDs/m
  • Cutting Length:    25mm
  • Beaming Angle:   120 Degree
  • Width:                  8mm
  • Lifetime:               50000hrs
  • Mounting:            Standard: 3M Tape

Specifications
  • Brand
    Illumax
  • Series
    Standard Series
  • Power Rating
    19.2 Watt
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~25°C
  • Warranty
    2 Year
  • Width
    0.8 cm
  • Height
    0.2 cm
  • Weight
    0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the iLLUMAX ARCH+ Series 240LEDs/m LED strip?

This LED strip runs on 24V DC and is rated at 19.2W per meter. It uses 240 LEDs per meter, has an 8mm width, a 120 degree beam angle, and a 25mm cutting length. The product name specifies CRI greater than 90, and the listed lifetime is 50,000 hours.

What colour temperature options are available in this product family?

This parent family is available in three colour temperature options based on the child variants: 2700K, 4000K, and 6000K. That gives buyers a warm white, neutral white, or cool white choice within the same strip specification platform. The core electrical and physical specs remain consistent across those variants.

Is a driver included with this LED strip?

No, the driver is not included with this product family. Buyers should account for a separate compatible 24V DC driver when specifying the strip for a project. This applies across the variants shown for the parent model.

Can this LED strip be dimmed?

Yes, this product family is listed as dimmable with optional dimming control. That means dimming capability is supported, but the required control components are not included as part of the strip itself. Buyers should verify the full control stack separately when planning a dimmable system.

What types of applications is this LED strip suited for?

With 240 LEDs per meter, CRI greater than 90, and a 19.2W/m rating, this strip is positioned for projects that need dense, high-quality linear light output. It is well suited to architectural and commercial LED strip applications where consistent light appearance and colour quality matter. The 8mm strip width can also help where a narrower strip format is required.

How flexible is this LED strip for length planning on larger projects?

The strip can be cut in 25mm increments, which supports more precise length matching than products with longer cut intervals. That is useful for commercial and specification-led projects where runs often need to align closely with joinery, shelving, or architectural details. Buyers can use the parent family across multiple layouts while keeping the same base spec.

What mounting method and product longevity are listed for this LED strip?

The listed standard mounting method is 3M tape. The stated lifetime is 50,000 hours, and the warranty period is 2 years. These details are shown at the parent-product level and apply across the family data provided.
