Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Illumax

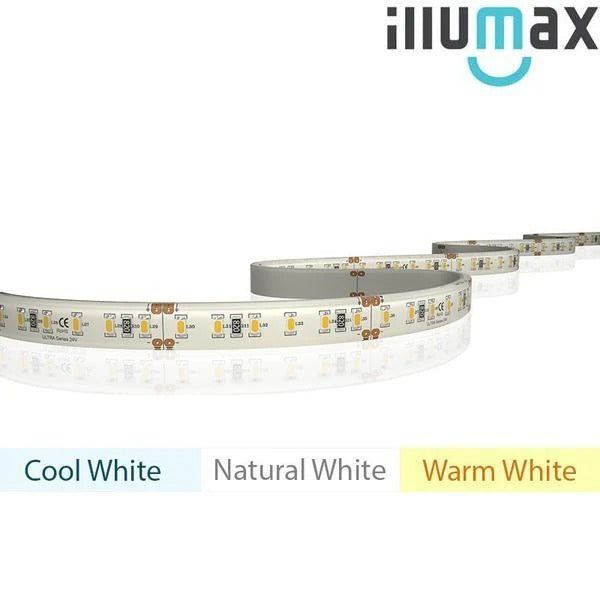

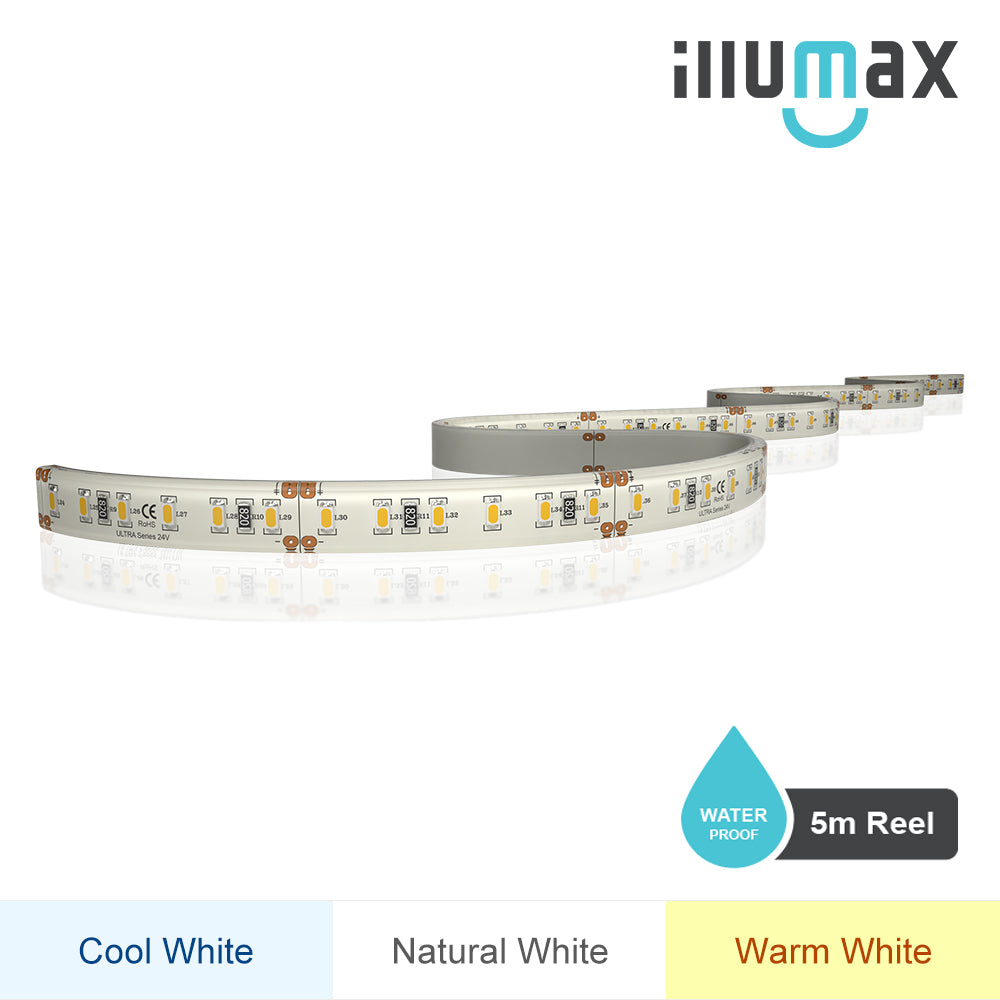

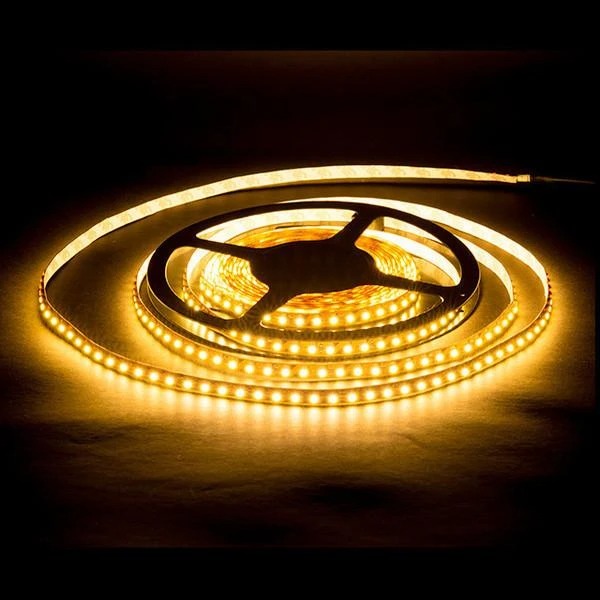

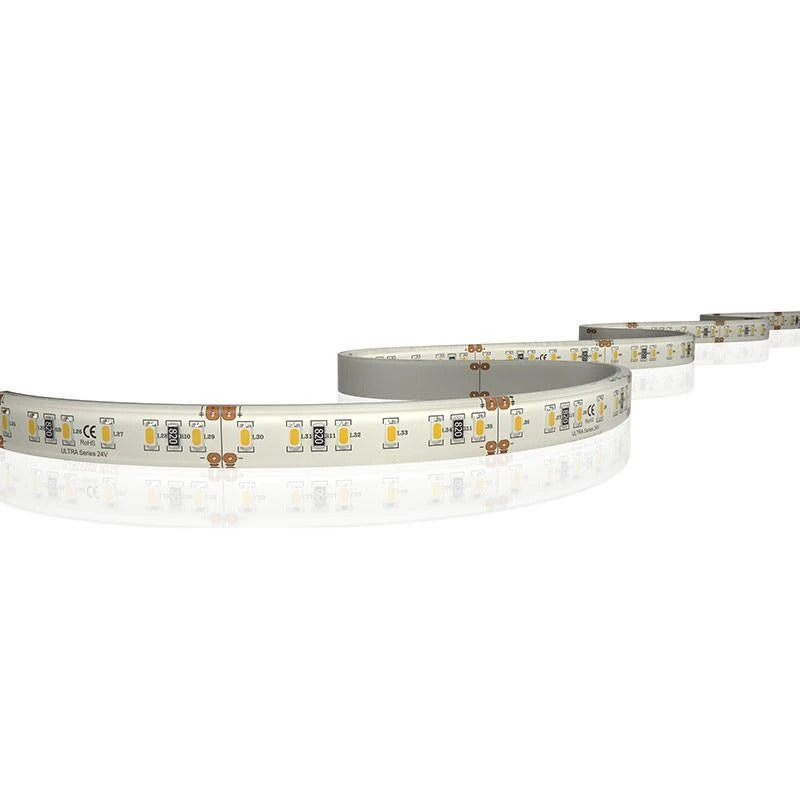

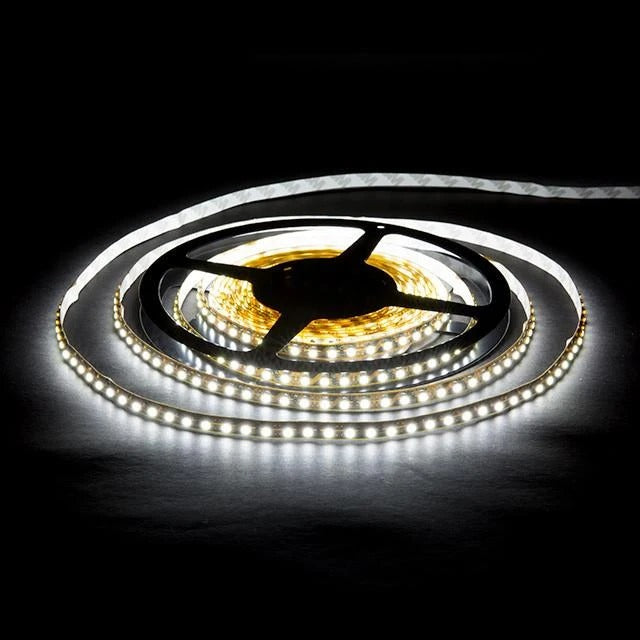

iLLUMAX LED Strip ULTRA Series 120LEDs/m 14.4W/m 24V - Waterproof - 5m Reel

SKU Z-3014-1202468SCX-WW-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 3 variants

Z-3014-1202468SCX-WW-5
LED Colour
3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

iLLUMAX LED Strip ULTRA Series 120LEDs/m 14.4W/m 24V - Waterproof - 5m ReelSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourWidthLight colour
Z-3014-1202468SCX-CW-5Cool White 6000K12 mmCool White
Z-3014-1202468SCX-NW-5Natural White 4000K12 mmNatural White
Z-3014-1202468SCX-WW-5Warm White 3000K11 mmWarm White

Specifications

Power Rating
14.4W/m
Input Voltage
24V DC
LED Density
120 LEDs/m
Cutting Length
50mm
Beam angle
120 °
Width
10mm (Non-waterproof) 12mm (Waterproof)
Lifetime
50000 hrs @ 25 °C
Connections
200mm Wire P1J Female Connector (only available for 5m roll)
Mounting
Standard: 3M Tape Waterproof: Mounting Clip
Warranty
3 Years
IP Rating
IP68
Test conditions and notes2
  1. [ ] = 1, 2, 3, 4 or 5
  2. 1 = 1 meter ; 2 = 2 meters ; 3 = 3 meters ; 4 = 4 meters ; 5 = 5 metres

Technical drawings

iLLUMAX LED Strip ULTRA Series 120LEDs/m 14.4W/m 24V - Waterproof - 5m Reel Catalogue page
Catalogue page

Downloads

FAQ

What applications is this iLLUMAX LED Strip ULTRA Series designed for?

This parent product is a waterproof 24V LED strip intended for outdoor linear lighting applications. It suits exterior strip and linear lighting projects where a 5m reel, high LED density, and low-profile strip format are required.

What colour temperature options are available in this LED strip family?

The child variants show three supported CCT options: 3000K warm white, 4000K neutral white, and 6000K cool white. These are the meaningful variant differences within this parent product family.

Is the driver included with this LED strip?

No. The product data identifies the driver status as driver not included, so a suitable 24V DC driver is required separately for the project specification.

Is this LED strip dimmable?

The product is listed as dimmable optional. Dimming should be planned with compatible control gear and a suitable 24V DC driver, as the driver is not included with the strip.

What are the key electrical specifications for the 5m reel?

This LED strip is rated at 14.4W per metre and operates on 24V DC input. For the full 5m reel, the listed parent power rating is 72W.

How dense is the LED layout on this strip?

The strip has a listed LED density of 120 LEDs per metre. It also has a 120 degree beam angle, supporting broad linear illumination across the product family.

What are the physical dimensions of this LED strip reel?

The parent product is listed as 5000mm long with an 11mm width and 5mm height. The description also lists a 50mm cutting length and standard 3M tape mounting.

What warranty and lifetime are listed for this LED strip?

The parent product has a listed warranty period of 3 years. The description lists a lifetime of 50,000 hours.
