Illumax

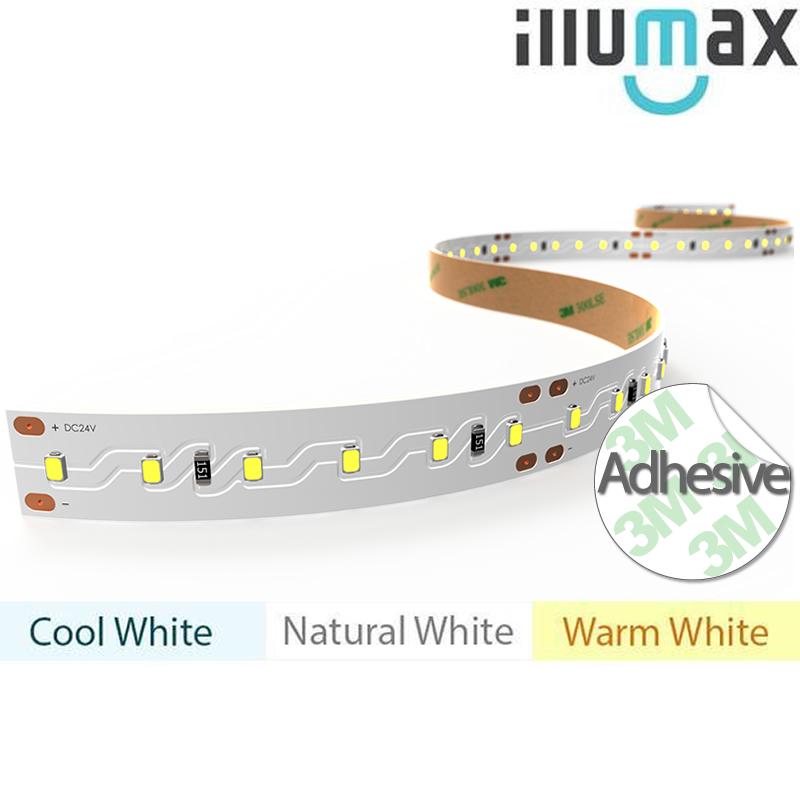

iLLUMAX LED Strip ARCH Series 120LEDs/m 9.6W/m 24V - CRI>90

SKU:
2216-1202400SCX-CW
Length
LED Colour
Please for Pricing
|

Description

Specifications:


  • Power Rating:      9.6W/m
  • Input Voltage:      24V DC
  • LED Density:        120 LEDs/m
  • Cutting Length:    50mm
  • Beaming Angle:   120 Degree
  • Width:                  10mm
  • Lifetime:               50000hrs
  • Mounting:            Standard: 3M Tape

Specifications
  • Brand
    Illumax
  • Series
    Standard Series
  • Power Rating
    9.6 Watt
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~25°C
  • Warranty
    2 Year
  • Width
    0.8 cm
  • Height
    0.2 cm
  • Weight
    0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the iLLUMAX ARCH Series 120LEDs/m LED strip?

This LED strip is rated at 9.6W per metre and runs on 24V DC input. It uses 120 LEDs per metre, has a 120 degree beam angle, and can be cut every 50mm. The product name also specifies CRI greater than 90 for strong colour rendering.

What colour temperature options are available in this parent product family?

This family is available in three colour temperature options: 3000K, 4000K, and 6000K. That gives buyers a warm white, neutral white, or cool white choice within the same ARCH Series format. The core electrical and product specs remain the same across those variants shown.

Does this LED strip include a driver, and is it dimmable?

The listed product data shows that a driver is not included with this LED strip. It is also marked as dimmable optional, which means dimming capability depends on using suitable compatible control gear. Buyers should account for the driver separately when specifying this product.

What type of projects is this LED strip suited for?

With a 24V DC input, 120 LEDs per metre, CRI greater than 90, and a 120 degree beam angle, this strip is suited to linear lighting applications where consistent light quality matters. It is relevant for commercial, retail, display, and architectural lighting uses. The available 3000K, 4000K, and 6000K options also make it easier to match different project requirements.

What can buyers expect for product lifespan and warranty?

The supplied product information lists a lifetime of 50,000 hours. The warranty period shown for this family is 2 years. These details are consistent with the parent model data and the child variants provided.

{ "id":8441511248171, "variants" :[{ "context":"default", "variant_id": 45705802416427, "sku":"2216-1202400SCX-CW", "inventory_qty" : 147, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 45705802514731, "sku":"2216-1202400SCX-NW", "inventory_qty" : 2, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 45705802875179, "sku":"2216-1202400SCX-WW", "inventory_qty" : 7, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 45713333059883, "sku":"Z-2216-1202400SCX-CW-5", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 45713333190955, "sku":"Z-2216-1202400SCX-NW-5", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 45713333453099, "sku":"Z-2216-1202400SCX-WW-5", "inventory_qty" : 1, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }
iLLUMAX LED Strip ARCH Series 120LEDs/m 9.6W/m 24V - CRI>90
Illumax

iLLUMAX LED Strip ARCH Series 120LEDs/m 9.6W/m 24V - CRI>90

Please for Pricing

Specifications:


Length

  • 100 Centimeter
  • 500 Centimeter

LED Colour

  • Cool White 6000K
  • Natural White 4000K
  • Warm White 3000K
