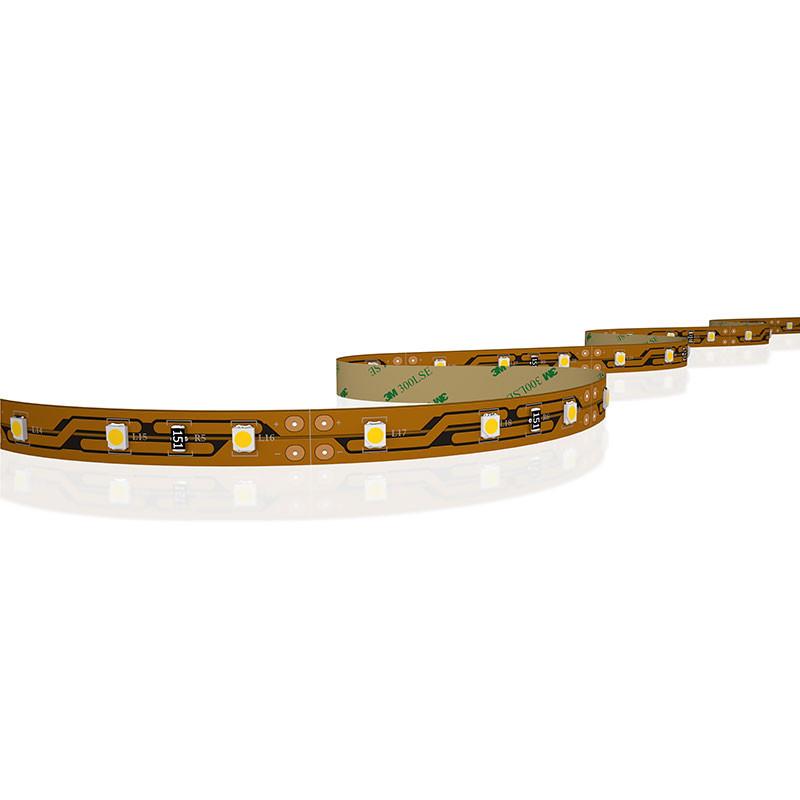

iLLUMAX LED Strip Basic Series 60LEDs/m 4.8W/m 12V
Please Login for Pricing
Description
Description
Specifications:
Power Rating: 4.8W/m
Input Voltage: 12V DC
LED Density: 60 LEDs/m
Cutting Length: 50mm
Beaming Angle: 120 Degree
Width: 8mm
Lifetime: 50000hrs
Mounting: Standard: 3M Tape
Specifications
Specifications
-
BrandIllumax
-
SeriesStandard Series
-
Power Rating4.8 Watt
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~25°C
-
Warranty2 Year
-
Width0.8 cm
-
Height0.2 cm
-
Weight0.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main specifications of the iLLUMAX LED Strip Basic Series 60LEDs/m 4.8W/m 12V?
This strip is rated at 4.8W per metre and runs on 12V DC input. It has 60 LEDs per metre, a 120 degree beam angle, an 8mm width, and can be cut every 50mm. The stated lifetime is 50,000 hours and the strip uses standard 3M tape mounting.
Does this LED strip include a driver, and can it be dimmed?
The driver is not included with this product family, so it is supplied as a 12V LED strip only. Dimming is optional, which means the strip can be used in dimmable setups when paired with suitable compatible control gear. Any driver or dimming selection should match the strip's 12V DC requirement.
What light colour options are available in this product family?
The child variant data shows white-light options in 3000K warm white, 4000K neutral white, and 6000K cool white. These variants share the same core platform, including 4.8W/m power rating, driver status, dimming option, and 2-year warranty. If you are choosing within the family, the main confirmed difference is colour temperature for those white versions.
What kind of applications is this LED strip best suited to?
This series is best suited to low-voltage linear lighting applications where a slim 8mm strip and even 60 LEDs/m layout are important. Its 4.8W/m load makes it a lower-power option for accent, display, joinery, and general decorative lighting runs. Buyers who need a compact strip with short 50mm cut points will typically find it easier to adapt to custom lengths.
What brightness, lifespan, and warranty can buyers expect from this strip?
The child variants list brightness at 340 lumens, while the parent product data states a 50,000-hour lifetime. The family also carries a 2-year warranty. Together, those details position it as a basic-series strip for projects that need an economical 12V LED strip with defined service-life and warranty coverage.
