Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Illumax

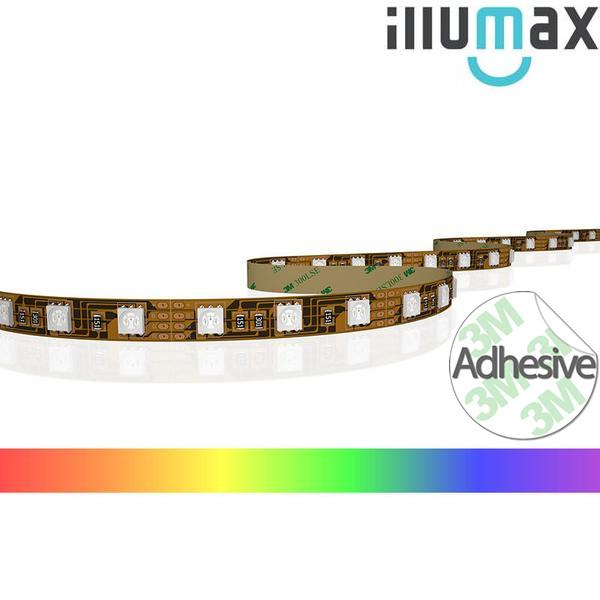

iLLUMAX LED Strip RAINBOW Series 60LEDs/m 14.4W/m 12V

SKU Z-5050-0601200SCX-RGB-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 2 variants

Z-5050-0601200SCX-RGB-5
Length
2 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

iLLUMAX LED Strip RAINBOW Series 60LEDs/m 14.4W/m 12VSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULengthMounting
5050-0601200SCX-RGB1 mStandard: 3M Tape Waterproof: Mounting Clips
Z-5050-0601200SCX-RGB-55 mStandard: 3M Tape, Waterproof: Mounting Clips

Specifications

Power Rating
14.4W/m
Input Voltage
12V DC
LED Density
60 LEDs/m
Cutting Length
50mm
Beam angle
120 °
Width
10mm (Non-waterproof) 12mm (Waterproof)
Lifetime
50000 hrs @ 25 °C
Connections
200mm Wire
Warranty
2 Years
Light colour
RGB

Recommended drivers (roll length: power, driver)

1 m roll
14.4W, GE25A12-P1J
2 m roll
28.8W, GS40A12-P1J
3 m roll
43.2W, GS60A12-P1J
4 m roll
57.6W, GS60A12-P1J
5 m roll
72W, GS90A12-P1J

Certifications & ratings

Certification marks
MEAN WELL
Test conditions and notes2
  1. [ ] = 1, 2, 3, 4 or 5
  2. 1 = 1 meter ; 2 = 2 meters ; 3 = 3 meters ; 4 = 4 meters ; 5 = 5 metres

Technical drawings

iLLUMAX LED Strip RAINBOW Series 60LEDs/m 14.4W/m 12V Catalogue page
Catalogue page

Downloads

FAQ

What are the main specifications of the iLLUMAX RAINBOW Series LED strip?

This LED strip family is rated at 14.4W per metre and runs on 12V DC input. It uses 60 LEDs per metre, has a 120 degree beam angle, a 10mm width, and can be cut at 50mm intervals.

Is a driver included with this LED strip?

No, a driver is not included with this product family. Buyers should allow for a suitable separate driver when specifying the strip for a project.

Is this LED strip dimmable?

Yes, this family supports dimming as an optional feature. Dimming capability depends on using compatible control gear selected for the strip.

What kind of applications is this LED strip suitable for?

This product family is suited to linear LED strip lighting applications where a 12V DC strip with 60 LEDs per metre is required. Its 10mm width and 50mm cutting length make it suitable for projects that need a compact strip format with flexible run lengths.

How bright is this LED strip family?

Based on the child variants provided for this parent family, the listed light output is 640 lumens. The child variants shown do not indicate a brightness difference within this family.

What is the expected service life and warranty for this LED strip?

The stated lifetime for this LED strip is 50,000 hours. The family also carries a 2 year warranty period.
